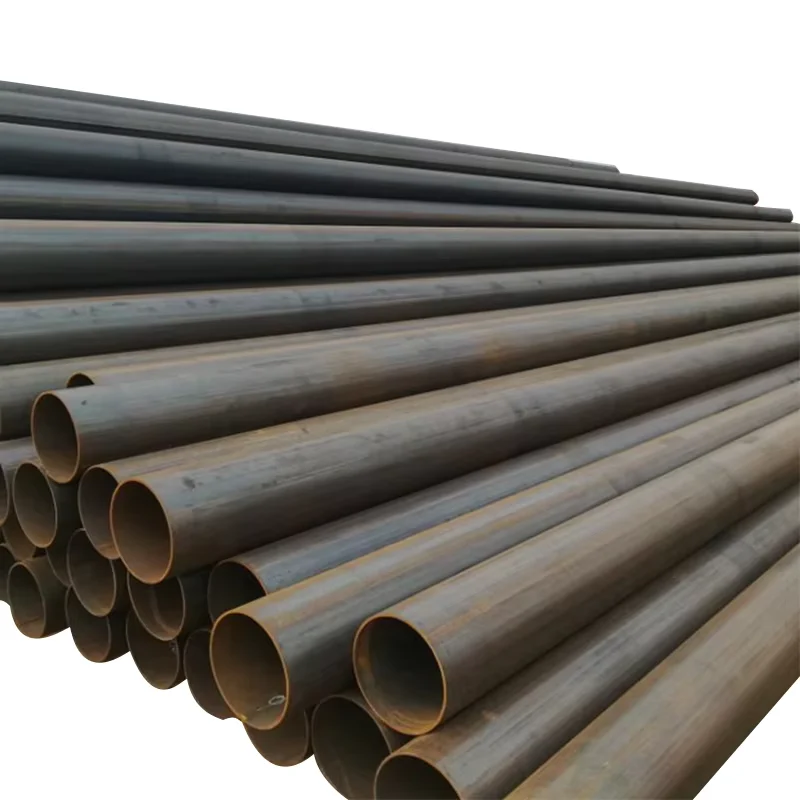

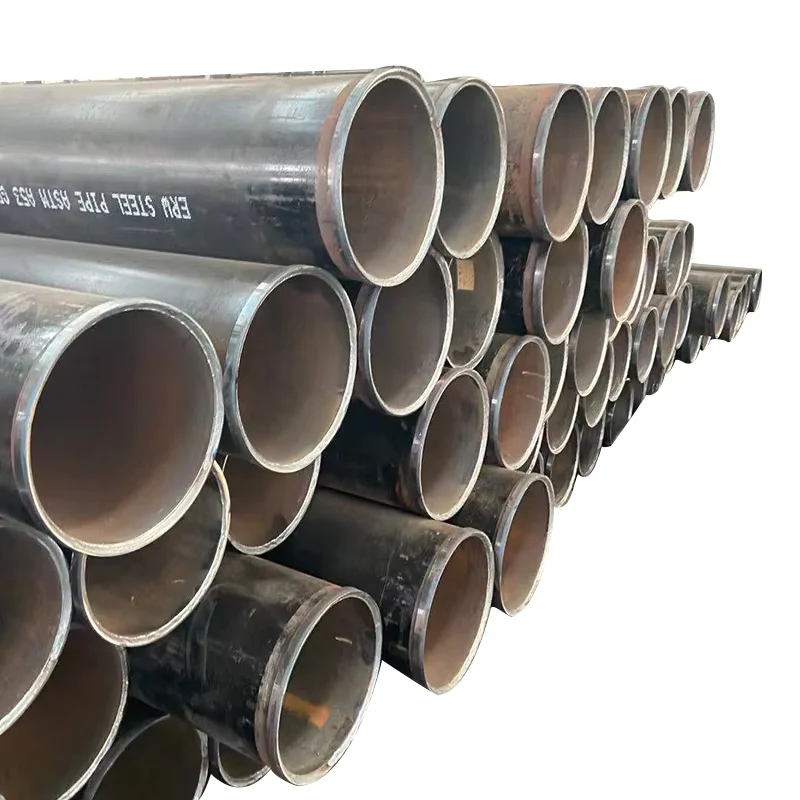

API 5L ASTM A53 ERW LSAW Steel Pipe OD 21.3-660mm Supplier

Description

Factory-Direct ERW Pipe Mill — API 5L PSL1/PSL2 and ASTM A53 ERW and LSAW pipes produced in-house with original mill test certificates per heat number.

Technical Specifications

Application Suitability

Where Negative Tolerance Turns a Pipeline Order Into a Cost Disaster

A 0.8 mm wall shortfall on an API 5L X52 line pipe means hydrotest failure at design pressure — and the entire batch gets rejected at site.

On a bridge project in Southeast Asia, I watched a container of LSAW piling pipe get held at the port because the mill test certificate listed 12.7 mm wall while caliper readings on random samples showed 11.4 mm. The contractor refused to accept. We had to fly out with ultrasonic thickness gauges, re-measure every single piece, and sort acceptable from rejected on the dock. [NEED_CITE: API 5L PSL2 wall thickness tolerance requirements] That sorting cost more than the margin on the order. Since then, every API 5L ERW steel pipe supplier shipment we handle goes through caliper measurement before loading, and the actual readings travel with the MTC — not just the theoretical values printed from the mill’s template.

Matching Wall Thickness and Grade to Pipeline Pressure Classes

Selecting the right combination of steel grade and wall thickness for an API 5L ERW steel pipe supplier order starts with the design pressure and the corrosion allowance the engineer has built into the specification. For low-pressure water lines, Q235 or S235 at 3–5 mm wall is usually sufficient and keeps material cost down. Move into onshore gas gathering or crude transmission, and X42–X52 with 8–14 mm wall becomes the working range — the higher yield strength lets you run thinner wall at the same pressure, reducing weight per meter without sacrificing integrity. For sour service or offshore conductors, X65–X80 with tighter chemistry controls and Charpy impact requirements at sub-zero temperatures is where the specification tightens further. We match each heat number to the end-use environment before releasing the pipe for coating.

Engineering Compliance Across API, ASTM, and EN Frameworks

Pipeline projects crossing multiple jurisdictions often require the same physical pipe to satisfy API 5L PSL2 for the operator, ASTM A53 for the local building code, and EN10217 or EN10219 for the European engineering consultant. [NEED_CITE: steel grade equivalence between API 5L, ASTM A53, and EN10217 standards] The chemical composition and mechanical property windows overlap but are not identical — a pipe that passes API 5L X52 may or may not fall within the S355 envelope depending on manganese content and carbon equivalent. We provide dual- or triple-standard MTCs where the test results actually satisfy all claimed standards, rather than stamping a certificate to match a purchase order. For EU-bound shipments, CE marking under the Pressure Equipment Directive or EN10219 structural hollow sections is prepared alongside the mill documentation so customs clearance does not stall at the port.

Reading the Steel Grade Ladder: GRB to X80

API 5L grades from GRB through X80 represent a yield strength progression designed for escalating pressure and service severity. GRB and X42 cover standard transmission at moderate pressures. X52 and X56 move into higher-pressure onshore gathering systems. X65–X70 are the workhorses of long-distance transmission pipelines where every kilogram of steel per kilometer matters. X80 is reserved for high-pressure trunk lines and deepwater applications where the cost premium is justified by weight savings over hundreds of kilometers. The EN S-series (S235, S275, S355) and GB L-series (L245, L360–L555) map roughly onto the same yield tiers but use different testing protocols — tensile, bend, and impact requirements vary by standard. ERW process suits OD up to 660.4 mm at competitive cost for transmission and structural use, while LSAW handles the heavier walls and larger diameters demanded by piling and high-pressure flowlines.

The Hidden Price of Unverified Mill Certificates

Ordering line pipe without verified traceability means the first sign of trouble arrives at hydrotest or at customs. A forged or loosely issued MTC will not survive SGS or BV inspection at the discharge port, and the resulting demurrage, re-inspection, and potential rejection cost multiples of the original price difference between a verified and an unverified API 5L ERW steel pipe supplier. [NEED_CITE: consequences of non-conforming line pipe in pipeline construction] Beyond the financial hit, a pipe with incorrect chemistry for sour service can fail in the field years after installation — a liability that no amount of paperwork can retroactively fix.

Why Project Teams Source API 5L ERW Steel Pipe Supplier Orders Through XJY Plate

Every heat of pipe we ship carries an original mill test certificate showing chemical composition, tensile results, and hydrotest pressure — traceable back to the coil source by heat number. Our in-house measurement team checks wall thickness with calibrated ultrasonic gauges on every bundle before release; if the reading deviates beyond the stated ±5% or ±10% tolerance, that piece does not load. We hold ready stock across the common API 5L grades from GRB to X52 and common EN grades S235–S355 in OD 21.3–660.4 mm, so urgent project needs do not wait for a new rolling campaign. Custom end finishing — plain end for coupling, beveled for butt-weld — and surface coating selection from bare black through FBE, 3PE, and coal tar epoxy are handled in-house, so the pipe arrives at site ready to weld and lay. Loading is planned by our heavy-cargo logistics team: wall thickness and OD determine whether we use open-top containers, flatbed trailers, or break-bulk vessels, and every stowage plan accounts for port crane capacity at the destination. ISO 9001:2015 and CE certification sit alongside SGS and BV third-party inspection availability for projects that require independent verification before shipment.

Documentation & Compliance

• Mill Test Certificate documenting API 5L X52 chemical composition, yield strength, tensile strength, and elongation per heat number
• CE certificate covering EN10217 and EN10219 compliance for European structural and pressure applications
• ISO 9001:2015 quality management certificate covering the full ERW and LSAW production and inspection process
• SGS or BV third-party inspection report verifying wall thickness, outer diameter, and visual quality before loading
• Full material traceability from coil heat number through finished pipe, supporting dual-standard MTC requests
• Export customs documentation including packing list, bill of lading, and certificate of origin for the destination country

Packaging, Loading & Delivery

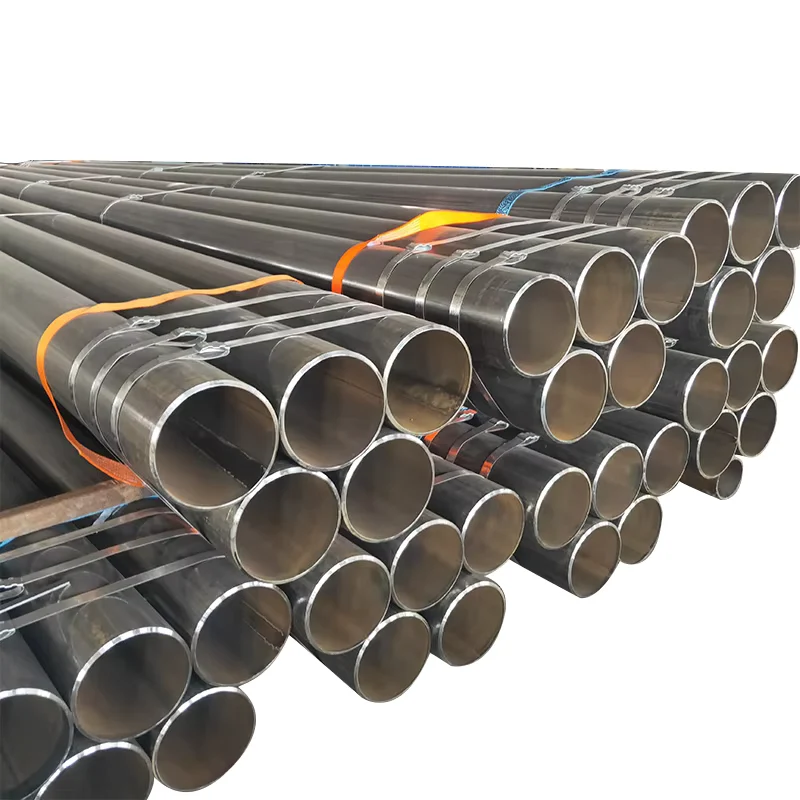

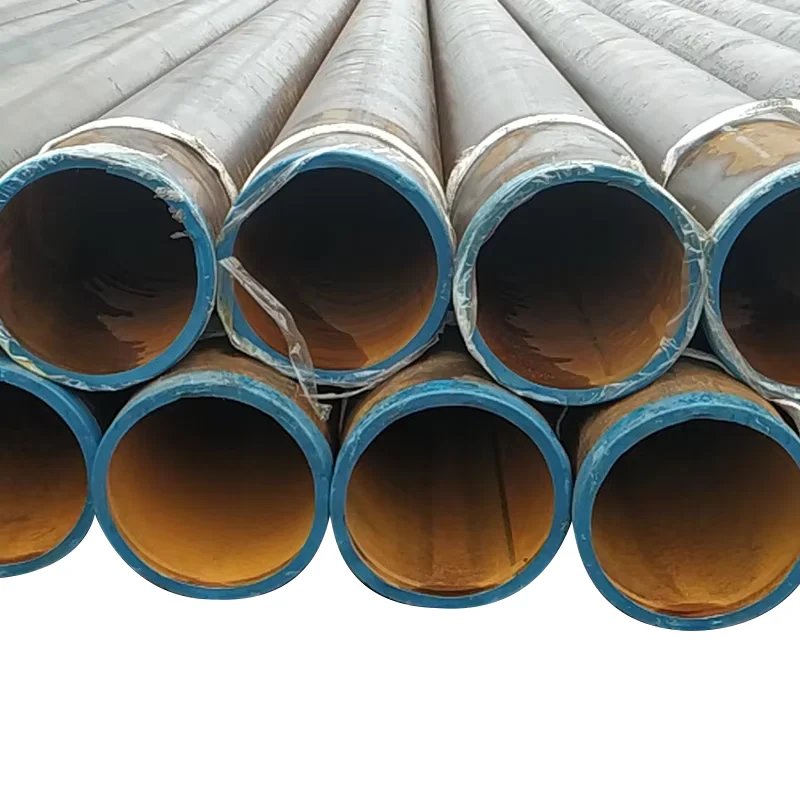

• API 5L X42–X52 ERW pipes bundled with steel strip bands and edge protectors to prevent coating damage on 3PE or FBE finished surfaces during ocean transit

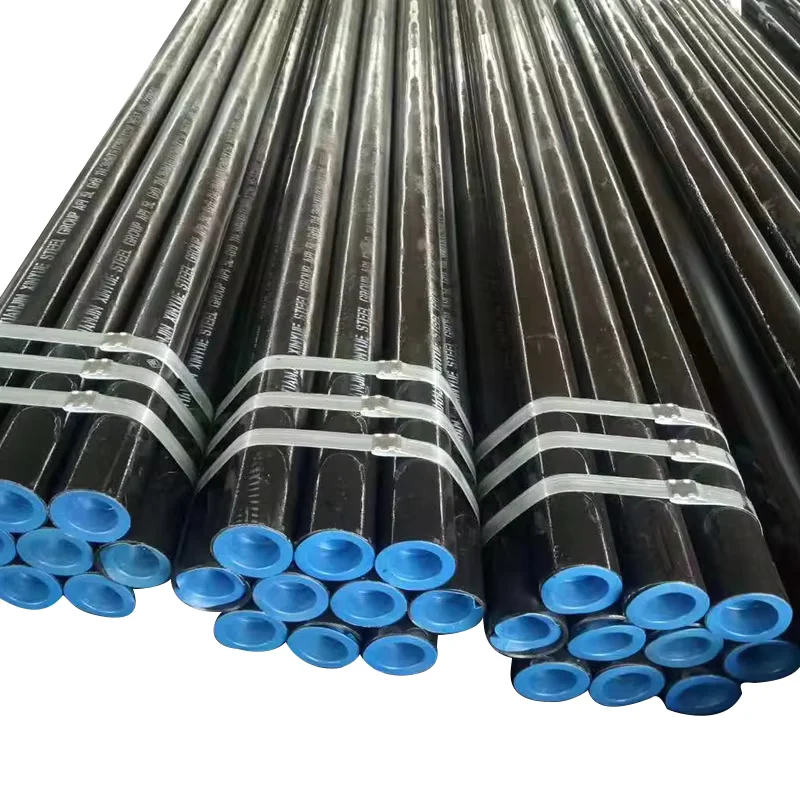

• Beveled-end pipes capped at both ends with plastic protectors to preserve the weld prep geometry across the 0.3–18 m SRL and DRL length range
• Open-top container or flatbed loading plans matched to OD and wall thickness, ensuring no axle or port crane overload at destination
• Heat number and steel grade stenciled on each pipe bundle alongside the bundle tag for on-site identification against the MTC
• FOB, CIF, and DDP shipping terms available, with break-bulk options for large-diameter LSAW piling pipe orders exceeding container capacity

Getting Your API 5L ERW Steel Pipe Supplier Quote Moving

Send us the steel grade, outer diameter, wall thickness, length, quantity, and destination port, and we return a detailed quotation within twelve hours — including material cost, any end finishing or coating charges, and the shipping term. We attach a sample mill test certificate from a comparable heat so you can verify the format and traceability before committing.

Request Your API 5L ERW Steel Pipe Quotation with Mill Test Certificate

Submit your specification — grade, OD, wall, length, quantity, and destination — to receive a detailed quote and sample MTC within 12 hours.

Shandong Xin Jiyuan Special Steel Tube Co., Ltd

Website: www.xjyplate.com

Tel: +86 531 8573 6315

Mobile/WhatsApp/WeChat: +86 188 5315 7756

Email: admin@xjyplate.com

Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China

Frequently Asked Questions

Q: How do API 5L, ASTM A53, and EN10217 grades relate to each other?

A: The three standards cover overlapping but distinct chemical and mechanical property windows. API 5L X42–X52 roughly aligns with ASTM A53 Grade B and EN10217 S275–S355 in yield strength range, but carbon equivalent, impact testing, and hydrotest requirements differ. We provide equivalence guidance and can issue dual-standard MTCs when the actual test results satisfy both specifications.

Q: How can I verify the mill test certificate before shipment?

A: Every MTC we issue includes the heat number, chemical composition, and mechanical test results for that specific batch. You can request SGS or BV third-party inspection at our facility before loading to independently verify wall thickness, diameter, and certificate accuracy against the physical pipe.

Q: When should I choose ERW over LSAW for my pipeline project?

A: ERW is the cost-effective choice for OD up to 660.4 mm in standard transmission, structural, and piling applications where the weld seam quality meets the specification. LSAW is preferred for heavier wall thicknesses above the practical ERW range and for large-diameter piling or high-pressure flowlines where the forming process provides better control over ovality and seam integrity.

Q: Which surface treatment suits offshore versus buried onshore service?

A: For buried onshore pipelines, 3PE coating provides the combination of fusion-bonded epoxy adhesion and polyethylene mechanical protection that resists soil stress and moisture. For offshore splash zones or submerged conductors, FBE or coal tar epoxy offers chemical resistance against saltwater exposure. Galvanized coating suits above-ground structural and utility applications where UV and atmospheric corrosion are the primary concerns.

Q: What is the minimum order quantity for API 5L ERW steel pipe?

A: The minimum order is 1 Ton, which allows project teams to order trial lengths or small-batch replacements without committing to a full container. For larger projects, we consolidate multiple grades and sizes into single shipments to optimize container loading and freight cost.
