Description
Direct Mill Supply for Offshore Structural Pipe — Every LSAW pipe is produced under API 5L and ASTM standards with original mill test certificates and third-party inspection before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A53 / API 5L Carbon Steel Pipe for Offshore Platform Structures |
| Product Type | Longitudinally Submerged Arc Welded (LSAW) Steel Pipe / Round Steel Pipe |
| Steel Grade | Q235, Q345, Q345B, Q345A, Q345C, Q195, Q215, ASTM A53A, ASTM A53B, ASTM A178C, ASTM A106B, API 5L Gr.B, X42, X46, X52, X60, X65, X70, X80, X100, 10#, 20#, 45#, ST37, ST37-2, DIN 1629 ST35, ST45, DIN 17175 ST35.8, 19Mn5, 16Mn, 15CrMo, Cr5Mo, 10CrMo910, 12CrMo, 13CrMo44, 30CrMo, T1, T2, T5, T9, T11, T12, T22, T91, T92, P1, P2, P5, P9, P11, P12, P22, P91, P92, A333 GR.1, GR.3, GR.6, GR.7, 40Cr, 45Mn2 |
| Standard | API 5L, ASTM A53, ASTM A106, ASTM A178, BS, DIN, GB, JIS |
| Section Shape | Round |
| Size Range | Outside Diameter 21.3–1420 mm |
| Wall Thickness | 2.11–300 mm |
| Length | 6 m / 6.4 m / 12 m |
| Technique | LSAW (Longitudinally Submerged Arc Welded) / JCOE |
| Surface Treatment | Non-oiled, Black / Cold Rolled finish |
| Tolerance | OD ±1%, WT ±10% |
| Ends | Plain / Beveled (as required) |
| Application | Offshore platform structures, fluid transportation, oil & gas pipelines, boiler systems, structural engineering, construction, machinery parts, chemical fertilizer industry |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Offshore & Marine Engineering | Jacket leg piles, subsea riser conductors, platform deck girders, splash zone structural members |
| Oil & Gas Pipeline | Onshore and offshore transmission lines, gathering systems, flow lines for crude and refined products |
| Petrochemical & Pressure Vessel | Heat exchanger tubes, boiler feedwater piping, high-temperature process lines |
| Structural & Civil Engineering | Bridge piers, heavy industrial building columns, crane booms, foundation piling |
What Thickness Deviation Costs on an Offshore Jacket Order
A 0.9 mm shortfall on a 12.7 mm wall pipe means rejection at port and weeks of delay.
Offshore platform projects operate under strict class society rules — Lloyd’s, DNV, ABS — and every structural member must match the design wall thickness within the tolerance band allowed by API 5L or ASTM A53. When a supplier ships pipe with hidden negative tolerance beyond the ±10% standard, the entire batch fails dimensional inspection at the destination yard. I watched a full container of LSAW pipe get held at a Southeast Asian port because the actual wall thickness measured below the minimum specified in the approved drawing. Cutting, re-welding, and air-freighting replacement sections added over twenty days to the installation schedule. [NEED_CITE: API 5L dimensional tolerance requirements for line pipe] For a LSAW carbon steel pipe for offshore platform structures supplier, controlling wall thickness at the mill and documenting it on the mill test certificate is not optional — it is the difference between a smooth installation and a costly stand-by.
Matching Large-Diameter LSAW Pipe to Jacket and Riser Design
Offshore jacket structures demand pipe that can handle both axial compression from deck loads and lateral forces from wave and current. LSAW pipe in the API 5L X42 through X100 range covers the strength grades specified by most EPC contractors for leg piles and conductor casings. The JCOE forming process allows wall thickness up to 300 mm and outside diameter up to 1420 mm, which fits the large-diameter, heavy-wall requirements of deep-water platforms. Beveled ends arrive ready for field welding, and our mill provides bevel angles per the project welding procedure specification — eliminating the need for secondary preparation at the fabrication yard.
Structural Code Compliance and Certification for Marine Service
Marine-grade structural pipe must satisfy both material standards and the inspection protocols of the class society overseeing the project. [NEED_CITE: DNV-OS-F101 submarine pipeline systems material requirements] API 5L pipe used as conductor casing or pile sleeve must carry a full chemical and mechanical test report traceable to the heat number. For projects destined to European-class yards, CE marking and EN standard equivalence documentation become mandatory for customs clearance. Our LSAW carbon steel pipe for offshore platform structures is produced under ISO 9001:2015 quality management, with every heat tested for tensile strength, yield point, elongation, and Charpy impact where required by the purchase specification. Third-party inspection by SGS or BV is arranged before shipment to verify dimensions, surface quality, and certificate accuracy.
Understanding API 5L X-Grades and LSAW Forming for Heavy Wall Pipe
The API 5L specification defines a series of minimum yield strength grades — from Gr.B at 248 MPa nominal through X42, X52, X60, X65, X70, X80, and up to X100 — each designed for progressively higher pressure or structural demand. For offshore platform structures, X52 and X60 are commonly specified for pile sections, while X65 and above serve subsea pipeline and high-stress conductor applications. The LSAW / JCOE process forms plate into round pipe through a step-by-step bending and submerged arc welding sequence, producing a single longitudinal seam. This method is preferred over seamless for large diameters above 508 mm and heavy walls, because it uses standard plate stock and maintains consistent mechanical properties across the weld zone when proper post-weld heat treatment is applied. [NEED_CITE: LSAW vs seamless pipe selection for offshore structural applications] Wall thickness tolerance of ±10% per API 5L means the buyer must verify actual measurements against the order specification — a step that separates a reliable LSAW carbon steel pipe for offshore platform structures supplier from one that ships marginal product.
The Hidden Price of Unverified Pipe on a Marine Project
Ordering pipe without verified mill test certificates or accepting unspecified negative tolerance creates risk that surfaces only during class society inspection or first load-out. Material that fails chemistry or impact testing at the destination yard cannot be re-certified — it must be cut out and replaced. Customs authorities in many importing countries now cross-check MTC heat numbers against mill databases; mismatched documentation leads to cargo detention. [NEED_CITE: steel mill test certificate verification requirements for import customs] For a project-critical LSAW carbon steel pipe for offshore platform structures supplier, providing original MTC with full heat traceability and arranging third-party pre-shipment inspection eliminates these risks before the pipe leaves the port.
Why Project Buyers Source LSAW Pipe From Xin Jiyuan
We operate as a dedicated plate and pipe supply division within Shandong Xin Jiyuan Special Steel Tube Co., Ltd, meaning every order goes directly to the mill without trading markup. Our inventory covers the full API 5L X-grade range and ASTM A53 / A106 specifications in sizes from 21.3 mm to 1420 mm OD, so project buyers can source pile pipe, conductor casing, and process piping from a single purchase order. Every heat is tested in our in-house laboratory, and the original mill test certificate — including chemical composition, tensile results, and impact values where applicable — is provided before or with shipment. We arrange SGS or BV third-party inspection at the buyer’s request, and our logistics team handles open-top container loading, flatbed transport, and break-bulk shipping for heavy-wall, large-diameter pipe that exceeds standard container dimensions. Custom cutting, beveling, and end preparation are performed per project drawing, reducing secondary work at the fabrication yard.
Documentation & Compliance
- Mill test certificate documenting API 5L X52/X65 chemical composition, yield strength, tensile strength, and Charpy impact results per heat number
- CE certificate and EN standard equivalence statement for projects requiring European class society approval
- ISO 9001:2015 quality management system certificate covering the full LSAW pipe production process
- SGS or BV third-party inspection report verifying outside diameter, wall thickness, length, and surface condition before shipment
- Full material traceability linking each pipe to its heat number, plate batch, and production date
- Export documentation including commercial invoice, packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery

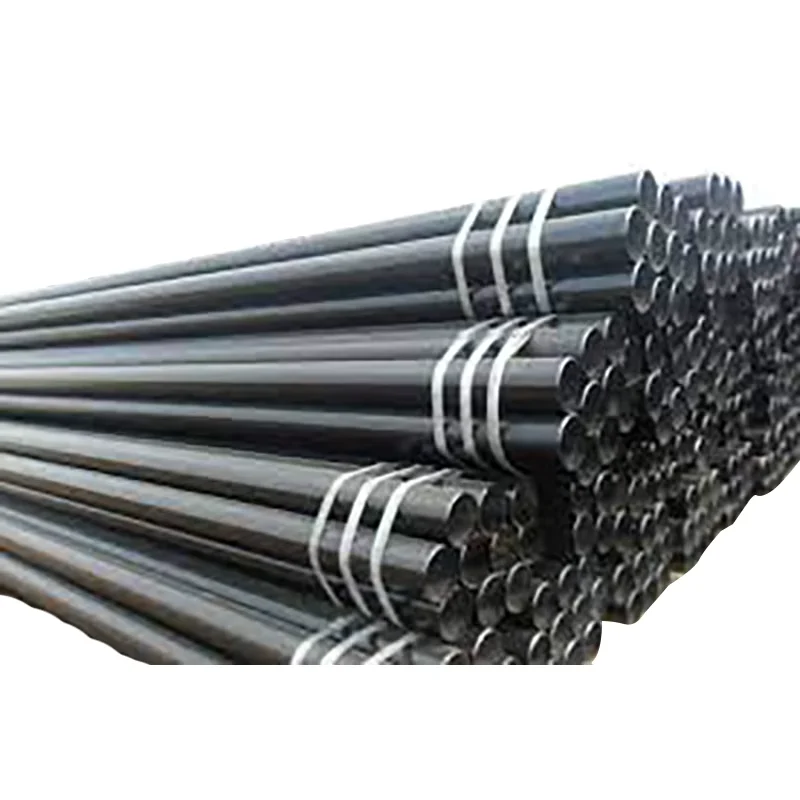

- LSAW pipe bundled with steel strips and edge protectors to prevent coating damage and maintain bundle integrity during ocean transit
- Black finish pipe oiled or non-oiled per buyer specification to control surface condition during storage and shipping
- Large-diameter pipe above 720 mm OD loaded in open-top containers or on flatbed trailers to accommodate wall thickness up to 300 mm
- Custom cutting to 6 m, 6.4 m, or 12 m lengths per project requirement, with beveled ends protected by plastic caps
- Heat number and steel grade stenciled on each pipe end for yard identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional heavy-cargo logistics coordination to destination port or site
Getting a Quote for Your Offshore Pipe Requirement
Send your specification — steel grade, outside diameter, wall thickness, length, quantity, and destination port — and receive a detailed quotation including material cost, processing fees, and shipping terms within twelve hours. We provide the original mill test certificate for your review before shipment, and we coordinate third-party inspection and loading supervision to ensure every pipe meets your project standard.
Request Your LSAW Pipe Quotation and Mill Test Certificate
Submit your pipe specification and destination to receive pricing, MTC preview, and delivery schedule.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjyplate.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjyplate.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between API 5L Gr.B and X42 for offshore platform pipe?
A: API 5L Gr.B has a lower minimum yield strength compared to X42, making it suitable for low-pressure structural applications. X42 and higher grades like X52, X60, and X65 are specified for pile sections and conductor casings where higher strength and improved toughness are required by the project engineering specification.
Q: How do you verify wall thickness tolerance on LSAW pipe?
A: Every pipe is measured at multiple points along the length using ultrasonic thickness gauges. The results are documented on the mill test certificate and verified by third-party inspection if requested. Tolerance is controlled within ±10% per API 5L standard.
Q: Can you provide beveled ends for field welding?

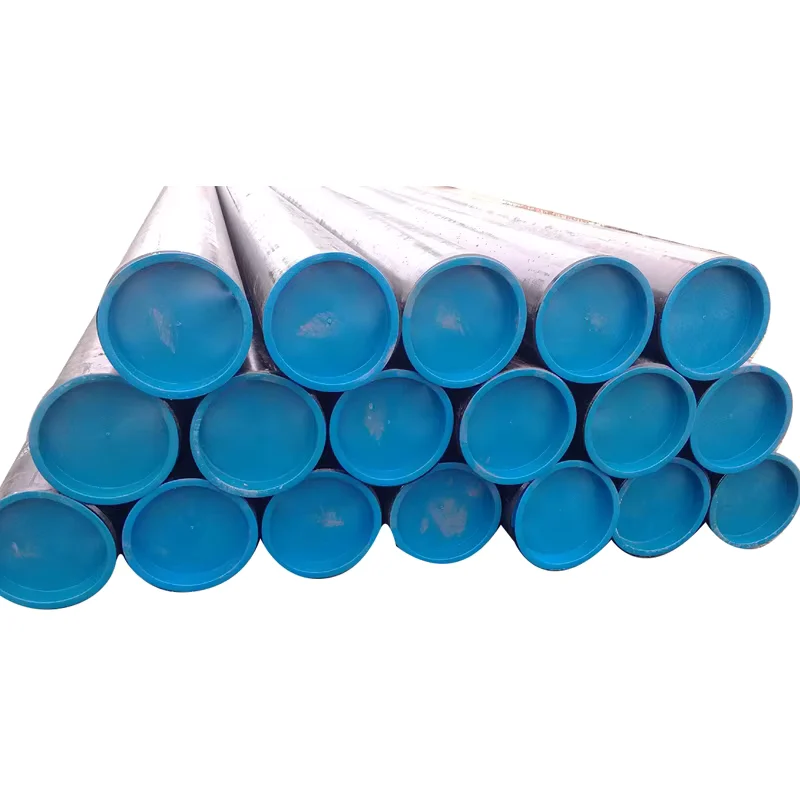

A: Yes. We provide beveled ends per the project welding procedure specification, including angle, root face, and transition dimensions. Bevels are cut at the mill and protected with plastic caps before shipping to prevent damage during transit.
Q: What third-party inspection is available before shipment?
A: We arrange SGS, BV, or Lloyd’s third-party inspection covering dimensional verification, visual surface inspection, wall thickness measurement, and mill test certificate review. The inspection report is provided to the buyer before the pipe leaves the port.
Q: How do you ship large-diameter, heavy-wall LSAW pipe?
A: Pipe with outside diameter above 720 mm or heavy wall thickness is loaded in open-top containers, on flatbed trailers, or via break-bulk vessel depending on the order quantity and destination. Our logistics team coordinates the loading plan to maximize container utilization while ensuring safe transit.
