Description

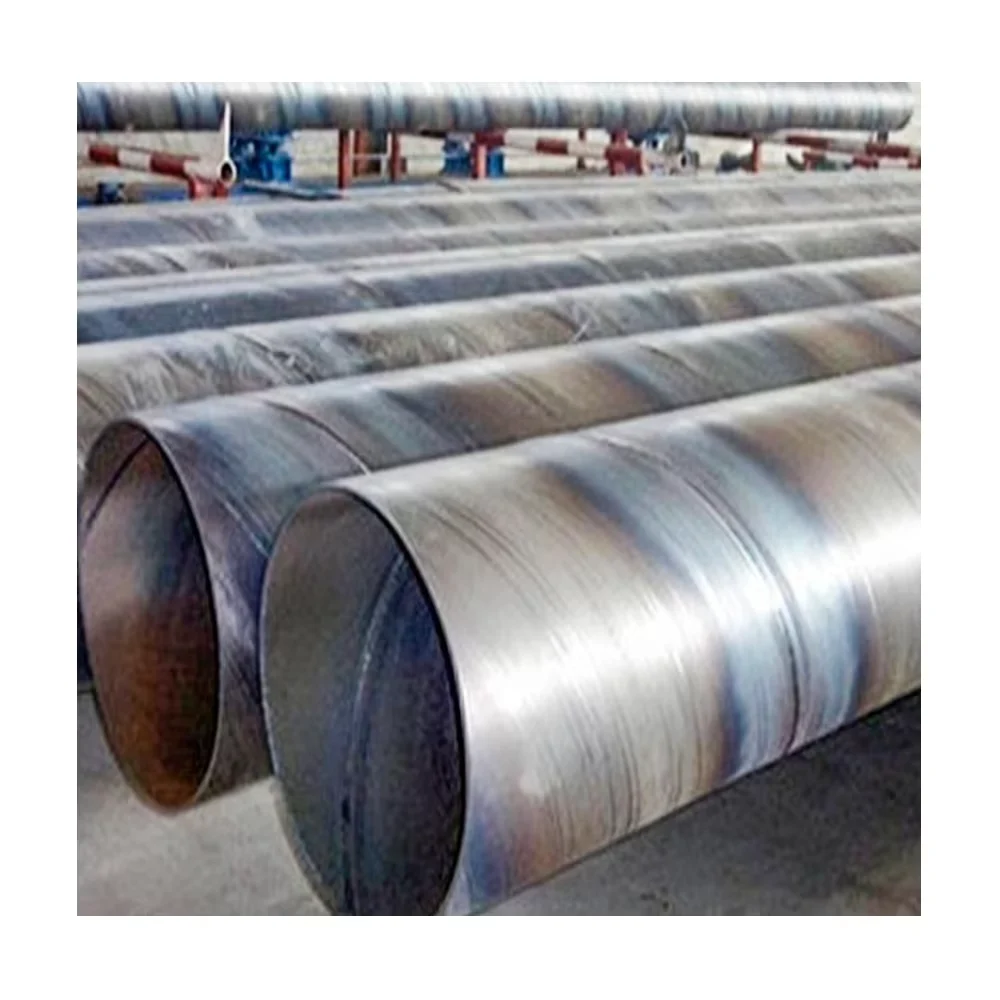

Direct Mill Supply for Pipeline Projects — Full-range API 5L PSL2 SSAW steel pipes from 219 mm to 3620 mm OD with 3PE anti-corrosion coating, shipped with original mill test certificates and third-party inspection support.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L PSL2 SSAW Steel Pipe |
| Product Type | Spiral Submerged Arc Welded (SSAW) Steel Pipe |
| Steel Grade | Q195, Q235, Q345, S235JR, S275JR, S355JR, GR.B, ST52, ST42, ST35, ST45, X42, X52, X56, X60, X70, X85 |
| Standard | API 5L (PSL1/PSL2), API 5CT, API 5DP, ASTM A53, ASTM A106, ASTM A513, EN 10217, EN 10219, DIN 1626, DIN 1629, BS 1387, BS 6363, GB/T 8162, GB 13296, GB 18248, ASME B36.19M |
| Section Shape | Round |
| Size Range | OD 219–3620 mm (8″–142″) |
| Wall Thickness | 5–30 mm (SCH10–SCH160, XS, XXS) |
| Length | 3–12 m (SRL / DRL / Fixed length) |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Black Painted / Varnish / Oiled / Galvanized / 3PE / 3LPE Anti-corrosion Coated |
| Ends | Beveled Ends with Plastic Caps (small OD) / Iron Protector (large OD) |
| Tolerance | ±1% |
| Application | Fluid transport / Gas delivery / Oil & gas pipelines / Submarine pipelines / Structure pipe / Chemical fertilizer pipe / Hydraulic pipe / Boiler pipe / Drill pipe |
| MOQ | 2 Tons |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Long-distance transmission pipelines, gathering lines, subsea flowlines |
| Marine Engineering | Submarine pipelines, offshore platform risers, port intake/outfall pipes |
| Infrastructure Construction | Bridge foundation piling, highway signpost structures, tunnel ventilation ducts |
| Petrochemical | Process piping, chemical fertilizer transport lines, refinery utility pipes |
| Water Conservancy | Large-diameter water transmission mains, irrigation conveyance, drainage outfalls |
Where Wall Thickness Tolerance Decides Project Acceptance on Subsea Pipeline Orders
A 1.2 mm negative tolerance deviation on API 5L PSL2 SSAW steel pipe can trigger full-container rejection at destination port inspection.
Pipeline engineers specify PSL2 precisely because submarine and long-distance transmission lines operate under continuous internal pressure and external marine corrosion. When wall thickness falls below the specified minimum due to uncontrolled negative tolerance, hydrostatic test failure rates climb and third-party inspectors flag the entire batch. I have seen procurement teams lose weeks because the mill certificate showed acceptable values while actual ultrasonic measurements told a different story. The cost is not just the rejected steel — it is the crane rental standing idle, the welding crew reassigned, and the project schedule pushed into monsoon season. [NEED_CITE: API 5L PSL2 mandatory testing requirements for submarine pipeline service]
How 3PE Coating Matches Submarine and Buried Pipeline Environments
Submarine pipelines face constant immersion in saline water, soil stress from seabed movement, and cathodic protection interaction. The 3PE coating system — epoxy primer, adhesive copolymer, and polyethylene outer layer — provides mechanical protection against rock impingement during backfilling and burial, while the fusion-bonded epoxy base resists cathodic disbondment. For API 5L PSL2 SSAW steel pipe in X52 to X70 grades, this coating combination extends service life in offshore conditions where bare or single-layer epoxy systems degrade within years. Our coating line applies 3PE at controlled temperature and thickness, with holiday detection tested before each shipment leaves the facility.
Engineering Compliance and Grade Selection for Pressure Transmission
Pipeline design codes such as ASME B31.4 and B31.8 require material certification conforming to API 5L PSL2 for gas and liquid hydrocarbon transmission. The PSL2 designation mandates additional testing beyond PSL1: Charpy impact toughness at specified temperatures, stricter chemical composition limits on carbon equivalent, and mandatory hydrostatic testing of every pipe length. For submarine crossings, designers typically select X52 or X60 grades to balance weldability with pressure containment. Steel grade equivalence between API 5L, EN 10217, and GB/T 9711 must be verified through mill documentation — assuming interchangeability without cross-reference tables risks non-conformance during regulatory audit. [NEED_CITE: ASME B31.8 material requirements for gas transmission pipelines] Fixed-length cutting to 12 m DRL reduces field welding joints, lowering both weld inspection costs and potential leak paths in subsea environments.
Understanding SSAW Manufacturing and Grade Coverage for Pipeline Service

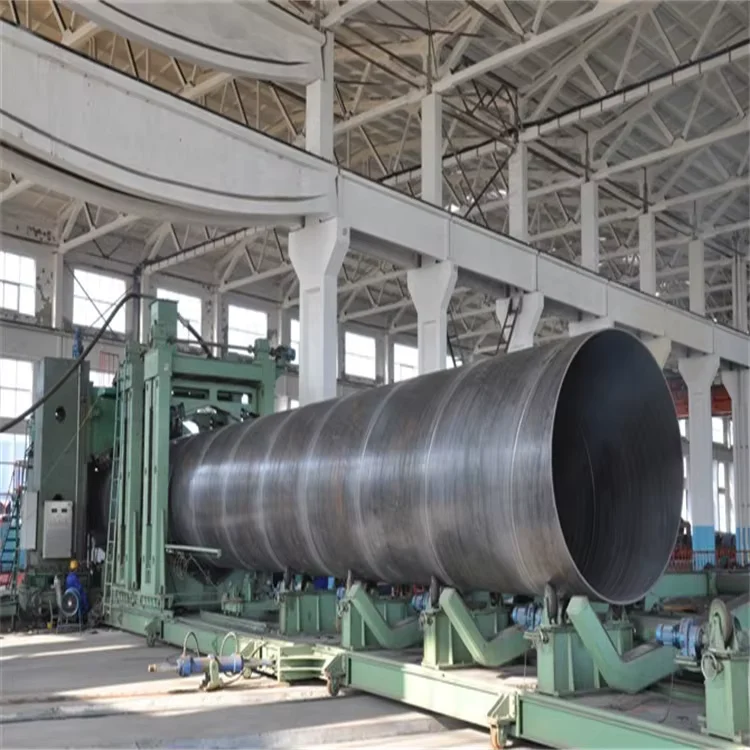

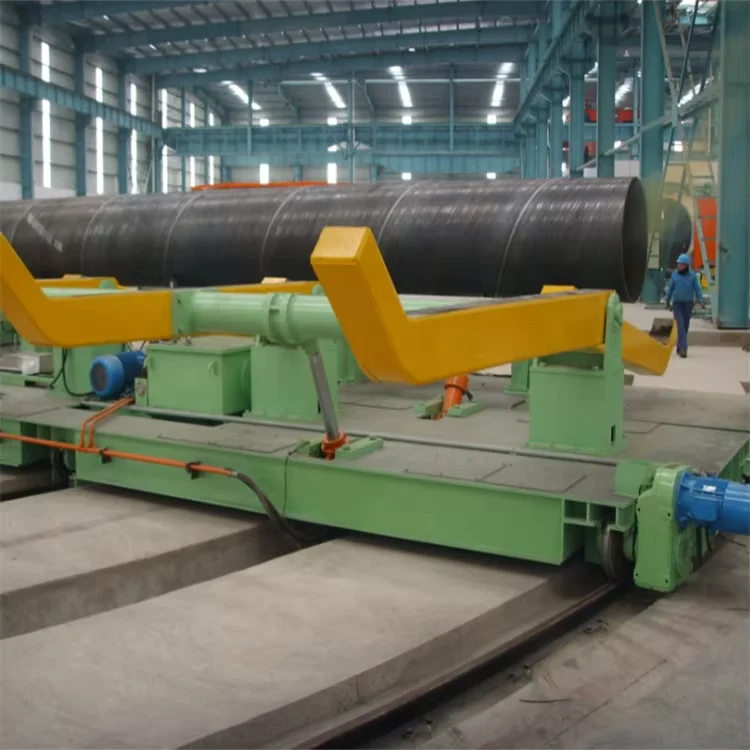

Spiral submerged arc welding allows production of large-diameter pipes from 219 mm up to 3620 mm using relatively narrow strip coil, making it cost-effective for projects requiring varied OD in moderate quantities. The helical weld seam distributes stress differently than longitudinal welds, which suits applications where external coating integrity matters more than ultra-high-pressure containment. For API 5L PSL2 SSAW steel pipe, the manufacturing process includes X-ray inspection of 100% weld length and hydrostatic testing at pressures calculated per the specified grade. Steel grades from X42 through X85 cover transmission pressures from low-pressure gathering lines to high-pressure cross-country pipelines. The Q-series grades (Q235, Q345) serve structural piling and water transmission where API certification is not contractually required, while S-series European grades (S235JR, S355JR) match EN 10217 specifications for projects tendered under European engineering standards.
Hidden Costs When Mill Certificates Do Not Match Physical Reality
Procuring API 5L PSL2 SSAW steel pipe without verified traceability creates downstream liabilities that surface only at destination inspection or during hydrostatic commissioning. Chemical composition outside PSL2 carbon equivalent limits affects weldability, causing cold cracking in field girth welds that pass visual inspection but fail radiographic examination. Wall thickness below minimum specification reduces pressure rating, forcing engineers to derate the entire pipeline segment or replace sections already buried. Customs authorities in importing countries increasingly cross-check mill certificates against physical markings — heat number mismatches trigger shipment holds that delay project commissioning by weeks. [NEED_CITE: steel pipe customs clearance documentation requirements]
Procurement Confidence Through Verified Documentation and Inspection
Every API 5L PSL2 SSAW steel pipe we supply ships with original mill test certificates showing heat number, chemical composition, and mechanical test results traceable to the production coil. Our in-house laboratory performs dimensional verification, coating thickness measurement, and holiday detection before release. For projects requiring independent verification, we coordinate SGS or BV third-party inspection at our facility, with reports issued before container loading. The ±1% tolerance on wall thickness is maintained through controlled forming and verified by ultrasonic measurement at multiple points per pipe length. Custom cutting to fixed lengths between 3 m and 12 m reduces field welding requirements, while beveled ends with iron protectors preserve edge preparation during ocean transit. Professional heavy-cargo loading using flatbed trailers and open-top containers prevents coating damage from improper handling.
Documentation & Compliance
- Mill test certificate documenting X52/X60 chemical composition, yield strength, and Charpy impact values per API 5L PSL2 requirements
- CE certificate confirming conformity with EN 10217 for pressure purposes when specified in project documentation
- ISO 9001 quality management certificate covering SSAW manufacturing, coating application, and inspection processes
- SGS or BV third-party inspection report verifying wall thickness, coating adhesion, and dimensional tolerance before shipment
- Material traceability sheet linking each pipe length to heat number, coil identification, and production date
- Export documentation including packing list, bill of lading, and certificate of origin for customs clearance at destination port
Packaging, Loading & Delivery
- API 5L PSL2 SSAW steel pipe bundled with high-tensile steel strips at intervals preventing bundle separation during crane handling
- 3PE coated surfaces protected with edge guards and separation mats to prevent coating abrasion during ocean transit
- Large-diameter pipes above 1500 mm OD loaded on flatbed trailers or in open-top containers with wooden cradles preventing point contact
- Fixed-length cutting to 12 m DRL optimized for 40-foot open-top container loading, maximizing payload per shipment
- Heat number and steel grade stenciled on each pipe end with weather-resistant marking paint for site identification
- FOB, CIF, and DDP shipping terms available with professional break-bulk coordination for project cargo exceeding container capacity
Starting Your Pipeline Pipe Procurement
Submit your specification sheet including API 5L grade requirement, outer diameter, wall thickness, length, coating type, and destination port to receive a detailed quotation with mill test certificate sample. For submarine or high-pressure transmission applications, we provide technical clarification on PSL2 testing scope and coating system selection before contract execution. Third-party inspection coordination and shipping plan confirmation proceed after deposit, with tracking updates through final delivery.
Frequently Asked Questions
Q: What is the difference between API 5L PSL1 and PSL2 for SSAW steel pipe?
A: PSL2 requires additional mandatory testing including Charpy impact toughness at specified temperatures, stricter limits on chemical composition particularly carbon equivalent for weldability, and hydrostatic testing of every pipe length. PSL1 covers standard mechanical properties and chemical composition without mandatory impact testing. Submarine and high-pressure transmission pipelines typically specify PSL2.
Q: Which surface treatment suits submarine pipeline environments best?
A: The 3PE coating system provides superior protection for submarine service, combining fusion-bonded epoxy for cathodic disbondment resistance with polyethylene outer layer for mechanical protection against rock impingement and abrasion during burial. Single-layer epoxy or bare pipe with cathodic protection alone may suffice for short crossings in benign seabed conditions.
Q: How do you verify steel grade equivalence between API 5L, EN, and GB standards?
A: We provide cross-reference documentation showing chemical composition and mechanical property alignment between API 5L grades (X42, X52, X60, X70), EN 10217 grades (L245, L290, L360, L415), and GB/T 9711 equivalents. Mill test certificates confirm actual test values meet the specified standard requirements regardless of designation system used in procurement documents.
Q: What is the minimum order quantity for custom length and wall thickness in SSAW pipes?
A: The MOQ is 2 Tons for standard specifications from ready stock. Custom cutting to fixed lengths between 3 m and 12 m or non-standard wall thickness within the 5–30 mm range requires coordination with production scheduling, with typical lead times confirmed after specification review.
Q: How are large-diameter SSAW pipes packed for container or break-bulk shipping?
A: Pipes up to 1500 mm OD load in 40-foot open-top containers with wooden cradles and steel strip bundling. Diameters above 1500 mm or project quantities exceeding container capacity ship via flatbed trailer to port for break-bulk stowage. All 3PE coated pipes receive edge protection and separation materials to preserve coating integrity during transit.
Request Your API 5L PSL2 SSAW Steel Pipe Quotation
Send your pipe specification including grade, diameter, wall thickness, coating requirement, and destination to receive pricing with mill test certificate documentation.
