Description
Direct Mill Supply for LSAW Pipeline Projects — Every API 5L X42 X52 X60 LSAW steel pipe ships with original heat-number traceable MTC and third-party inspection availability from Jinan factory stock.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L X42 X52 X60 LSAW Steel Pipe |
| Product Type | LSAW (Longitudinal Submerged Arc Welded) Steel Pipe |
| Steel Grade | API 5L Gr.B / X42 / X52 / X60 (PSL1 / PSL2) |
| Standard | API 5L / GB/T 9711 / ASTM A252 |
| Section Shape | Round |
| Outer Diameter | Large Diameter (JCOE forming method) |
| Length | 6 m / 6.4 m / 12 m (customizable) |
| Technique | LSAW (JCOE High Roundness) |
| Surface Treatment | 3PE / FBE / Bare / Concrete Weight Coating |
| Tolerance | ±0.5% |
| Ends | Beveled Ends with Steel Protector |
| NDT Test | 100% Ultrasonic & X-ray Test |
| Impact Test | Low Temperature Impact Test (-20°C) |
| Straightness | < 0.2% |
| Weld Reinforcement | 0.5 – 3.0 mm |
| Application | Oil & Gas Pipeline / Offshore Deep Sea Pipeline / Jacket Platform / Piling / Fluid Transport |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas Transmission | Onshore and offshore hydrocarbon pipeline networks, gathering lines, trunk lines |
| Offshore Engineering | Jacket platform legs, deep sea subsea pipelines, riser supports |
| Marine & Port Infrastructure | Steel piling for wharfs, quay walls, bridge foundation piles |
| Industrial Fluid Transport | Water conveyance mains, slurry pipelines, process plant piping |
Why NDT Coverage on LSAW Welds Determines Pipeline Rejection Rates
A single untested weld seam can void an entire pipeline section under API 5L audit.
Procurement teams sourcing API 5L X52 X60 LSAW steel pipe for pressurized transmission systems routinely encounter suppliers who claim NDT compliance but cannot produce readable radiographic films for specific heat numbers. The gap between stated certification and verifiable test records creates cascading failures: field welders discover internal seam defects during construction, third-party inspectors flag missing UT reports, and project owners halt acceptance until full re-inspection is completed [NEED_CITE: API 5L PSL2 NDT requirements for longitudinal seam welds].
Beyond weld integrity, large-diameter LSAW pipes formed via JCOE method demand strict roundness control. Pipes exceeding straightness tolerance cause field-fit problems during tie-in welding, forcing contractors to cut and re-bevel on-site — adding days to critical path schedules and introducing heat-affected zone risks in already-tested material.
Matching JCOE-Formed LSAW Pipe to Offshore and Transmission Environments
Large-diameter API 5L X52 X60 LSAW steel pipe produced through JCOE forming delivers the dimensional consistency required for offshore jacket platforms and long-distance transmission pipelines where field welding conditions are unpredictable. The JCOE process — pressing, bending, and expanding the plate into a round cross-section — achieves straightness below 0.2%, which directly reduces fit-up gaps during girth welding on deck or in trench. For subsea and splash-zone applications, 3PE coating provides mechanical damage resistance during lay-barge handling, while concrete weight coating counters buoyancy in deep-water installations.
Engineering Compliance and Grade Selection for Pressurized Service
API 5L PSL2 specification imposes stricter chemical composition limits and mandatory Charpy impact testing compared to PSL1, making PSL2 the default choice for sour service and low-temperature environments. The -20°C impact test requirement in our production protocol addresses brittle fracture risk in arctic and deep-sea deployments where ambient and operational temperatures converge below ductile-to-brittle transition thresholds [NEED_CITE: API 5L PSL1 versus PSL2 chemical and toughness requirements]. For piling and non-pressure structural applications, PSL1 grades offer cost efficiency without sacrificing weldability. Compliance with GB/T 9711 enables dual-market documentation for projects spanning Chinese EPC contractors and international owners, while ASTM A252 coverage supports piling specifications in North American port developments.
Understanding Steel Grade Progression and Coating Selection in API 5L LSAW Pipe
The API 5L grade designation system — from Gr.B through X42, X52, to X60 — reflects minimum yield strength targets in ksi units, with each increment enabling higher internal operating pressures or thinner wall designs for equivalent pressure ratings. X60 pipe allows engineers to reduce wall thickness versus X42 for the same design pressure, lowering material weight per joint and reducing handling loads during offshore installation. However, higher-strength grades demand tighter control of carbon equivalent values to maintain weldability, particularly for field girth welding where preheat conditions may be limited.
Surface protection selection follows service environment logic: bare pipe suits temporary above-ground installations or inland projects with scheduled coating after burial; FBE (fusion-bonded epoxy) provides corrosion resistance for buried onshore lines at moderate cost; 3PE (three-layer polyethylene) combines FBE adhesion with polyethylene mechanical protection for rocky backfill and directional drilling pulls; concrete weight coating adds negative buoyancy for subsea stability. Each coating type requires specific end preparation and handling protocols to avoid damage during loading and transit.
Hidden Costs When LSAW Pipe Traceability Fails at Project Handover
Pipes arriving without readable heat numbers or MTC referencing actual chemical composition force project quality teams into impossible positions: accept undocumented material and assume liability, or reject and face replacement lead times that breach contract milestones. Under API 5L and EN 10219 frameworks, material certificates must trace each joint back to its steelmaking heat, with mechanical test results matching the specific pipe delivered — not a representative sample from a different production campaign [NEED_CITE: material traceability requirements in API 5L and EN pipeline standards]. Negative tolerance abuse compounds the problem: pipes delivered at the lower edge of wall-thickness allowance reduce corrosion allowance and may fail hydrostatic proof testing at site, triggering full-batch rejection after thousands of kilometers of ocean freight.
Procurement Confidence Through Factory-Direct Verification
Our Jinhaiyuan LSAW pipe division maintains direct mill relationships that eliminate trading-layer markup while preserving full documentation chains. Every API 5L X42 X52 X60 LSAW steel pipe leaving our facility carries an original mill test certificate listing heat number, chemical composition, tensile results, and Charpy impact values — verifiable against the pipe’s stamped markings. We operate dedicated heavy-cargo loading protocols: pipe ends receive steel protectors before bundling, coating surfaces avoid contact with bare steel straps, and container weight distribution follows flatbed and open-top configurations proven across Middle East and Southeast Asian project shipments. Third-party inspection through SGS or BV is available at our facility before container sealing, providing independent verification that satisfies project owner QA requirements without delaying dispatch.
Documentation & Compliance
- Mill Test Certificate per API 5L documenting X42/X52/X60 chemical composition, yield strength, tensile strength, and -20°C Charpy impact energy per heat number
- API 5L Monogram certification confirming manufacturing system compliance for PSL1 and PSL2 product ranges
- ISO 9001:2015 quality management certificate covering LSAW pipe production, coating application, and NDT processes
- SGS or BV third-party inspection report available pre-shipment covering dimensional verification, coating thickness measurement, and NDT report audit
- Full material traceability linking each pipe joint to its steelmaking heat through stamped heat numbers and matching MTC records
- Export documentation package including commercial invoice, packing list, ocean bill of lading, and certificate of origin for destination customs clearance
Packaging, Loading & Delivery

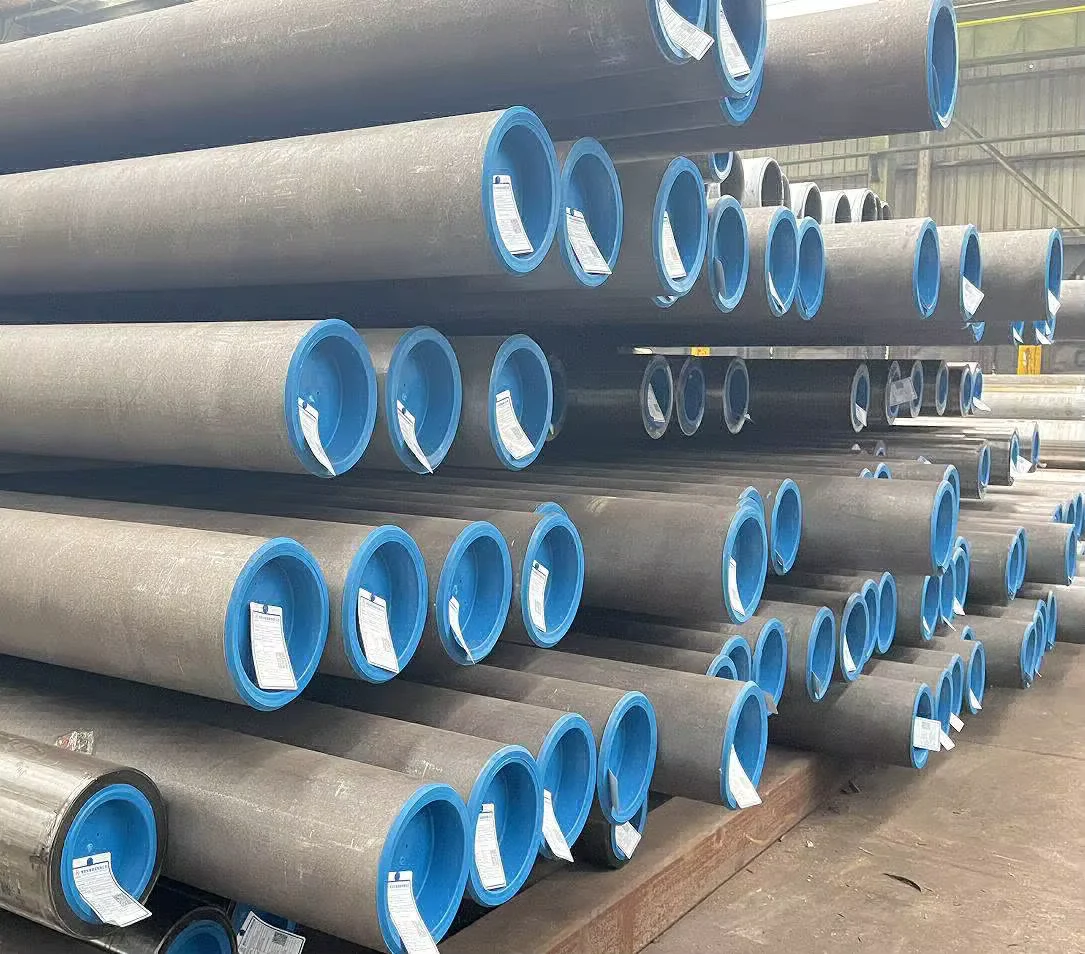

- Beveled-end API 5L X52 and X60 LSAW pipes fitted with steel end protectors to preserve bevel geometry during ocean transit and multi-handling logistics
- 3PE and FBE coated pipes bundled with padded steel straps and edge protectors preventing coating damage from point loading during container stuffing
- Large-diameter JCOE-formed pipes loaded on open-top containers or flatbed trailers with timber cradle supports maintaining roundness and preventing ovalization under stacking weight
- Custom-length pipes at 6.4 m and 12 m cut to order with length tolerance documented on packing lists, reducing field cutting waste on pipeline right-of-way
- Heat number and steel grade stenciled on each pipe surface at intervals per API 5L marking requirements, enabling rapid identification during stringing and weld-up
- FOB, CIF, and DDP shipping terms available with professional heavy-cargo logistics coordination for break-bulk and project cargo to West Africa, Middle East, and Southeast Asian ports
Securing Your LSAW Pipe Quote with Complete Technical Documentation
Submit your API 5L grade requirement, outer diameter, wall thickness, length, coating specification, and destination port to receive a detailed quotation alongside sample mill test certificates from recent production. Our technical team reviews specification alignment between API 5L, GB/T 9711, and project-specific requirements before confirming delivery schedules, ensuring your procurement team has complete compliance documentation for owner-engineer approval.
Start Your API 5L LSAW Pipe Inquiry Today
Send your pipe specification — grade, size, coating, quantity, and destination — to receive pricing and original mill test certificates within hours.
