Description

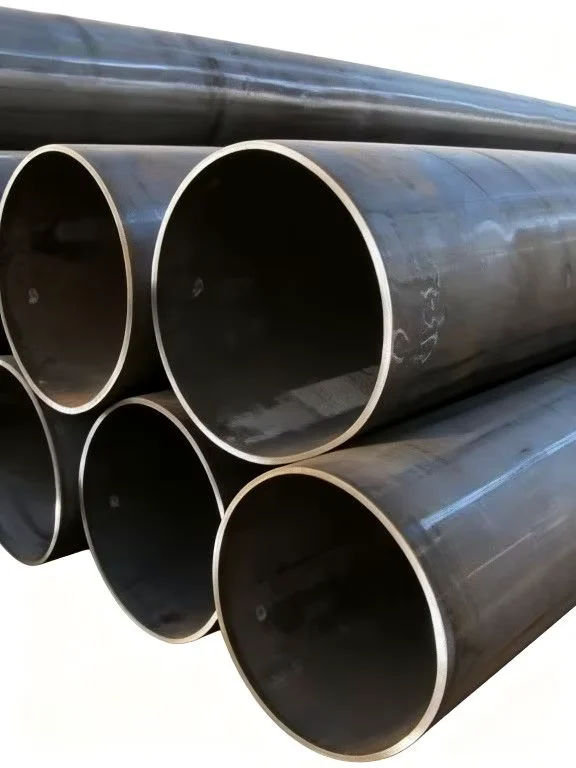

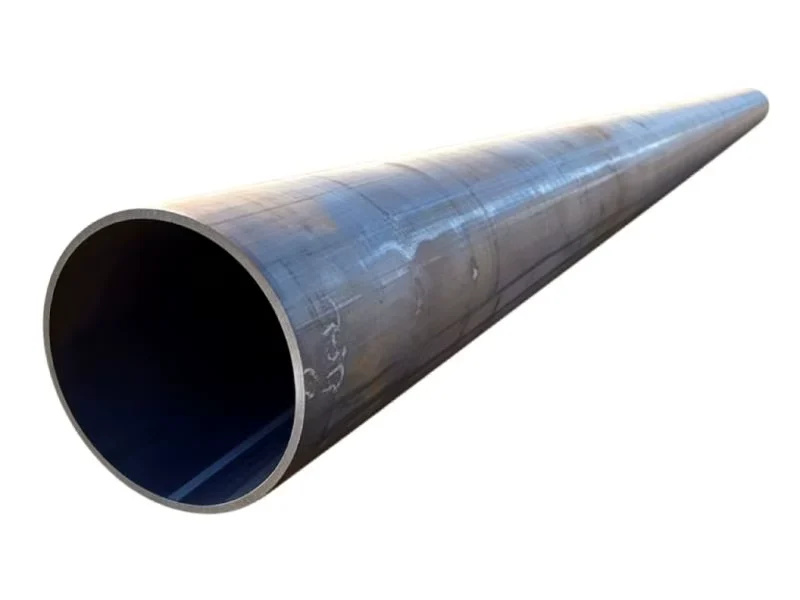

Direct Mill Supply for API 5L LSAW Pipe — Every API 5L X42/X60 LSAW steel pipe ships with original mill test certificates and third-party inspection reports verified before container sealing.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L X42/X60 Straight Seam Submerged Arc Welded Steel Pipe |
| Product Type | LSAW Welded Steel Pipe |
| Steel Grade | API 5L X42, API 5L X60, ASTM A252, EN1029 |
| Standard | API 5L, ASTM A252, EN1029 |
| Section Shape | Round |
| Wall Thickness | 9–500 mm |
| Length | 6 m / 12 m / Customized |
| Technique | LSAW (Straight Seam Submerged Arc Welded) |
| Surface Treatment | Galvanized / 3LPE / 3LPP / FBE / Customized |
| Tolerance | ±5% to ±20% |
| Ends | Plain / Beveled (Customized) |
| Oiled or Non-oiled | Non-oiled |
| Application | Fluid transport / Gas pipeline / Oil pipeline / Boiler / Hydraulic system / Structural pipe / Fertilizer industry |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas Transmission | Onshore and offshore crude oil and natural gas trunk pipelines, gathering lines, and distribution networks |
| Petrochemical & Fertilizer | Process fluid transfer lines, feedstock pipelines, and high-pressure reactor feed systems in fertilizer plants |
| Power Generation | Boiler feed water lines, steam transport pipes, and cooling water circulation systems |
| Municipal Infrastructure | Large-diameter water transmission mains, slurry transport lines, and industrial drainage systems |
| Structural & Civil | Bridge pier casings, piling support columns, and heavy-load structural frames in industrial facilities |
Traceability Gaps That Sink High-Pressure Pipeline Projects
An unverified heat number on an API 5L LSAW steel pipe can halt an entire pipeline commissioning.
Sourcing API 5L X42 or X60 line pipe for oil and gas transmission often reveals inconsistencies between declared steel grades and actual mill test certificates. Buyers receive documents missing heat numbers, chemical composition details, or mechanical property data — making it impossible to confirm whether the pipe meets API 5L requirements. When a pipeline operator’s QA team flags incomplete traceability during pre-commissioning inspection, the entire lot faces rejection. Replacing rejected pipes after they have arrived at a remote project site means mobilizing new material across continents while the original shipment sits idle, accumulating demurrage and storage charges. [NEED_CITE: API 5L line pipe traceability and MTC requirements]
Matching Wall Thickness and Coating to Pipeline Operating Conditions
API 5L LSAW steel pipe in X42 and X60 grades covers wall thicknesses from 9 mm to 500 mm, allowing engineers to select the appropriate pressure rating for both onshore transmission and offshore subsea lines. The LSAW double-sided submerged arc welding process produces a full-penetration weld seam with consistent mechanical properties across the entire length — critical for pipelines operating under cyclic pressure loads. For buried or submerged sections, 3LPE and 3LPP coatings provide multi-layer corrosion protection against soil resistivity variations and cathodic disbondment, while FBE coating suits high-temperature service where polyethylene layers risk thermal degradation.
Engineering Compliance Across International Standards
API 5L X42 and X60 grades serve as the baseline for hydrocarbon transmission pipelines worldwide, with equivalence mappings to ASTM A252 for structural piling and EN1029 for European market projects. Pipeline design codes such as ASME B31.4 and B31.8 reference API 5L grade tables for allowable stress calculations, making certified mill documentation essential for regulatory approval. [NEED_CITE: ASME B31.4 and B31.8 pipeline design code references to API 5L] Beveled ends prepared to API 5L specifications enable field welding with matching filler metals, while plain ends suit mechanical coupling connections in low-pressure distribution systems. Custom cut-to-length service eliminates on-site cutting waste and reduces weld joint counts in the field.
Understanding LSAW Process and Grade Selection for Line Pipe
The LSAW (Longitudinal Submerged Arc Welded) process forms steel plate into a cylindrical shape and welds the seam using submerged arc welding from both inside and outside, producing a joint with tensile strength approaching the parent metal. This differs from ERW (Electric Resistance Welded) pipe, where the weld zone may show reduced ductility under low-temperature impact testing — a critical factor for pipelines in arctic or deepwater environments. API 5L X42 offers a moderate yield strength suitable for medium-pressure gathering lines, while X60 provides higher yield capacity for long-distance transmission pipelines operating at elevated pressures. The 9–500 mm wall thickness range accommodates everything from standard process lines to heavy-wall pipes for sour service environments requiring additional corrosion allowance.
Surface treatment selection depends on the operating environment: 3LPE (three-layer polyethylene) combines an epoxy primer, copolymer adhesive, and polyethylene outer layer for buried pipelines exposed to aggressive soils; 3LPP (three-layer polypropylene) extends service temperature limits for hot pipelines; FBE (fusion-bonded epoxy) provides a thin, uniform coating for internal flow lines where dimensional tolerance matters. Galvanized coating serves above-ground structural and low-corrosion fluid transport applications.
The Hidden Cost of Unverified Line Pipe Procurement
Purchasing API 5L LSAW steel pipe without confirmed mill test certificates creates downstream liabilities that far exceed the initial price difference. Pipes with undocumented chemical composition may fail weld procedure qualification tests, forcing contractors to scrap entire joint batches after cutting and beveling. Thickness deviations beyond stated tolerance ranges affect hydrostatic test pressure calculations and can trigger rejection during commissioning pressure tests. [NEED_CITE: API 5L dimensional tolerance and hydrostatic test requirements] Missing or forged certificates expose the buyer to regulatory non-compliance, insurance claim denials, and potential liability in the event of pipeline failure — costs that dwarf any savings from unverified sourcing.
Why Engineering Teams Source API 5L LSAW Pipe From Us
Every API 5L LSAW steel pipe leaving our facility carries an original mill test certificate documenting heat number, chemical composition, and mechanical properties — verified against the actual production batch before shipment. Our dedicated plate and pipe division maintains ready stock across common API 5L X42 and X60 specifications, enabling rapid fulfillment for urgent project schedules. Third-party inspection through SGS or BV is available at our facility, allowing buyers to confirm dimensional accuracy, coating thickness, and weld seam quality before container loading. Custom cutting, beveling, and surface treatment services consolidate multiple processing steps under one roof, eliminating coordination gaps between separate suppliers. Professional heavy cargo logistics — including flatbed transport, open-top container loading, and break-bulk shipping — ensures that large-diameter, heavy-wall pipes arrive without damage or overweight penalties. ISO 9001:2015 and CE certification provide the quality management framework that project owners and EPC contractors require for vendor approval.
Documentation & Compliance
- Mill test certificate documenting API 5L X42/X60 chemical composition, yield strength, tensile strength, and elongation per heat number
- API 5L certification confirming compliance with line pipe manufacturing and testing requirements
- ISO 9001:2015 quality management system certificate covering production and inspection processes
- SGS or BV third-party inspection report covering dimensional verification, coating thickness measurement, and visual weld examination
- Material traceability documentation linking each pipe to its heat number, production date, and test batch
- Export customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery
- API 5L X42/X60 LSAW pipes bundled with steel strips and edge protectors to prevent coating damage during ocean transit
- 3LPE/3LPP/FBE coated pipes wrapped with protective sleeves at beveled ends to preserve coating integrity at weld preparation zones
- Heavy-wall pipes (wall thickness above 25 mm) loaded on flatbed trailers or open-top containers with dunnage separation to distribute weight and prevent point loading
- Custom cut-to-length pipes (6 m / 12 m / project-specific) marked with heat number, steel grade, and wall thickness on each piece for on-site identification
- FOB, CIF, and DDP shipping terms available with complete export documentation and container tracking until port arrival
- Break-bulk shipping coordination for oversized diameter pipes exceeding standard container dimensions
Start Your API 5L LSAW Pipe Inquiry
Submit your project specifications — including steel grade (API 5L X42/X60), wall thickness, outer diameter, length, surface treatment, and destination port — to receive a detailed quotation with material cost, processing fees, and shipping terms. Our team responds within 12 hours with a complete offer including mill test certificate preview and third-party inspection arrangement options.
Request Your API 5L LSAW Pipe Quotation Today
Send your specifications, quantity, and destination to receive a detailed quote with mill test certificate preview and shipping options within 12 hours.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjyplate.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjyplate.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between API 5L X42 and API 5L X60 grades for pipeline applications?
A: API 5L X42 and X60 represent different minimum yield strength levels within the API 5L specification. X60 provides higher yield strength than X42, making it suitable for long-distance transmission pipelines operating at higher pressures. Both grades are available in our LSAW product range with wall thicknesses from 9 mm to 500 mm.
Q: How do you verify the quality and traceability of API 5L LSAW steel pipes?
A: Every API 5L LSAW steel pipe ships with an original mill test certificate documenting the heat number, chemical composition, and mechanical properties. Third-party inspection through SGS or BV is available at our facility before shipment, covering dimensional verification, coating thickness, and weld seam quality.
Q: What surface treatment options are available for buried or offshore pipeline applications?
A: We offer 3LPE (three-layer polyethylene), 3LPP (three-layer polypropylene), and FBE (fusion-bonded epoxy) coatings for buried and offshore pipelines. 3LPE provides standard corrosion protection for most soil conditions, 3LPP extends service temperature limits for hot pipelines, and FBE suits high-temperature internal flow lines. Galvanized coating is available for above-ground structural applications.
Q: Can you provide custom cutting and beveling for API 5L LSAW pipes?
A: Yes, we provide custom cutting to project-specific lengths and beveling prepared to API 5L specifications for field welding. This service eliminates on-site cutting waste and reduces the number of field weld joints, improving construction efficiency and reducing weld inspection requirements.
Q: What shipping methods do you use for large-diameter and heavy-wall LSAW pipes?
A: Standard diameter pipes ship in open-top containers with proper dunnage and weight distribution. Heavy-wall and oversized diameter pipes exceeding container dimensions are shipped via flatbed trailers or break-bulk vessels. We handle all export documentation and provide tracking until port arrival under FOB, CIF, or DDP terms.
