Description
Direct Mill Supply for Large Diameter Pipeline Projects — Every API 5L SSAW spiral welded steel pipe ships with original mill test certificates traceable by heat number, eliminating middleman markups on heavy-wall orders.
Technical Specifications + Markdown Table
| Parameter | Value |
|---|---|
| Designation | API 5L SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Spiral Welded Steel Pipe |
| Steel Grade | API 5L X42, API 5L X60, ASTM A252, EN10219 |
| Standard | API 5L, ASTM A252, EN10219, EN, BS, JIS |
| Section Shape | Round |
| Outer Diameter | Large Diameter |
| Wall Thickness | 9–500 mm |
| Length | 6 m / 12 m / Customized |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Galvanized / 3LPE / 3LPP / FBE / Customized |
| Tolerance | ±1% – ±20% (varies by specification) |
| Ends | Plain / Beveled |
| Application | Oil & Gas Pipeline Transport / Fluid Conveyance / Structural Applications / Boiler Systems / Drill Pipe / Fertilizer Industry Piping |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Long-distance crude oil and natural gas transmission pipelines, gathering lines |
| Water Infrastructure | Municipal water supply mains, irrigation canal penstocks, dewatering outfalls |
| Structural & Piling | Bridge foundation piles, offshore platform jacket legs, port quay wall anchoring |
| Industrial Processing | Slurry transport in fertilizer plants, cooling water circuits in power stations |
| Marine Engineering | Subsea crossing pipelines, jetty fendering support columns |
Where Wall-Thickness Tolerance Decides Pipeline Integrity
Actual wall deviation beyond ±1% on heavy-wall API 5L X60 pipes triggers ultrasonic rejection at site weld prep.
Procurement teams sourcing API 5L SSAW spiral welded steel pipe for high-pressure transmission lines routinely encounter thickness inconsistency between coils. When negative tolerance creeps beyond allowable limits, field welders face root pass burn-through, and third-party inspectors reject entire heat lots based on UT scanning. The cost is not just material replacement—it is crane time, welder standby, and schedule slippage on critical path activities. [NEED_CITE: API 5L wall thickness tolerance requirements for line pipe]
Matching Heavy-Wall SSAW Pipe to High-Pressure Transmission Requirements

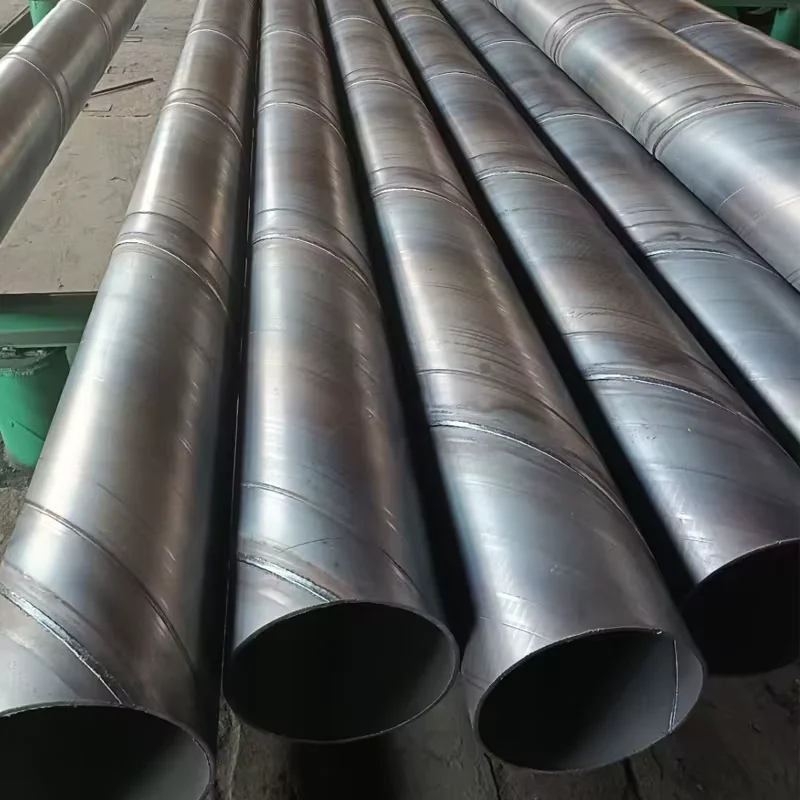

Large diameter API 5L SSAW spiral welded steel pipe in X42 and X60 grades serves medium-to-high pressure oil and gas transmission where design codes mandate minimum wall thickness for hoop stress containment. The spiral submerged arc welding process produces continuous helical seams with full penetration, meeting API 5L hydrostatic test requirements for each joint. For sour service environments, we supply X60 with HIC testing per NACE TM0284, ensuring sulfide stress cracking resistance without compromising weld seam integrity.
Engineering Compliance Across API, ASTM, and EN Frameworks
Pipeline projects spanning multiple jurisdictions require grade equivalence documentation—API 5L X42 maps to ASTM A252 Grade 2 in structural piling applications, while EN10219 compliance governs European onshore gas distribution networks. Our API 5L SSAW spiral welded steel pipe carries dual certification where mill rolling schedules permit, reducing customs friction at destination ports. Beveled ends per API 5L facilitate field girth welding with automatic orbital systems, while plain ends suit mechanical coupling for temporary bypass lines. [NEED_CITE: grade equivalence between API 5L and ASTM A252 standards]
Understanding SSAW Welding Metallurgy and Coating Selection
Spiral submerged arc welding deposits filler metal in a continuous flux-shielded arc, producing coarse-grained heat-affected zones that require post-weld heat treatment for X60 grades above 25 mm wall thickness. The helical seam geometry distributes residual stress more evenly than longitudinal seams in large diameters exceeding 1,200 mm. For burial in aggressive soils, 3LPE coating provides mechanical damage resistance during backfilling, while FBE suits high-temperature service up to 110°C. Galvanized finish remains the specification for above-ground structural piling where atmospheric corrosion governs design life. [NEED_CITE: 3LPE versus FBE coating performance in buried pipeline service]
Hidden Costs of Unverified Mill Certificates on Line Pipe Orders
Pipes arriving without traceable heat numbers face immediate quarantine at project laydown yards. Third-party inspectors cannot verify chemical composition against API 5L X42 or X60 requirements, forcing either destructive testing at buyer’s expense or wholesale rejection. Negative tolerance abuse on 500 mm wall pipe creates weld prep geometry problems—bevel angles shift, root gaps widen, and consumable consumption rises. The engineering consequence is not paperwork delay but structural integrity compromise on pressurized systems carrying hydrocarbons. [NEED_CITE: mill test certificate verification procedures for API 5L line pipe]
Why Project Procurement Teams Source SSAW Pipe From Our Mill Division

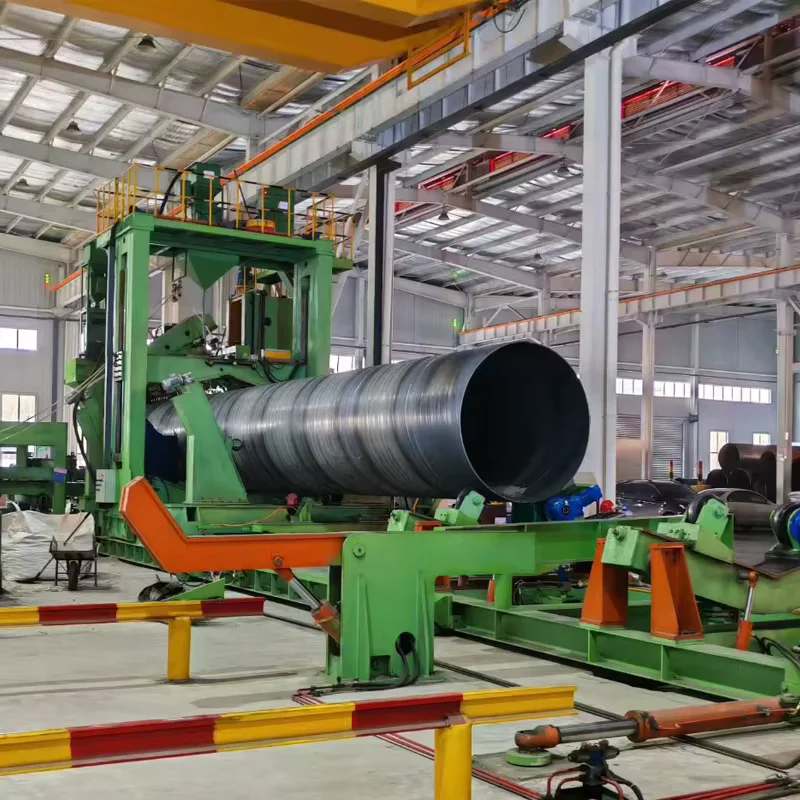

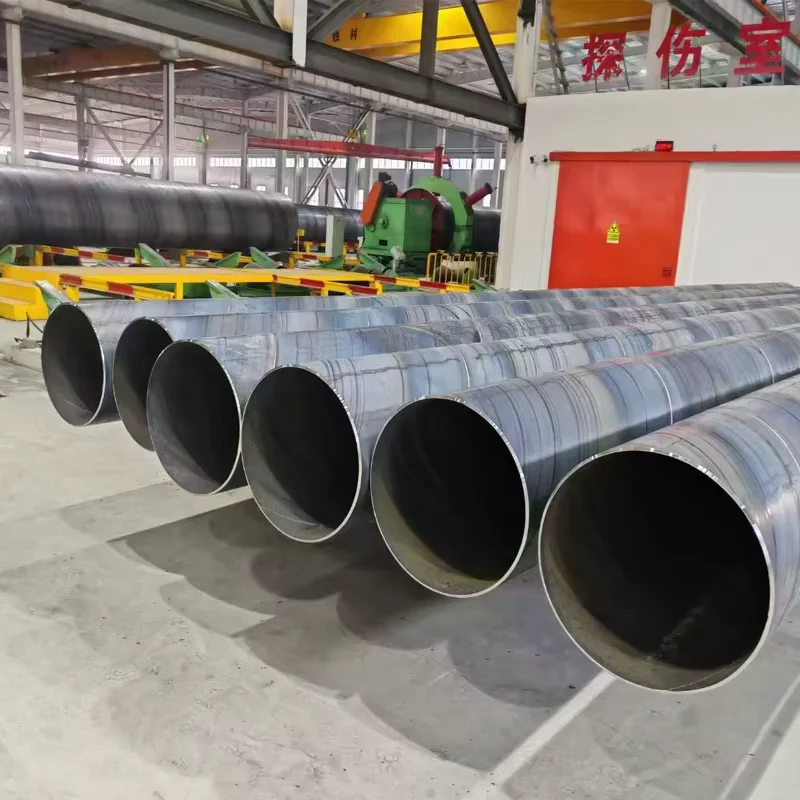

We operate dedicated SSAW pipe production lines with in-house ultrasonic testing for 100% seam coverage, not outsourced spot checks. Every API 5L SSAW spiral welded steel pipe ships with original MTC showing heat number, chemical composition, tensile results, and Charpy impact values where specified. Our logistics team loads 40ft open-top containers with 12-meter joints using spreader bars and nylon slings—no chains contacting 3LPE coating. For break-bulk shipments exceeding 2,000 tons, we charter geared bulk vessels with shore cranes rated for 80-ton lifts, avoiding port congestion surcharges. SGS or BV inspection proceeds at our facility before container sealing, with reports issued within 48 hours of completion.
Documentation & Compliance
- Mill Test Certificate documenting API 5L X42 and X60 chemical composition, yield strength, tensile strength, and elongation per heat number
- API 5L certification confirming product specification level (PSL-1 or PSL-2) compliance for line pipe applications
- ISO 9001:2015 quality management certificate covering SSAW pipe manufacturing and coating processes
- SGS or BV third-party inspection report verifying wall thickness, coating adhesion, and hydrostatic test results
- Material traceability sheet linking each pipe to heat number, coil position, and welding parameters
- Export documentation including packing list, bill of lading, certificate of origin, and fumigation certificate for wooden packaging
Packaging, Loading & Delivery
- API 5L X42 and X60 SSAW pipes bundled with galvanized steel strips at 1.5-meter intervals, with plastic end caps protecting beveled edges during transit
- 3LPE and 3PP coated pipes wrapped with bituminous paper and separated by rubber spacers to prevent coating abrasion in container loading
- Large diameter pipes exceeding 1,200 mm OD loaded on flatbed trailers or open-top containers with wooden saddles preventing ovality deformation
- Custom cut lengths marked with stenciled heat number, steel grade, wall thickness, and piece number for site identification
- FOB Qingdao or Tianjin port delivery with CIF and DDP options to West Africa, Southeast Asia, and Middle East destinations
- Break-bulk shipping for project cargo exceeding container capacity, with lashing and chocking per IMCO code for heavy cylindrical loads
Submit Specifications for Pipeline Grade Quotation
Provide outer diameter, wall thickness, length, steel grade (API 5L X42 or X60), coating type, and destination port to receive pricing with mill test certificate preview. We confirm production slot allocation within 12 hours and issue proforma invoice for deposit arrangement. Third-party inspection and SGS/BV certification proceed concurrently with final coating application.
Frequently Asked Questions
Q: What is the difference between API 5L PSL-1 and PSL-2 for SSAW pipe?
A: PSL-2 imposes stricter chemical composition limits, mandatory Charpy impact testing, and enhanced non-destructive examination requirements compared to PSL-1. Our API 5L SSAW spiral welded steel pipe production meets PSL-2 for sour service and offshore applications where low-temperature toughness is critical.
Q: Can you supply 3LPE coating in accordance with DIN 30670 or CSA Z245.21?
A: Yes, we apply 3LPE coating per DIN 30670 for European projects and CSA Z245.21 for North American specifications. The coating system includes FBE primer, copolymer adhesive, and polyethylene outer layer with holiday detection at 25kV before shipment.
Q: How do you verify wall thickness tolerance on heavy-wall SSAW pipe?
A: We perform 100% ultrasonic thickness measurement at four quadrants along each pipe length, with readings recorded in the mill test certificate. Digital gauges calibrated to NIST traceable standards ensure accuracy within ±0.1 mm for walls up to 50 mm.
Q: What is the maximum length available for container shipping?
A: Standard lengths are 6 meters and 12 meters for 40ft container loading. Custom lengths up to 18 meters require flatbed truck or break-bulk vessel transport, with lashing engineering approved by marine surveyors.
Q: Do you provide grade equivalence documentation for API 5L to EN or ASTM standards?
A: Yes, we supply cross-reference certificates showing API 5L X42 equivalence to ASTM A252 Grade 2 and EN10219 S275JR, including chemical composition comparison and mechanical property alignment for customs and engineering approval.
Request Your API 5L SSAW Pipe Quotation Today
Send pipe specifications, quantities, and destination to receive pricing with mill test certificate preview within 12 hours.
