Description
Factory-Direct Rectangular Tubes — Every ASTM A500 GR.B galvanized rectangular steel tube rolls from certified mills with original heat-number traceability, cutting out trading margins on structural hollow sections.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A500 GR.B Rectangular Steel Tube |
| Product Type | Rectangular Steel Tube / RHS Hollow Section |
| Steel Grade | GR.B, S235, S275, S355, STK400 |
| Standard | ASTM A500, ASTM A53, GB/T3091 |
| Section Shape | Rectangular / Square |
| Size Range | 15mm×20mm – 700mm×800mm |
| Wall Thickness | 1 – 30 mm |
| Length | 5.8m / 6m / 11.8m / 12m / Random Length |
| Technique | ERW / Welded / Seamless |
| Surface Treatment | Black Painting / Hot Dipped Galvanized (Zinc Coated 200-700g/sqm) / Varnish / Bare |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Construction Pipe / Building Pipe / Curtain Wall / Support Tubes / Structure Pipe / Fertilizer Tube |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel Structure & Construction | Building frames, curtain wall support tubes, column and beam hollow sections |
| Infrastructure & Civil Engineering | Bridge handrail posts, scaffolding uprights, highway sign gantry structures |
| Industrial & Agricultural | Fertilizer distribution tubes, machinery frames, conveyor support structures |
| Shipyards & Offshore | Deck handrail tubes, equipment support frames in non-splash zones |
What Hidden Negative Tolerance Costs on a Galvanized RHS Order
Actual wall thickness below spec means structural miscalculation, customs rejection, and on-site rework.
I have seen project buyers receive galvanized rectangular tubes that looked fine on the outside but measured 0.6mm under the ordered wall thickness. The zinc coating masked the deviation until the fabricator drilled through and hit the tolerance gap. By then, the container was already at the port. Pulling the shipment back, re-ordering, and delaying the erection schedule cost far more than the price difference between a reliable supplier and the cheapest quote. [NEED_CITE: EN 10219 dimensional tolerance requirements for cold-formed hollow sections]
When you source an ASTM A500 GR.B galvanized rectangular steel tube, the zinc layer adds another variable — uneven coating thickness can hide surface pitting, and pre-galvanized strips re-formed into tubes leave the weld zone under-protected. These are not theoretical risks; they are daily realities on fabrication shop floors across Southeast Asia and the Middle East.
Matching Wall Thickness and Zinc Weight to Corrosive Site Conditions
Hot dipped galvanized ASTM A500 GR.B galvanized rectangular steel tube sections with zinc coating between 200g/sqm and 700g/sqm serve environments ranging from indoor structural frames to outdoor infrastructure exposed to industrial atmospheres. For curtain wall supports in coastal cities, the higher zinc weight resists salt-laden humidity without field touch-up for years. For indoor fertilizer tube frameworks in agricultural facilities, the 200g/sqm coating provides adequate protection at lower cost. The ±1% wall thickness tolerance ensures that structural engineers can rely on the published section modulus without applying additional safety deductions for manufacturing variance.
Structural Compliance and Certification Pathways
Rectangular hollow sections conforming to ASTM A500 meet North American structural code requirements for building frames and load-bearing supports, while the equivalent S235/S275/S355 grades align with EN 10219 for European projects. [NEED_CITE: ASTM A500 Grade B mechanical property requirements] CE certification and EN 10219 compliance determine whether the shipment clears EU customs without re-inspection delays. For projects requiring third-party verification, SGS or BV inspection before loading confirms chemical composition, mechanical properties, and zinc coating weight against the purchase order. Plain ends allow on-site welding or mechanical connection, and random or fixed lengths of 5.8m to 12m reduce field cutting waste on long-span structures.
Understanding Grade Equivalence and ERW Weld Integrity
GR.B under ASTM A500 corresponds roughly to S235 under EN standards and Q235 under GB, making cross-standard procurement possible when project specifications allow equivalent substitution. S275 and S355 step up the yield strength for heavier load paths such as bridge supports and crane runway beams. STK400 under JIS G3466 serves Japanese-spec structural frameworks common in Southeast Asian industrial parks. The ERW welded process produces a continuous longitudinal weld that, when properly normalized, delivers consistent strength across the tube perimeter at lower cost than seamless alternatives — which remain available for high-pressure or critical vibration applications. Hot dipped galvanizing after forming coats both the exterior and the interior weld zone, unlike pre-galvanized strip where the weld line remains bare steel vulnerable to corrosion.
The Real Price of Unverified Mill Certificates
A missing or forged mill test certificate does not just create paperwork problems — it means no heat number traceability, no verified chemical composition, and no confirmed mechanical properties. When a structural inspector requests the MTC for an ASTM A500 GR.B galvanized rectangular steel tube and the supplier cannot produce one tied to the specific heat, the entire batch faces rejection. [NEED_CITE: steel mill test certificate traceability requirements for structural hollow sections] Re-testing at the destination port costs thousands of dollars and delays project handover. Worse, if the steel grade is actually lower than specified, the structure may pass initial inspection but fail under long-term loading — a liability no engineer or contractor can absorb.
Why Procurement Teams Choose Our Rectangular Tube Division
Every ASTM A500 GR.B galvanized rectangular steel tube we supply ships with the original mill test certificate showing heat number, chemical composition, and mechanical test results — not a re-typed document from a trading desk. Our Shandong facility holds ISO 9001:2015 and CE certification, and we arrange SGS or BV third-party inspection at the mill before loading so buyers verify zinc coating weight and dimensional accuracy firsthand. The inventory covers the full range from 15mm×20mm small sections for handrail posts up to 700mm×800mm heavy structural boxes, in wall thicknesses from 1mm to 30mm, so a single purchase order consolidates multiple specs without splitting shipments across suppliers. Custom cutting to non-standard lengths and plasma or flame cutting for connection plates happen in-house, eliminating the secondary processing markup that trading companies add. Professional heavy-cargo loading plans optimize container weight for galvanized tubes, preventing port overweight penalties and zinc coating damage from improper bundling.
Documentation & Compliance
- Mill Test Certificate documenting GR.B chemical composition, yield strength, and tensile properties per ASTM A500, traceable to original heat number
- CE certificate confirming compliance with EN 10219 for cold-formed structural hollow sections, required for EU customs clearance
- ISO 9001:2015 quality management certificate covering the full production and inspection process
- SGS or BV third-party inspection report verifying zinc coating thickness (200-700g/sqm), dimensional tolerance (±1%), and surface quality before shipment
- Material traceability sheet linking each bundle to its heat number, steel grade (GR.B / S235 / S355 / STK400), and production date
- Full customs documentation set including packing list, bill of lading, and certificate of origin for destination-country import clearance
Packaging, Loading & Delivery

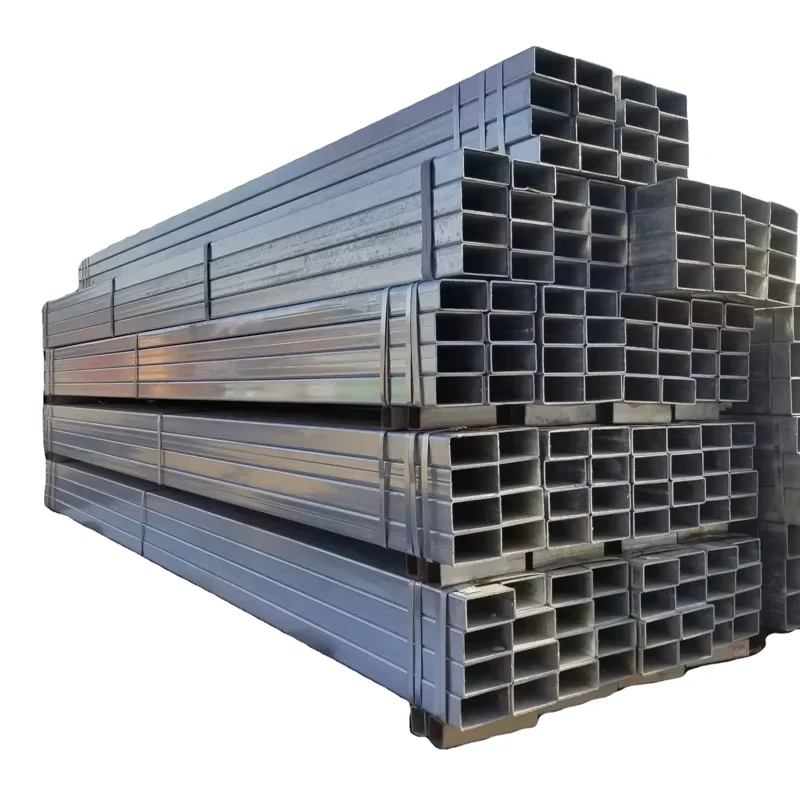

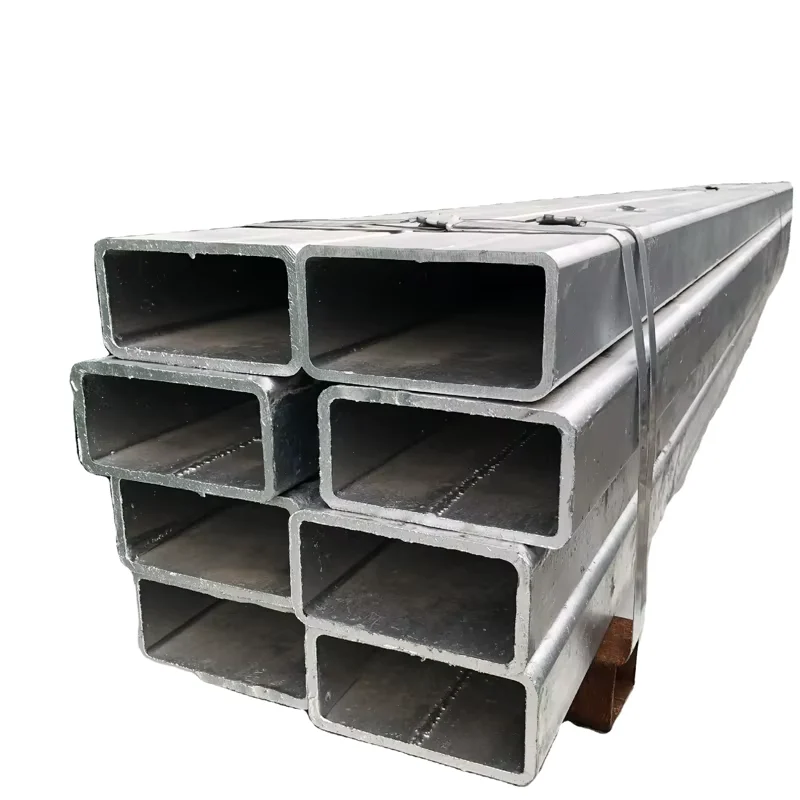

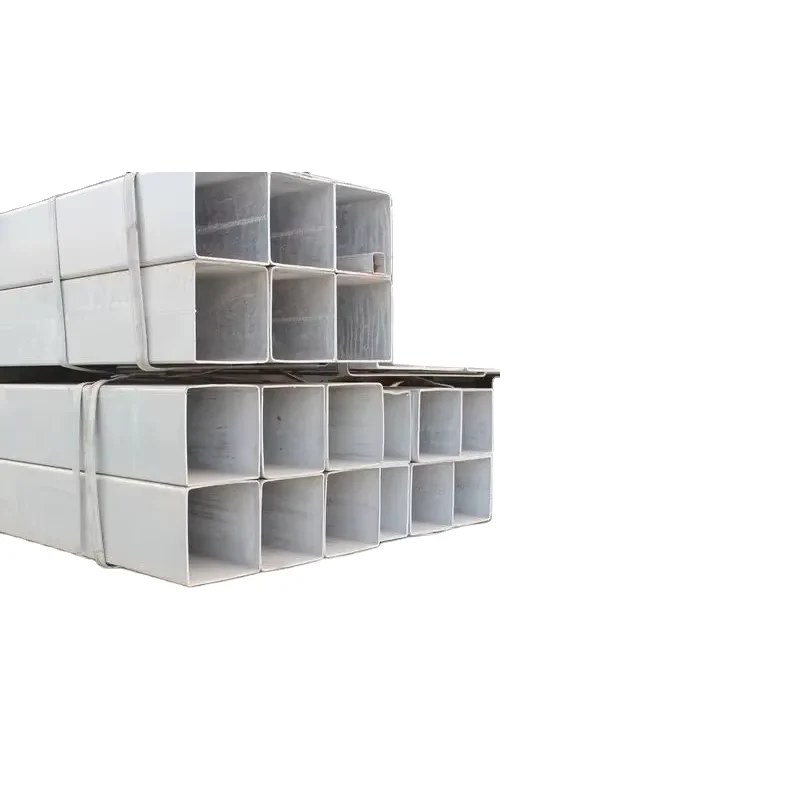

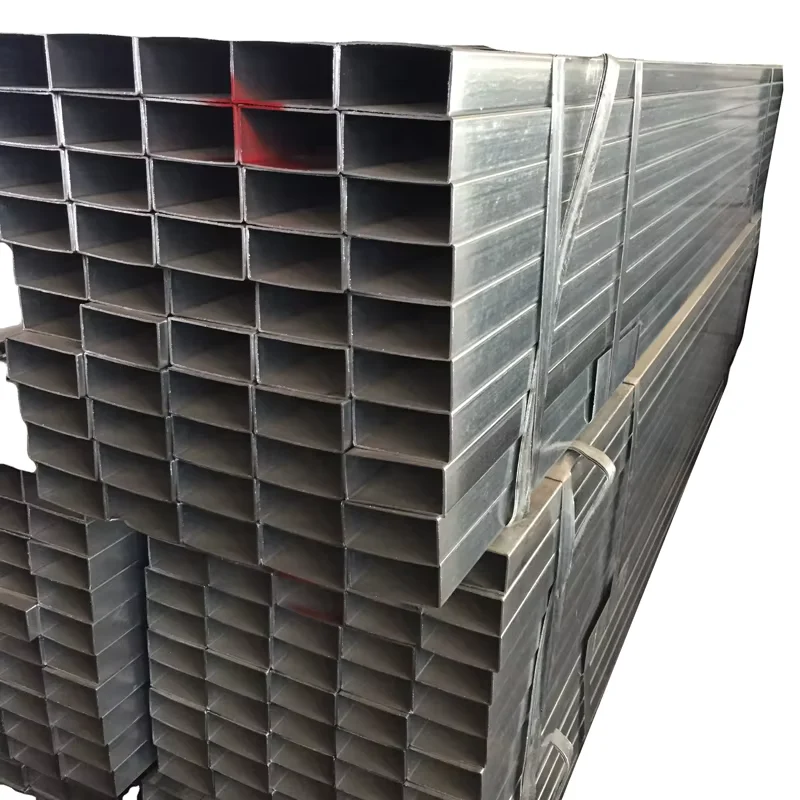

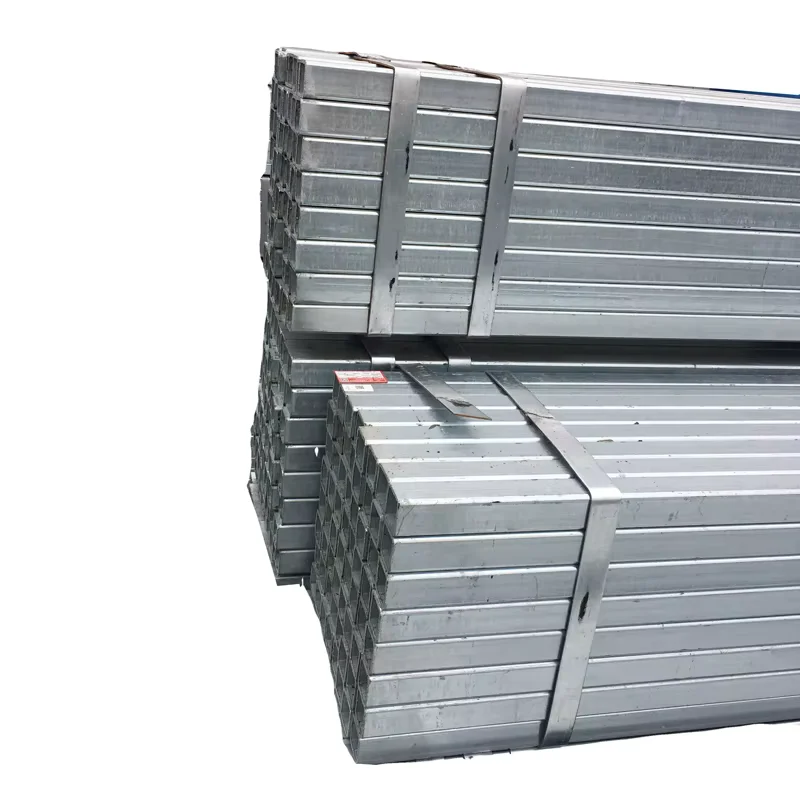

- Hot dipped galvanized ASTM A500 GR.B rectangular tubes bundled with steel strips and edge protectors to prevent zinc coating abrasion during ocean transit
- Surface protection with anti-rust oil or varnish applied to black painted or bare tubes, preventing white rust formation on galvanized sections during humid container conditions
- Container loading plans optimized for 5.8m and 6m lengths in 20ft containers and 11.8m/12m lengths in 40ft open-top containers, maximizing weight utilization without exceeding port crane limits
- Custom cut-to-length service available for 15mm×20mm through 700mm×800mm sections, reducing on-site cutting waste for curtain wall and scaffolding applications
- Heat number and steel grade stenciled on each tube end with water-resistant paint, enabling on-site identification and MTC cross-referencing during installation
- FOB, CIF, and DDP shipping terms available from Shandong ports, with break-bulk and flatbed options for oversized rectangular sections exceeding container dimensions
Start Your Rectangular Tube Inquiry with Verified Specifications
Submit your required steel grade (GR.B, S235, S355, or STK400), section dimensions, wall thickness, length, surface treatment preference, and destination port — we return a detailed quotation with material cost, processing fees, and shipping terms within 12 hours, along with a sample mill test certificate for your quality team review.
Request Your ASTM A500 GR.B Galvanized Rectangular Steel Tube Quote
Send your specification sheet to receive pricing, mill test certificate samples, and container loading plans.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjyplate.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjyplate.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: How does ASTM A500 GR.B compare to EN S235 and GB Q235 in chemical composition and yield strength?
A: GR.B under ASTM A500, S235 under EN 10219, and Q235 under GB/T3091 occupy similar positions in their respective standards as mild structural grades with comparable carbon content and yield strength ranges. When project specifications permit equivalent substitution, these grades can replace each other for general construction frames and support structures, though exact chemical composition should be verified through the mill test certificate for welding procedure qualification.
Q: What is the difference between hot dipped galvanized and pre-galvanized rectangular tubes for outdoor structural use?
A: Hot dipped galvanized ASTM A500 GR.B rectangular steel tubes receive their zinc coating after the complete tube is formed, covering both exterior and interior surfaces including the weld zone with 200-700g/sqm of zinc. Pre-galvanized tubes are made from already-coated steel strip, leaving the weld line and interior corners with thinner or absent zinc protection, making hot dipped galvanizing the preferred choice for outdoor structures exposed to moisture and industrial atmospheres.
Q: Can you provide custom cut-to-length rectangular tubes for curtain wall and scaffolding projects?
A: Yes, we offer custom cutting for ASTM A500 GR.B rectangular steel tubes across the full size range from 15mm×20mm to 700mm×800mm, with wall thicknesses from 1mm to 30mm. Plasma cutting, flame cutting, and blanking services are available for connection plates and non-standard lengths, with dimensional inspection reports provided before shipment to confirm accuracy against your fabrication drawings.
Q: What documentation accompanies a galvanized rectangular tube shipment for customs clearance?
A: Each shipment includes the original mill test certificate with heat number traceability, commercial invoice, packing list, bill of lading, and certificate of origin. For EU destinations, CE certification and EN 10219 compliance documents are provided. Third-party inspection reports from SGS or BV confirming zinc coating weight and dimensional tolerance can be arranged before loading at the buyer’s request.
Q: What is the minimum order quantity for ASTM A500 GR.B galvanized rectangular steel tubes?
A: The minimum order quantity is 1 Ton, which accommodates both small trial orders for project sampling and full container loads for large-scale construction procurement. Mixed specifications within a single order are accepted, allowing buyers to consolidate multiple section sizes and wall thicknesses from one supplier.
