Description

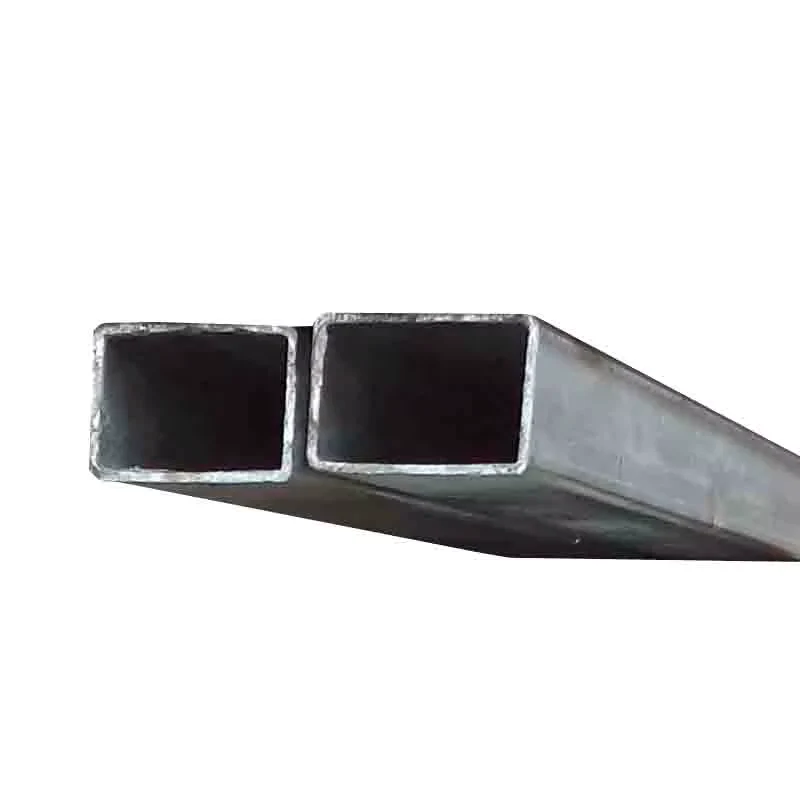

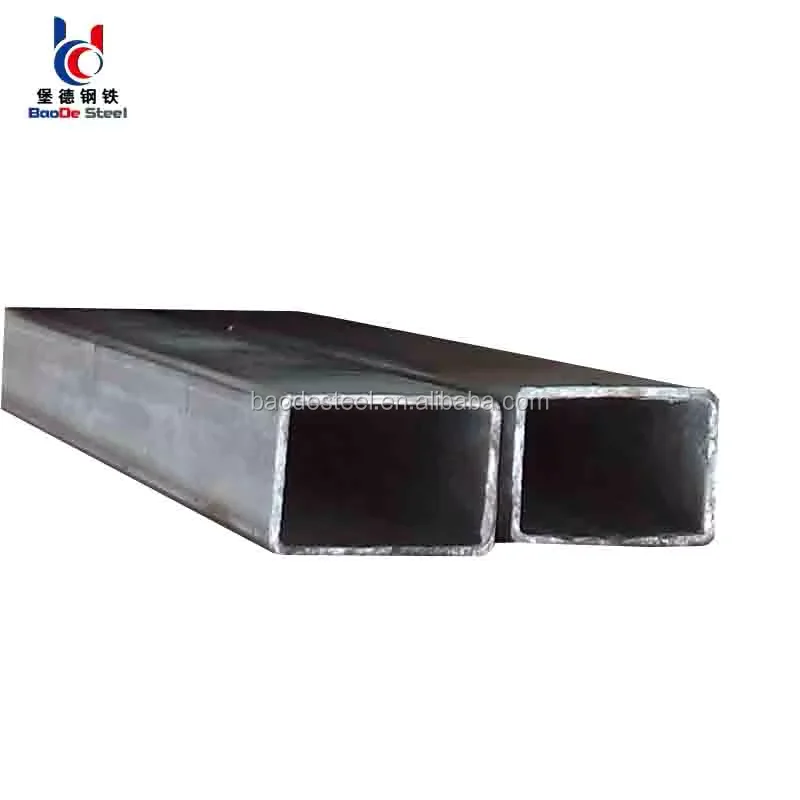

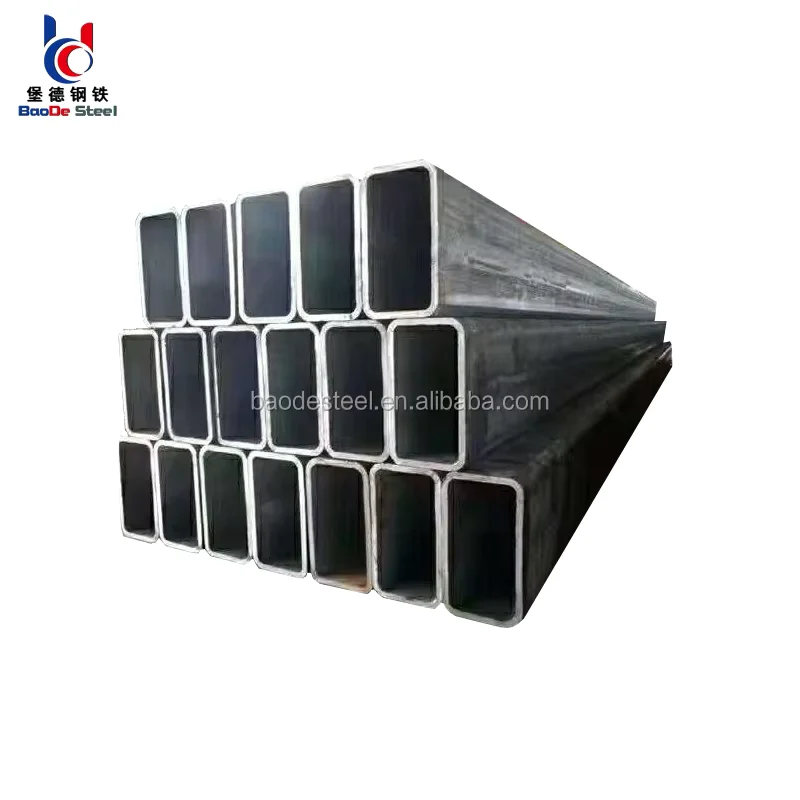

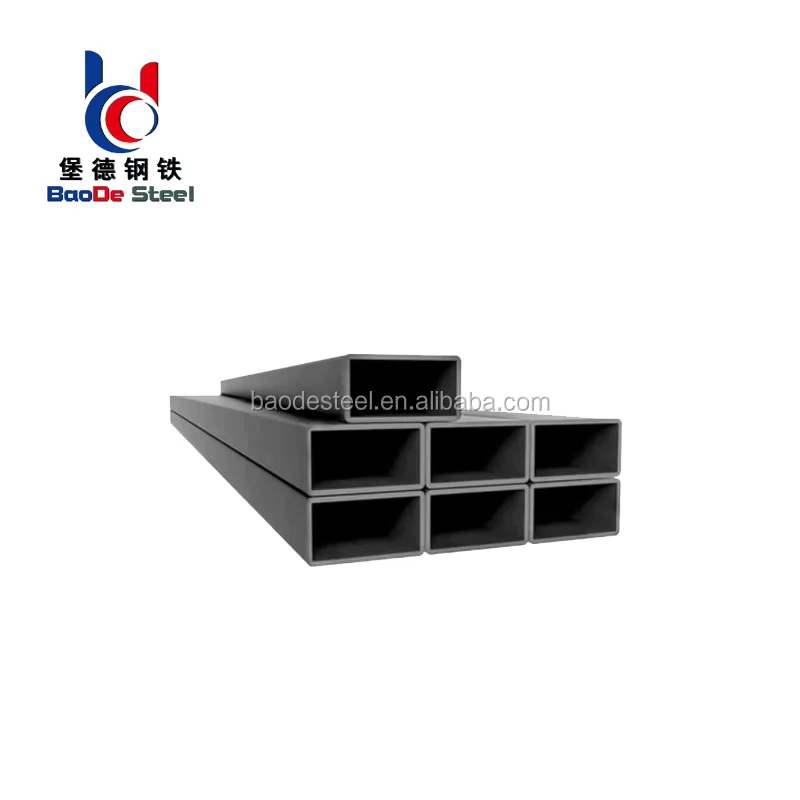

Full-Range Rectangular Galvanized Stock — ASTM A53 GRB rectangular galvanized steel tube from 15×20mm to 700×800mm, welded and seamless, shipped with original mill test certificates and professional heavy cargo loading.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A53 GRB Rectangular Galvanized Steel Pipe |
| Product Type | Rectangular Galvanized Steel Tube (Hollow Section) |
| Steel Grade | ASTM A53 GRB, Gr.B, S235, S275, S355, STK400 |
| Standard | ASTM A53, ASTM A500, GB/T 3091 |
| Section Shape | Rectangular |
| Size Range | 15mm×20mm – 700mm×800mm |
| Wall Thickness | 1 – 30 mm |
| Length | 5.8m / 6m / 11.8m / 12m / Random Length |
| Technique | Welded (ERW) / Seamless |
| Surface Treatment | Galvanized / Black Painting / Varnish / Bare |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Construction Structure / Building Pipe / Curtain Wall / Support Tubes / Structure Pipe / Fertilizer Tube |
| MOQ | 5 Tons |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Building | Curtain wall frames, structural support columns, building skeleton bracing |
| Infrastructure & Civil Engineering | Bridge handrail posts, highway signage supports, scaffolding uprights |
| Industrial Structures | Machinery frames, conveyor support structures, equipment platforms |
| Agricultural & Fluid Systems | Fertilizer distribution tubes, irrigation structural supports |
What Wall-Thickness Tolerance Costs on a Rectangular Frame Order
A ±1% tolerance on a 30mm wall keeps connection plates flush and weld gaps within code.
When rectangular galvanized steel tube arrives at site with wall thickness drifting beyond tolerance, the fabricator discovers that end plates no longer sit flat against the tube face. Bolt holes misalign. Weld gaps exceed what AWS D1.1 allows without pre-qualification. On a curtain wall project I inspected in Lagos, the contractor received tubes where the actual thickness ran 8% below nominal — the structural engineer rejected the entire batch, and three weeks of schedule vanished while replacement material was air-freighted. ASTM A53 GRB rectangular galvanized steel tube buyers in EPC contracts need documented dimensional reports before the container leaves the mill yard, not after the crane starts lifting. [NEED_CITE: ASTM A53 dimensional tolerance requirements for structural hollow sections]
Matching Rectangular Sections to Structural Frame Geometry
Rectangular hollow sections carry bending loads efficiently in both axes, making ASTM A53 GRB rectangular galvanized steel tube the preferred choice for moment-resisting frames where circular tubes would waste material in the weak axis. The flat faces allow direct bolted or welded connections without gusset plates, reducing joint complexity on curtain wall sub-frames and machinery bases. For corrosion-exposed environments — coastal construction, fertilizer handling facilities, outdoor scaffolding — the galvanized coating provides sacrificial protection that extends service life without recurring maintenance. Our cutting-to-size service delivers tubes at exact project lengths, eliminating on-site sawing waste and keeping zinc coating intact at the cut edges through cold-saw processing.
Engineering Compliance and Certification Pathways
Structural frames designed to AISC 360 or EN 1993 require verified material properties, not supplier declarations. ASTM A53 GRB rectangular galvanized steel tube supplied with original mill test certificates satisfies the material traceability clause in most EPC specifications, linking each piece to its heat number, chemical composition, and mechanical test results. For projects entering the European market, CE marking under EN 10219 confirms that the hollow section meets harmonized performance requirements for load-bearing structures. [NEED_CITE: EN 10219 cold-formed structural hollow section certification requirements] Galvanized coating thickness must comply with ASTM A123 or ISO 1461 depending on the specifying authority — we provide coating weight verification in the inspection report. Plain ends arrive ready for field welding or mechanical coupling, and the ±1% tolerance ensures that connection details designed to nominal dimensions will fit without rework.
Steel Grade Selection and Manufacturing Process
ASTM A53 GRB and its European equivalents S235, S275, S355 represent increasing yield strength tiers — selecting the correct grade avoids both over-design cost and under-capacity risk. S235 suits light structural frames and non-load-bearing curtain wall supports, while S355 handles heavier moment frames and crane runway beams. The Chinese GB/T 3091 standard maps closely to ASTM A53 for welded tube applications, allowing cost-effective sourcing without redesign. ERW welded tubes offer economical pricing for standard structural sizes, while seamless construction serves higher-pressure or critical-load applications where weld line integrity matters. [NEED_CITE: steel grade equivalence between ASTM A53 and EN 10219 standards] Galvanized surface treatment — hot-dip coating applied after forming — provides uniform zinc coverage on all faces including internal corners, protecting against corrosion during transport, storage, and decades of field exposure. Black painting or varnish options serve indoor or temporary applications where galvanizing cost cannot be justified.
Hidden Costs of Unverified Rectangular Tube Procurement
Pricing that seems attractive often hides negative tolerance practices — tubes delivered at the low end of the tolerance band reduce actual section modulus and load capacity, triggering structural engineer rejection during inspection. Missing or forged mill test certificates create customs clearance delays and may void project insurance coverage if material failure occurs. [NEED_CITE: consequences of non-compliant structural steel in construction projects] Grade substitution without documentation — shipping S235 against an ASTM A53 GRB order — passes visual inspection but fails mechanical testing, forcing complete replacement after the material has already reached site. For ASTM A53 GRB rectangular galvanized steel tube, the cost of proper verification is marginal against the expense of air-freighting replacement material or facing liquidated damages for schedule overrun.
Procurement Confidence from Mill to Site
Every ASTM A53 GRB rectangular galvanized steel tube we supply carries an original mill test certificate traceable to the heat number — no photocopies, no re-inspection games. Our ISO 9001:2015 certified production line and CE marking capability serve both ASTM and EN specification projects from a single inventory. The full size range from 15×20mm small sections to 700×800mm heavy structural tubes means you consolidate orders with one supplier instead of splitting across multiple sources with inconsistent documentation. Custom cutting to your exact lengths reduces material waste and eliminates on-site sawing that damages galvanized coating. Professional heavy cargo loading — flatbed trucks for domestic transport, open-top containers for oversized sections, break-bulk for project cargo — prevents the edge damage and zinc coating scratches that occur when rectangular tubes are stuffed into standard containers without proper edge protection. Third-party inspection through SGS or BV is available before shipment for projects requiring independent verification.
Documentation & Compliance
- Mill test certificate documenting ASTM A53 GRB chemical composition, yield strength, and tensile properties per heat number
- CE certificate confirming EN 10219 compliance for rectangular hollow sections entering European Union markets
- ISO 9001:2015 quality management certificate covering the full production and inspection process
- SGS or BV third-party inspection report verifying dimensions, coating thickness, and mechanical properties before shipment
- Material traceability sheet linking each bundle to its heat number and original mill rolling record
- Export documentation package including commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- ASTM A53 GRB rectangular galvanized steel tube bundled with high-tensile steel straps and edge protectors to preserve zinc coating during ocean transit
- Galvanized surface protected by plastic end caps and separation layers between tubes to prevent contact scratches and white rust formation
- Open-top container loading for 700×800mm large sections exceeding standard container door height, with timber cradles preventing point contact damage
- Custom cut-to-length service delivering tubes at exact project specifications — 5.8m, 6m, 11.8m, or 12m — reducing on-site cutting waste
- Heat number and steel grade stenciled on each bundle for site identification and traceability verification during installation
- FOB, CIF, and DDP shipping terms available with professional heavy cargo logistics handling flatbed, open-top, and break-bulk arrangements
Getting Your Rectangular Tube Quote Moving
Send your specification sheet with steel grade, section dimensions, wall thickness, length, quantity, and destination port — we respond within 12 hours with pricing, mill test certificate samples, and shipping options. For non-standard sizes or custom cutting requirements, share your fabrication drawings and we confirm feasibility and lead time. Verification of CE marking, third-party inspection availability, and loading method confirmation all happen before you commit the deposit.
Request ASTM A53 GRB Rectangular Galvanized Steel Tube Pricing
Submit your specifications and receive a detailed quotation with mill test certificate documentation within one business day.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjyplate.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjyplate.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the grade equivalence between ASTM A53 GRB and European standards like S235 or S355?
A: ASTM A53 GRB maps closely to S235JR in yield strength range for general structural applications. S275 and S355 offer higher yield points for heavier load requirements. We supply all these grades from the same rectangular tube production line with full mill test certificates showing actual chemical composition and mechanical properties for your engineer’s verification.
Q: How can I verify the mill test certificate before shipment arrives?
A: We provide original mill test certificates showing heat number, chemical composition, and mechanical test results before or with shipment. You can cross-reference the heat number against the mill’s records. For additional confidence, we arrange SGS or BV third-party inspection at our facility before loading, and you receive the independent inspection report with your shipping documents.
Q: What surface treatment options are available besides hot-dip galvanizing?
A: Beyond hot-dip galvanized coating for corrosion protection, we offer black painting for indoor or temporary applications, varnish coating for moderate environments, and bare (uncoated) tubes for projects where you handle surface treatment on-site. The choice depends on your installation environment, expected service life, and whether field welding will occur after delivery.
Q: Can you supply non-standard dimensions or custom cut lengths?
A: Yes. Beyond our standard size range of 15×20mm to 700×800mm and standard lengths of 5.8m to 12m, we provide custom cutting to your exact project requirements. Share your fabrication drawings or cut list, and we confirm feasibility, pricing, and lead time. Custom cutting reduces your on-site waste and preserves the galvanized coating integrity through cold-saw processing.
Q: What is the minimum order quantity and how do you handle heavy cargo shipping?
A: The minimum order quantity is 5 tons. For shipping, we use flatbed trucks for domestic transport, standard containers for smaller sections, open-top containers for oversized rectangular tubes exceeding container door height, and break-bulk vessels for large project cargo. Our logistics team handles proper edge protection and load securing to prevent zinc coating damage during transit, and we provide complete export documentation for smooth customs clearance.
