Description

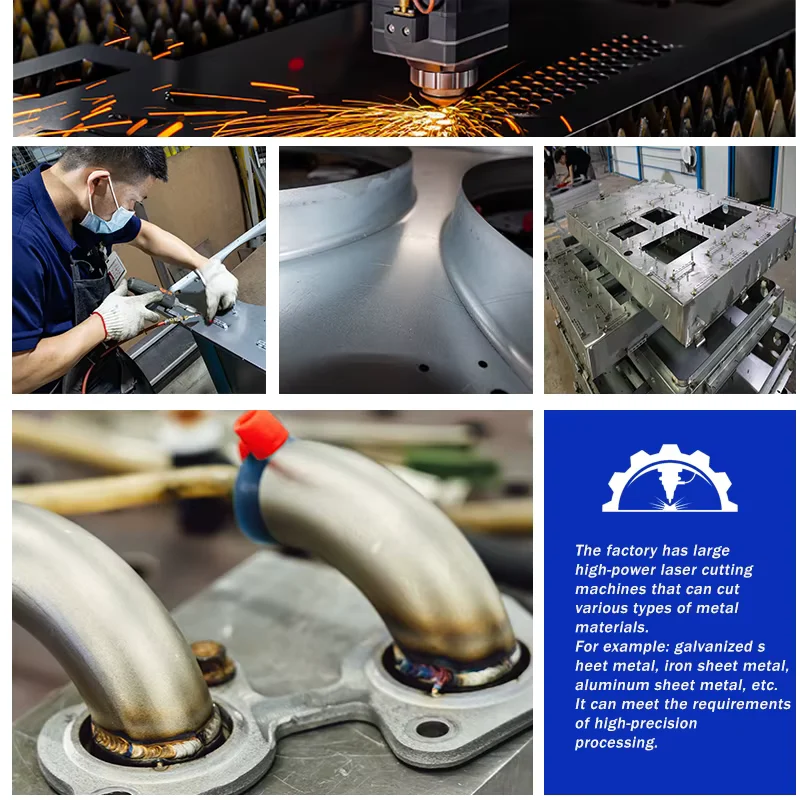

Factory-Direct Carbon Steel Fabrication — Every custom sheet metal processing carbon steel fabrication supplier order is produced in our Jinan workshop with full in-house laser cutting, CNC bending, and welding lines, eliminating trader markups on precision components.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Custom Sheet Metal Processing Carbon Steel Processing |
| Product Type | Machined Steel Product |
| Steel Grade | Carbon steel, low carbon steel, cold rolled steel, hot rolled steel, SS201, SS303, SS304, SS316, AL5052, AL6061, AL6063, AL7075, Galvanized steel sheet, Aluminum sheet |
| Technique | Laser cutting, CNC bending, flanging, punching, welding, CNC punching, CNC cutting |
| Surface Treatment | Spraying, electroplating, polishing, galvanizing, painting, sandblasting, anodizing |
| Dimensional Tolerance | ±0.1~±0.3 mm |
| CNC Punching Max | 3000 × 150 mm |
| CNC Cutting | T ≤ 12 mm, l ≤ 3000 mm |
| Laser Cutting | T ≤ 16 mm, 6000 × 2000 mm |
| CNC Bending | T ≤ 1 mm, l ≤ 4100 mm |
| Drawing Format | DWG, STEPS, JPG, IGS, SLD, SLDPRT, DXF |
| Standard | ISO 9001, CE |
| Application | Electrical control cabinets, frames, enclosures, automotive parts, medical equipment parts, machinery and equipment parts, outside metal enclosures, energy storage enclosures |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Electrical & Power Distribution | Control cabinets, relay frames, terminal box enclosures |
| Energy Storage | Battery cabinet housings, inverter enclosures, outdoor energy storage unit shells |
| Industrial Machinery | Equipment guard panels, machine base frames, conveyor structural brackets |
| Automotive | Chassis brackets, battery tray components, structural reinforcement plates |
| Medical Equipment | Device outer enclosures, equipment mounting frames |
What Tolerance Drift Costs on a Custom Sheet Metal Processing Carbon Steel Fabrication Supplier Order
A 0.3 mm bending deviation can misalign an entire control cabinet door panel.
I have seen batches arrive at a Middle East fabricator’s workshop where the CNC-bent flanges were off by half a millimeter — not enough to reject at the factory gate, but enough to make every door panel sit crooked when bolted on-site. The buyer had to re-drill hundreds of mounting holes by hand. When you source from a custom sheet metal processing carbon steel fabrication supplier without verified tolerance data, you absorb that rework cost. Dimensional inconsistency also triggers rejection during final assembly inspection, especially for energy storage enclosures where IP-rated sealing depends on flat mating surfaces [NEED_CITE: sheet metal tolerance standards for electrical enclosures].
Matching Precision Fabrication to Enclosure and Structural Applications
A custom sheet metal processing carbon steel fabrication supplier must align process selection with the end-use environment. For electrical control cabinets, cold rolled steel processed through CNC bending at ±0.1 mm tolerance ensures door panels seal correctly against gaskets. For energy storage enclosures deployed outdoors, hot rolled carbon steel with galvanizing or powder coating resists corrosion over years of field exposure. Our laser cutting lines handle thickness up to 16 mm across a 6000 × 2000 mm bed, covering most structural bracket and frame geometries in a single setup.
Engineering Compliance and Surface Protection Requirements

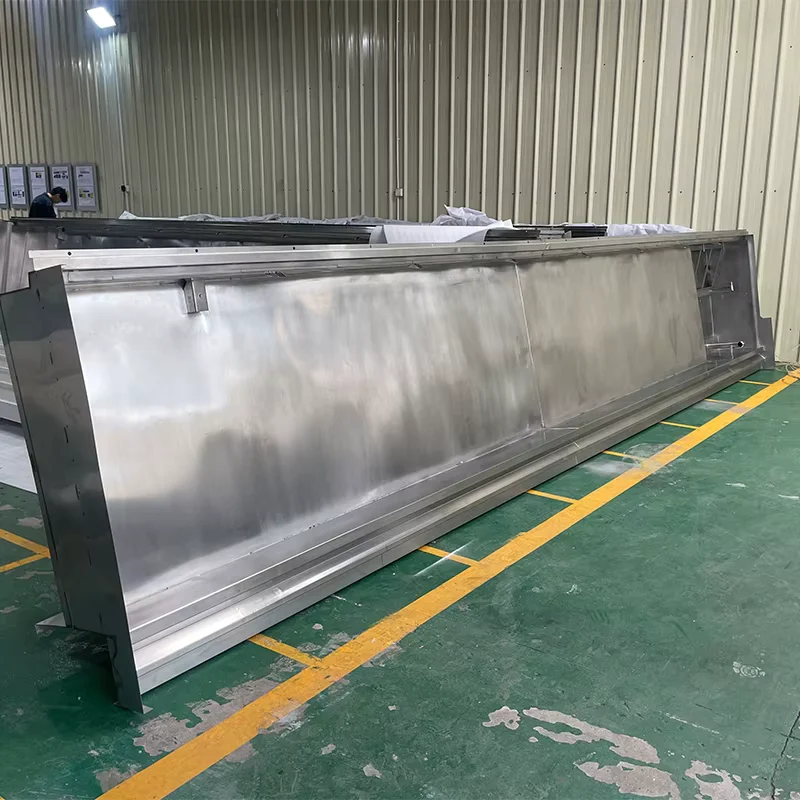

Electrical enclosures destined for European markets require CE-marked fabrication documentation and dimensional reports traceable to ISO 9001 quality procedures. When carbon steel components face outdoor or humid environments, specifying galvanizing or electroplating at the inquiry stage prevents field corrosion that painting alone cannot stop [NEED_CITE: surface treatment selection for carbon steel outdoor enclosures]. For medical and cleanroom equipment, SS304 or SS316 grades processed with polishing and passivation meet hygiene and corrosion resistance expectations. CNC bending lengths up to 4100 mm allow full-height cabinet sides to be formed in one piece, eliminating weld seams that compromise structural rigidity and appearance.
Steel Grade and Process Selection for Sheet Metal Fabrication
Carbon steel remains the default choice for structural frames and enclosures due to its formability and cost efficiency. Low carbon steel grades bend cleanly without cracking at tight radii, while cold rolled steel delivers smoother surfaces for painted or powder-coated finishes. When corrosion resistance is critical, SS304 and SS316 stainless grades are processed with laser cutting to avoid heat-affected zone discoloration. Aluminum alloys AL5052 and AL6061 are selected for lightweight enclosures where weight reduction matters, and they respond well to anodizing for both protection and aesthetics. The choice between laser cutting and CNC punching depends on geometry complexity — laser handles intricate contours up to 16 mm, while CNC punching excels at high-volume hole patterns on material up to 12 mm thick.
Hidden Costs of Choosing the Wrong Custom Sheet Metal Processing Carbon Steel Fabrication Supplier
Selecting a fabricator without ISO 9001 certification or in-house quality inspection invites three failure modes: material grade substitution without notification, tolerance drift beyond ±0.3 mm on critical bends, and missing mill test certificates that block customs clearance. I once inspected a shipment where the supplier had swapped cold rolled for hot rolled steel without informing the buyer — the surface finish difference was visible, and the buyer’s powder coating line rejected the entire batch. Engineering codes reference specific material standards, and shipping without compliant documentation means port holds and demurrage charges [NEED_CITE: customs documentation requirements for steel fabrication exports].
Why Buyers Source Custom Sheet Metal Processing Carbon Steel Fabrication from XJY Plate

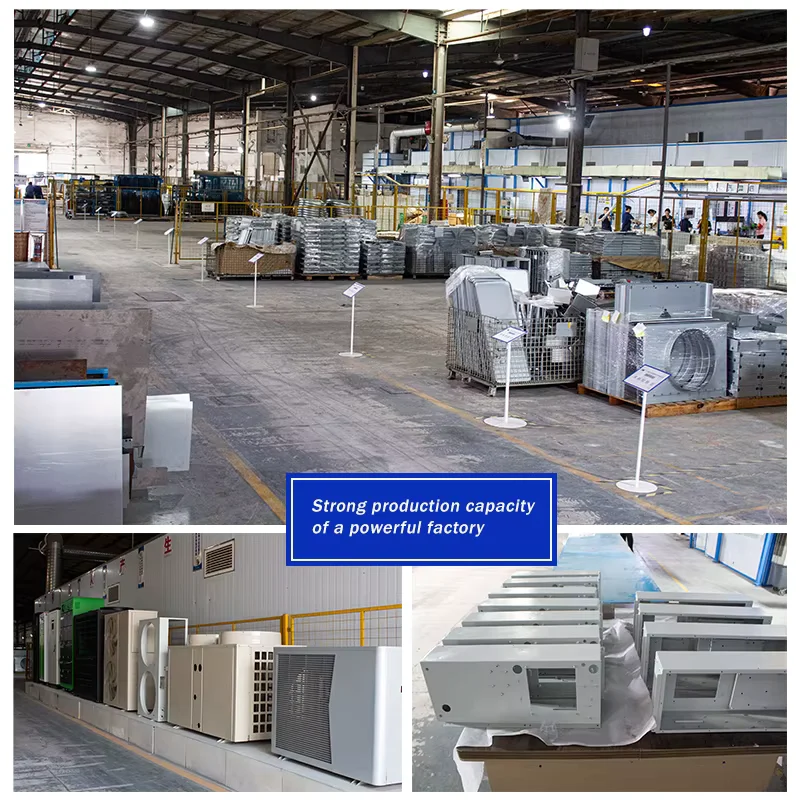

Our Jinan facility operates dedicated laser cutting, CNC punching, CNC bending, and welding lines under one roof, so your order moves from drawing review to finished part without leaving our factory. Every batch is inspected against the original drawing with dimensional reports, and we supply mill test certificates for all carbon steel and stainless steel materials. Our 400-meter automatic spraying workshop handles powder coating and painting in-house, eliminating the need to ship parts to a separate coating vendor. We accept DWG, DXF, STEP, and IGES files directly from your engineering team, and our technicians provide design-for-manufacturability feedback before production begins. With ISO 9001 and CE certification, plus SGS and BV third-party inspection available, your compliance documentation is ready at shipment. Professional heavy-cargo loading experience ensures flat sheets and fabricated assemblies arrive without edge damage or deformation.
Documentation & Compliance
- Mill test certificate documenting carbon steel chemical composition and mechanical properties per original mill standards
- CE certificate confirming fabrication quality management compliance for European market shipments
- ISO 9001 quality management certificate covering the full production and inspection process
- SGS or BV third-party inspection report available upon request for pre-shipment verification
- Material traceability by heat number linking each cut piece back to the original coil or plate
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Laser-cut carbon steel plates stacked with interleaved protective film and edge guards to prevent surface scratching during transit
- CNC-bent enclosures wrapped in shrink film with corner protectors, loaded on steel pallets for container shipping
- Galvanized and powder-coated components separated by foam spacers to preserve surface finish integrity
- Custom sheet metal assemblies loaded in open-top containers or flatbed trucks depending on part dimensions exceeding standard container height
- Each bundle marked with heat number, steel grade, and purchase order reference for on-site identification
- Shipping terms available as FOB, CIF, or DDP with full export documentation and tracking until arrival
Start Your Custom Sheet Metal Processing Carbon Steel Fabrication Inquiry
Submit your DWG, DXF, or STEP drawings along with material grade, surface treatment preference, and target quantity to receive a detailed quotation within 12 hours. Our engineering team will review your design for manufacturability and confirm tolerance feasibility before production begins.
Request a Quote with Drawings and Mill Test Certificate
Send your specifications to admin@xjyplate.com or contact us via WhatsApp at +86 188 5315 7756.
