Description
Direct Mill Supply, No Broker Markup — Every SSAW spiral welded steel pipe ships with original heat-number traceability from our partnered mills, cutting intermediary costs on large-diameter piling orders.
Technical Specifications
| Parameter | Value |
|---|---|

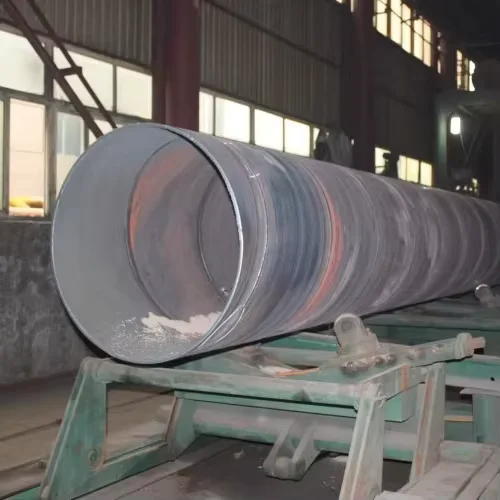

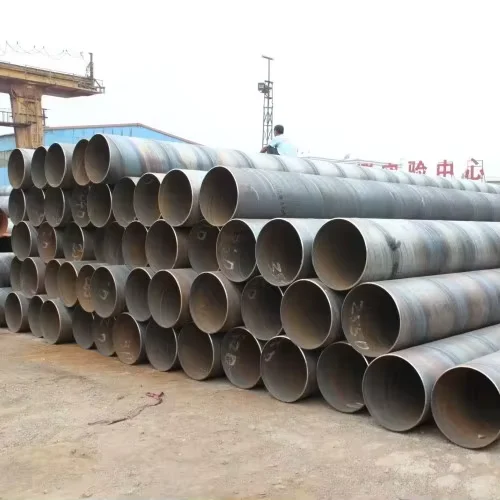

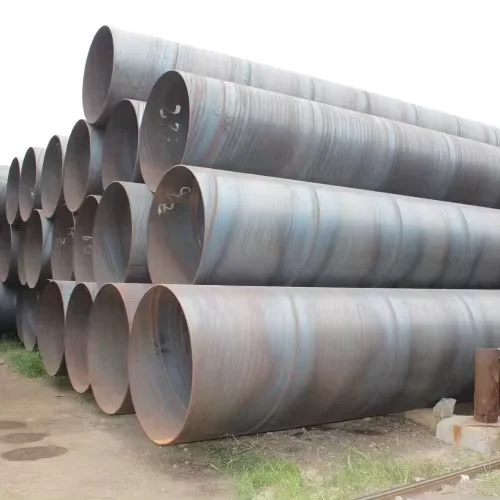

| Designation | SSAW Spiral Welded Steel Pipe |
| Product Type | Round Steel Pipe (Spiral Welded) |
| Steel Grade | Carbon Steel |
| Standard | API 5L / GB/T 9711.1-1997 / SY/T 5037-2000 |
| Section Shape | Round |
| Outer Diameter | 219–3520 mm |
| Wall Thickness | 5–30 mm |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Bare / Black Painted / PE Coated / Epoxy Coating |
| Ends | Plain / Beveled (per standard) |
| Application | Fluid Pipe, Structural Pipe, Steel Pipe Pile, Concrete Reinforcement, Construction |
| Delivery Time | Within 10–15 Days |
| Payment Term | L/C, T/T (30% Deposit) |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Marine & Port Construction | Steel pipe piles for wharf foundations, jetty support structures, offshore platform legs |
| Oil & Gas Transmission | Buried fluid pipelines for water, crude oil, and natural gas distribution networks |
| Bridge & Highway Infrastructure | Structural columns, sign gantry supports, and sound barrier foundations |
| Industrial Plant EPC | Process water lines, cooling water circuits, and structural framing for heavy equipment platforms |
| Municipal Engineering | Large-diameter drainage culverts, stormwater conveyance, and concrete reinforcement cages |
What Missing Mill Certificates Cost on a Piling Project
A single untraceable heat number can halt an entire foundation acceptance inspection.
Procurement teams sourcing large-diameter piling pipes from fragmented suppliers frequently encounter forged or missing mill test certificates at the port of discharge. Without verifiable chemical composition and mechanical property data tied to a specific heat number, third-party inspectors flag the entire shipment. [NEED_CITE: API 5L mill test certificate requirements for pipeline steel] The resulting delays—container demurrage, re-inspection fees, and idle piling rigs—far exceed any initial price savings from uncertified material. As a SSAW spiral welded steel pipe supplier, we attach original MTCs to every shipment, with heat numbers laser-marked on each pipe end for field verification.
Matching Large-Diameter Pipe to Marine Piling Loads
Marine piling demands pipes that withstand both axial compression from superstructure loads and lateral soil pressure during driving. Our SSAW spiral welded steel pipe covers OD 219–3520 mm with wall thickness up to 30 mm, spanning the full range from small-diameter fender piles to large-diameter main load-bearing foundations. The spiral submerged arc welding process produces a continuous helical seam that distributes stress more evenly than longitudinal welds under torsional loading—a critical factor when piles are driven into dense soil strata. We supply these pipes with PE or epoxy coating for marine environments where chloride-induced corrosion threatens bare steel within months of installation.
Engineering Compliance and Surface Protection Selection
Foundation piling for port and bridge projects typically falls under EN 1993 or AISC structural steel specifications, requiring documented yield strength and weldability. [NEED_CITE: structural steel compliance requirements for marine piling] Carbon steel grades meeting API 5L and GB/T 9711.1-1997 provide the necessary combination of formability and strength for pile driving without cracking. Surface protection selection depends on service environment: bare or black painted pipes suit temporary works or dry structural applications; PE coating provides mechanical damage resistance during driving; epoxy coating offers superior chemical resistance for submerged or splash-zone conditions. We provide beveled ends per standard for field welding continuity and can supply cut-to-length pipes to reduce on-site splicing.
SSAW Process and Standard Equivalence Explained
Spiral submerged arc welding forms the pipe by helically winding steel strip and welding both inner and outer seams simultaneously under flux coverage. This process enables production of large diameters—up to 3520 mm OD—from narrower strip stock, making it economically viable for projects requiring sizes beyond the capability of LSAW mills. The spiral seam geometry also allows production of non-standard lengths from a single strip coil, reducing transverse weld joints that could become fatigue initiation points.
API 5L governs pipeline transportation systems for petroleum and natural gas industries, specifying rigorous chemical composition limits and mechanical testing protocols including hydrostatic testing and non-destructive examination of weld seams. GB/T 9711.1-1997 serves as the Chinese national equivalent for petroleum and natural gas pipeline steel, while SY/T 5037-2000 covers lower-pressure fluid conveyance applications. [NEED_CITE: equivalence mapping between API 5L and GB/T 9711 standards] Understanding which standard applies to your project determines inspection requirements, acceptable defect limits, and documentation needed for customs clearance.
Wall thickness tolerance directly affects both theoretical weight calculations and actual load-bearing capacity. Negative tolerance beyond standard allowances reduces the pipe’s ability to resist buckling during driving and compromises long-term corrosion allowance. We enforce mill-level thickness verification before shipment, ensuring each pipe meets the specified minimum wall thickness rather than nominal dimensions.
Hidden Costs of Procuring Without Verified Traceability
Specifying the correct carbon steel grade matters less than proving the delivered material matches that specification. Pipes arriving without original mill test certificates—or with certificates that cannot be cross-referenced to heat numbers marked on the pipe—fail acceptance inspection on certified projects. [NEED_CITE: consequences of non-compliant steel in structural applications] Negative tolerance abuse creates a compounding problem: pipes pass visual inspection but fail ultrasonic thickness measurement, triggering rejection of entire batches after installation begins. The cost of replacing driven piles exceeds the original material cost many times over, as retrieval damages adjacent piles and delays critical path activities.
Why Project Procurement Teams Specify XJY Plate
Our理化实验室 background means we understand what mill test certificates should show—and what forged documents look like. Every SSAW spiral welded steel pipe we supply undergoes dimensional verification and weld seam inspection before release. We maintain relationships with multiple mills producing API 5L and GB/T 9711.1-1997 compliant pipe, allowing us to match your specification to available rolling schedules rather than forcing you to accept whatever stock a single source offers.
For heavy-wall, large-diameter shipments, improper container loading causes pipe damage, overweight penalties, and port rejection. Our logistics team specializes in open-top container and break-bulk configurations for oversized pipe, with load calculations submitted before booking to prevent surprises at the terminal. Third-party inspection through SGS or BV is available at our facility before shipment, giving you independent verification rather than relying solely on mill documentation.
Documentation & Compliance
- Mill Test Certificate documenting carbon steel chemical composition and mechanical properties per API 5L or GB/T 9711.1-1997, with heat number traceability to each pipe
- ISO 9001:2015 quality management system certificate covering our inspection and documentation processes
- SGS or BV third-party inspection report verifying dimensional accuracy, wall thickness, and weld seam quality before shipment
- Material traceability sheet linking heat numbers on pipe ends to corresponding mill test certificates and coating batch records
- Complete customs documentation including packing list with piece count and weight, bill of lading, and certificate of origin for preferential tariff claims
- Coating specification sheet detailing PE or epoxy coating thickness, adhesion test results, and holiday detection records for corrosion-protected pipes
Packaging, Loading & Delivery
- Large-diameter SSAW pipes (OD above 1000 mm) shipped loose in open-top containers or on flatbed trailers with chocking to prevent rolling during transit
- PE and epoxy coated pipes bundled with protective edge guards and separated by rubber spacers to prevent coating damage from metal-to-metal contact
- Wall thickness and outer diameter clearly marked on each pipe end along with heat number, steel grade, and standard designation for field identification
- Beveled ends protected with plastic caps to prevent damage during handling and to keep bevel surfaces clean for field welding
- Loading plans submitted before shipment showing weight distribution and lashing points, preventing overweight penalties and port rejection
- FOB, CIF, and DDP terms available with door-to-door logistics coordination for project sites requiring direct delivery to laydown areas
Start Your SSAW Pipe Procurement
Submit your specification including outer diameter, wall thickness, length, quantity, standard requirement, and destination port. We respond within 12 hours with pricing, available mill schedules, and documentation confirmation. For non-standard sizes or coating requirements, we provide technical consultation on feasibility and lead times before you commit.
Request SSAW Spiral Welded Steel Pipe Quotation
Send your specification to admin@xjyplate.com or contact us via WhatsApp at +86 188 5315 7756 for pricing and mill test certificate samples.
Frequently Asked Questions
Q: What is the difference between SSAW and LSAW spiral welded pipe for my project?
A: SSAW (Spiral Submerged Arc Welded) pipe is produced by helically forming steel strip and welding along a spiral seam, enabling larger diameters from narrower strip stock. LSAW (Longitudinal Submerged Arc Welded) uses plate formed into a cylinder with a straight longitudinal seam. SSAW is more economical for large diameters above 500 mm and allows continuous length production, while LSAW is preferred for high-pressure applications requiring thicker walls.
Q: How do API 5L and GB/T 9711.1-1997 standards compare for SSAW pipe?
A: API 5L is the international standard for pipeline transportation systems in petroleum and natural gas industries, while GB/T 9711.1-1997 is the Chinese national equivalent. Both specify chemical composition limits, mechanical properties, and testing requirements. For most projects, material meeting API 5L is acceptable where GB/T 9711.1-1997 is specified, but project specifications should confirm equivalence acceptance.
Q: Which surface coating should I select for marine piling applications?
A: For marine piling, PE coating provides mechanical damage resistance during pile driving and moderate corrosion protection. Epoxy coating offers superior chemical resistance for submerged or splash-zone conditions but is more susceptible to mechanical damage. Bare or black painted pipes suit temporary works or dry structural applications where corrosion is not a primary concern.
Q: How do you verify wall thickness and ensure mill test certificate authenticity?
A: We conduct ultrasonic thickness measurement on random samples from each batch before shipment, with results documented in our inspection report. Original mill test certificates are provided with heat numbers laser-marked on each pipe end, allowing cross-verification. Third-party inspection through SGS or BV is available for independent verification before shipment.
Q: What logistics solutions do you provide for large-diameter SSAW pipe?
A: For pipes exceeding standard container dimensions, we arrange open-top container loading or break-bulk shipping on cargo vessels. Our logistics team prepares loading plans showing weight distribution and lashing configurations to prevent damage and overweight penalties. We coordinate door-to-door delivery for project sites requiring direct delivery to laydown areas.
