Description
Direct Mill Supply — full grade range from Dx51D to G550 with ASTM compliance and original mill test certificates.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square and Rectangular Steel Tube |
| Product Type | Square / Rectangular Steel Tube (Galvanized) |
| Steel Grade | Dx51D, Dx52D, Dx53D, G550, S350 |
| Standard | ASTM |
| Section Shape | Square / Rectangular |
| Wall Thickness | 1.0–5.0 mm |
| Length | 6 m / 12 m (customizable) |
| Technique | Hot Rolled Based |
| Surface Treatment | Galvanized (Z30–Z40 coating), Slightly Oiled |
| Spangle Type | Zero Spangle |
| Hardness | Hard |
| Skin Pass | Yes |
| Tolerance | ±1% |
| Ends | Plain / Cut-to-size |
| Application | Making pipes / Cutting sheets / Making small tools / Making fences / Steel structures / Construction frames / Scaffolding |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Steel Fabrication | Structural frames, scaffolding systems, load-bearing columns |
| Infrastructure & Fencing | Perimeter fencing posts, highway guardrail supports, utility pole bases |
| Equipment & Tool Manufacturing | Small tool frames, conveyor supports, machine guards |
| General Engineering | Welded assemblies, cut-to-size blanks for further processing |
Where Coating Weight and Thickness Tolerance Decide Field Acceptance
Z30–Z40 galvanizing with ±1% wall tolerance eliminates the two most common rejection triggers on galvanized structural tube orders.
Buyers sourcing galvanized square and rectangular steel tube for outdoor structures frequently encounter coating thickness below specification — zinc measured at 40 microns when 80 was contracted, or wall thickness drifting into negative tolerance territory that compromises structural calculations. Missing or unverifiable mill test certificates compound the problem: without heat number traceability, there is no way to confirm chemical composition or mechanical properties before the material reaches the fabrication floor. [NEED_CITE: galvanized coating weight standards for structural hollow sections]
Matching Galvanized Tube to Structural and Corrosion Environments
Galvanized square and rectangular steel tube in Dx51D through G550 grades covers the full spectrum from light-duty framing to high-strength structural applications. The zero spangle finish with Z30–Z40 zinc coating provides uniform corrosion protection without the surface irregularities that interfere with painting or powder coating downstream. Skin-passed surfaces ensure flatness for precise welding and connection detailing — critical when tubes must mate flush against gusset plates or base connections. Custom cut-to-size lengths reduce on-site waste and welding time for fabrication workshops.
Engineering Compliance and Grade Selection for Load-Bearing Applications
Structural engineers specifying galvanized square and rectangular steel tube to ASTM standards require documented yield strength and chemical composition for load calculations. G550 grade delivers higher strength for long-span framing and scaffolding where deflection limits are tight, while Dx51D suits non-structural cladding supports and light enclosures. Wall thickness tolerance of ±1% ensures actual section properties match design assumptions — a frequent failure point when suppliers ship negative-tolerance material that passes visual inspection but fails structural review. [NEED_CITE: ASTM A500 structural tube compliance requirements] Third-party inspection through SGS or BV confirms coating weight and dimensional accuracy before shipment.
Steel Grade Progression and Galvanizing Process Fundamentals
The grade range from Dx51D to G550 represents a progression from commercial quality forming steel to high-strength structural grade. Dx51D offers excellent formability for roll-forming and bending operations, while G550 provides the yield strength required for load-bearing frames and scaffolding systems. S350 sits in the mid-range, balancing strength and workability for general structural applications. The hot-rolled base material ensures consistent mechanical properties through the tube cross-section, while the galvanizing process (Z30–Z40 coating weight) metallurgically bonds zinc to the steel surface for corrosion resistance that outperforms paint systems in harsh environments. Zero spangle finish results from controlled cooling during galvanizing, producing a uniform matte appearance ideal for architectural applications where visual consistency matters.
Hidden Costs of Unverified Coating and Tolerance Claims
Ordering galvanized square and rectangular steel tube without independent verification of zinc coating weight and wall thickness creates downstream risk that far exceeds the initial price difference. Coating below specification leads to premature corrosion and warranty claims on completed structures — costs that surface years after installation when replacement becomes exponentially more expensive than inspection at the mill. Thickness deviations beyond ±1% tolerance mean actual load capacity falls below engineering calculations, creating safety liability and potential code violations during building inspection. [NEED_CITE: consequences of negative tolerance in structural steel procurement]
Procurement Confidence Through Certified Traceability and Processing Capability
Every galvanized square and rectangular steel tube shipment includes original mill test certificates documenting chemical composition, mechanical properties, and coating weight — verifiable by heat number from coil to finished tube. Custom cutting, punching, and bending services reduce fabrication time and material waste at the job site. Professional flatbed and open-top container loading prevents damage to galvanized surfaces during transit, while complete export documentation ensures smooth customs clearance at destination ports.
Documentation & Compliance
- Mill test certificate documenting Dx51D–G550 chemical composition and mechanical properties per ASTM standards
- ISO 9001:2015 quality management certificate covering galvanizing and tube forming processes
- SGS or BV third-party inspection report verifying Z30–Z40 coating weight and ±1% thickness tolerance
- Material traceability by heat number from hot-rolled coil to finished galvanized tube
- Customs documentation including packing list, bill of lading, and certificate of origin
- CE certification available for projects requiring European market compliance
Packaging, Loading & Delivery

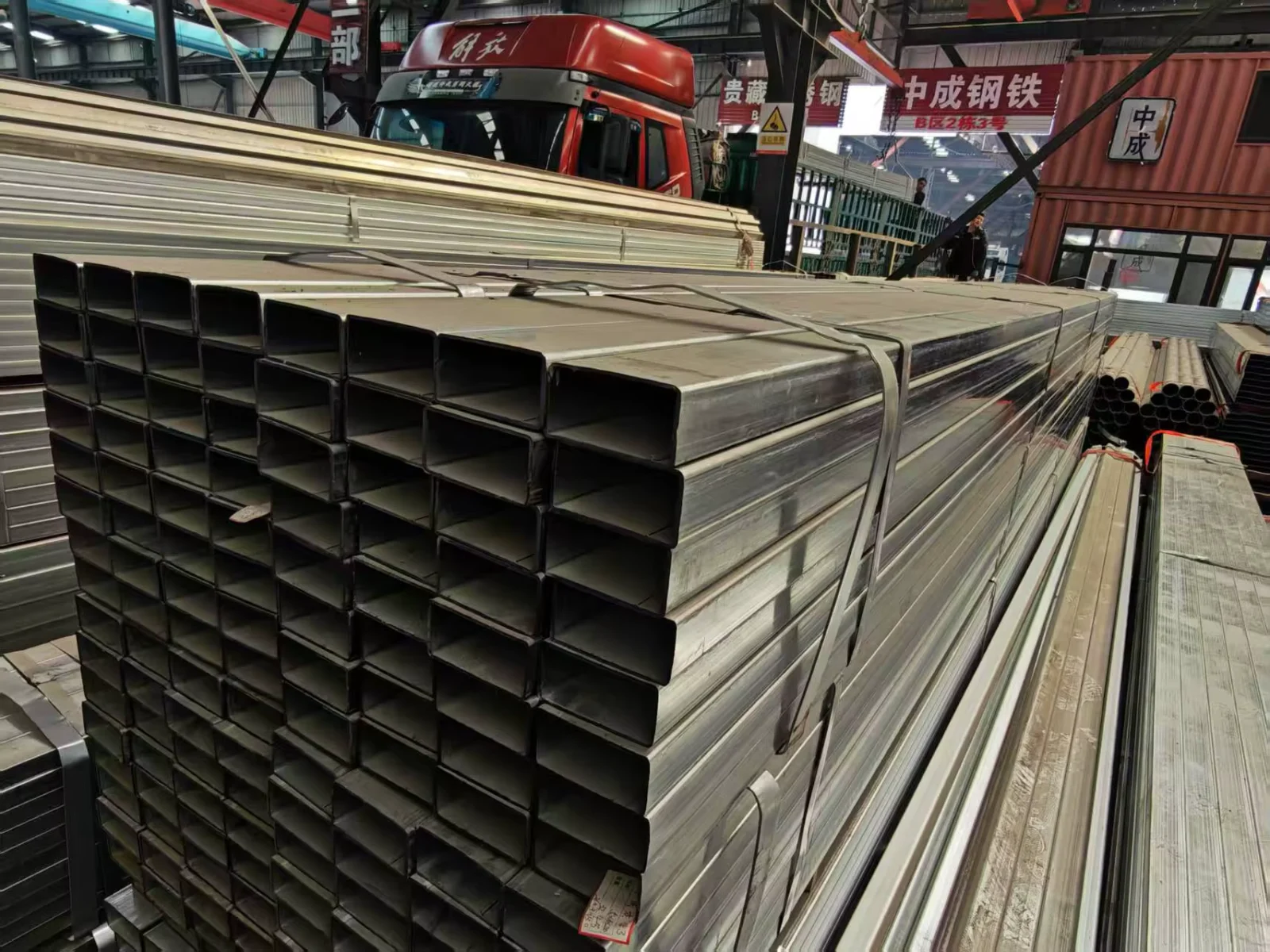

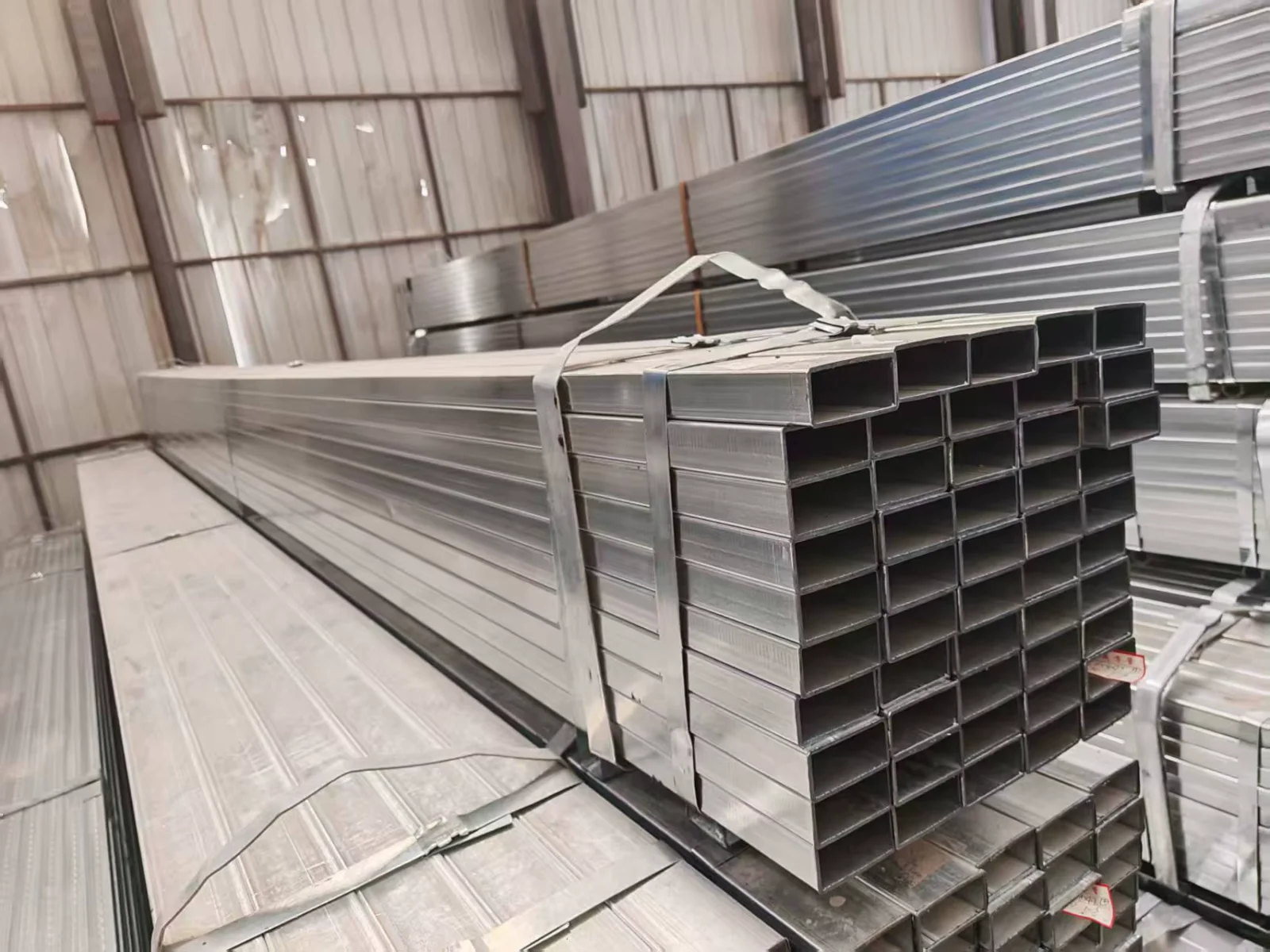

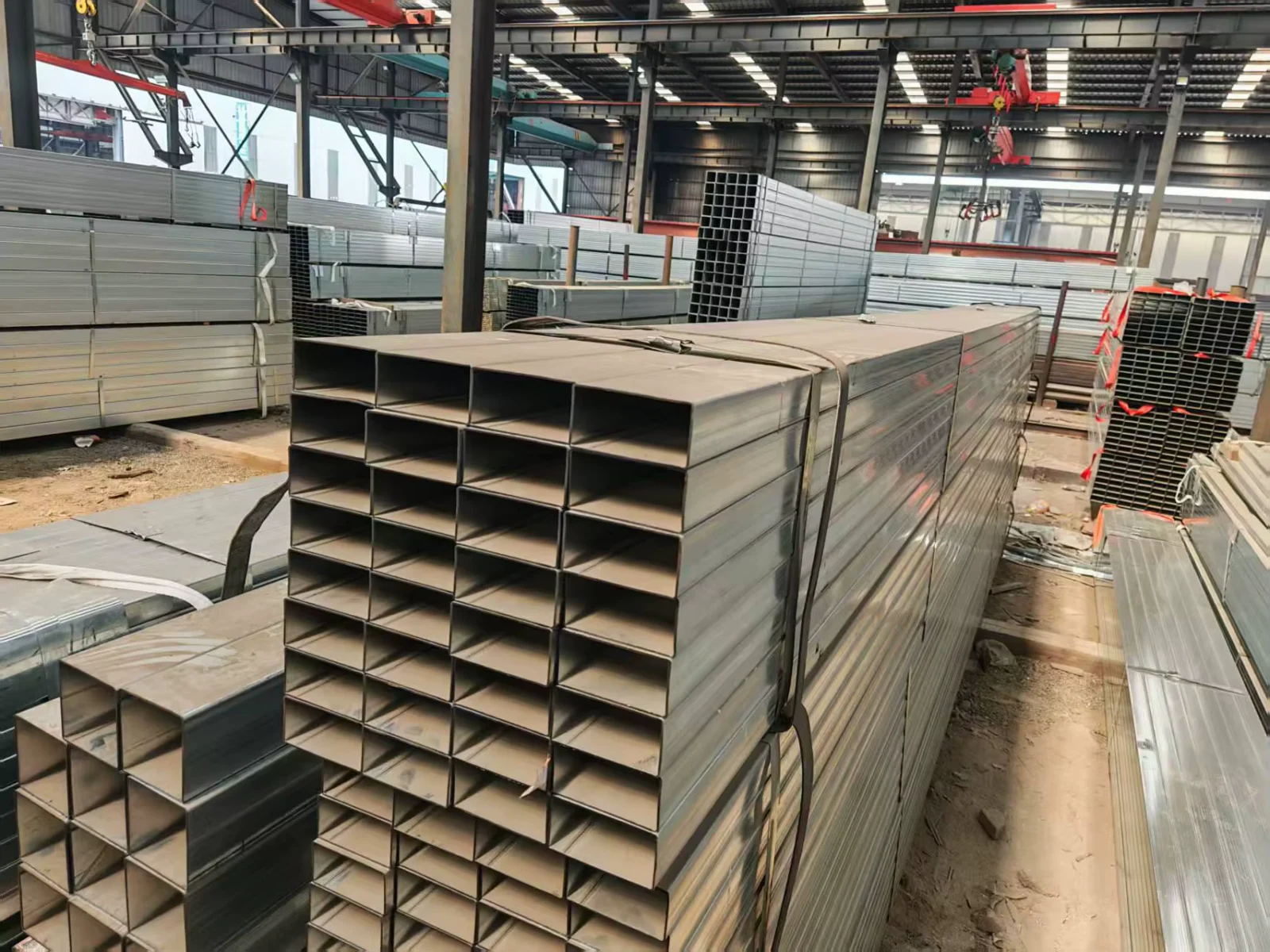

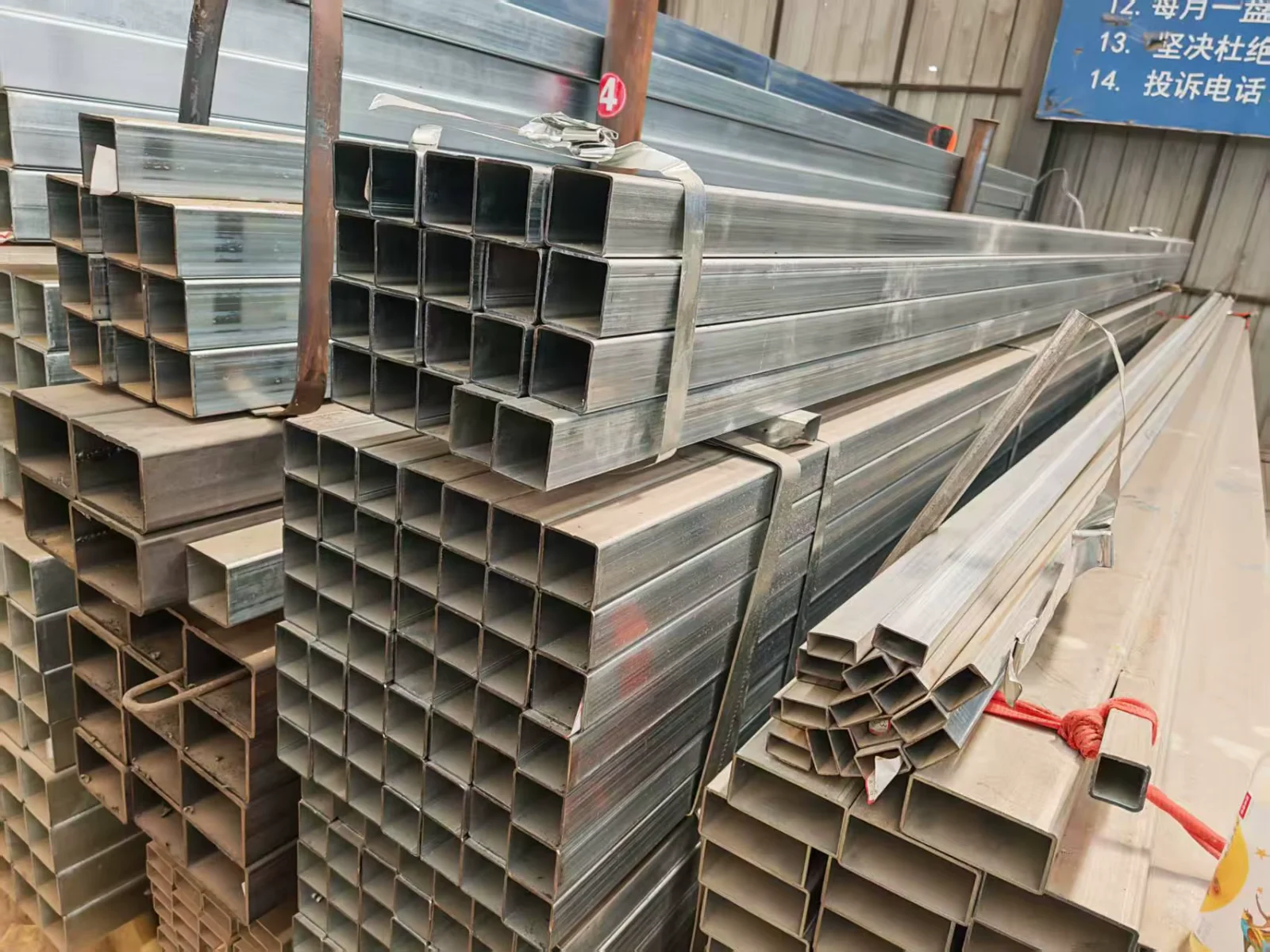

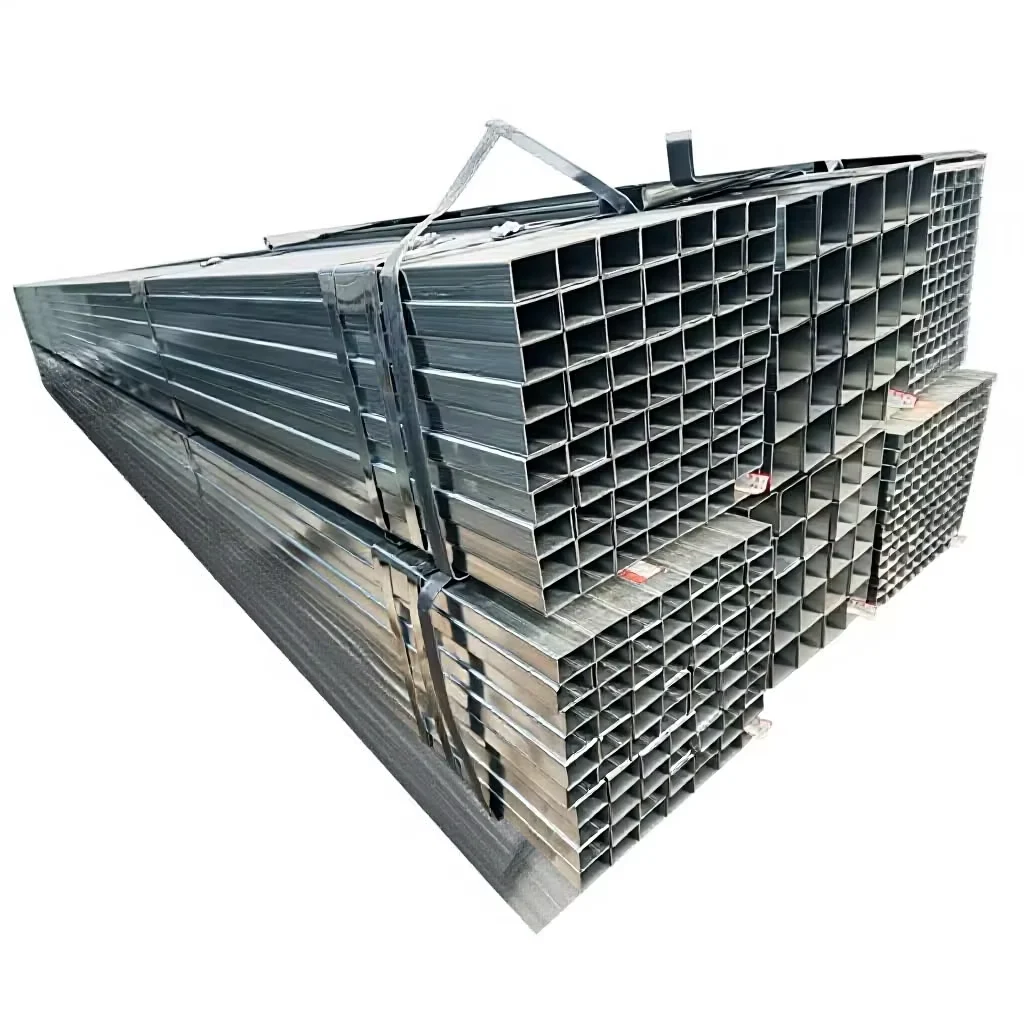

- Galvanized square and rectangular steel tube bundled with steel strips and edge protectors to preserve zero spangle coating during ocean transit
- Slight oiling applied after galvanizing provides additional corrosion protection during storage and shipping
- Custom cut-to-size lengths (6 m / 12 m or project-specific) reduce on-site cutting waste
- Heat number and grade identification marked on each bundle for traceability at fabrication
- Professional flatbed and open-top container loading optimized for 1.0–5.0 mm wall thickness tubes
- FOB, CIF, and DDP terms available with door-to-door logistics coordination
Request Specification Review and Quotation
Submit your project specifications including steel grade (Dx51D through G550), section dimensions, wall thickness, length requirements, and destination port to receive a detailed quotation with mill test certificate preview. Custom cut-to-size and processing requirements are reviewed within 12 hours, with processing fees and logistics options clearly itemized.
Start Your Galvanized Tube Procurement
Send specifications to admin@xjyplate.com or contact via WhatsApp at +86 188 5315 7756 for quotation and mill test certificate review.
Frequently Asked Questions
Q: What is the difference between Dx51D and G550 grades for galvanized square and rectangular steel tube?
A: Dx51D is a commercial quality grade optimized for formability and bending operations, suitable for non-structural applications like fencing and light enclosures. G550 is a high-strength structural grade with higher yield strength, required for load-bearing frames, scaffolding, and structural applications where deflection limits are critical.
Q: What does Z30–Z40 galvanizing coating weight mean for corrosion protection?
A: Z30–Z40 refers to the zinc coating weight in grams per square meter (combined both sides). This coating weight provides corrosion resistance suitable for most atmospheric and moderate industrial environments. For aggressive marine or chemical environments, higher coating weights or additional protective systems may be specified.
Q: Can you provide custom cut-to-size lengths instead of standard 6 m or 12 m?
A: Yes, custom cut-to-size is available for galvanized square and rectangular steel tube. Processing fees depend on quantity and complexity of cuts. Custom lengths reduce on-site waste and fabrication time, though minimum order quantities may apply depending on destination and shipping method.
Q: How do you verify coating weight and thickness tolerance before shipment?
A: Original mill test certificates document coating weight and dimensional measurements. Third-party inspection through SGS or BV is available to independently verify Z30–Z40 coating weight and ±1% thickness tolerance before shipment. Heat number traceability ensures every tube can be traced back to the original hot-rolled coil.
Q: What is the typical lead time for galvanized square and rectangular steel tube orders?
A: Standard sizes in common grades (Dx51D, G550) are typically available from stock. Custom cut-to-size or non-standard specifications require typical production lead times depending on quantity and processing requirements. Specific delivery schedules are confirmed upon order placement.
