Description

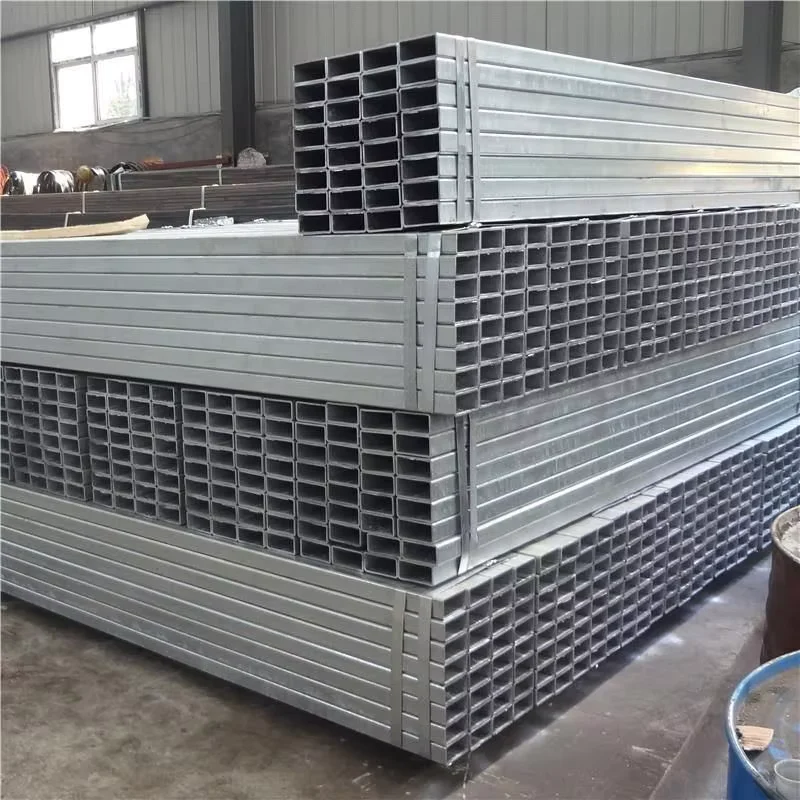

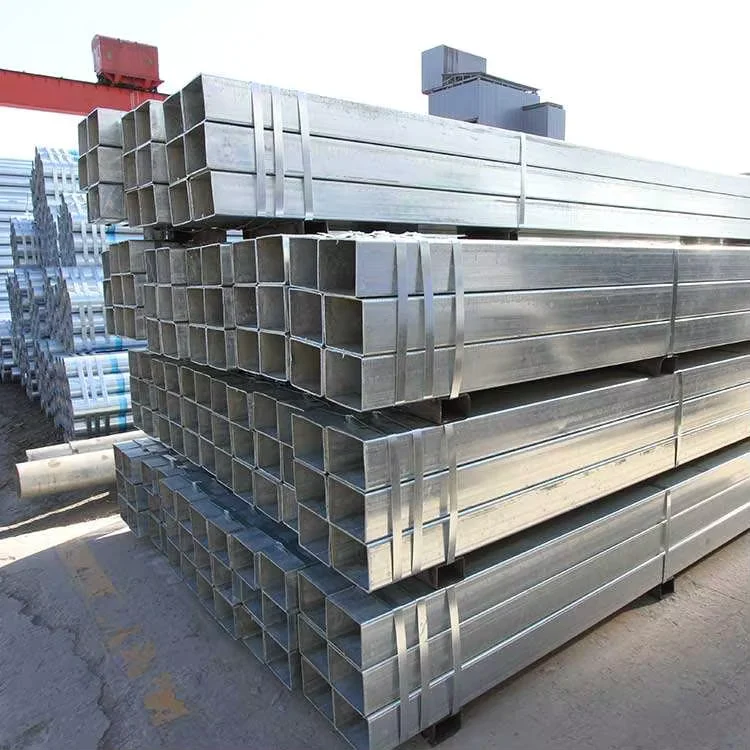

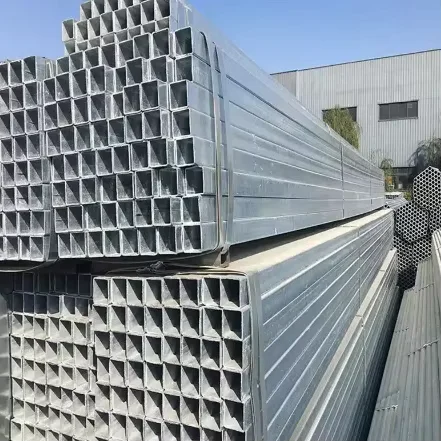

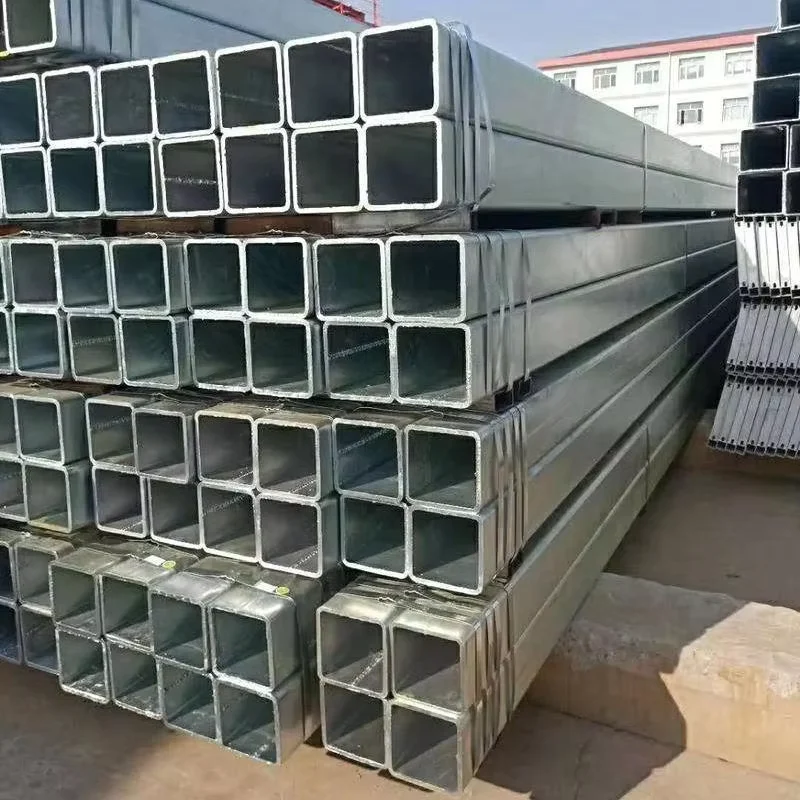

Factory-Direct GI Square Tube Supply — Every DX51D SGCC galvanized square steel tube ships with original mill test certificates and full heat-number traceability from our Jinan warehouse.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | DX51D / SGCC Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | DX51D, SGCC, Q235, Q195, Q345, CGCC, TDC51DZM, TDC52DTS350GD, TS550GD |
| Standard | ASTM A53, ASTM A500, ASTM A36, ASTM A795, BS1387, EN10255, ISO65, ANSI C80, DIN2440, JIS G3444, GB/T3091, GB/T13793 |
| Section Shape | Square |
| Size Range | 21.3 mm – 660 mm (1/2″ – 26″) |
| Wall Thickness | 0.6 mm – 8 mm |
| Length | 5.8 m / 6 m / 11 m / 12 m (or custom) |
| Technique | Hot Rolled / Cold Rolled, Welded |
| Surface Treatment | Hot-Dipped Galvanized / Pre-Galvanized |
| Tolerance | ±1% |
| Ends | Plain ends, Beveled ends, Threaded ends, Grooved ends |
| Spangle | Big / Medium / Small / Zero |
| Invoicing | By Theoretical Weight |
| Application | Steel structures / Construction frames / Machinery / Scaffolding / Furniture / Fluid transportation / Building industry |
| MOQ | 1 Ton |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction | Structural frames, scaffolding systems, building support columns |
| Steel Fabrication | Machinery frames, equipment bases, furniture structures |
| Infrastructure | Fencing posts, greenhouse frameworks, fluid transportation pipelines |
What Zinc Coating Inconsistency Costs on a Galvanized Square Tube Order
A failed coating test at destination port means the entire lot gets rejected — and the replacement air-freight bill dwarfs the original material cost.
I once saw a Dubai contractor receive 3-inch hot-dipped galvanized square tubes where the zinc coating measured 38 microns instead of the specified 60 microns. SGS rejected the entire shipment on site. The supplier absorbed the air-freight cost for replacements, but the project delay ran weeks. That kind of failure doesn’t show up in a visual inspection — it requires verified mill test certificates and pre-shipment coating thickness reports. [NEED_CITE: hot-dip galvanized coating thickness standards for structural steel]
Buyers sourcing DX51D SGCC galvanized square steel tube from multiple suppliers face the same risk repeatedly: inconsistent zinc coating quality, missing or forged mill certificates, and thickness deviations hidden behind negative tolerance practices. These issues surface only after fabrication begins or after customs inspection, turning a routine procurement into a costly dispute.
Matching Galvanized Square Tubes to Structural and Corrosion Demands
The DX51D SGCC galvanized square steel tube covers side lengths from 21.3 mm to 660 mm with wall thickness from 0.6 mm to 8 mm, making it suitable for both light-duty furniture frames and heavy structural scaffolding. Hot-dipped galvanizing provides uniform zinc coverage on all four sides and internal corners, which matters when the tube faces outdoor exposure or humid industrial environments. We supply multiple spangle options — big, medium, small, and zero — so buyers can match surface appearance requirements for architectural visibility or industrial concealment. Every DX51D SGCC galvanized square steel tube we ship carries original mill test certificates with heat-number traceability, so coating thickness and steel grade verification happens before the container leaves our warehouse.
Engineering Compliance and Certification Requirements
Structural applications demand compliance with recognized standards, and the DX51D SGCC galvanized square steel tube we supply meets ASTM A53, ASTM A500, EN10255, JIS G3444, and GB/T3091 specifications depending on the destination market. [NEED_CITE: EN 10255 and ASTM A53 requirements for galvanized steel tubes] For EU projects, CE marking and EN certification ensure customs clearance without delays. Wall thickness tolerance of ±1% with theoretical weight invoicing provides transparent costing — no hidden negative tolerance surprises on the invoice. Custom end treatments including plain, beveled, threaded, and grooved ends eliminate secondary processing at the job site, reducing labor cost and installation time. Third-party inspection through SGS or BV is available for projects requiring independent verification of coating thickness and mechanical properties.
Understanding Steel Grade Selection and Galvanizing Process
DX51D and SGCC represent commercial-quality cold-rolled steel grades designed for cold forming and general structural use, while Q235 and Q345 offer higher yield strength for load-bearing frames. The choice between hot-dipped and pre-galvanized coating affects corrosion resistance: hot-dipped galvanizing produces a thicker zinc layer bonded metallurgically to the steel surface, providing long-term protection in outdoor and corrosive environments, whereas pre-galvanized coating offers a thinner, more uniform finish suitable for indoor or temporary applications. Spangle size — big, medium, small, or zero — is primarily aesthetic but also indicates coating solidification conditions during the galvanizing bath. Wall thickness from 0.6 mm to 8 mm covers everything from light furniture tubing to heavy structural columns, and the ±1% tolerance ensures dimensional consistency across long production runs. [NEED_CITE: hot-dip vs electro-galvanized coating thickness comparison for structural tubes]
Hidden Costs of Procuring the Wrong Galvanized Square Tube
Choosing an unverified supplier or accepting material without proper certification leads to predictable failures: zinc coating below specification triggers rejection at destination, missing mill certificates block customs clearance, and excessive negative tolerance reduces actual load capacity below design requirements. [NEED_CITE: structural steel tube tolerance standards and load capacity impact] Engineering inspectors verify chemical composition and mechanical properties against the stated standard — if the delivered DX51D SGCC galvanized square steel tube doesn’t match the mill test certificate, the entire batch fails acceptance. Rework, replacement, and project delays cost far more than the price difference between certified and uncertified material.
Why Buyers Choose Our Galvanized Square Tube Supply
We operate as a dedicated plate and tube supplier with large ready stock across common specifications, eliminating the wait times typical of mill-direct orders. Every DX51D SGCC galvanized square steel tube ships with original mill test certificates showing chemical composition and mechanical properties — no forged documents, no missing heat numbers. Our facility holds ISO 9001:2015 and CE certification, with SGS/BV third-party inspection available for projects requiring independent verification. Custom cutting, threading, and grooving services reduce on-site fabrication work. Professional heavy cargo logistics experience ensures proper container loading to prevent transit damage to the zinc coating. We serve steel fabricators, construction companies, and traders across Southeast Asia, the Middle East, Africa, and South America with consistent quality and competitive volume pricing.
Documentation & Compliance
- Mill test certificate documenting DX51D/SGCC chemical composition and mechanical properties per ASTM A53 or EN10255 standards
- CE certificate confirming compliance with EN10255 for European market customs clearance
- ISO 9001:2015 quality management system certification covering production and inspection processes
- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional accuracy
- Full material traceability by heat number from steel mill through galvanizing and delivery
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- DX51D SGCC galvanized square steel tubes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Surface protection maintained through proper stacking separation and moisture barriers for hot-dipped galvanized finish
- Container loading optimized for 5.8 m, 6 m, 11 m, and 12 m lengths to maximize payload while preventing overweight penalties
- Custom cut-to-length service available for project-specific requirements within the 21.3 mm to 660 mm size range
- Heat number and steel grade clearly marked on each bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional flatbed and open-top container loading expertise
Starting Your Galvanized Square Tube Procurement
Submit your required steel grade, side length, wall thickness, quantity, and destination port to receive a detailed quotation within 12 hours. We provide original mill test certificates before shipment for your quality verification, and our team handles custom cutting, end treatment, and logistics planning for your specific project requirements.
Request Your DX51D SGCC Galvanized Square Steel Tube Quote
Send your specifications to receive pricing, mill test certificates, and delivery timeline.
