Description
Direct Mill Supply for Q235 Cold Rolled Galvanized Plates — Every sheet ships with original mill test certificates and verifiable heat numbers for full material traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Cold Rolled Galvanized Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | Q235 / Q235B / A36 / SS400 |
| Standard | GB / ASTM / DIN |
| Technique | Cold Rolled |
| Surface Treatment | Galvanized |
| Thickness | 1.4mm / 1.45mm |
| Width | 1250mm |
| Length | 2500mm |
| Tolerance | ±1% |
| Planeness | Flat |
| Processing Service | Bending, Cutting, Decoiling, Punching, Welding |
| Application | Building Construction / Shipbuilding / Boiler / Pressure Vessel / Container / Pipe Making |
| MOQ | 1 Ton |
| Delivery Time | 15-21 days |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Building Construction | Light steel framing, wall panel backing, roof purlin brackets |
| Shipbuilding | Interior bulkhead panels, cabin partition plates, non-structural deck coverings |
| Pressure Vessel & Boiler | Outer cladding sheets, insulation jacketing, access panel covers |
| Container Manufacturing | Floor support plates, corner casting reinforcement sheets, wall liner panels |
| Pipe Making | Spiral welded pipe blanks, rectangular hollow section feed stock |
Hidden Negative Tolerance Costs More Than You Think on Thin Galvanized Plates
A 1.4mm Q235 cold rolled galvanized steel plate that measures 1.32mm at the edge will fail structural inspection and void your galvanizing warranty.
Buyers sourcing thin galvanized plates from mixed suppliers often discover thickness deviations only after the material reaches the fabrication floor. Hidden negative tolerance practices — where mills roll below nominal to save weight — cause welding burn-through on 1.4mm sheets, punch press misalignment, and rejection during third-party dimensional audits. When a container load of 1250×2500mm plates arrives with inconsistent flatness, leveling costs eat into your margin before the first cut is made. [NEED_CITE: cold rolled steel thickness tolerance standards for galvanized sheet]
Matching Thin Galvanized Plates to Precision Fabrication Requirements
When your project demands 1.4mm or 1.45mm thickness with ±1% tolerance, the cold rolling process delivers tighter dimensional control than hot rolled alternatives. The galvanized zinc coating on Q235 cold rolled galvanized steel plate provides corrosion resistance for indoor structural frames and container interiors where painting is impractical. Flat planeness across the full 1250×2500mm sheet ensures CNC plasma cutters maintain consistent kerf width, and bending operations hold angle accuracy without springback variation caused by thickness fluctuation.
Engineering Compliance for Cold Rolled Galvanized Structural Plates
Thin galvanized plates used in building construction and container manufacturing must meet dimensional tolerances specified in GB/T 708 for cold rolled products and coating weight requirements per GB/T 2518. For projects targeting European markets, material documentation must demonstrate equivalence between Q235B and S235JR grades to satisfy EN 10025 structural steel requirements. [NEED_CITE: steel grade equivalence between GB Q235 and EN S235JR] Pressure vessel manufacturers using galvanized cladding sheets need mill test certificates showing chemical composition within Q235B limits — particularly carbon content below 0.20% to maintain weldability. Third-party inspection by SGS or BV verifies coating adhesion and thickness uniformity before shipment.
Understanding Q235 Grade and Cold Rolling Process for Galvanized Plates
Q235B belongs to the Chinese carbon structural steel family, with yield strength positioning it between commercial quality and mild structural grades. The “B” designation indicates room temperature impact testing compliance, distinguishing it from Q235A which skips impact verification. Cold rolling reduces hot rolled coil through room temperature reduction mills, achieving tighter thickness tolerance and smoother surface finish than hot rolled equivalents — critical when 1.4mm galvanized sheets must feed through roll forming lines without surface scratching. The galvanized coating applied after cold rolling provides uniform zinc coverage on the refined surface, offering corrosion protection suitable for non-marine environments. Welding Q235B galvanized plates requires proper ventilation to avoid zinc fume generation, and pre-weld grinding along joint lines prevents porosity defects.
The Real Cost of Unverified Galvanized Plate Procurement
Ordering Q235 cold rolled galvanized steel plate without verified mill test certificates exposes projects to material substitution risk — receiving Q195 grade at Q235 price, or hot rolled product labeled as cold rolled. Engineering inspectors rejecting plates for thickness deviation beyond ±1% tolerance trigger full container returns, with freight and replacement costs exceeding original material value. Missing heat number traceability blocks customs clearance in markets requiring EN or ASTM certification equivalence, delaying project timelines by weeks. [NEED_CITE: material traceability requirements for structural steel imports]
Why Source Q235 Galvanized Plates from XJY Plate
Every Q235 cold rolled galvanized steel plate in our inventory carries original mill test certificates with verifiable heat numbers, chemical composition reports, and coating weight documentation. Our dedicated plate division maintains ready stock in 1.4mm and 1.45mm thickness across 1250×2500mm dimensions, eliminating full-coil minimum order constraints that force small buyers into excess inventory. Custom cutting services using CNC plasma and flame equipment deliver exact blank sizes with ±1mm edge tolerance, reducing on-site fabrication waste. Professional heavy cargo loading plans optimize container weight distribution for 1.4mm sheets, preventing edge damage and overweight penalties during ocean transit. ISO 9001:2015 certification and CE compliance documentation support customs clearance across Southeast Asia, Middle East, and African markets. Third-party inspection through SGS or BV available upon request for projects requiring independent quality verification.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition including carbon, manganese, silicon, sulfur, and phosphorus content per GB/T 700 standard
- Galvanized coating weight test report confirming zinc layer thickness and adhesion performance per GB/T 2518 requirements
- ISO 9001:2015 quality management system certificate covering plate cutting, leveling, and inspection processes
- SGS or BV third-party inspection report verifying dimensional tolerance, surface quality, and coating uniformity before shipment
- Material traceability documentation linking each plate to original heat number and rolling batch for full supply chain verification
- Export customs documents including packing list with piece count, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery

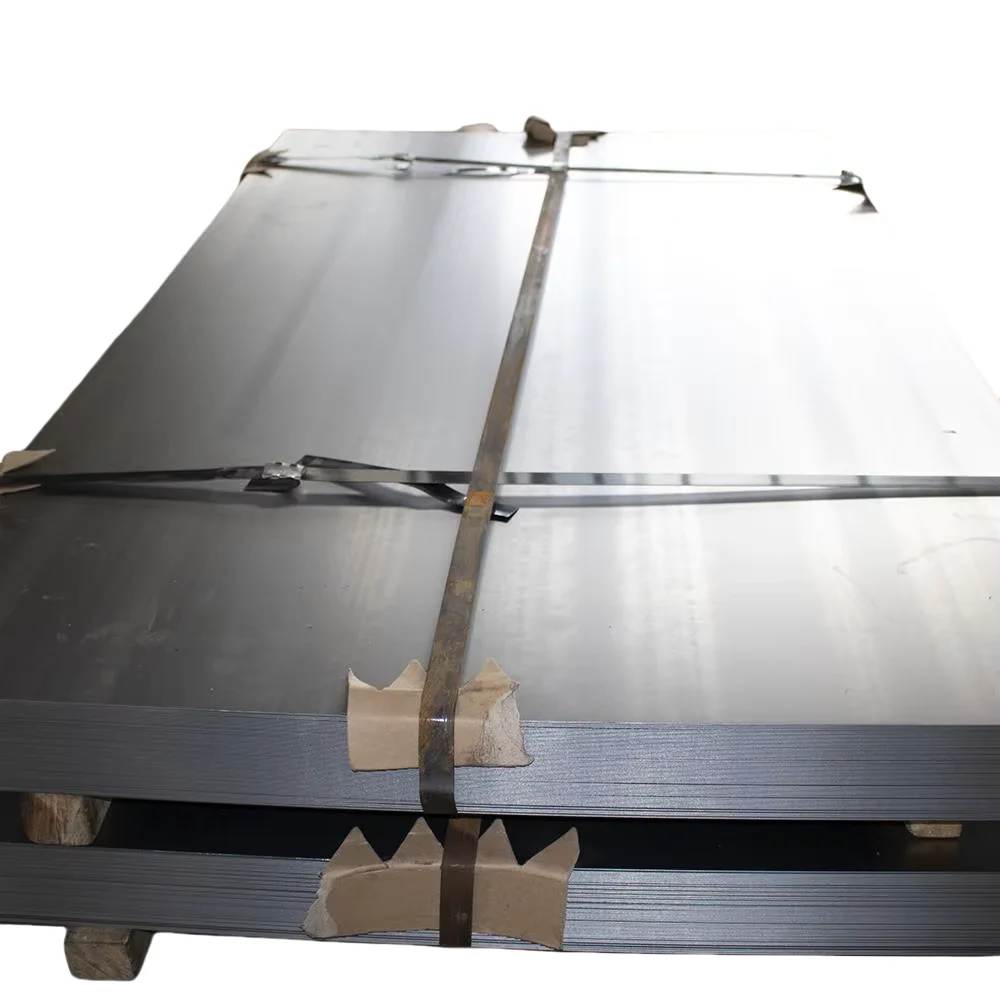

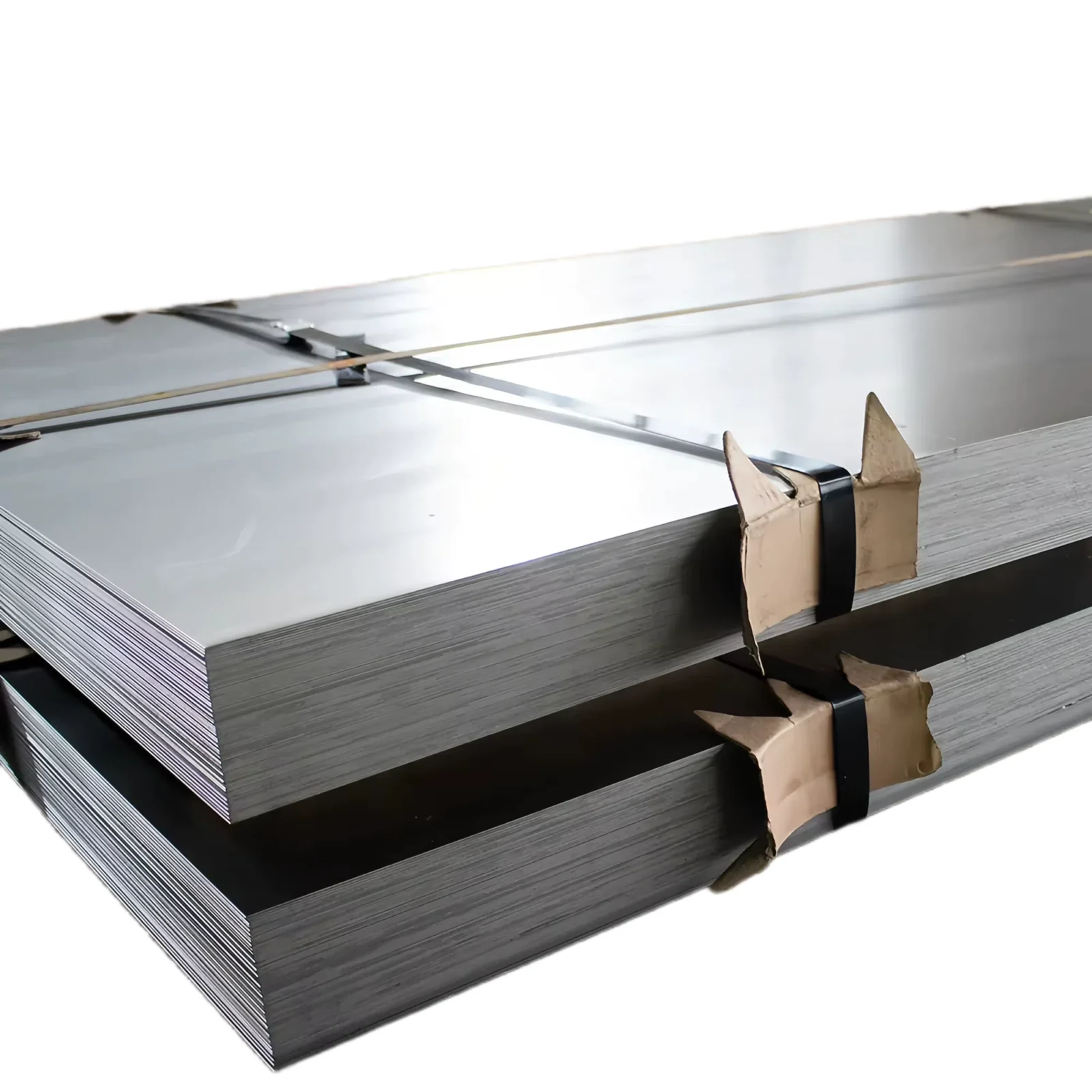

- Q235 cold rolled galvanized steel plates bundled with steel strips and edge protectors to preserve zinc coating integrity during ocean transit
- Anti-rust paper interleaving between sheets prevents surface scratching and moisture condensation damage to galvanized finish
- Container loading plans optimized for 1.4mm×1250×2500mm plates maximize weight utilization while staying within port handling limits
- Heat number and steel grade markings stenciled on each bundle for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional flatbed and open-top container loading experience for heavy plate cargo
- Custom cutting to specific blank sizes available before shipment, reducing on-site processing requirements for construction projects
Start Your Q235 Galvanized Plate Inquiry
Submit your required thickness, width, length, quantity, and destination port to receive detailed quotation with material cost, processing fees, and shipping terms within 12 hours. Specify any custom cutting dimensions or processing requirements including bending, punching, or welding preparation. We provide original mill test certificates and coordinate third-party inspection scheduling to verify material compliance before shipment.
