Description
Direct Mill Supply — Every angle bar shipped with original MTC and verified thickness reports
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 Equal & Unequal Angle Bar |
| Product Type | Angle Bar |
| Steel Grade | Q195, Q235, Q345, Q420, Q460, SS400, ST37-2, ST52, S235JR |
| Standard | GB/T 3636-2000, API, ASTM, BS, DIN, GB, JIS |
| Section Shape | Equal / Unequal |
| Size Range | Thickness 3–24 mm |
| Length | 6 m / 9 m / 12 m |
| Technique | Hot Rolled |
| Surface Treatment | Black / Oiled / Painted (customizable) |
| Tolerance | ±10% |
| Processing Service | Cutting |
| Invoicing | By Theoretical Weight |
| Application | Building frames, industrial platforms, steel structures, bridges, general construction |
| MOQ | 1 Ton (sample order accepted) |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel Fabrication | Building frames, column bracing, truss members for warehouse and factory structures |
| Infrastructure | Bridge support brackets, highway guardrail posts, transmission tower cross-arms |
| Industrial Construction | Mezzanine platforms, conveyor support frames, equipment mounting bases |
| General Construction | Scaffolding ties, lintel supports, roof purlin bracing |
What Thickness Deviation Costs on a Structural Angle Order
A 0.5 mm negative tolerance gap on a 6 mm angle bar means 8% less load-bearing metal than your engineer specified.
Sourcing structural angle bars across markets means navigating grade equivalence between GB, ASTM, and JIS systems — Q235 here, A36 there, SS400 somewhere else. Buyers often receive material labeled correctly on paper but failing dimensional checks at the fabrication shop. When thickness runs below tolerance on every piece in a bundle, the theoretical weight invoicing becomes a cost trap: you pay for steel that was never delivered. [NEED_CITE: hot rolled steel angle dimensional tolerance standards]
Matching Grade and Profile to Structural Load Paths
Equal angle bars in Q235 and Q345 handle the majority of bracing and secondary framing work across Southeast Asian and Middle Eastern job sites. The Hot Rolled Equal Angle Bar Supplier range covers thickness from 3 mm for light gauge bracing up to 24 mm for heavy connection plates and column base stiffeners. Unequal sections distribute load differently across the two legs — specifying the correct orientation during detailing prevents field rework when the angle meets a gusset plate or base plate.
Engineering Compliance and Surface Protection
Structural frames designed under EN 1993 or AISC 360 require verified material properties, not just grade labels on a packing list. For outdoor or industrial atmosphere exposure, the choice between black, oiled, or painted surface treatment directly affects time-to-first-maintenance. Hot rolled angles in Q345 or S235JR carry the yield strength margin needed for moment-resisting connections, while Q195 and SS400 serve non-structural or lightly loaded applications where cost matters more than capacity. Third-party inspection through SGS or BV confirms dimensional compliance before the container leaves the mill yard. [NEED_CITE: structural steel angle bar compliance requirements for building codes]
Steel Grade Selection and Hot Rolling Fundamentals
The Q-series grades (Q195 through Q460) follow the Chinese GB system where the number indicates minimum yield strength in MPa. Q235 remains the workhorse grade for general construction — equivalent in intent to ASTM A36 and JIS SS400, though not identical in chemistry or elongation requirements. Q345 steps up for heavier frames and bridge components, matching S275JR in the EN system for yield class. Hot rolling produces the profile at temperatures above recrystallization point, giving the angle its characteristic mill scale surface and allowing thickness ranges that cold forming cannot reach. The ±10% thickness tolerance on hot rolled angles is wider than cold formed profiles — this is inherent to the process, not a defect — but invoicing by theoretical weight means buyers should verify actual measurements against purchase specifications.
The Hidden Cost of Unverified Angle Bar Procurement
Ordering angle bars without mill test certificate traceability or independent dimensional verification creates compounding risk. Fabricators cutting and drilling based on nominal dimensions discover thickness shortfalls only after material reaches the workshop floor. Customs authorities in markets with strict import controls may hold shipments lacking proper certification documentation. [NEED_CITE: steel import documentation and customs clearance requirements] The cost of rejecting a container at destination far exceeds the price difference between verified and unverified supply.
Why Structural Buyers Source Hot Rolled Equal Angle Bar Through XJY Plate
Every angle bar order ships with original mill test certificates showing heat number, chemical composition, and mechanical test results — not reprinted copies or generic templates. The dedicated plate and coil division handles flat product logistics including proper container loading for heavy sections that would damage standard box containers. Custom cutting to project-specific lengths reduces on-site waste and eliminates the need for buyers to maintain full-length stock. Third-party inspection through SGS or BV is available for buyers who require independent verification before shipment. ISO 9001:2015 certification covers the entire supply chain from mill selection through final loading.
Documentation & Compliance
- Mill test certificate documenting Q235/Q345 chemical composition and mechanical properties per GB/T 3636-2000 with traceable heat numbers
- SGS or BV third-party inspection report confirming dimensional accuracy and surface condition before container loading
- ISO 9001:2015 quality management certificate covering the steel plate and coil division supply chain
- Certificate of origin and commercial invoice formatted for destination country customs clearance requirements
- Packing list with piece count, theoretical weight, and actual measurement data for each bundle
Packaging, Loading & Delivery
- Hot rolled angle bars bundled with steel strips at intervals matching the 6 m, 9 m, or 12 m length to prevent shifting during ocean transit
- Oiled surface treatment applied to Q235 and Q345 angles prevents rust formation during container shipping without affecting weldability
- Open-top container or flatbed truck loading arranged for orders exceeding standard container weight limits with heavy plate sections
- Custom cutting service available for buyers requiring non-standard lengths from the 6–12 m range, reducing on-site cutting waste

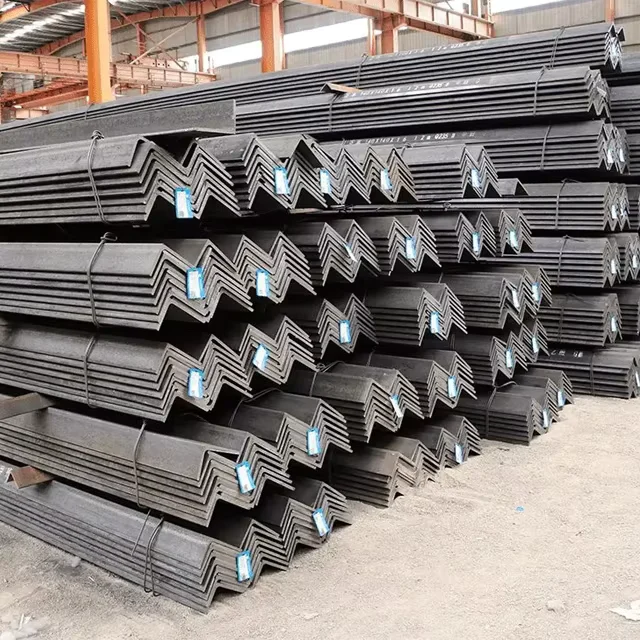

- Heat number and steel grade marked on each bundle tag for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional heavy cargo logistics experience across Southeast Asia, Middle East, and Africa
Getting Your Angle Bar Quote Started
Submit your specification sheet with steel grade, section type (equal or unequal), thickness, leg dimensions, total tonnage, and destination port to receive a detailed quotation including material cost, any cutting fees, and shipping terms. Mill test certificates are provided for review before or with shipment so your quality team can verify compliance without waiting for material arrival.
Request Hot Rolled Equal Angle Bar Pricing and Mill Test Certificates
Send your specification to admin@xjyplate.com or reach the team via WhatsApp at +86 188 5315 7756 with grade, dimensions, quantity, and destination for a response within 12 hours.
