Description
Factory-direct Galvanized SHS/RHS supply — Every Q235, Q345, and SS400 tube leaves the mill with original test certificates and hot-dip zinc coating verified before loading.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 / Q345 / SS400 Galvanized Square and Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube (SHS / RHS) |
| Steel Grade | Q235, Q235B, Q345, Q345B, SS400, SGCC, CGCC, TDC51DZM, TDC52DTS350GD, TS550GD, DX51D+Z, Q195 |
| Standard | ASTM, ISO 9001, JIS, API, TISI |
| Section Shape | Square / Rectangular |
| Size Range | 20×20 mm – 200×200 mm |
| Wall Thickness | 1.5 – 30 mm |
| Length | 1 – 12 m |
| Technique | ERW |
| Surface Treatment | Galvanized Coating |
| Tolerance | ±1% |
| Ends | Plain / Beveled |
| Application | Construction Structure, Building frames, Steel structures, Machinery, Scaffolding, Furniture, Bridge, Car manufacturing, Electrical installation, Mining |
| MOQ | 25 Tons |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | High-rise building frames, bridge support columns, highway guardrail posts |
| Steel Fabrication | Structural workshop frames, heavy equipment bases, conveyor support structures |
| Scaffolding & Formwork | Scaffolding uprights, cross braces, formwork support systems |
| Machinery & Equipment | Machine frames, crane booms, agricultural equipment structures |
| Mining & Industrial | Mining conveyor frames, ventilation duct supports, industrial platform structures |
What Wall-Thickness Tolerance Costs on a Galvanized Square Rectangular Steel Tube Order
A ±1% tolerance on 1.5–30 mm walls means the difference between passing site inspection and a full container rejection.
I have seen entire shipments held at port because actual wall thickness drifted beyond what the engineer specified. When you order Q345 RHS for a structural frame, the load calculation assumes a specific section modulus. If the supplier runs negative tolerance beyond acceptable limits, the tube fails deflection checks on site — and you pay for return freight, replacement material, and project delays. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements]
How Galvanized SHS/RHS Matches Structural Frame Requirements
Hot-dip galvanized coating on Q235 and Q345 square and rectangular steel tubes provides corrosion resistance for outdoor structural applications where paint maintenance is impractical. The zinc layer protects both the outer surface and the weld zone after on-site cutting, which matters for scaffolding systems and bridge components exposed to weather. For building frames in coastal or industrial environments, galvanized SHS/RHS eliminates the need for secondary coating while maintaining the structural properties engineers calculate against.
Engineering Compliance and Certification for Galvanized Tubes
Structural engineers specify galvanized square and rectangular steel tubes based on load-bearing requirements defined in standards like EN 1993 or AISC guidelines. The ERW welding process produces consistent seam quality across the full length, while the galvanized coating must meet minimum thickness requirements for the intended corrosion environment. For projects requiring CE marking or third-party verification, original mill test certificates with heat number traceability become mandatory for customs clearance and site acceptance. [NEED_CITE: ASTM A500 structural tubing certification requirements]
Steel Grade Selection and ERW Process for Galvanized SHS/RHS
Q235 and Q345 represent the most commonly specified grades for general structural applications, with Q345 offering higher yield strength for heavier load conditions. SS400 and SGCC grades serve projects requiring Japanese or Chinese commercial quality standards. The ERW (Electric Resistance Welding) process forms the tube from coiled strip and welds the seam without filler material, producing a cost-effective solution for non-pressure structural applications. Hot-dip galvanizing after forming ensures complete zinc coverage including the weld seam, providing uniform corrosion protection across the entire surface.
Wall thickness from 1.5 mm to 30 mm covers everything from light-gauge furniture frames to heavy structural columns. The ±1% tolerance control ensures that theoretical weight calculations match actual delivered weight, preventing disputes over material quantity and structural performance.
Hidden Costs of Wrong Grade or Missing Certification
Ordering Q235 when the design requires Q345 means the structure cannot carry intended loads — a failure discovered only during load testing or inspection. Missing mill test certificates create customs clearance delays and prevent engineers from signing off on material compliance. Galvanized coating thickness below specification leads to premature corrosion in outdoor applications, requiring costly remediation or complete replacement. These failures trace back to suppliers who cannot provide heat-by-heat chemical composition and mechanical property verification. [NEED_CITE: steel grade equivalence between GB, ASTM, and EN standards]
Why Project Procurement Teams Choose Our Galvanized SHS/RHS Supply
Every galvanized square and rectangular steel tube ships with original mill test certificates showing chemical composition and mechanical properties per heat number. Our facility maintains ISO 9001:2015 certification with CE compliance for European projects, and we arrange SGS or BV third-party inspection before shipment. The full size range from 20×20 mm to 200×200 mm with wall thickness up to 30 mm means you source all structural tube requirements from one supplier rather than splitting orders across multiple vendors. Custom cutting to specific lengths reduces on-site waste and labor costs, while professional container loading prevents coating damage during ocean transit.
Documentation & Compliance
- Mill test certificate documenting Q235/Q345/SS400 chemical composition and mechanical properties per heat number
- CE certificate confirming compliance with EN 10219 cold-formed structural hollow sections for European projects
- ISO 9001:2015 quality management certificate covering the full production and inspection process
- SGS or BV third-party inspection report verifying galvanized coating thickness and dimensional accuracy
- Material traceability documentation linking each tube to its original heat number and mill test data
- Export customs documents including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

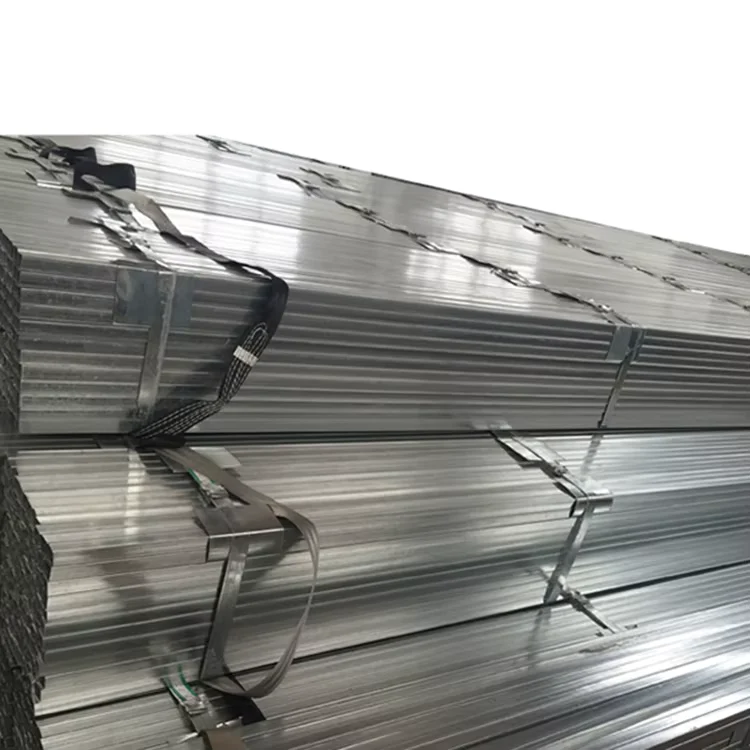

- Galvanized tubes bundled with steel strips and edge protectors to preserve zinc coating during handling and ocean transit
- Surface protection maintained through proper stacking separation preventing coating scratches and moisture traps
- Container loading optimized for 1–12 m lengths with weight distribution calculated to avoid overweight penalties
- Custom cutting to project-specific lengths available, reducing on-site cutting waste and labor requirements
- Heat number and steel grade marked on each bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional heavy cargo logistics experience
Getting Your Galvanized SHS/RHS Quote Started
Send your specification sheet with steel grade, size, wall thickness, length, and quantity to receive a detailed quotation including material cost, processing fees, and shipping terms. We provide original mill test certificates before shipment for your quality verification, and our team confirms container loading plans for heavy gauge tubes. For projects requiring third-party inspection or specific certification documentation, we arrange SGS or BV verification during production.
Frequently Asked Questions
Q: What is the difference between Q235, Q345, and SS400 grades for galvanized square tubes?
A: Q235 and Q345 are Chinese standard grades where the number indicates minimum yield strength in MPa. Q345 offers higher strength for heavier structural applications. SS400 is a Japanese standard general structural grade comparable to Q235 in typical applications. We provide grade equivalence documentation for projects requiring cross-standard verification.
Q: How do you verify galvanized coating thickness meets project requirements?
A: Each production batch undergoes coating thickness testing using magnetic gauge measurement per ASTM or project specifications. The mill test certificate documents coating weight and thickness values. Third-party inspection by SGS or BV is available to verify coating quality before shipment.
Q: Can you provide custom cutting to specific lengths for my project?
A: Yes, we offer cutting to length from the standard 1–12 m range. Custom cutting reduces on-site waste and labor costs. Please specify exact lengths required when requesting quotation. Minimum order quantity for custom cutting is 25 tons.
Q: What is the actual weight tolerance for galvanized square and rectangular tubes?
A: Our galvanized SHS/RHS maintains ±1% tolerance on wall thickness, which directly affects theoretical weight calculations. We provide theoretical weight based on actual measured dimensions rather than nominal sizes. This transparency prevents quantity disputes at project sites.
Q: How do you pack galvanized tubes to prevent coating damage during shipping?
A: Tubes are bundled with steel strips and separated by edge protectors to prevent coating scratches. Containers are loaded with weight distribution plans to avoid shifting during transit. The galvanized coating is protected throughout the shipping process from factory to project site.
