Description
Factory-Direct Spiral Pipe Supply — We roll API 5L SSAW steel pipe in-house from Q235 to S275JR grades, eliminating trader markups on every metric ton shipped.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SSAW Steel Pipe API 5L Spiral Submerged Arc Welded Carbon Steel Pipeline |
| Product Type | SSAW Steel Pipe / Spiral Submerged Arc Welded Steel Pipe |
| Steel Grade | Q235, Q235B, S275, S275JR, A53, ST37 |
| Standard | API 5L, ASTM A53, EN, JIS, CE, ISO 9001 |
| Section Shape | Round |
| Size Range | Outer Diameter 10mm–2500mm |
| Wall Thickness | 1mm–50mm |
| Length | 1m–18m |
| Technique | Submerged Arc Welded (Spiral) |
| Surface Treatment | Hot Rolled / Black Annealed / Internal Varnished / Hot Dipped Galvanized / Pickled and Oiled |
| Tolerance | ±1% |
| Ends | Plain End / Beveled End / Threaded End / Grooved End with Coupling |
| Application | Fluid transport / Gas pipeline / Oil pipeline / Boiler / Chemical fertilizer / Structural / Construction scaffolding / Water supply / Low pressure fluid |
| MOQ | Small order accepted, sample available |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Long-distance crude oil and natural gas transmission pipelines, offshore platform risers |
| Municipal Infrastructure | Urban water supply networks, sewage discharge mains, stormwater drainage systems |
| Construction & Scaffolding | Load-bearing scaffolding columns, temporary structural frames, piling casings |
| Industrial Plant | Chemical fertilizer feedstock lines, boiler feedwater circuits, low-pressure steam distribution |
| Structural Fabrication | Conveyor support structures, equipment support columns, bridge handrail posts |
When Negative Tolerance Turns a Pipeline Order into a Port Rejection
A 0.5mm wall deviation on a 2500mm OD spiral pipe can mean the difference between customs clearance and a full-container return.
Buyers sourcing SSAW steel pipe API 5L spiral welded carbon steel pipeline from multiple suppliers often discover thickness inconsistencies only after the container reaches destination. A caliper check by the site inspector reveals walls running below the ordered specification, triggering rejection of dozens of lengths. The cost compounds: return freight, replacement production, and weeks of idle welding crews. [NEED_CITE: API 5L dimensional tolerance requirements for spiral welded pipe]
Grade equivalence confusion creates a parallel failure mode. A procurement team orders Q235B expecting it to satisfy an S275JR structural requirement, only to find the yield strength falls short during mill certificate review. The pipe sits in the yard while the engineer scrambles for a replacement grade that meets the drawing spec.
Matching Pipe Dimensions to Pipeline Pressure and Structural Load
Spiral welded process allows outer diameters up to 2500mm with wall thickness reaching 50mm, covering everything from low-pressure water mains to high-volume gas transmission lines. The SSAW steel pipe API 5L spiral welded carbon steel pipeline in Q235 and S275JR grades serves municipal water networks where internal varnished surface treatment prevents corrosion without the cost of full galvanizing. For scaffolding applications, the 1m–18m length range with plain or beveled ends allows site crews to cut and weld to exact bay heights without secondary processing delays.
Engineering Compliance Across GB, EN, and ASTM Frameworks
Structural engineers specifying spiral pipe for load-bearing frames need documentation proving conformity to the governing code — EN 10219 for European projects, ASTM A53 for North American tenders, or API 5L for hydrocarbon transport. [NEED_CITE: steel grade equivalence mapping between GB Q-series and EN S-series] The Q235B grade meets general structural requirements under GB/T 700, while S275JR satisfies EN 10025 minimum 275 MPa yield at room temperature with 27J Charpy impact at 20°C. Selecting the correct end treatment — beveled for butt-weld pipeline joints, threaded for mechanical coupling connections, or grooved for fire-protection systems — determines field installation speed and joint integrity under pressure cycling.
Steel Grade Selection and Spiral Welding Process Fundamentals
The Q-series (Q235, Q235B) follows the Chinese GB standard system where the number indicates minimum yield strength in MPa. The S-series (S275, S275JR) follows EN 10025, with JR denoting room-temperature impact toughness. ASTM A53 Grade B and ST37 (DIN 17100) occupy similar strength bands but differ in chemical composition limits and testing frequency. For SSAW steel pipe API 5L spiral welded carbon steel pipeline, the spiral submerged arc welding process produces a continuous helical seam, allowing production of large diameters from narrower coil stock — a cost advantage over longitudinal seam pipe at sizes above 500mm OD. [NEED_CITE: spiral submerged arc welding process advantages for large diameter pipe]
Surface treatment selection follows the service environment. Hot dipped galvanized coating protects outdoor scaffolding and coastal water supply lines against atmospheric corrosion. Pickled and oiled finish suits indoor structural applications where welding preparation requires clean, mill-scale-free surfaces. Internal varnished coating extends service life in water transmission lines without affecting flow capacity.
The Hidden Cost of Unverified Mill Certificates and Improper Loading
Pipes arriving without traceable heat numbers face rejection at project handover, regardless of whether the material itself meets specification. [NEED_CITE: EN 10204 3.1 inspection document requirements for steel products] Improper container loading — no internal bracing, uneven weight distribution — causes oval deformation at pipe ends, rendering beveled joints unworkable and forcing on-site re-cutting that compromises weld preparation geometry. A single rejected container erases the price advantage gained from sourcing a cheaper supplier.
Why Project Procurement Teams Consolidate Spiral Pipe Orders Here
Every SSAW steel pipe API 5L spiral welded carbon steel pipeline leaves our facility with an original mill test certificate tied to a specific heat number, allowing full chemical composition and mechanical property traceability from coil to finished pipe. Third-party inspection through SGS, BV, or TUV is available for clients requiring independent verification before shipment. Our loading crews draw container plans for every order — large-diameter pipe over 1000mm OD ships in open-top or break-bulk configuration with proper cradle support, while standard sizes nest in 20ft and 40ft containers with calculated weight distribution to avoid port overweight penalties. Custom cutting to exact project lengths reduces on-site waste and welding time, while the full range from Q235 through S275JR and A53 allows mixed-grade orders from a single purchase order.
Documentation & Compliance
- Mill test certificate documenting Q235B and S275JR chemical composition, yield strength, and tensile properties per heat number, conforming to EN 10204 3.1 format
- CE certification confirming conformity with European Pressure Equipment Directive for pipeline applications
- ISO 9001:2015 quality management certificate covering spiral pipe production and inspection processes
- SGS or BV third-party inspection report available for pre-shipment dimensional and visual verification
- Material traceability sheet linking each pipe length to coil heat number, welding parameters, and hydrostatic test results
- Export documentation package including packing list, bill of lading, and certificate of origin for destination customs clearance
Packaging, Loading & Delivery

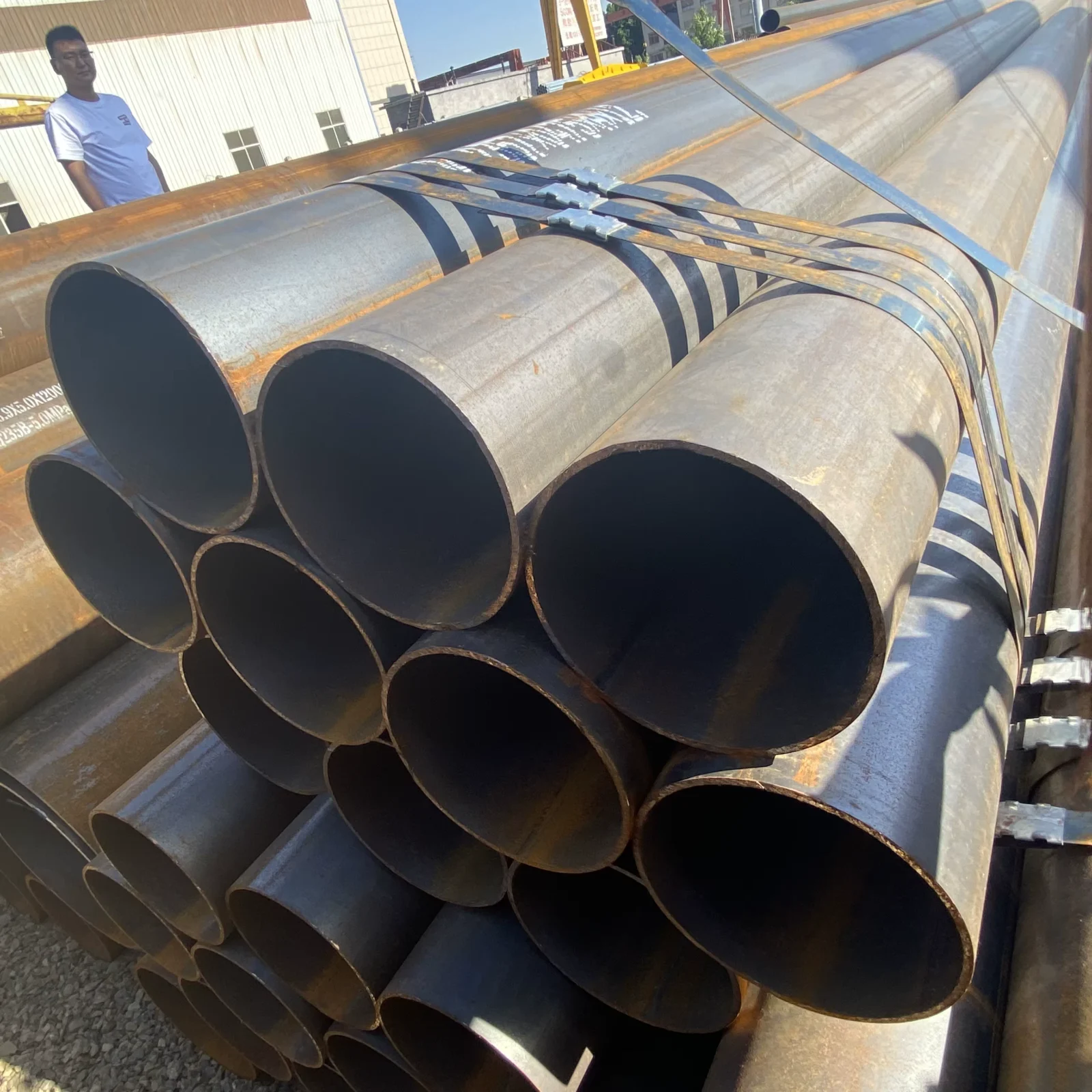

- SSAW steel pipe API 5L spiral welded carbon steel pipeline bundled with high-tensile steel strips at intervals preventing bundle separation during ocean transit
- Hot dipped galvanized pipe lengths separated by rubber edge protectors to preserve zinc coating integrity during handling and stacking
- Large-diameter pipe (OD above 1000mm) loaded in open-top containers or break-bulk vessels with timber cradle supports preventing oval deformation
- Custom cut-to-length service available within the 1m–18m range, with each piece marked by heat number and steel grade for site identification
- Beveled-end pipe protected by plastic caps on both ends to preserve welding preparation geometry during transport
- FOB, CIF, and DDP shipping terms available with professional heavy-cargo logistics coordination to project site or stockyard
Submit Specifications for Mill Test Certificate and Quotation
Send your required steel grade, outer diameter, wall thickness, length, quantity, and destination port — we return a detailed quotation with material cost, processing fees, and shipping terms within 12 hours, along with a sample mill test certificate for your quality team review.
Request Your SSAW Steel Pipe API 5L Quotation with Mill Test Certificate
Email: admin@xjyplate.com | WhatsApp: +86 188 5315 7756 | Website: www.xjyplate.com
Frequently Asked Questions
Q: What is the difference between SSAW and ERW spiral pipe for oil and gas applications?
A: SSAW (spiral submerged arc welded) pipe uses a helical seam produced by submerged arc welding, suitable for large diameters above 500mm and higher pressure ratings under API 5L. ERW (electric resistance welded) pipe uses a longitudinal seam formed by electrical resistance heating, typically used for smaller diameters and lower-pressure fluid transport. The SSAW steel pipe API 5L spiral welded carbon steel pipeline we supply covers OD 10mm–2500mm with wall thickness up to 50mm, serving both structural and pressure applications.
Q: How do Q235B, S275JR, and A53 grades compare across different standards?
A: Q235B follows Chinese GB/T 700 standard, S275JR follows European EN 10025, and A53 Grade B follows American ASTM A53. All three occupy similar yield strength ranges for general structural and low-pressure fluid applications, but differ in chemical composition limits, impact testing requirements, and certification documentation. We provide grade equivalence guidance and mill test certificates showing compliance with the specific standard your project requires.
Q: When should I specify beveled ends versus threaded ends for pipeline installation?
A: Beveled ends are specified for butt-weld pipeline joints where field welding creates permanent, pressure-rated connections — typical for oil, gas, and high-pressure water transmission. Threaded ends suit mechanical coupling connections allowing disassembly, commonly used in fire protection systems and temporary scaffolding structures. Grooved ends with coupling serve quick-install fire protection and HVAC piping systems.
Q: How does theoretical weight invoicing affect actual material cost?
A: Theoretical weight invoicing calculates payment based on nominal dimensions and standard steel density, regardless of actual measured weight. This method provides cost predictability but requires confirming that wall thickness tolerance remains within ±1% as specified. We invoice SSAW steel pipe API 5L spiral welded carbon steel pipeline by theoretical weight per your order specifications, with mill test certificates documenting actual dimensional compliance.
Q: What loading method is used for large-diameter spiral pipe to prevent damage?
A: Pipe with outer diameter above 1000mm ships in open-top containers or break-bulk vessels with timber cradle supports and internal bracing to prevent oval deformation. Standard sizes nest in closed containers with weight distribution calculated to avoid overweight penalties. Every loading plan is drawn before stuffing to ensure proper support and securement during ocean transit.
