Description
Factory-direct Q235 SHS — every heat batch traceable to original mill records
Technical Specifications
| Parameter | Value |
|---|---|

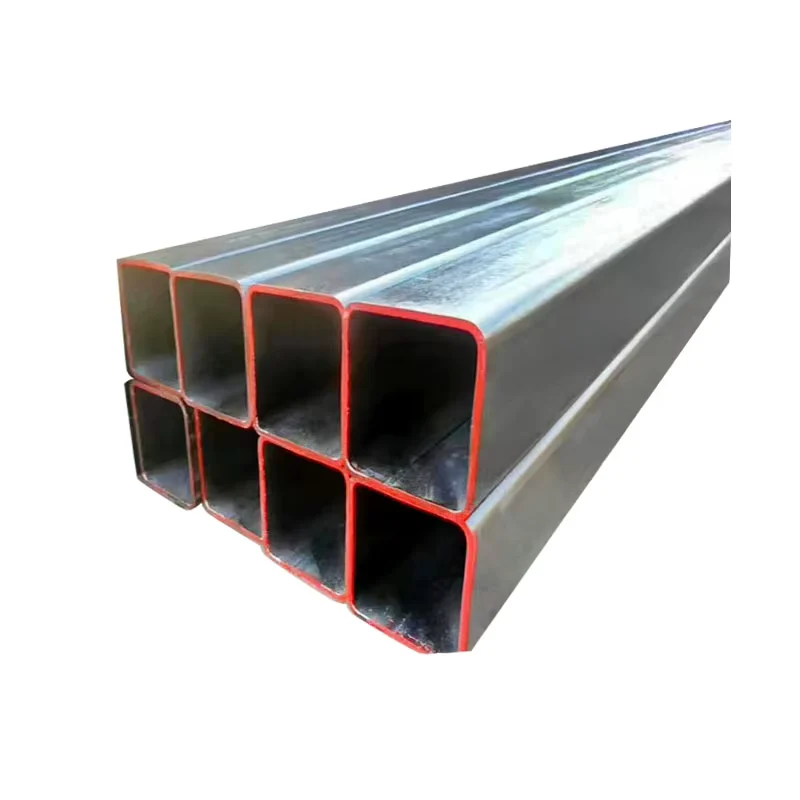

| Designation | Q235 Square Steel Tube |
| Product Type | Square Steel Tube (Seamless / Welded) |
| Steel Grade | Q235 |
| Standard | ASTM |
| Section Shape | Square |
| Side Length | 10–100 mm |
| Technique | Welded / Seamless |
| Surface Treatment | Hot Rolled |
| Tolerance | ±1% |
| Surface Condition | Non-oiled |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Alloy Or Not | Non-Alloy |
| Delivery Time | 8–14 days |
| Invoicing | By Actual Weight |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Structural | Building frames, column supports, mezzanine structures, warehouse skeletons |
| Fluid & Gas Transport | Low-pressure fluid lines, gas distribution pipes, hydraulic conduits |
| Industrial Equipment | Drill pipe casings, boiler support frames, machinery guard rails |
| Infrastructure | Bridge handrails, signage gantries, solar mounting sub-frames |
What Negative Tolerance Practices Cost on a Q235 Square Steel Tube Order
Invoicing by actual weight with ±1% dimensional tolerance eliminates the hidden cost of under-gauge material.
Buyers sourcing Q235 square steel tube supplier options across trading platforms frequently encounter suppliers quoting attractive per-ton prices — only to discover on-site that wall thickness falls well below specification. A 2 mm nominal wall measuring 1.6 mm at the thinnest point does not just reduce load capacity; it voids structural engineering sign-off and forces full-batch replacement at the contractor’s expense. Missing or unverifiable mill test certificates compound the problem: without heat number traceability, there is no way to confirm whether the Q235 chemistry actually meets the standard or whether the material was downgraded scrap rerolled without proper testing. [NEED_CITE: consequences of negative tolerance abuse in structural steel procurement]
How Q235 Square Steel Tube Matches Structural and Fluid Service Requirements
The 10–100 mm side length range covers the majority of light-to-medium structural framing and small-bore fluid conveyance needs on commercial and industrial sites. Q235 non-alloy chemistry provides adequate weldability and formability for on-site cutting, bending, and punching without preheating — critical when fabrication shops need to modify lengths or add connection points after delivery. As a Q235 square steel tube supplier, we supply both welded and seamless variants so that procurement teams can match the process to the service pressure: seamless for higher-integrity hydraulic and boiler circuits, welded for structural frames where cost efficiency matters more than extreme pressure rating.
Engineering Compliance and Certification Requirements for Q235 SHS
Structural applications demand dimensional conformity to ±1% tolerance so that connection plates sit flush and bolt holes align without forced reaming. The ASTM standard designation on our Q235 square steel tube documentation satisfies North American procurement specifications, while the underlying Q235 grade chemistry aligns with S235JR and ASTM A36 equivalence tables used by international EPC contractors. [NEED_CITE: steel grade equivalence between GB Q235, EN S235JR, and ASTM A36] For projects requiring third-party verification, SGS and BV inspection slots are available per heat batch. Hot-rolled surface condition is suitable for indoor structural use and for outdoor applications where subsequent painting or galvanizing will be applied on-site. Custom cut-to-size, bending, and punching services eliminate secondary workshop handling and reduce overall project lead time.
Understanding Q235 Grade and Hot-Rolled Process Selection
Q235 is a carbon structural steel grade defined by its yield strength classification — the “235” denotes the minimum yield point in MPa at nominal thickness. As a non-alloy grade, Q235 offers straightforward weldability using common MIG, TIG, and stick processes without requiring specialized filler metals or preheat procedures, making it the default choice for general fabrication, equipment frames, and low-pressure piping. The hot-rolled surface finish provides a mill scale layer that offers baseline corrosion resistance during storage and transit; for aggressive outdoor or marine environments, buyers typically specify post-processing galvanizing or coating. Wall thickness tolerance of ±1% ensures that theoretical weight calculations remain reliable for structural load analysis — a point that matters when engineers size members based on catalog data. Seamless and welded manufacturing routes both serve Q235 square tube production: seamless eliminates the weld seam for higher-pressure fluid service, while welded offers tighter dimensional consistency on larger side lengths at lower unit cost.
Hidden Costs of Procuring Q235 Square Steel Tube Without Verified Documentation
Material substitution — receiving a lower grade stamped as Q235 — passes initial visual inspection but fails during mechanical testing or structural load verification, triggering project delays and engineering re-assessment costs that dwarf the original material savings. [NEED_CITE: structural steel material substitution risks in international procurement] Missing heat number traceability means customs authorities in strict-import markets can hold or reject shipments lacking verifiable mill origin documentation. Wall thickness below tolerance does not merely reduce the invoice weight; it reduces the section modulus and moment of inertia that structural calculations depend on, creating latent safety liability long after the building is occupied.
Why Engineering Procurement Teams Source Q235 SHS Through XJY Plate
Every Q235 square steel tube we ship carries an original mill test certificate showing heat number, chemical composition, and mechanical test results — not a reprinted template, but the actual document from the producing mill. Our in-house dimensional testing verifies side length, wall thickness, and straightness against the ±1% tolerance claim before release. The 10–100 mm range is held in ready stock across both welded and seamless variants, so small-lot and cut-to-size orders do not face the full-coil minimums that force buyers to over-purchase. Custom processing — welding, punching, cutting, bending — is completed in-house, so fabricated pieces arrive on-site ready for assembly rather than requiring a secondary workshop visit. Professional heavy cargo loading experience ensures that square tube bundles are secured against transit shift and edge damage, avoiding the port rejections and claims that plague improperly stuffed containers. ISO 9001:2015 certification and CE compliance provide the documentation backbone that customs brokers and project auditors require.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition (C, Mn, Si, S, P) and mechanical properties per ASTM designation, with heat number traceability
- CE certificate confirming conformity for European market customs clearance and project acceptance
- ISO 9001:2015 quality management system certificate covering production and inspection processes
- SGS or BV third-party inspection report available per heat batch for projects requiring independent verification
- Material traceability sheet linking each bundle to its heat number, production date, and dimensional inspection record
- Full customs document set: commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Q235 hot-rolled square tubes bundled with steel strips and edge protectors to prevent surface scoring and corner deformation during ocean transit
- Non-oiled surface condition means bundles are wrapped in waterproof cloth to prevent rain staining and mill scale discoloration during open-top container or break-bulk shipment
- 10–50 mm side length tubes nested and strapped in compact bundles to maximize 20ft and 40ft container payload; 50–100 mm sections loaded on flatbed or in open-top for lengths exceeding container internal height
- Cut-to-size lengths available per order specification, with each piece tagged to its heat number and dimensional report
- Bundle identification tags showing Q235 grade, side length, wall thickness, heat number, and piece count for rapid site inventory verification
- FOB, CIF, and DDP shipping terms available with professional flatbed and break-bulk logistics coordination
Getting Your Q235 Square Steel Tube Quote Started
Send your specification sheet covering side length, wall thickness, length, quantity, and destination port — we return a detailed quotation including material cost, any processing fees, and shipping terms within 12 hours. If your project requires cut-to-size, bending, or punching, include the fabrication drawing so we can confirm processing feasibility and lead time in the same response. Mill test certificates and third-party inspection arrangements are confirmed at the quotation stage, so there are no documentation surprises before shipment.
Frequently Asked Questions
Q: How does Q235 compare to ASTM A36 or S235JR for structural applications?
A: Q235 is the Chinese national standard carbon structural steel grade with yield strength classification at 235 MPa. It is widely recognized as equivalent to S235JR (EN standard) and closely aligned with ASTM A36 for general structural and fabrication use. We provide grade equivalence guidance during the inquiry stage so your engineering team can confirm substitution acceptability for your specific project code.
Q: Can I verify the mill test certificate before shipment?
A: Yes. We provide the original mill test certificate showing heat number, chemical composition, and mechanical test results before or alongside shipment. You can cross-check the heat number against the physical markings on each bundle. Third-party inspection through SGS or BV can also be arranged for independent verification.
Q: What is the minimum order for cut-to-size or custom processing?
A: We handle small-lot and cut-to-size orders without requiring full-coil or full-plate minimums. Processing services include welding, punching, cutting, and bending. Lead time for standard stock sizes is 8–14 days; custom-processed pieces follow the same timeline when specifications are confirmed at order placement.
Q: Is the hot-rolled surface suitable for outdoor use?
A: Hot-rolled Q235 square tube carries a mill scale surface that provides baseline protection during storage and transit. For long-term outdoor or corrosive environment exposure, we recommend post-processing galvanizing or protective coating. We can advise on surface treatment selection based on your installation environment during the inquiry stage.
Q: How does invoicing by actual weight protect me from negative tolerance practices?
A: We invoice based on the actual measured weight of each piece after dimensional verification, not on theoretical weight calculations. This means you pay only for the material you physically receive, and any wall thickness deviation is immediately visible in the weight record rather than hidden in a theoretical formula.
Ready to confirm your Q235 square steel tube specification?
Send your size, quantity, and destination details to receive a quotation with mill test certificate and processing options within 12 hours.
