Description
Factory-direct hot rolled coil supply — every Q235B coil ships with original mill test certificates and verified chemical composition, eliminating grade confusion at port.
Technical Specifications
| Parameter | Value |
|---|---|

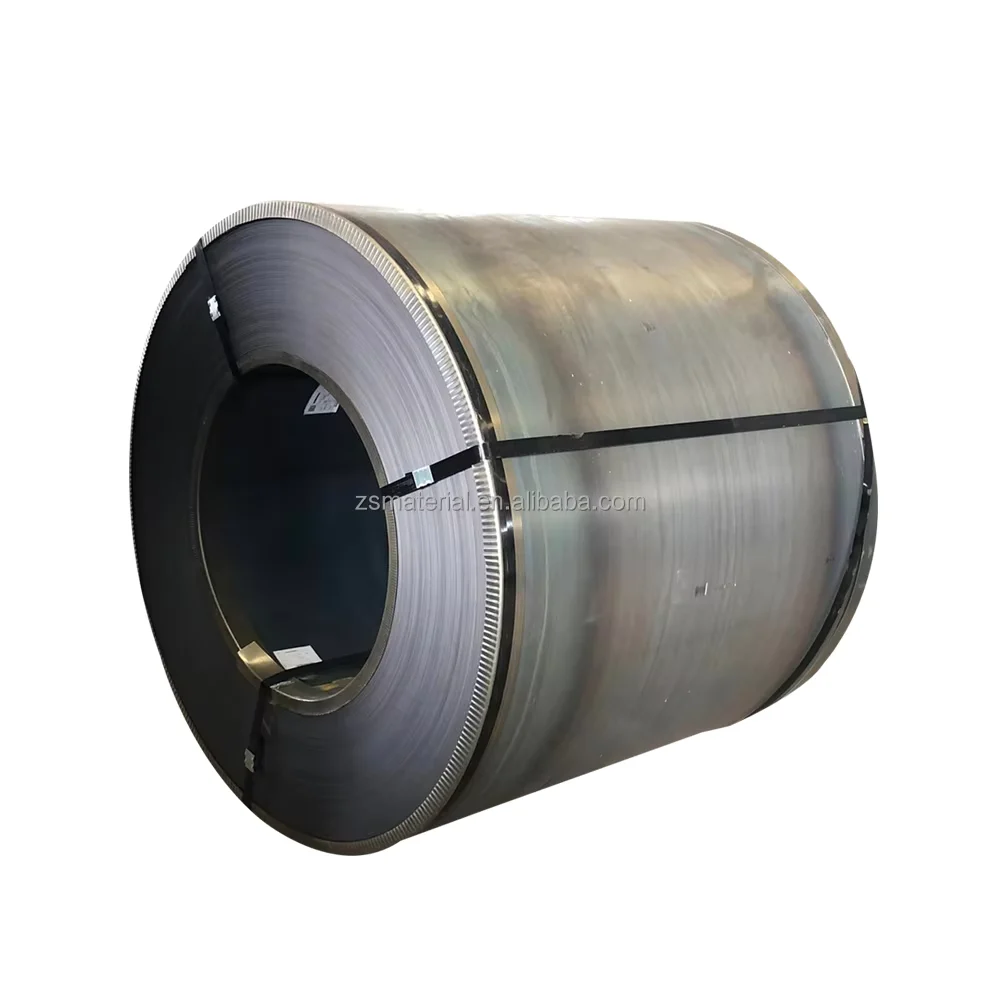

| Designation | Q235B Hot Rolled Steel Coil |
| Product Type | Steel Coil |
| Steel Grade | Q195, Q235, Q235B, Q345, Q345B, A36, SS400, St37, St42, St37-2, St35.4, St52.4, St35 |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Thickness | 0.75-200mm |
| Width | 600-2000mm |
| Length | Customized (for sheet) / Coil ID: 508/610mm |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled / Coated |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Application | Construction, Shipbuilding, Automobile, Bridges, Machinery, Pressure Vessels |
| MOQ | 1 Ton |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction | Structural beam fabrication, building frame columns, scaffolding base plates |
| Shipbuilding | Deck plating for commercial vessels, bulkhead panels, offshore platform supports |
| Pressure Vessels | Boiler shell rolling, storage tank walls, heat exchanger components |
| Bridges | Girder web plates, bridge deck reinforcement sheets |
| Machinery | Conveyor frame structures, crane boom sections, equipment base plates |
Thickness Tolerance Variance Decides Fabrication Waste on Hot Rolled Coil Orders
A ±1% tolerance claim means nothing without dimensional inspection reports attached to each coil.
Buyers sourcing Q235B hot rolled steel coil frequently discover thickness deviations only after decoiling begins. A 0.5mm shortfall on a 20mm plate order forces re-cutting, delays welding schedules, and triggers re-inspection by third-party surveyors. Missing mill test certificates compound the problem — without heat number traceability, customs officers in Southeast Asia and the Middle East hold shipments for chemical composition verification. [NEED_CITE: mill test certificate requirements for steel coil imports]
Matching Q235B Hot Rolled Steel Coil to Structural and Marine Fabrication
Hot rolled coils in the 0.75-200mm thickness range serve distinct fabrication purposes. Thin gauges below 6mm decoil directly into roof purlins and wall girts, while heavy plates above 20mm require flame cutting before welding into ship hulls or pressure vessel shells. The Q235B grade offers weldability across both categories — its carbon equivalent stays within limits for standard SMAW and GMAW processes without preheating on sections under 25mm. Our coil inventory spans 600-2000mm widths, allowing shipyards to order 1800mm sheets for deck panels without paying premium slitting fees on narrower coils.
Engineering Compliance and Certification Pathways
Construction projects specifying EN 1993 or AISC standards require documented proof that Q235B meets equivalent mechanical properties to S235JR or ASTM A36. The GB/T 700 standard governing Q235B defines yield strength minimums and tensile ranges that align with international equivalents, but project engineers need side-by-side comparison tables backed by mill test certificates showing actual heat chemistry. [NEED_CITE: steel grade equivalence between GB Q235B and EN S235JR] For pressure vessel applications, boiler and tank manufacturers must verify that coil chemistry falls within ASME Section II permitted ranges — a requirement our MTC documentation addresses through full elemental breakdown including carbon, manganese, silicon, sulfur, and phosphorus content.
Understanding Hot Rolled Coil Grade Selection and Surface Condition
The Q-series carbon steels (Q195 through Q345B) follow Chinese national standards where the “Q” prefix denotes yield strength class and the suffix letter indicates quality grade and deoxidation method. Q235B sits in the mid-range — higher strength than Q195 for structural frames, but more formable than Q345B for complex bending operations. International buyers often request ASTM A36 or JIS SS400 equivalents; these grades share similar carbon-manganese chemistry but differ in testing frequency and impact test requirements. Hot rolled surface condition retains mill scale, which provides temporary corrosion resistance during storage but requires shot blasting before painting or galvanizing. Pickled variants remove this scale for immediate coating adhesion, while galvanized coils add zinc protection for outdoor exposure without post-treatment.
Hidden Costs from Grade Substitution and Certificate Gaps
Substituting Q195 for specified Q235B on a bridge girder order reduces material cost but compromises load-bearing capacity — the lower yield strength forces engineers to increase section thickness, negating any savings. More common: suppliers ship coils with forged or borrowed mill test certificates that fail verification when customs requests original mill contact confirmation. [NEED_CITE: consequences of forged mill test certificates in steel imports] Projects facing these issues encounter work stoppages, contractual penalties for delayed completion, and in severe cases, structural safety reviews that demand complete material replacement.
Procurement Advantages from Direct Mill Supply

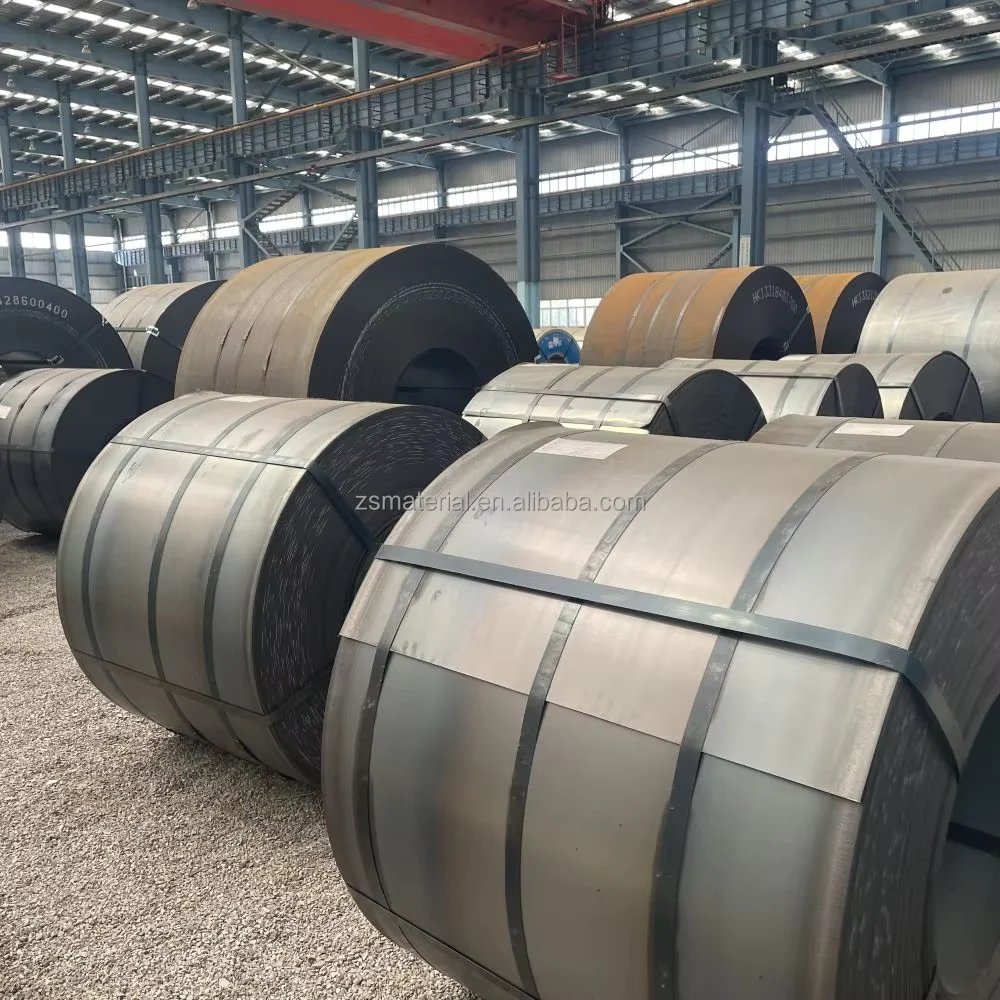

As a dedicated plate and coil division, we maintain ready stock across common Q235B specifications in 0.75-200mm thicknesses, eliminating the 45-day rolling schedules typical of mill-direct orders. Every coil carries original mill test certificates with heat number traceability — we provide these documents before shipment so buyers can verify chemistry independently. Custom cutting services include plasma and flame cutting to final dimensions, leveling for flatness correction, and slitting for width reduction, all processed in-house rather than outsourced to third-party service centers. Our logistics team specializes in heavy cargo: open-top container loading with proper chocking and lashing prevents coil shift during ocean transit, while break-bulk shipping handles oversize plates exceeding container dimensions. ISO 9001:2015 certification and Lloyd’s CE marking satisfy most project compliance requirements, with SGS or BV third-party inspection available for additional verification.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition including carbon, manganese, silicon content per GB/T 700 standard
- Original mill certificate with heat number traceability for customs verification and project audit compliance
- ISO 9001:2015 quality management certificate covering hot rolled coil processing and inspection procedures
- SGS or BV third-party inspection report available upon request for independent dimensional and chemical verification
- Material traceability documentation linking each coil to specific heat number, rolling date, and mechanical test results
- Complete export documentation including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery
- Hot rolled Q235B coils packed with inner plastic wrapping and outer steel sheet protection to prevent edge damage and moisture ingress during ocean transit
- Coil ID 508mm and 610mm options matched to buyer’s uncoiling equipment specifications, clearly marked on coil tags with heat number and grade identification
- Heavy coils above 15 tons loaded into open-top containers with timber chocking and steel wire lashing to prevent rolling shift during vessel motion
- Custom cut-to-length sheets bundled with steel straps and edge protectors, separated by interleaving paper to prevent surface scratching
- Thickness and width markings stenciled on each coil edge for rapid identification at fabrication yard without unrolling
- FOB, CIF, and DDP shipping terms available with professional heavy cargo logistics coordination for port-to-site delivery
Initiating Your Q235B Hot Rolled Steel Coil Inquiry
Submit your specification sheet detailing thickness, width, length or coil weight requirements, total quantity, and destination port to receive a detailed quotation within 12 hours. Our response includes material cost breakdown, any cutting or processing fees for custom dimensions, and shipping terms with estimated transit times. We provide original mill test certificates for your review before contract signing, allowing independent verification of chemical composition and mechanical properties against your project standards.
Frequently Asked Questions
Q: How does Q235B compare to ASTM A36 and JIS SS400 in chemical composition?
A: Q235B, ASTM A36, and JIS SS400 share similar carbon-manganese chemistry with carbon content typically below 0.22% and manganese between 0.30-0.70%. The primary differences lie in testing frequency requirements and impact test temperatures specified by each standard. Our mill test certificates provide actual heat chemistry for direct comparison against your project specifications.
Q: Can you provide third-party inspection before shipment?
A: Yes, we coordinate SGS or BV third-party inspection at our facility or the mill site. The inspection covers dimensional verification including thickness and width measurements, visual surface condition assessment, and witness testing for mechanical properties if required. Inspection reports are issued directly to buyers before container loading.
Q: What is the minimum order quantity for custom cut-to-size sheets?
A: The MOQ is 1 ton for both coil and cut-to-size sheet orders. For custom cutting services, we process plasma and flame cutting to your specified dimensions with dimensional tolerance reports provided for each batch. Small lot orders face no premium surcharges compared to standard coil purchases.
Q: How do you handle thickness tolerance verification?
A: Every Q235B hot rolled steel coil ships with ±1% thickness tolerance control. We provide dimensional inspection reports showing actual measurements at multiple points across coil width and length. Buyers can request ultrasonic thickness testing for critical applications where flatness and uniform thickness are essential for welding fit-up.
Q: What surface treatment options are available for hot rolled coils?
A: Hot rolled coils are available in as-rolled condition with mill scale intact, pickled condition with scale removed for immediate coating, or galvanized with zinc coating for corrosion protection. Surface selection depends on your fabrication sequence and end-use environment — pickled coils suit immediate painting operations while galvanized coils serve outdoor applications without post-treatment.
Get Your Q235B Hot Rolled Steel Coil Quote with Mill Test Certificates
Send your specifications including thickness, width, quantity, and destination to receive pricing and original mill documentation within 12 hours.
