Description
ASTM-Compliant Galvanized SHS/RHS — Factory-direct supply with original mill test certificates and third-party inspection for every shipment.
Technical Specifications
| Parameter | Value |
|---|---|

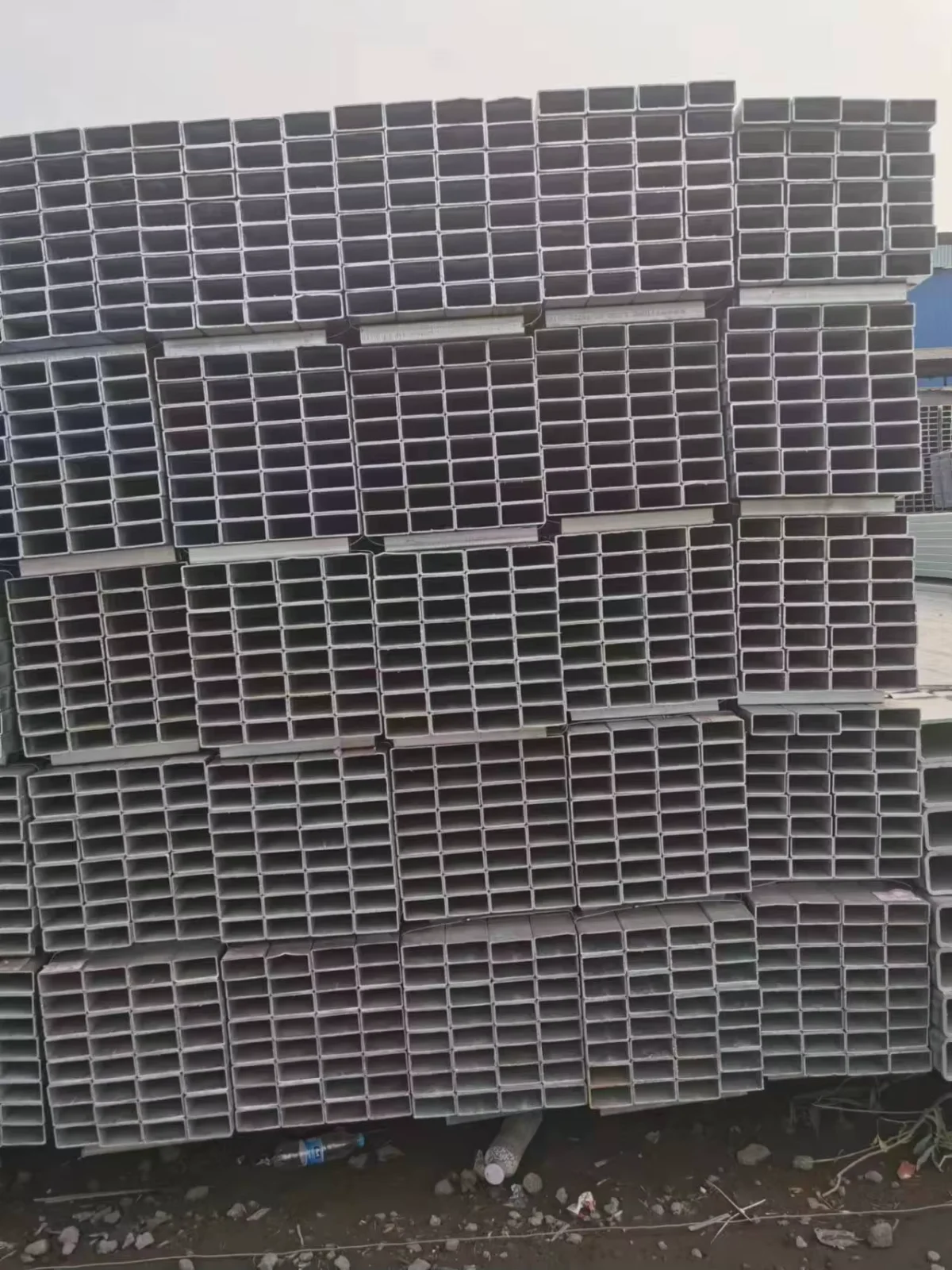

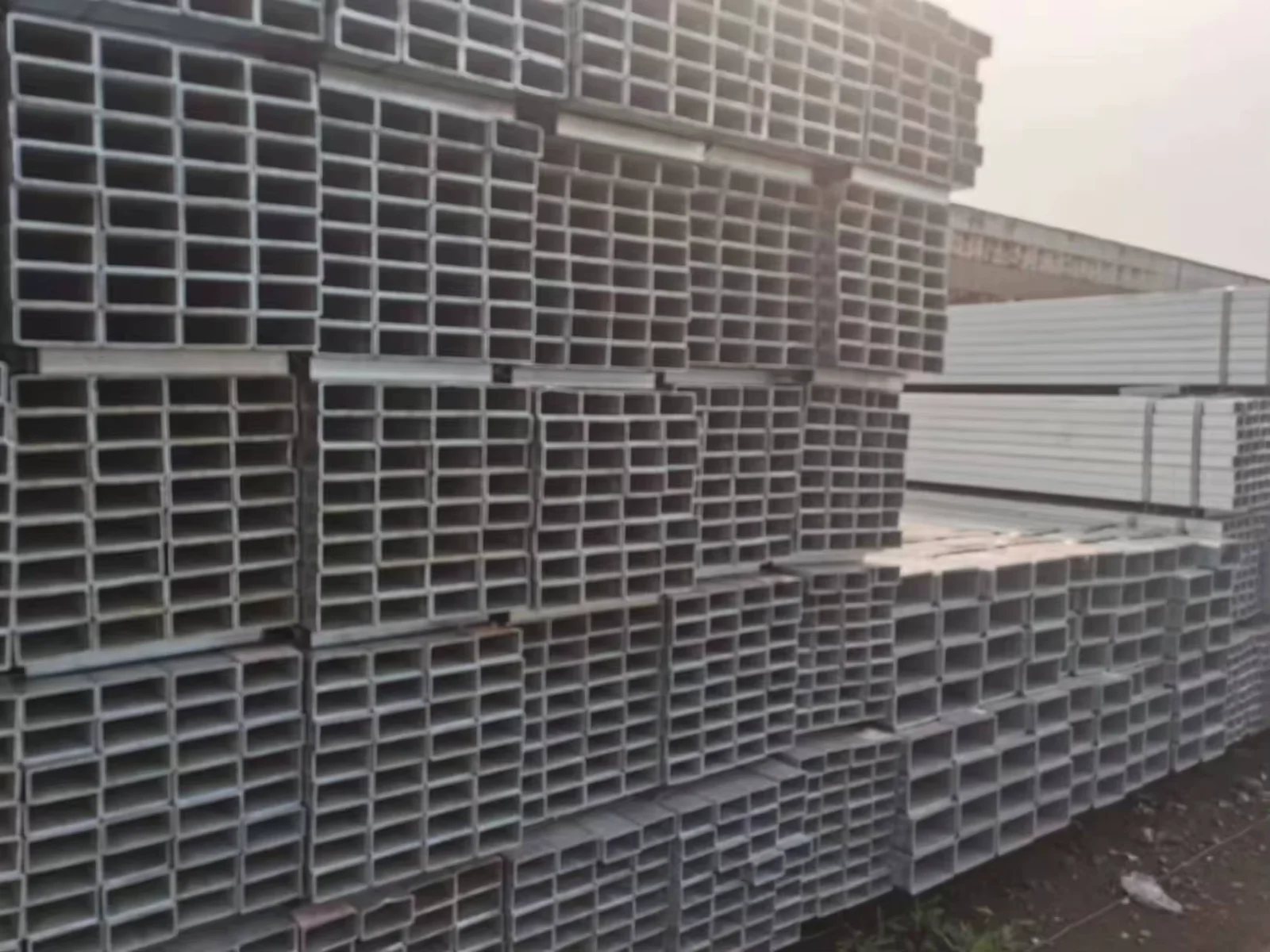

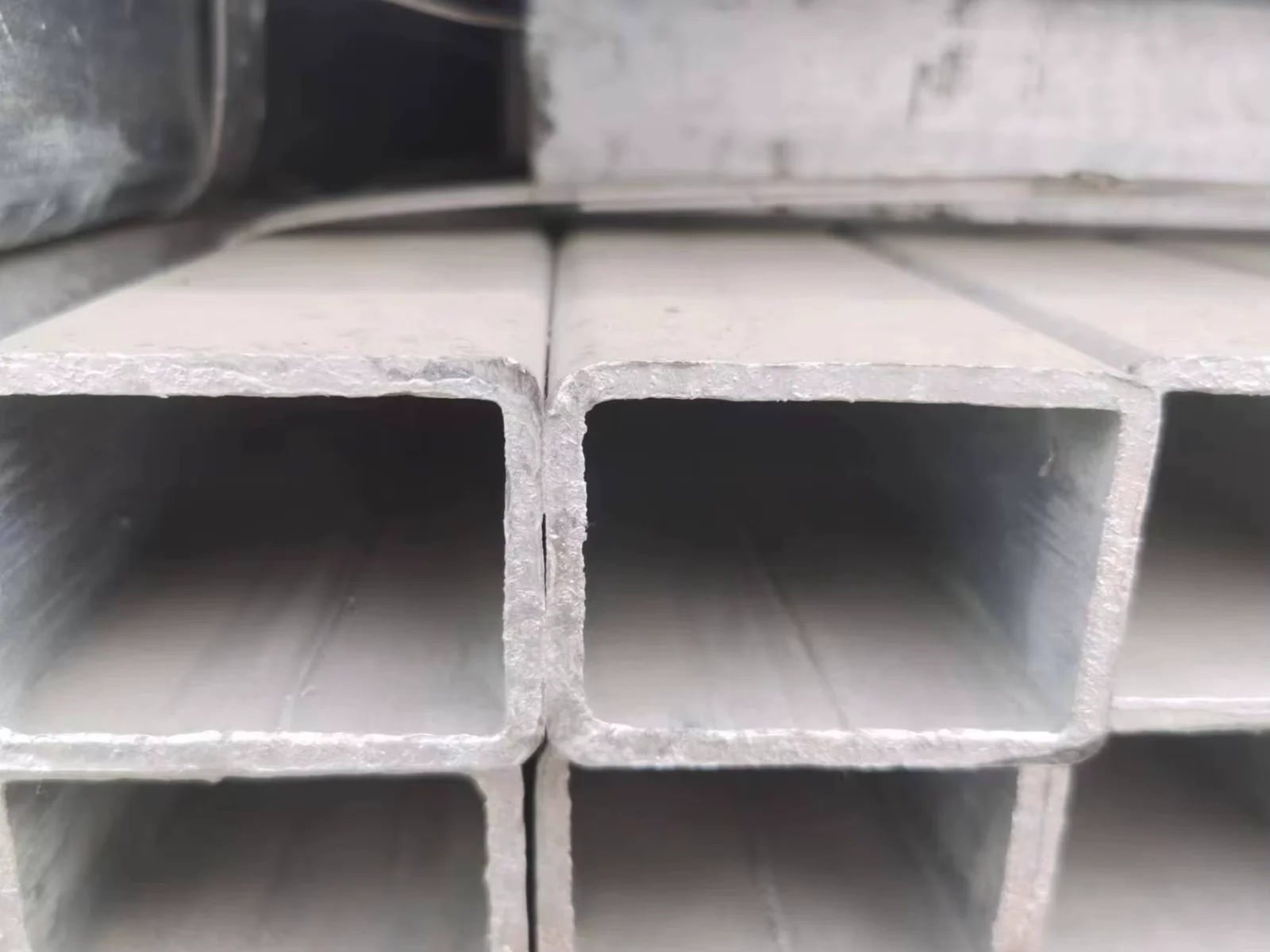

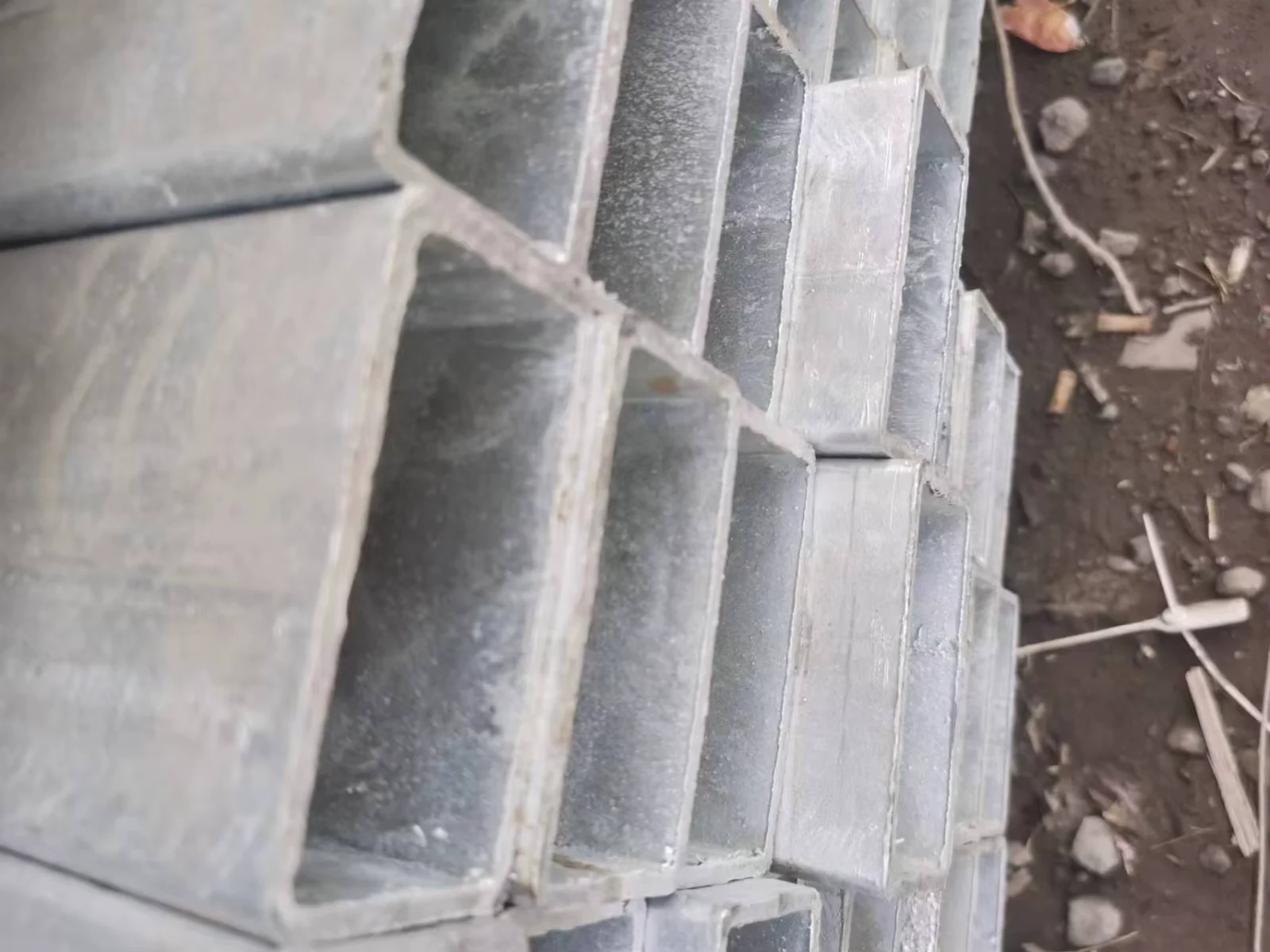

| Designation | Q235B / Q345B Galvanized Square & Rectangular Steel Tube |
| Product Type | Square / Rectangular Steel Tube (SHS / RHS) |
| Steel Grade | Q195, Q235, Q235B, Q345, Q345B, SS400, DC51D+Z, DC52D+Z, DC53D+Z |
| Standard | ASTM |
| Section Shape | Square / Rectangular |
| Wall Thickness | 0.5–200 mm |
| Length | 12 m |
| Technique | Hot Rolled / Cold Rolled |
| Surface Treatment | Galvanized (DC51D+Z / DC52D+Z / DC53D+Z) |
| Tolerance | ±1% |
| Ends | Bare / Consumer’s Requirement |
| Application | Fluid Pipe / Boiler Pipe / Drill Pipe / Hydraulic Pipe / Gas Pipe / Construction / Petrochemicals / Steel Structures / Machinery |
| MOQ | 5 Tons |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Steel Structures | Building frames, scaffolding systems, column bracing, mezzanine supports |
| Petrochemicals | Process piping racks, pipe supports, structural platforms for refinery units |
| Machinery | Conveyor frames, crane booms, equipment base structures |
| Fluid & Gas Transport | Hydraulic lines, gas distribution headers, boiler feed connections |
Zinc Coating Transparency Decides Whether Your Galvanized SHS/RHS Passes Site Acceptance
A mill test certificate stating the actual zinc coating mass is the only defensible proof at handover.
I once watched a batch of galvanized square tubes get rejected at a Riyadh site because the third-party inspector measured 45 microns against a 60-micron contract requirement. The tubes looked fine — no visible bare spots, no white rust — but the coating mass simply wasn’t there. The entire lot sat in a laydown yard for three weeks while the buyer scrambled for replacements. With an ASTM DC51D+Z DC52D+Z galvanized square rectangular steel tube supplier, the zinc coating specification must be documented on the mill test certificate with measurable coating class, not left as a verbal promise. [NEED_CITE: hot-dip galvanized coating thickness measurement standards per ASTM A123]
Matching Galvanized SHS/RHS to Structural and Corrosive Environments
Galvanized square and rectangular tubes in DC51D+Z through DC53D+Z grades serve environments where both formability and corrosion resistance matter. DC51D+Z suits general structural framing where moderate forming is required, while DC53D+Z handles deeper drawing operations for complex bracket and connection geometries. The ASTM DC51D+Z DC52D+Z galvanized square rectangular steel tube supplier should confirm coating class alignment with the project’s corrosion category — C3 for indoor industrial, C4 for coastal or moderate chemical exposure. Our processing capability includes custom cutting, hole drilling, and arc bending, delivered with dimensional inspection reports so field crews receive components ready for assembly.
Engineering Compliance and Certification Requirements
Structural applications demand compliance with load-bearing codes and material traceability standards. ASTM DC51D+Z DC52D+Z galvanized square rectangular steel tube orders for North American projects must reference the correct ASTM designation, while European-bound shipments often require EN 10219 cold-formed hollow section certification for customs and engineering approval. Wall thickness tolerance directly affects structural calculations — a ±1% tolerance on a 3 mm wall means the actual section modulus may vary, and engineers need documented as-measured values, not just nominal specs. [NEED_CITE: EN 10219 dimensional tolerance requirements for cold-formed structural hollow sections] Third-party inspection by SGS or BV before shipment provides independent verification of coating mass, chemical composition, and dimensional accuracy.
Understanding DC51D+Z, DC52D+Z, and DC53D+Z Grade Selection
The DC5xD+Z designation system originates from the EN 10346 continuous hot-dip coating standard and indicates increasing formability levels. DC51D+Z provides standard commercial quality suitable for roll-forming and light bending. DC52D+Z offers improved drawability for moderate stamping and press-brake operations. DC53D+Z delivers deep-drawing capability for complex formed connections without coating flaking or substrate cracking. The +Z suffix confirms hot-dip galvanizing as the surface treatment, providing metallurgical zinc-iron bonding for long-term corrosion protection. When specifying Q235B or Q345B structural grades alongside galvanized coating requirements, confirm whether the base material meets the forming demands before galvanizing, as post-galvanizing forming can damage the coating.
Hidden Costs of Procuring Without Verified Coating and Grade Documentation
Purchasing galvanized tubes without documented zinc coating mass invites rejection at site inspection, forcing either costly re-galvanizing or full replacement. Grade misidentification — receiving Q235 when Q345B was specified — compromises structural load capacity and may trigger engineering re-assessment, delaying project timelines. Missing mill test certificates create customs clearance obstacles, particularly for ASTM DC51D+Z DC52D+Z galvanized square rectangular steel tube shipments entering regulated markets. [NEED_CITE: material certification requirements for structural steel imports] The true cost of non-conforming material extends beyond the invoice: demurrage charges, idle labor, and reputational damage with the end client.
Why Procure Galvanized SHS/RHS From XJY Plate
XJY Plate operates as a dedicated flat and long products division under Shandong Xin Jiyuan Special Steel Tube Co., Ltd, providing direct mill access without intermediary markups. Every shipment of ASTM DC51D+Z DC52D+Z galvanized square rectangular steel tube includes original mill test certificates traceable to heat number, documenting chemical composition, mechanical properties, and coating mass. Our ISO 9001:2015 certification and CE compliance ensure quality management systems meet international audit standards. Custom cutting, drilling, and bending services are performed in-house with dimensional reports provided before dispatch. Professional heavy-cargo logistics teams handle flatbed, open-top container, and break-bulk shipping, optimizing container loading for 12 m lengths while protecting galvanized surfaces during transit.
Documentation & Compliance
- Mill test certificate documenting DC51D+Z / DC52D+Z / DC53D+Z chemical composition, yield strength, and zinc coating mass per ASTM requirements
- ISO 9001:2015 quality management certificate covering galvanizing and fabrication processes
- SGS or BV third-party inspection report verifying coating thickness, dimensional accuracy, and surface quality before shipment
- Material traceability documentation linking each bundle to heat number, production date, and coating batch
- Export customs documentation including packing list, bill of lading, and certificate of origin for ASTM DC51D+Z DC52D+Z galvanized square rectangular steel tube orders
Packaging, Loading & Delivery
- Galvanized square and rectangular tubes bundled with steel strips and edge protectors to prevent zinc coating damage during handling and ocean transit
- Surface protection maintained through proper stacking separation and moisture barriers, critical for DC51D+Z through DC53D+Z coating integrity
- Container loading optimized for 12 m lengths using open-top or flat-rack configurations, maximizing payload while respecting weight restrictions for 0.5–200 mm wall thickness ranges
- Custom cut-to-length services available with dimensional inspection reports, reducing on-site waste for construction and machinery applications
- Heat number and steel grade markings clearly stenciled on each bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional heavy-cargo logistics coordination for global delivery
Initiating Your Galvanized SHS/RHS Procurement
Submit your required steel grade, section dimensions, wall thickness, quantity, and destination port to receive a detailed quotation including material cost, processing fees, and shipping terms. We provide original mill test certificates for review before or with shipment, ensuring full material transparency. For custom cutting, bending, or non-standard dimensions, our technical team confirms feasibility and delivers dimensional inspection reports prior to dispatch.
Request Your ASTM Galvanized SHS/RHS Quotation Today
Provide your specifications — steel grade, section size, wall thickness, length, quantity, and destination — and receive a detailed quotation with mill test certificate preview within 12 hours.
Contact XJY Plate
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjyplate.com
Website: www.xjyplate.com
Frequently Asked Questions
Q: What is the difference between DC51D+Z, DC52D+Z, and DC53D+Z?
A: These designations indicate increasing formability levels within the EN 10346 hot-dip galvanized steel standard. DC51D+Z provides commercial quality for general forming, DC52D+Z offers improved drawability for moderate stamping, and DC53D+Z delivers deep-drawing capability for complex geometries without coating damage.
Q: What zinc coating thickness can be supplied?
A: Coating class is specified per order requirements and documented on the mill test certificate. We provide original test reports showing actual coating mass measurements, ensuring transparency for site acceptance and third-party inspection.
Q: What is the minimum order quantity for custom-cut galvanized tubes?
A: The standard MOQ is 5 tons. For custom cutting, bending, or non-standard dimensions, our technical team reviews specifications and confirms feasibility with dimensional inspection reports provided before dispatch.
Q: Can you provide third-party inspection before shipment?
A: Yes, SGS and BV third-party inspections are available for all orders. Inspection covers coating thickness verification, dimensional accuracy, surface quality assessment, and material traceability confirmation.
Q: What is the typical production lead time?
A: Standard specifications maintain ready stock for immediate dispatch. Custom processing orders including cutting, bending, or special coating requirements follow typical production lead times confirmed at quotation stage based on order complexity and quantity.
