Description

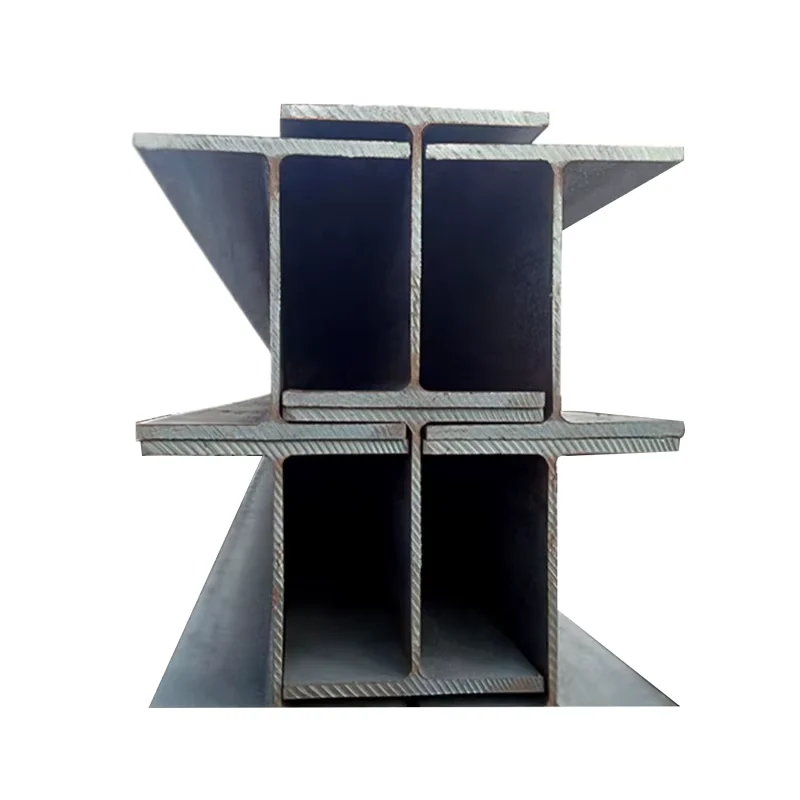

Factory-direct H-beam supply — Q235B, SS400, and ASTM A36 hot rolled sections held in ready stock with original mill test certificates for every heat number.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B / SS400 / ASTM A36 H-Beam Structural Steel |
| Product Type | H-Beam (Wide Flange Beam / I-Beam) |
| Steel Grade | Q235B, Q345B, SS400, ASTM A36, ASTM A572, S235JR, S355JR |
| Standard | GB, ASTM, BS, EN, JIS, DIN, AISI |
| Section Shape | H-Beam / I-Beam |
| Web Width (Flange Width) | 100 mm – 900 mm |
| Web Thickness | 4.5 mm – 36.5 mm |
| Flange Thickness | 8 mm – 64 mm |
| Length | 6 m / 9 m / 12 m or as required |
| Technique | Hot Rolled / Welded |
| Surface Treatment | Black (Hot Rolled), Galvanized, or Customized |
| Tolerance | ±1% |
| Invoicing | By Actual Weight |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Application | Steel building structures, Industrial platforms, Bridge construction, Infrastructure projects |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel Fabricators | Structural frames for industrial warehouses, portal frames, mezzanine floors |
| Shipyards & Offshore | Platform support beams, deck stiffeners, offshore jacket bracing |
| Construction & Infrastructure | Bridge girders, high-rise building columns, highway sound-barrier supports |
| Pressure Vessel & Tank Builders | Pipe rack structures, tank farm support frames, skid-mounted equipment bases |
What Flange-Thickness Tolerance Costs on a Structural Frame Order
A beam that passes visual inspection but fails caliper measurement will still be rejected at third-party复检.
In my years running steel supply across Southeast Asia, the most expensive mistakes were never about price — they were about negative tolerance hidden under “acceptable” mill finish. Buyers ordering ASTM A36 H-beam for a warehouse portal frame in Ho Chi Minh City once received a shipment where flange thickness measured consistently below the nominal by more than the allowable deviation. The entire lot was held at the port for re-inspection, delaying erection by weeks. Structural steel buyers sourcing ASTM A36 S235JR SS400 hot rolled H-beam steel supplier materials across multiple continents face a recurring problem: inconsistent equivalence between GB, ASTM, EN, and JIS standards leads to wrong material selection at the design stage, while thickness deviations slip through without proper mill certificate verification. [NEED_CITE: steel grade equivalence between EN and ASTM standards]
How Hot Rolled H-Beam Profiles Match Structural Load Paths
When an EPC contractor specifies Q235B or ASTM A36 for a portal frame, the critical question is whether the section’s moment of inertia and radius of gyration match the calculated load path. Hot rolled H-beams in the 100 mm to 900 mm flange width range cover everything from light mezzanine supports to heavy bridge girders. The wide flange geometry distributes bending stress more efficiently than I-beams with narrow flanges, making ASTM A36 S235JR SS400 hot rolled H-beam steel supplier products the default choice for moment-resisting frames. For corrosive environments such as coastal industrial zones or offshore platforms, galvanized surface treatment extends service life without adding the maintenance cost of periodic repainting.
Structural Code Compliance and Grade Selection for Engineering Projects
Engineering design codes — whether AISC 360 for North American projects, EN 1993 for European-spec work, or GB 50017 for domestic Chinese construction — all require verifiable material properties backed by traceable documentation. [NEED_CITE: EN 10219 cold-formed hollow section requirements] Selecting Q345B over Q235B, or S355JR over S235JR, directly increases the design yield strength available to the structural engineer, allowing lighter sections to carry the same load. For projects requiring CE marking for European customs clearance, or SGS/BV third-party inspection for Middle Eastern government tenders, the mill test certificate must document the exact heat number, chemical composition, and mechanical test results. Custom cutting to exact project lengths — whether 6 m, 9 m, or 12 m — reduces on-site welding and waste, but the cutting tolerance must remain within ±1% to avoid fit-up problems during erection.
Understanding Steel Grade Equivalence and Rolling Process
The equivalence Q235B ≈ ASTM A36 ≈ SS400 ≈ S235JR exists because these grades share similar carbon content ranges and minimum yield strength targets, though their exact chemical compositions and testing protocols differ slightly across national standards. Q345B ≈ ASTM A572 Gr.50 ≈ S355JR represent the next step up, offering higher yield strength for demanding structural applications. [NEED_CITE: steel grade equivalence between GB ASTM EN JIS standards] Hot rolled H-beams are produced by passing steel billets through a series of shaped rolls at temperatures above the recrystallization point, which gives the final product good ductility and weldability without the residual stress issues common in cold-formed sections. Welded H-beams, fabricated from plate by submerged arc welding, allow non-standard dimensions beyond the hot rolled range — useful when a project calls for a specific web depth or flange width that no mill stock carries. Surface treatment choices depend on the service environment: black hot rolled finish is adequate for indoor structural frames, while galvanized coating protects against atmospheric corrosion in outdoor or marine-adjacent installations. Negative tolerance practices — where actual thickness falls below nominal — reduce the theoretical weight and thus the invoiced cost, but they also reduce the section modulus and load-carrying capacity, creating a hidden structural risk that only shows up during third-party inspection.
Hidden Costs of Procuring the Wrong Grade or Unverified Tolerance
Ordering ASTM A36 when the structural drawing specifies S355JR means the beam will fail the engineer’s load calculation — not because the steel is defective, but because the grade equivalence was never confirmed against the design assumptions. Missing or forged mill test certificates create a chain-of-custody gap that customs authorities in the Middle East and Southeast Asia increasingly flag during import clearance, leading to shipment holds and demurrage charges. [NEED_CITE: structural steel procurement compliance requirements] Beams with excessive negative tolerance may pass visual inspection at the mill gate but fail dimensional checks at the project site, forcing the buyer to either accept a structurally compromised lot or wait weeks for replacement material while the erection crew stands idle.
Why Structural Steel Buyers Source ASTM A36 S235JR SS400 Hot Rolled H-Beam Steel Supplier Products Through Xin Jiyuan
Every H-beam we ship carries an original mill test certificate with heat number traceability — the same document the third-party inspector will request at the discharge port. Our plate and coil division maintains large ready stock across the 100 mm to 900 mm flange width range, meaning standard sections can be dispatched without waiting for a fresh rolling campaign. Custom cutting to project-specific lengths — plasma cutting, flame cutting, and blanking — is handled in-house, so beams arrive on-site ready to bolt or weld. We hold ISO 9001:2015 and Lloyd’s CE certification, and SGS or BV third-party inspection can be arranged before loading. Professional heavy cargo logistics — flatbed trucking to port, open-top container loading, and break-bulk shipping for oversized sections — prevents the damage and overweight penalties that plague inexperienced forwarders handling long, heavy steel sections.
Documentation & Compliance
- Mill test certificate documenting Q235B, SS400, or ASTM A36 chemical composition, yield strength, and tensile properties per GB/T 706, JIS G 3192, or ASTM A6/A6M as applicable
- CE certificate confirming conformity with European structural steel requirements for projects entering EU customs
- ISO 9001:2015 quality management certificate covering the full supply chain from mill sourcing to final inspection
- SGS or BV third-party inspection report available upon request, covering dimensional checks, surface quality, and mechanical test witness
- Full material traceability by heat number linked to the original mill test certificate for every piece shipped
- Complete customs documentation set including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Hot rolled H-beams bundled with high-tensile steel strips at intervals matching the 6 m / 9 m / 12 m length segments to prevent shifting during ocean transit
- Black finish beams coated with anti-rust oil before bundling; galvanized H-beams separated with edge protectors to preserve the zinc coating from abrasion
- Open-top container or flat-rack loading for sections exceeding standard container door height, with weight distributed to avoid port overweight penalties
- Custom cut-to-length beams packed separately with clear heat number and grade markings on each piece for on-site identification
-唛头 on each bundle showing steel grade (Q235B / SS400 / ASTM A36), section dimensions, piece count, and gross/net weight
- FOB, CIF, and DDP shipping terms available with professional break-bulk and container loading coordination from Shandong ports
How to Request a Quotation for Your H-Beam Procurement
Send your specification list — steel grade, section dimensions, quantity, length requirement, and destination port — and we will respond within 12 hours with a detailed quotation including material cost, any cutting or processing fees, and shipping terms. If your project requires non-standard dimensions or third-party inspection, confirm those requirements upfront so we can include them in the proforma invoice and arrange the mill test certificate review before deposit.
Frequently Asked Questions
Q: How do Q235B, ASTM A36, SS400, and S235JR compare in terms of grade equivalence?
A: These four grades are considered approximately equivalent for general structural use. Q235B (GB standard), ASTM A36 (US standard), SS400 (JIS standard), and S235JR (EN standard) share similar minimum yield strength targets and carbon content ranges, though their exact chemical compositions and testing protocols differ. We provide detailed equivalence guidance during the inquiry stage to ensure the correct grade is selected for your project’s design code.
Q: Can you provide original mill test certificates with heat number traceability?
A: Yes. Every H-beam we supply is accompanied by an original mill test certificate documenting the heat number, chemical composition, and mechanical properties. The heat number on the certificate matches the marking on each beam, allowing full traceability from the mill to the project site.
Q: What is the MOQ for cut-to-length H-beams compared to standard 12 m lengths?
A: Standard 12 m lengths are available from ready stock with no special MOQ beyond the normal order quantity. For custom cut-to-length beams, we can process to your required dimensions using plasma or flame cutting, with the MOQ depending on the specific section size and quantity — confirm during the inquiry stage.
Q: What surface treatment options are available for H-beams in corrosive environments?
A: Black hot rolled finish is standard and suitable for indoor or sheltered applications. For outdoor, coastal, or industrial environments, galvanized surface treatment provides long-term corrosion protection. Custom painting or other coating systems can also be arranged based on project specifications.
Q: How do you handle heavy H-beam loading to avoid container damage and port delays?
A: We use professional heavy cargo logistics including flatbed trucking, open-top container loading, and break-bulk shipping. Sections are bundled with steel strips and weight is distributed to avoid overweight penalties. For oversized sections beyond standard container dimensions, break-bulk or flat-rack shipping is arranged to prevent damage and ensure smooth port clearance.
[Get Your H-Beam Quotation with Mill Test Certificate]
Submit your steel grade, section dimensions, quantity, and destination port to receive a detailed quotation and original mill test certificate within 12 hours.
