Description
Factory-Direct H-Beam Fabrication — We produce Q355B, S355JR, and ASTM A572 Gr.50 H-beam structures in our own workshop, eliminating trader markups on every ton shipped.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q355B / S355JR / ASTM A572 Gr.50 H-Beam Structural Steel |
| Product Type | Fabricated Steel Structure / H-Beam |
| Steel Grade | Q355B, S355JR, ASTM A572 Gr.50, SM490A, G350 |
| Section Shape | H-section |
| Technique | Submerged Arc Welding |
| Surface Treatment | Painting and Hot Dip Galvanized |
| Design Style | Modern |
| Application | Steel Workshop, Garage Shed, Storage Closet, Prefab Workshop, Steel Warehouse |
| Standard | ISO 9001, BV, Intertek |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Steel workshop frames, heavy industrial steel structure buildings, light steel workshops |
| Logistics & Warehousing | Steel warehouse columns and rafters, storage closet frameworks |
| Infrastructure | Steel bridges, space frame structures, aircraft hangars |
| Commercial & Residential | Prefab houses, commercial buildings, garage sheds |
Where Steel Grade Equivalence Between GB, EN, and ASTM Decides Customs Clearance
Specifying the wrong grade equivalent is the single most common reason fabricated steel structures get held at port.
When a project engineer in the Middle East calls for ASTM A572 Gr.50 but the fabricator supplies Q355B without documented equivalence, customs inspectors flag the shipment. The mill test certificate shows a Chinese standard designation that does not appear on the approved material list. The entire container sits at the terminal while the buyer scrambles for a retrospective compliance letter. I have seen this happen on warehouse projects in Dubai where the structural drawings specified S355JR and the supplier shipped Q355B assuming they were interchangeable — technically close, but legally distinct without a recognized equivalence statement. [NEED_CITE: steel grade equivalence between EN and ASTM standards]
Matching Multi-Grade H-Beams to Structural Load and Corrosion Environments
A Q355B S355JR H-beam steel structure fabrication supplier must understand that the choice between Q355B, S355JR, and ASTM A572 Gr.50 is never arbitrary — it follows the structural engineer’s load calculations and the project’s governing design code. For a steel workshop in a non-seismic zone with moderate live loads, Q355B satisfies GB 50017 requirements at lower cost. When the same building sits in a coastal industrial park where chloride exposure accelerates corrosion, hot dip galvanized finish on S355JR sections extends service life without repainting cycles. We fabricate H-beams in all three grades from the same workshop, switching submerged arc welding parameters and filler wire to match each grade’s carbon equivalent, so the buyer receives one shipment with correct material separation and matching heat numbers on every piece.
Engineering Code Compliance and Surface Treatment Selection
Structural H-beams fabricated for international projects must satisfy the design code of the destination country — EN 1993 for European-spec buildings, AISC 360 for North American projects, and GB 50017 for domestic Chinese construction. The steel grade must conform to the corresponding material standard: S355JR under EN 10025-2 for EU markets, ASTM A572 Gr.50 for projects following AISC, and Q355B for GB-governed structures. Surface treatment selection depends on the corrosion category defined in ISO 12944: hot dip galvanized coating suits C3 to C4 environments such as industrial workshops and warehouse frames, while painted systems with primer and topcoat work for C2 interior conditions like garage sheds and storage closets. [NEED_CITE: ISO 12944 corrosion categories for steel protective paint systems] Custom cut-to-length H-beams reduce on-site welding and secondary processing, which matters when the project schedule does not allow for field cutting of thick flange plates.
Submerged Arc Welding and Multi-Grade Steel Behavior

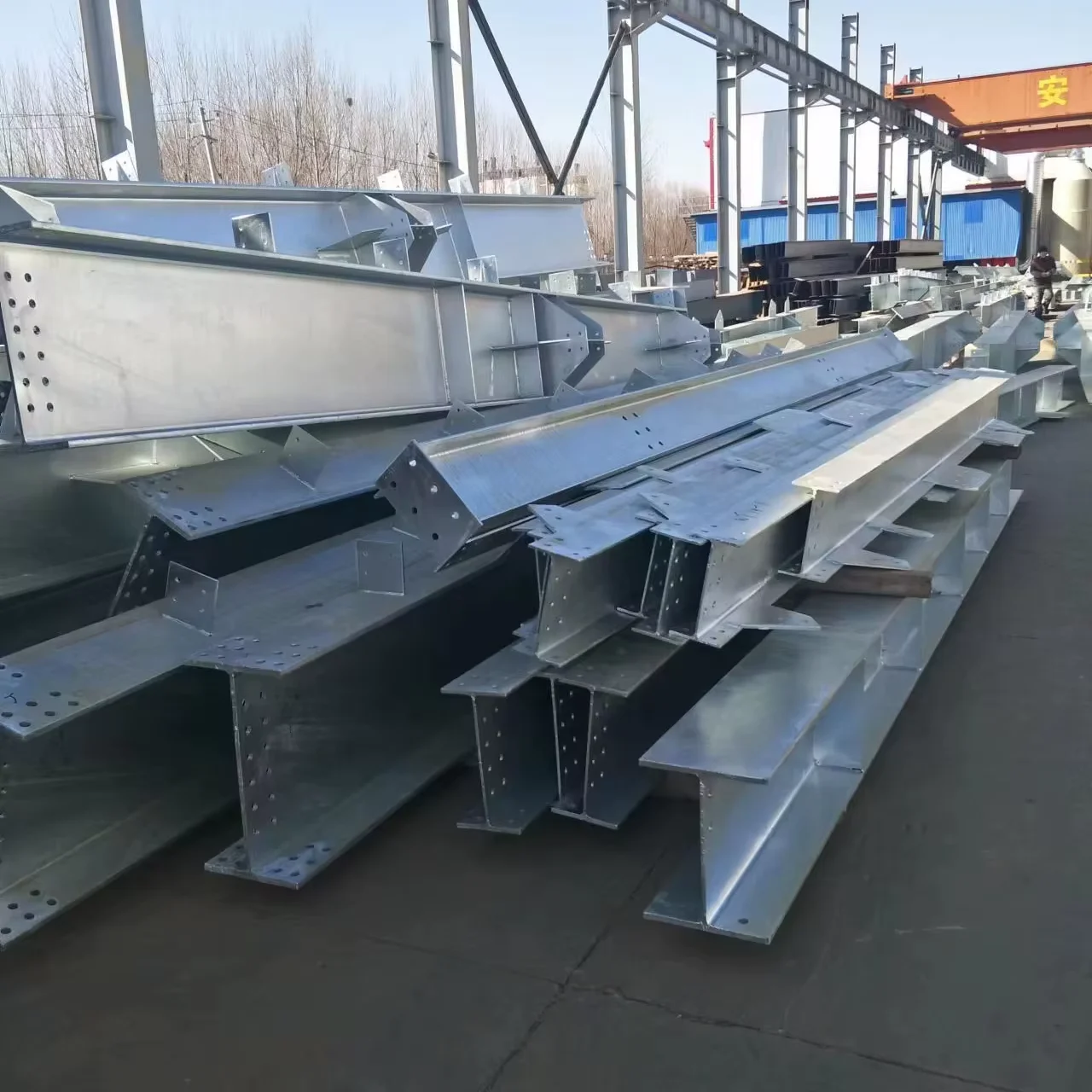

Submerged arc welding produces deep, consistent penetration on H-beam flange-to-web joints — critical when sections carry heavy vertical loads in steel warehouse rafter systems. The process uses a granular flux that shields the arc, producing weld metal with low hydrogen content and reducing the risk of cold cracking in higher carbon equivalent grades like Q355B and ASTM A572 Gr.50. Hot dip galvanizing immerses the fabricated H-beam in molten zinc, forming a metallurgical bond that covers both external surfaces and the interior of any open sections, providing corrosion protection for twenty or more years in rural and suburban atmospheres. Painting offers a more economical alternative for indoor applications such as prefab workshop interiors, where the environment remains dry and the structure is not exposed to weathering. [NEED_CITE: submerged arc welding process characteristics for structural steel]
The Hidden Cost of Unverified Material and Welding Quality
When a buyer accepts fabricated H-beams without original mill test certificates tied to specific heat numbers, the risk extends far beyond paperwork. A structure built from unverified steel may pass visual inspection but fail ultrasonic testing at the flange-to-web weld junction, forcing partial demolition and re-fabrication weeks before the handover deadline. Missing or forged certificates mean the structural engineer cannot confirm that the delivered Q355B or S355JR actually meets the specified yield strength and elongation, creating liability exposure that no amount of cost saving can justify. [NEED_CITE: structural steel quality verification and traceability requirements]
Direct Workshop Fabrication with Full Documentation

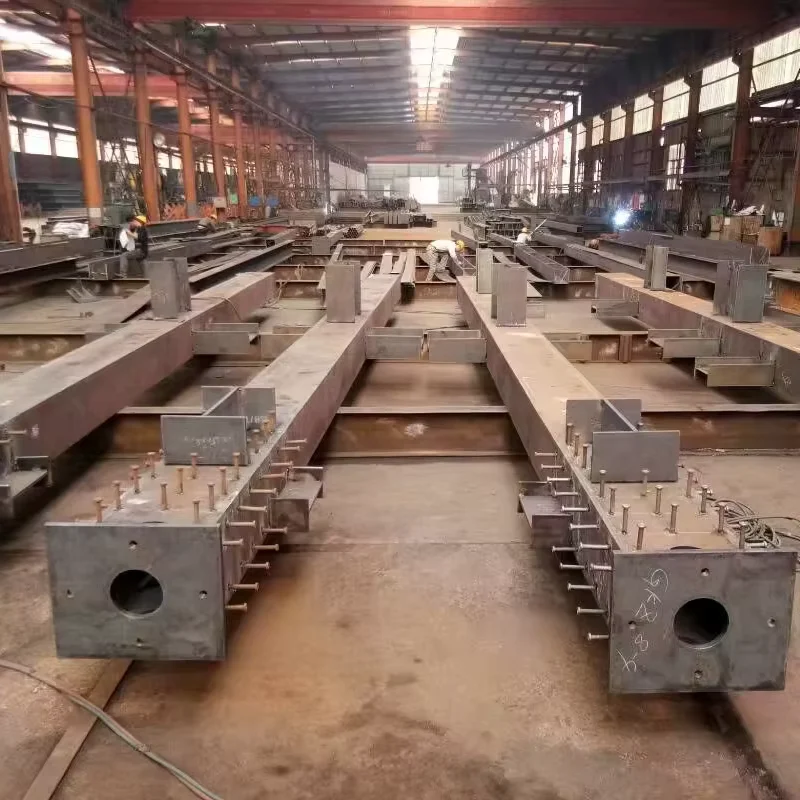

We run our own fabrication workshop equipped with submerged arc welding stations, CNC flame cutting machines, and a dedicated galvanizing coordination line — there is no intermediary between the drawing file and the finished H-beam. Every batch of raw plate and coil carries an original mill test certificate showing chemical composition and mechanical properties, and we maintain full heat number traceability from the steel mill through cutting, welding, and final assembly. Our workshop holds ISO 9001:2015 certification and we arrange third-party inspection through SGS, BV, or Intertek before shipment, so the buyer receives an independent quality report alongside the mill certificates. We fabricate non-standard H-beam sizes and custom lengths based on the project’s structural drawings, including 3D modeling and shop drawing confirmation before production begins. Professional heavy cargo loading using flatbed trailers and open-top containers ensures that long H-beam sections arrive without bending damage or coating scratches.
Documentation & Compliance
- Mill test certificate documenting Q355B, S355JR, or ASTM A572 Gr.50 chemical composition and mechanical properties per the applicable standard, with heat number traceability for every fabricated H-beam
- ISO 9001:2015 quality management system certificate covering the full fabrication process from raw material incoming inspection through submerged arc welding and surface treatment
- SGS, BV, or Intertek third-party inspection report verifying dimensional accuracy, weld quality, and coating thickness before container loading
- Material traceability sheet linking each H-beam piece to its source heat number, welding procedure specification, and surface treatment batch
- Complete customs documentation including packing list, bill of lading, and certificate of origin formatted for the destination country’s import requirements
Packaging, Loading & Delivery
- Fabricated H-beams bundled with high-tensile steel strips and separated by timber spacers to prevent contact damage to hot dip galvanized or painted surfaces during ocean transit
- Hot dip galvanized H-beam sections wrapped with edge protectors and moisture-resistant paper to preserve the zinc coating and prevent white rust formation in humid container conditions
- Custom-length H-beams loaded on flatbed trailers or open-top containers based on section length, with overweight distribution calculated to avoid port handling delays
- Each piece marked with heat number, steel grade designation (Q355B / S355JR / ASTM A572 Gr.50), and piece number for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional heavy cargo logistics coordination from the workshop to the project site
Start Your H-Beam Fabrication Inquiry
Send your structural drawings or specification sheet listing the required steel grade, section dimensions, surface treatment preference, and total tonnage to receive a detailed quotation with mill test certificate samples and production timeline. We confirm welding procedure specifications and provide 3D shop drawings for approval before any cutting begins.
Request a Quotation with Mill Test Certificates
Submit your H-beam specifications, steel grade, and destination port to receive pricing, fabrication drawings, and original mill test certificate samples.
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjyplate.com
Frequently Asked Questions
Q: What is the equivalence between Q355B, S355JR, and ASTM A572 Gr.50?
A: These three grades belong to different standard systems — Q355B follows Chinese GB/T 1591, S355JR follows European EN 10025-2, and ASTM A572 Gr.50 follows the American ASTM standard. While their yield strength levels are comparable, the chemical composition limits and impact testing requirements differ. We supply each grade with its own mill test certificate and can provide equivalence comparison documentation for project approval when the design code allows substitution.
Q: How do you choose between hot dip galvanized and painted surface treatment for H-beams?
A: Hot dip galvanized finish provides long-term corrosion protection suitable for outdoor and humid environments such as steel workshops, warehouse frames, and bridge structures, typically lasting twenty years or more without maintenance. Painted finish is more cost-effective for indoor applications like garage sheds, storage closets, and prefab workshop interiors where the structure is protected from direct weather exposure. We apply either treatment after fabrication and welding are complete, ensuring full coverage on all surfaces including weld joints.
Q: Can you fabricate non-standard H-beam sizes and custom lengths?
A: Yes. Our workshop handles custom fabrication based on project structural drawings, including non-standard section dimensions, variable web heights, and specific length requirements. We provide 3D modeling and shop drawing confirmation before production, and all cut-to-size H-beams carry full material traceability with original mill test certificates.
Q: How do you verify welding quality on fabricated H-beams?
A: All H-beam flange-to-web joints are produced using submerged arc welding with qualified welding procedure specifications. We perform visual inspection on every weld, and ultrasonic or magnetic particle testing is available for critical joints. Third-party inspection through SGS, BV, or Intertek can be arranged before shipment to provide independent verification of weld quality and dimensional accuracy.
Q: What shipping methods do you use for long H-beam sections?
A: Standard-length H-beams ship in open-top containers or on flatbed trailers. Extra-long sections that exceed container dimensions are loaded on flatbed trucks for domestic transport or shipped via break-bulk vessel for international orders. We calculate weight distribution and secure each piece with steel strapping to prevent movement and coating damage during transit.
