Description
Factory-Direct Fabrication — Custom structural components laser cutting sheet metal fabrication OEM supplier operating from our own production floor with full CNC and welding capacity in-house.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Custom Structural Components per STEP Files |
| Product Type | Machined Steel Product / Fabricated Steel Structure |
| Steel Grade | Stainless Steel, Aluminum, Carbon Steel |
| Standard | DIN ISO 2768 |
| Fabrication Processes | Laser Cutting, CNC Bending, Welding |
| File Support | STEP / STP / SolidWorks / DXF |
| Tolerance | ±0.5mm / DIN ISO 2768 / Custom Per Drawing |
| Surface Treatment | Powder Coating, Brushed, Anodized |
| Assembly Support | Riveting, Fasteners, Sub-Assembly |
| Production Scope | Prototype, Small Batch, OEM Volume |
| Inspection | CMM, Caliper, Visual QC |
| Delivery | Fast Lead Time, Export Packaging |
| Applications | Automation Equipment, Industrial Equipment, Robotics, Structural Components |
Application Suitability
| Industry | Typical Applications |
|---|---|

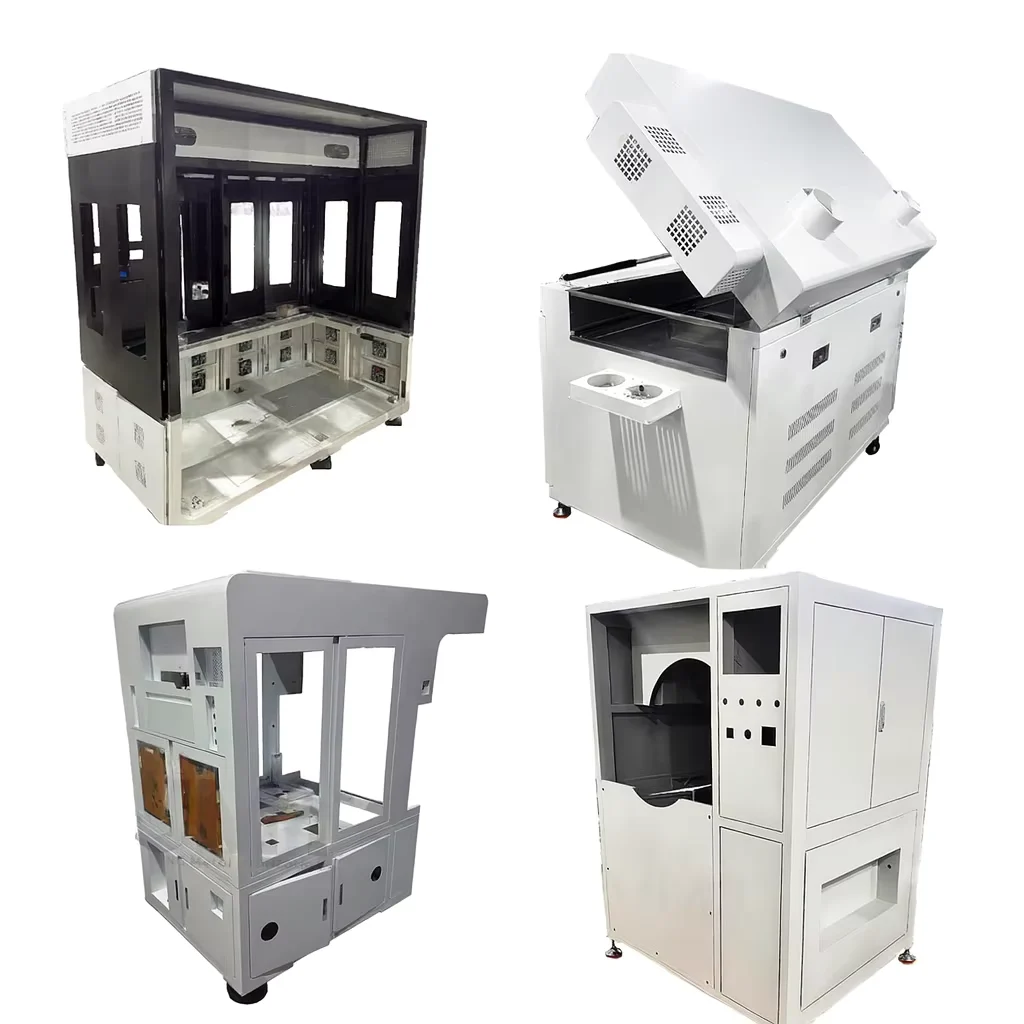

| Automation Equipment | Machine frames, sensor mounting brackets, conveyor guard enclosures |

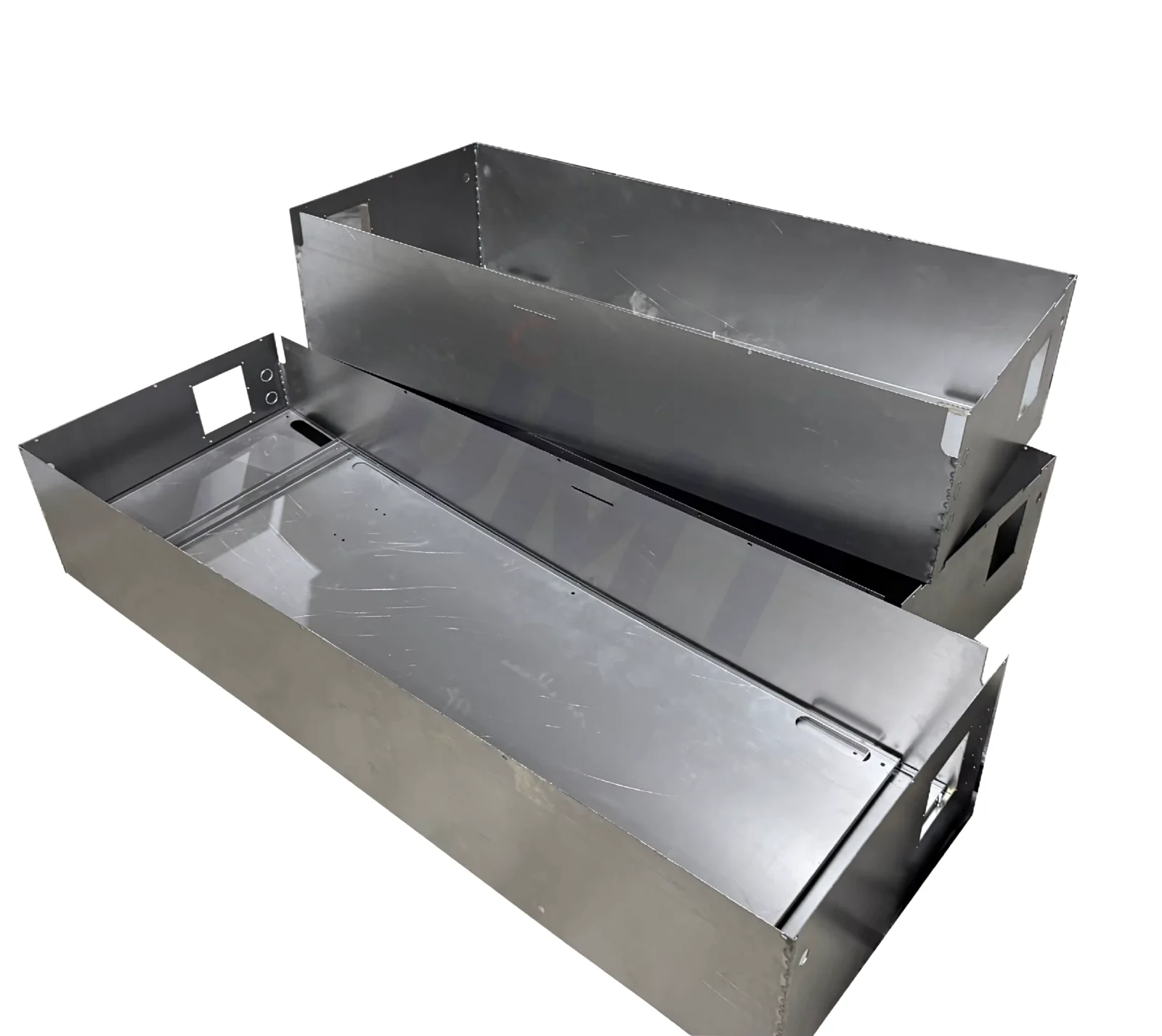

| Industrial Equipment | Equipment housings, structural support bases, control panel enclosures |

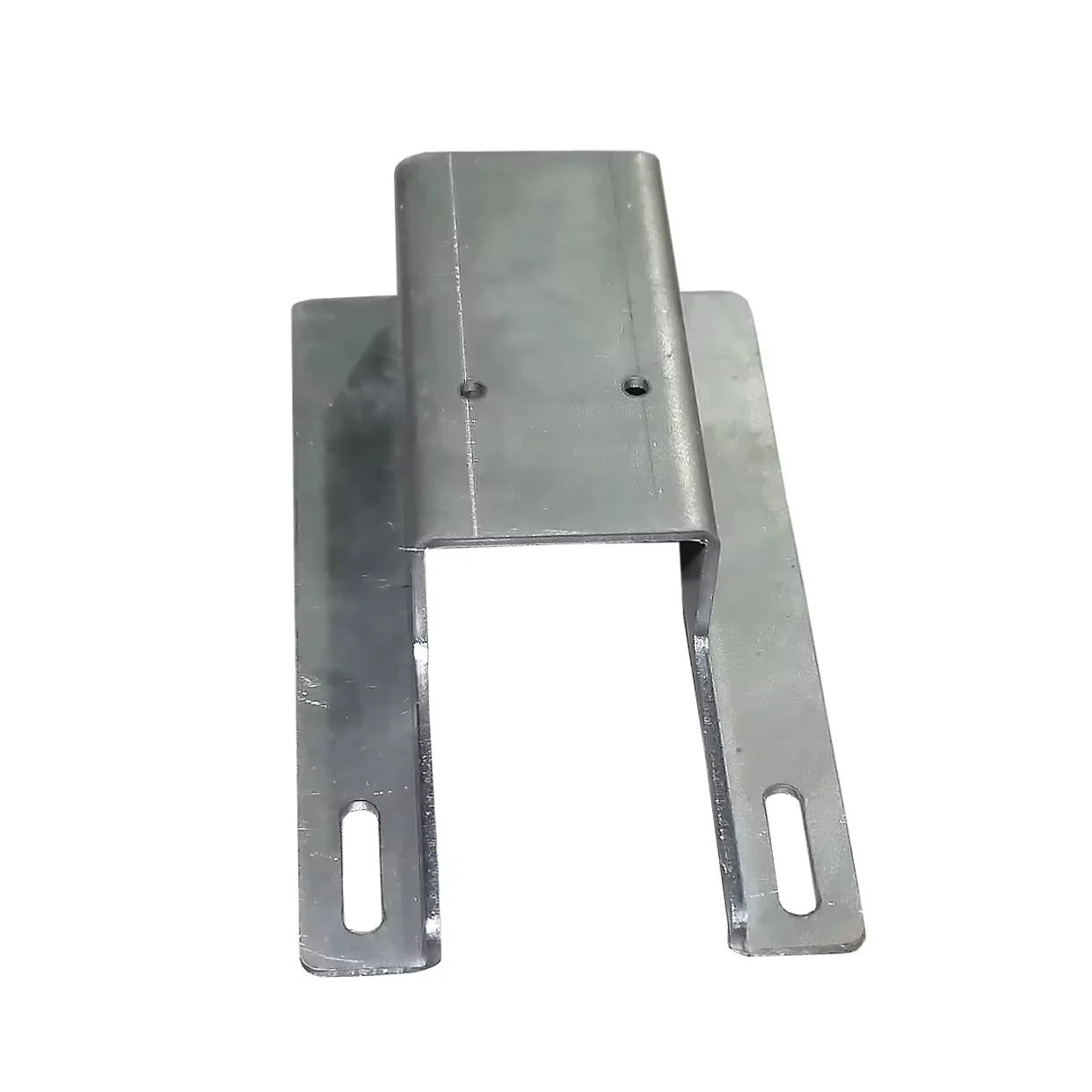

| Robotics | Robotic arm structural links, base plates, end-effector mounting brackets |
| Structural Components | Load-bearing frames, modular support structures, custom brackets |
What CAD-to-Production File Gaps Cost on a Custom Structural Components Laser Cutting Sheet Metal Fabrication OEM Supplier Order
A single mismatched file format or unconverted tolerance block can scrap an entire batch before the first bend is made.
OEM buyers in automation and industrial equipment frequently submit 3D models expecting the supplier to interpret design intent — but without explicit tolerance callouts, material callouts, or bend-radius annotations, the fabrication team defaults to general-purpose assumptions. The result: parts that pass visual inspection but fail assembly because bend angles drifted beyond ±0.5mm or laser-cut hole positions shifted on thick carbon steel plates. [NEED_CITE: sheet metal fabrication tolerance stack-up in multi-process orders] When cutting, bending, and welding are split across three different vendors, each handoff introduces alignment error — and the buyer absorbs the rework cost.
How STEP File Compatibility Eliminates Interpretation Risk in Structural Frame Fabrication
Custom structural components laser cutting sheet metal fabrication OEM supplier workflows that accept native STEP, STP, SolidWorks, and DXF files allow the engineering team to extract exact geometry, bend lines, and weld seams directly from the 3D model — no manual redrawing, no dimension rounding errors. This direct CAD-to-machine pipeline ensures that a robotics mounting bracket designed at ±0.5mm tolerance in SolidWorks arrives on the laser cutter with those exact coordinates intact. Our production floor runs this workflow daily for automation equipment frames and industrial machinery structural parts, where a 0.3mm drift on a bolt-hole pattern means a field assembly failure.
Engineering Compliance Requirements for Fabricated Steel Structures in Industrial OEM Applications
Structural components fabricated for automation and industrial equipment must meet dimensional accuracy standards — DIN ISO 2768 provides the baseline for general tolerances, while custom per-drawing specifications apply when assembly interfaces demand tighter control. Material selection directly affects both structural performance and surface treatment compatibility: carbon steel accepts powder coating for corrosion resistance in factory environments, stainless steel serves food-grade or cleanroom-adjacent applications, and aluminum with anodized finishing handles lightweight robotic structures where weight reduction matters. [NEED_CITE: DIN ISO 2768 tolerance classes for sheet metal fabrication] Third-party inspection via SGS or BV confirms dimensional compliance before shipment — critical for OEM buyers who cannot afford field rework on integrated production lines.
Material and Process Selection: Why Stainless, Aluminum, and Carbon Steel Each Serve Different Structural Roles
Carbon steel remains the default for industrial equipment frames and heavy structural components — it offers the highest strength-to-cost ratio and accepts powder coating for long-term corrosion protection in non-extreme environments. Stainless steel enters the specification when the structural component faces moisture, chemical exposure, or hygiene requirements — common in food processing equipment or pharmaceutical automation lines. Aluminum serves robotics and lightweight automation structures where mass reduction improves cycle speed and reduces actuator load. The fabrication process sequence matters equally: laser cutting first ensures clean edges for subsequent CNC bending, while welding sequence planning prevents heat distortion on thin-gauge stainless or aluminum assemblies. Surface treatment selection — brushed for aesthetic architectural components, anodized for aluminum wear resistance, powder coated for carbon steel corrosion protection — must align with both the base material and the end-use environment.
The Hidden Cost of Tolerance Drift in Multi-Process Custom Structural Components Orders
When a custom structural components laser cutting sheet metal fabrication OEM supplier lacks in-house control across cutting, bending, and welding, each process handoff introduces cumulative tolerance error. A bracket cut to ±0.2mm may bend to ±0.8mm if the press brake operator lacks the original CAD reference, then weld distortion pushes the final assembly beyond ±1.5mm — rendering it unfit for precision automation equipment mounting. [NEED_CITE: tolerance stack-up in multi-process sheet metal fabrication] The cost surfaces not as a material claim, but as field assembly failure: bolts that do not align, frames that do not square, and production line downtime that dwarfs the original component price.
Why OEM Buyers Choose Our Fabrication Floor for Structural Components
Our production floor houses laser cutting, CNC bending, and welding under one roof — eliminating inter-vendor handoff errors and compressing lead times for prototype through OEM volume runs. Every order ships with CMM inspection reports documenting critical dimensions against the original STEP file, providing traceability that satisfies ISO 9001:2015 quality management requirements. We accept STEP, STP, SolidWorks, and DXF files directly, allowing your engineering team to transfer design intent without manual translation. Surface treatment options — powder coating, brushed finishing, and anodizing — are completed in-house, so the finished structural component arrives ready for assembly without secondary vendor coordination. Export packaging is engineered for ocean transit, with protective separators and edge guards preventing surface damage on stainless and aluminum finishes. [NEED_CITE: ISO 9001:2015 requirements for manufacturing inspection documentation]
Documentation & Compliance
- Mill test certificate documenting carbon steel, stainless steel, or aluminum chemical composition and mechanical properties per material specification
- DIN ISO 2768 compliance statement confirming general tolerance class applied during laser cutting and CNC bending operations
- ISO 9001:2015 certified quality management system covering full fabrication workflow from file intake through final inspection
- SGS or BV third-party inspection report available upon request for dimensional verification and surface treatment quality audit
- CMM inspection report mapping critical dimensions against original STEP file coordinates for each production batch
- Export documentation including packing list, bill of lading, and certificate of origin for customs clearance at destination port
Packaging, Loading & Delivery

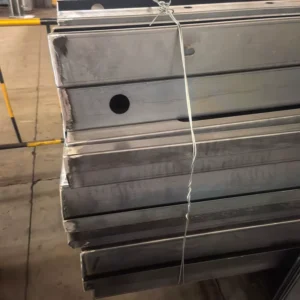

- Carbon steel structural components bundled with steel straps and edge protectors to prevent surface scratching during ocean transit
- Stainless steel and aluminum parts separated by non-metallic interleaving to preserve brushed or anodized surface finishes
- Export-standard wooden crate packaging for precision robotic brackets and automation frames requiring dimensional protection
- Custom export packaging engineered per component geometry, with foam inserts for complex sub-assemblies and riveted structures
- Heat number and steel grade marking on each bundle for material traceability at destination receiving inspection
- FOB, CIF, and DDP shipping terms available with professional heavy cargo logistics coordination for international delivery
How to Initiate Your Custom Structural Components Fabrication Inquiry
Submit your STEP, STP, SolidWorks, or DXF files along with material specification, quantity, surface treatment preference, and destination port — our engineering team responds within hours with a detailed quotation including fabrication cost, processing fees, and shipping terms. Request a sample run to validate tolerance compliance and surface finish quality before committing to OEM volume production. Confirm certification requirements and third-party inspection needs upfront to ensure documentation aligns with your destination country’s customs and quality standards.
Frequently Asked Questions
Q: What file formats do you accept for custom structural components fabrication?
A: We accept STEP, STP, SolidWorks, and DXF files for direct CAD-to-production workflow, ensuring geometry and tolerance data transfer without manual redrawing.
Q: What is the typical lead time from file submission to delivery?
A: Lead time varies by complexity and quantity — prototype runs complete faster than OEM volume production, and our engineering team provides specific timelines upon file review and quotation.
Q: Do you provide inspection certificates and material traceability?
A: Yes — every order includes CMM inspection reports, material test certificates documenting chemical composition, and heat number traceability for full material verification.
Q: Can you handle both prototype runs and high-volume OEM production?
A: Our production scope covers prototype development, small batch runs, and full OEM volume production, with consistent quality control across all quantities.
Q: What surface treatment options are available for different material types?
A: Carbon steel accepts powder coating for corrosion protection, stainless steel offers brushed finishing for aesthetic applications, and aluminum supports anodized treatment for wear resistance and surface hardness.
Get Your Custom Structural Components Quoted Against Original CAD Files
Upload your STEP or SolidWorks file with material grade, quantity, and destination — receive fabrication pricing, tolerance confirmation, and mill test certificate preview within hours.
