Description
Factory-Direct Hot Rolled Plate Supply — Every SPHC and 4140 plate ships with original mill chemistry reports, cut to your drawing before leaving Jinan.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Plate 4140 / SPHC SPHD SPHE SPHF Hot Rolled Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | SPHC, SPHD, SPHE, SPHF, 4140 |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Thickness | 0.3mm–80mm |
| Width | 1000mm / 1200mm / 1500mm |
| Length | 3–6m (customizable up to 12m) |
| Technique | Hot Rolled / Cold Rolled |
| Surface Treatment | Coated |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Application | Ship Plate, Container Plate |
| MOQ | 1 Ton |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Shipbuilding | Deck plating, bulkhead panels, and hull frames for commercial vessels and offshore support craft |
| Container Manufacturing | Side wall panels, corner castings, and floor cross-members for ISO shipping containers |
| Structural Fabrication | Column base plates, beam splice connections, and machinery mounting frames |
| Pressure Equipment | Non-pressurized tank shells, access hatches, and support saddles |
When Grade Equivalence Tables Fail Your Laser Cutter
A 4140 plate that cuts clean but fails load testing costs more than the steel itself.
Procurement teams routinely receive equivalence charts mapping SPHC to ASTM A36 or S235JR — until the laser operator notices the chemistry does not match the mill certificate. A Dubai high-rise bracket job taught me this the hard way: 6mm plates ordered as 4140 arrived laser-ready, but the mill had quietly substituted S235JR. The plates cut perfectly, failed site load testing, and replacement stock had to be air-freighted from Jinan at triple the original freight cost. Grade confusion between GB, EN, ASTM, and JIS systems remains the single largest source of fabrication rework on structural steel orders [NEED_CITE: steel grade equivalence between EN and ASTM standards].
Matching Plate Grade to Structural Load Paths
SPHC and SPHD grades serve forming-intensive applications where deep drawing and bending dominate — container side walls and curved ship bulkheads benefit from their elongation reserve. SPHE and SPHF extend that formability further for complex pressed profiles. When the design shifts from forming to load-bearing, 4140 alloy plate enters the picture with higher carbon and chromium content suited to quenched-and-tempered conditions. XJY Plate verifies grade equivalence against the governing standard before any cutting begins, ensuring the chemistry on the mill test certificate matches the structural calculation sheet. Every Carbon Steel Plate 4140 Hot Rolled Steel Plate Supplier order leaves the warehouse with heat-number traceability intact.
Engineering Compliance and Certification Pathways
Structural frames designed to EN 1993 require documented yield strength and impact toughness at the specified test temperature — the mill test certificate must show chemical composition, tensile results, and Charpy values aligned with the declared grade [NEED_CITE: EN 10219 cold-formed hollow section requirements]. Shipbuilding plates destined for classification society approval need Lloyd’s, DNV, or ABS type certification in addition to the producer’s own MTC. For North American projects, ASTM A36 or A572 Grade 50 plates must carry the relevant ASTM designation on both the certificate and the plate marking. XJY Plate supplies ISO 9001:2015 and Lloyd’s CE certified stock, with SGS or BV third-party inspection available before shipment to satisfy both port customs and site QA auditors.
Hot Rolling, Grain Structure, and Thickness Tolerance
Hot rolled plates develop a normalized microstructure during controlled cooling, giving uniform ductility across the width — critical when the same plate will be flame-cut into multiple bracket shapes. The ±1% thickness tolerance on SPHC through SPHF grades means a nominal 10mm plate arrives between 9.9mm and 10.1mm, avoiding the negative-tolerance practices that cause weld fit-up gaps on thick joints. 4140 alloy plates are typically supplied in the as-rolled or annealed condition, then heat-treated by the fabricator to achieve the required hardness for machining or wear resistance. Cold rolled variants offer tighter surface finish and dimensional precision for thinner gauges below 3mm, where flatness matters more than formability.
The Hidden Cost of Unverified Mill Certificates
Plates arriving without readable heat numbers, or with certificates that cannot be cross-checked against the producer’s database, trigger customs holds at major ports — particularly in the Middle East and Southeast Asia where mill certificate verification is now routine [NEED_CITE: mill test certificate verification requirements for steel imports]. Beyond customs, unverified chemistry creates liability exposure: if a structural connection fails and the plate cannot be traced back to a specific heat, the fabricator bears the burden of proof. XJY Plate eliminates this risk by issuing original MTCs with every shipment, showing full chemical analysis and mechanical test results tied to the heat number stamped on each plate.
Why Fabricators and Shipyards Source Carbon Steel Plate 4140 Hot Rolled Steel Plate Supplier Stock from XJY Plate
XJY Plate operates as the dedicated flat products division of Shandong Xin Jiyuan Special Steel Tube Co., Ltd, meaning every plate order goes through a team that handles only plates and coils — no competing pipe or section commitments dilute attention. The Jinan warehouse holds ready stock across SPHC, SPHD, SPHE, SPHF, and 4140 grades in thicknesses from 0.3mm to 80mm, so urgent cut-to-size jobs do not wait for mill rolling schedules. Custom processing includes plasma and flame cutting, leveling, slitting, and blanking to exact dimensions, with dimensional inspection reports provided before dispatch. Heavy cargo logistics — flatbed, open-top container, and break-bulk shipping — are planned in-house, avoiding the overweight penalties and port delays that plague improperly loaded plate shipments. ISO 9001:2015 and Lloyd’s CE certification, plus SGS/BV third-party inspection availability, satisfy both classification societies and project owners. Every plate carries original mill test certificates with full heat-number traceability from steelmaking to final delivery.
Documentation & Compliance
- Mill test certificate documenting SPHC/SPHD/SPHE/SPHF and 4140 chemical composition, yield strength, and tensile properties per GB, ASTM, or EN standards
- Lloyd’s CE certificate for shipbuilding and pressure vessel plate grades requiring classification society approval
- ISO 9001:2015 quality management certificate covering the full plate and coil supply chain
- SGS or BV third-party inspection report available upon request for project-specific QA requirements
- Material traceability by heat number, with heat markings on each plate matching the MTC
- Customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

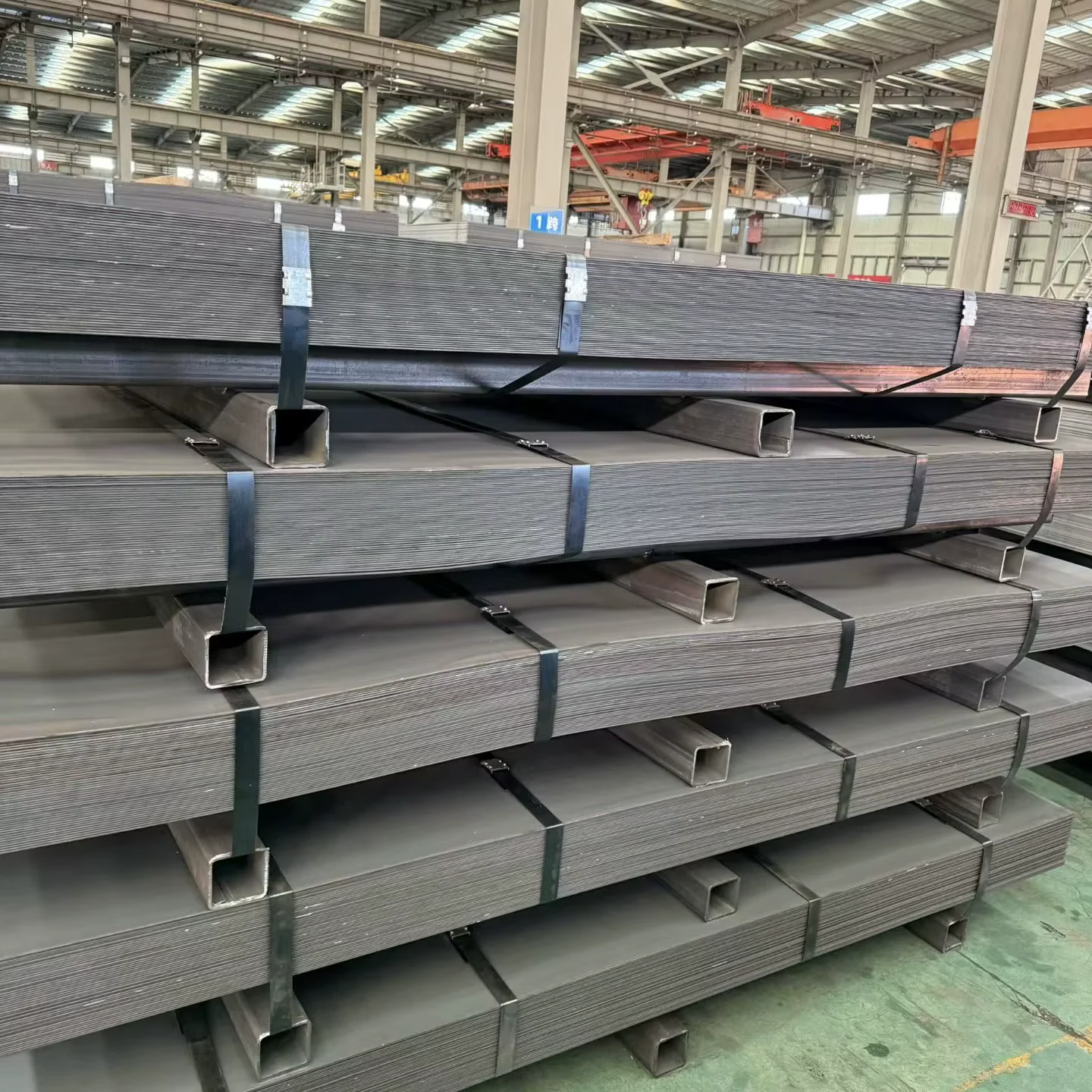

- Hot rolled SPHC and 4140 plates bundled with steel strips and edge protectors to prevent coating damage and corner deformation during ocean transit
- Surface protection via mill-applied coating or anti-rust oil, selected based on destination humidity and storage duration
- Open-top container or flatbed loading optimized for plates up to 12m length, with weight distribution calculated to avoid container overweight penalties
- Custom cut-to-size plates individually labeled with heat number, grade, and dimensions for site identification
- Break-bulk shipping available for project volumes exceeding container capacity, with professional lashing and chocking
- FOB, CIF, and DDP terms supported, with door-to-door logistics planning for heavy flat products
Getting Your Plate Order Quoted and Certified
Submit your steel grade, thickness, width, length, quantity, and destination port — XJY Plate responds within 12 hours with a detailed quote covering material cost, processing fees, and shipping terms. Original mill test certificates are provided before or with shipment for your quality verification. For custom cut-to-size requirements, share your drawing or nesting file and the processing team confirms dimensional feasibility and lead time. Confirm certification requirements (Lloyd’s, SGS, BV) at inquiry stage to ensure documentation aligns with your project’s QA plan.
Frequently Asked Questions
Q: How do I verify that the SPHC plate I receive matches the grade on the mill test certificate?
A: Every plate shipped by XJY Plate carries a heat number stamped on the surface, which corresponds to the chemical composition and mechanical test results on the original MTC. You can cross-check the heat number against the certificate, and SGS or BV third-party inspection is available if your project requires independent verification.
Q: Can you supply 4140 plates cut to my exact drawing dimensions?
A: Yes. XJY Plate offers plasma cutting, flame cutting, and blanking services to produce plates to your specified shapes and sizes. Share your drawing or nesting file, and the processing team confirms feasibility, tolerance, and lead time before production begins.
Q: What is the minimum order quantity for custom cut-to-size plates?
A: The MOQ is 1 Ton for both standard stock plates and custom cut-to-size orders. Smaller quantities are accepted for project samples or urgent replacement requirements.
Q: Do you provide mill test certificates for every plate, or only on request?
A: Original mill test certificates are issued with every shipment as standard practice. The MTC includes chemical composition, mechanical properties, and heat number traceability for each plate delivered.
Q: How do you handle shipping for thick plates that exceed standard container weight limits?
A: XJY Plate plans heavy cargo logistics in-house, using open-top containers, flatbed trailers, or break-bulk vessels depending on plate thickness, length, and total order weight. Loading plans are calculated to avoid overweight penalties and port delays.
Request Your Carbon Steel Plate 4140 Hot Rolled Steel Plate Supplier Quote
Send your specification — grade, thickness, width, length, quantity, and destination — to receive a detailed quotation with original mill test certificate preview within 12 hours.
