Description
Factory-Direct Hot Rolled Plate Supply — We stock and cut ASTM A36, S235JR, and S355JR plates from 1.5 mm to 4.0 mm with verified heat numbers before every shipment leaves our warehouse.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Plate Hot Rolled |
| Product Type | Steel Plate |
| Steel Grade | Q235, Q235B, Q345, Q345B, Q195, St37, St42, St37-2, St35.4, St35, A36, SS400, SS540, S275JR, S355JR, S275J2H, A283 GR.A, A283 GR.C, A285 GR.A, A285 GR.B, A285 GR.C, ST52, A516 GR.50, A516 GR.60, A516 GR.70 |
| Standard | GB, ASTM, EN, JIS |
| Thickness | 1.5 mm – 4.0 mm |
| Width | 800 mm – 1600 mm |
| Length | Customized |
| Technique | Hot Rolled |
| Surface Treatment | Acid Surface |
| Tolerance | ±1% |
| Application | Shipbuilding, Boiler & Pressure Vessels, Pipe Manufacturing, Container Manufacturing, Cold Rolled Feedstock, Small Tool Fabrication, Structural Steel Fabrication |
| MOQ | 1 Ton |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Shipbuilding & Offshore | Deck plating, bulkhead panels, hatch covers for commercial vessels |
| Pressure Vessel & Boiler | Shell plates and end caps for storage tanks, heat exchangers, and steam drums |
| Structural Fabrication | Column base plates, gusset plates, and bracket assemblies for building frames |
| Container Manufacturing | Floor cross-members and corner castings for shipping containers |
| Pipe Manufacturing | Skelp feedstock for ERW and SSAW pipe production lines |
Hidden Thickness Deviations That Sink Fabrication Budgets
Tight tolerance on thin hot rolled plate is the single most overlooked variable in structural and pressure vessel procurement.
When buyers order 2 mm S275JR plate for a conveyor frame and receive material at 1.78 mm, the entire load calculation shifts — weld joints sit proud, bolt patterns misalign, and the fabricator absorbs rework costs that nobody quoted. On pressure vessel shells, even minor negative tolerance can push the design below the minimum required thickness under ASME or PED scrutiny, triggering rejection at the Notified Body stage. We have seen containers of A36 plate held at destination ports because the mill certificate showed one heat number while the stamped plates carried another. [NEED_CITE: mill test certificate traceability requirements in international steel trade]
Matching Thin Plate Tolerance to Structural and Vessel Fabrication
Hot rolled carbon steel plate in the 1.5 mm to 4.0 mm range serves two very different procurement worlds. Structural fabricators ordering S355JR or Q345B for base plates and gussets need flat, dimensionally consistent sheets that weld cleanly without distortion from uneven thickness. Pressure vessel manufacturers specifying A516 GR.60 or A516 GR.70 require full heat-number traceability because every plate must map back to a verified chemical and mechanical test record. The ASTM A36 S235JR S355JR hot rolled carbon steel plate supplier must hold stock across both worlds and cut to size without mixing heat batches on the same nesting sheet.
Engineering Compliance Across GB, ASTM, and EN Standards
Structural projects in the Middle East and Southeast Asia frequently call for ASTM A36 or S275JR, while European-spec bridges and pressure vessels demand EN-grade S355JR with CE marking under the Construction Products Regulation. Boiler and pressure vessel work in North America defaults to ASME SA-516, which maps directly to our A516 GR.50, GR.60, and GR.70 plate stock. The critical compliance checkpoint is not just the grade label — it is whether the mill test certificate documents chemical composition and mechanical properties against the correct standard, with a heat number that matches the physical plate. [NEED_CITE: steel grade equivalence between EN 10025 and ASTM A36/A572] Fabricators who receive S275JR labeled as A36 without a proper equivalence statement risk customs holds and third-party inspection failures.
Decoding Hot Rolled Grades and Acid-Pickled Finish
The S-series (S275JR, S355JR) follows EN 10025 and delivers incrementally higher yield strength — S355JR carries roughly 50 percent more yield capacity than S275JR, which directly reduces section weight in load-bearing frames. The Q-series (Q235B, Q345B) mirrors this progression under Chinese GB standards, with Q345B serving as the direct counterpart to S355JR in most structural applications. ASTM A36 sits at the lower end of the yield spectrum but remains the default specification for general construction across North America and many export markets. Our acid-pickled surface removes mill scale completely, giving fabricators a clean starting point for welding, painting, or galvanizing without the labor cost of abrasive blasting. For cold rolled feedstock buyers, this pickled hot rolled plate in Q195 or Q235 provides consistent gauge and surface quality for downstream reduction passes.
The Real Cost of Unverified Mill Certificates
Ordering the correct grade on paper means nothing if the heat number on the plate does not match the mill test certificate. Fabricators who discover this mismatch after cutting have already committed labor and machine time. Pressure vessel manufacturers face Notified Body rejection, which can delay a project by months. Structural steel exporters risk customs seizure when destination inspectors find grade labels that do not correspond to the documented chemistry. [NEED_CITE: consequences of forged or swapped mill test certificates in steel imports] The cost of reordering, re-shipping, and re-fabricating far exceeds any price difference between a verified supplier and an unverified one.
Why Procurement Teams Return for ASTM A36 S235JR S355JR Hot Rolled Carbon Steel Plate
Every plate we ship passes through our own testing background — we cross-check heat numbers against the original mill test certificate before any ASTM A36 S235JR S355JR hot rolled carbon steel plate leaves the warehouse. Our ISO 9001:2015 certification and Lloyd’s CE approval cover the full plate range, and we arrange SGS or BV third-party inspection at the buyer’s request before container sealing. Custom plasma and flame cutting, leveling, and blanking let fabricators receive ready-to-weld blanks instead of paying their own shop to process full sheets. We load heavy plate on flatbed trailers and open-top containers with proper dunnage and weight distribution, avoiding the overweight penalties and port delays that plague buyers who ship with general cargo forwarders unfamiliar with steel logistics.
Documentation & Compliance
- Mill test certificate documenting chemical composition and mechanical properties for each heat of S355JR, A36, or A516 GR.70 plate, with traceable heat number
- CE certificate covering structural steel plate under EN 10025 for European construction projects and pressure vessel applications
- ISO 9001:2015 quality management certificate covering the full plate processing and inspection workflow
- SGS or BV third-party inspection report available before shipment for buyer-specified grade verification and dimensional checks
- Material traceability report linking each cut piece back to the original coil heat number and rolling schedule
- Full export documentation set including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery

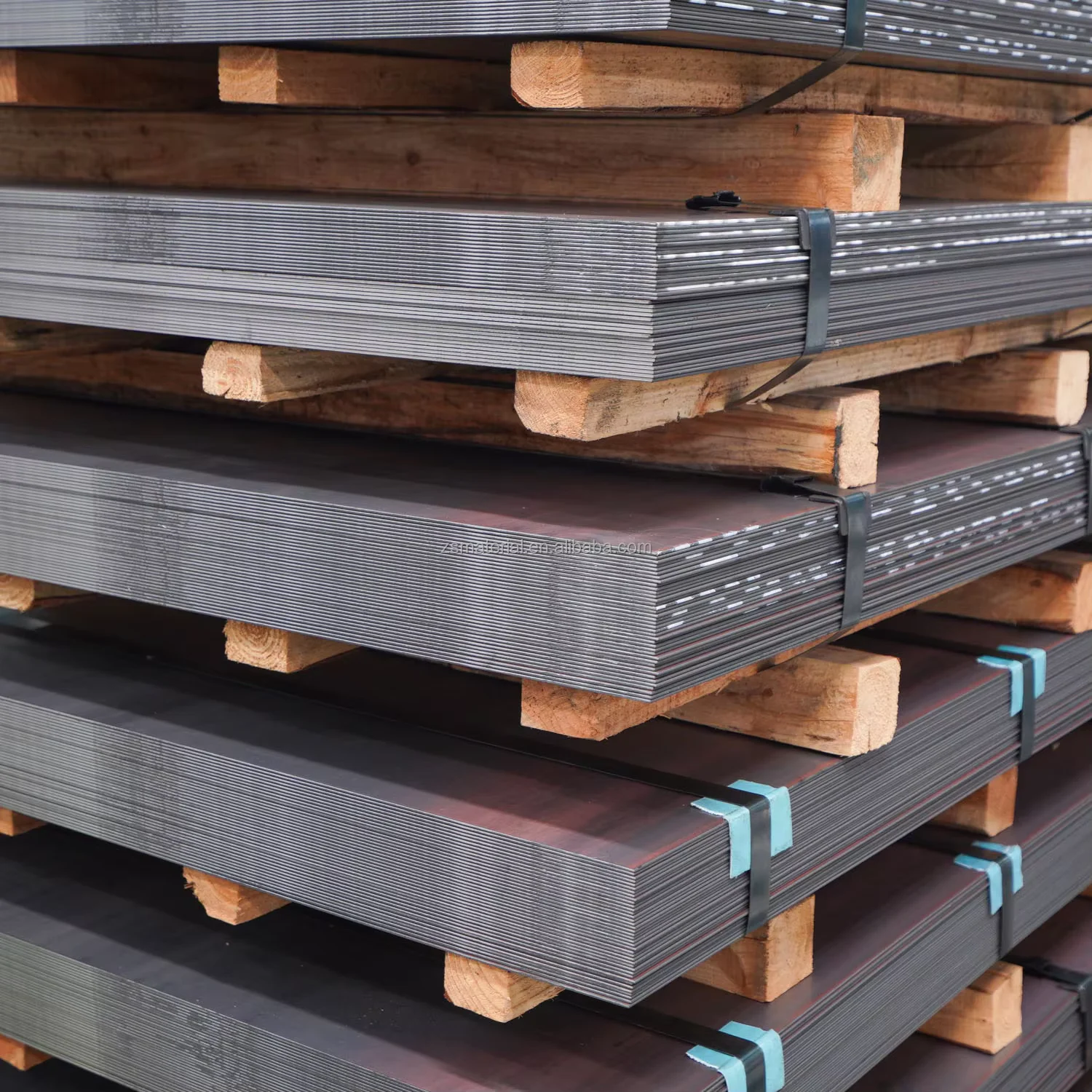

- Hot rolled acid-pickled plates bundled with steel straps and edge protectors to preserve the clean surface finish during ocean transit
- Custom cut-to-size blanks nested and separated with interleaving material to prevent surface scratching on S275JR and S355JR plates
- Open-top container loading with dunnage and weight distribution plans for plates exceeding standard container height, avoiding overweight penalties
- Heat number and grade identification stenciled on each plate bundle for on-site traceability during fabrication
- FOB, CIF, and DDP shipping terms available with professional heavy cargo logistics for break-bulk and containerized shipments
Getting Your Quote and Mill Test Certificate
Submit your required steel grade, thickness, width, length, quantity, and destination port — we respond within hours with a detailed quotation including material cost, any cutting or processing fees, and shipping terms. We provide the original mill test certificate for your review before or with shipment, so your quality team can verify chemistry and mechanical properties against the project specification.
Request Your ASTM A36 S235JR S355JR Hot Rolled Carbon Steel Plate Quote
Send your specifications and destination to receive pricing, mill test certificates, and cutting options.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjyplate.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjyplate.com
Frequently Asked Questions
Q: How do ASTM A36, EN S275JR, and GB Q235B compare for structural fabrication?
A: These three grades occupy a similar yield strength range and are frequently used interchangeably in general structural work. A36 follows the ASTM system, S275JR follows EN 10025, and Q235B follows Chinese GB standards. The key difference lies in the guaranteed minimum yield value and impact testing requirements — S275JR includes Charpy impact testing at specified temperatures, while A36 does not always require it. We supply all three with full mill test certificates so your engineer can confirm equivalence for your project code.
Q: Can I verify the mill test certificate before the plate ships?
A: Yes. We provide the original mill test certificate showing chemical composition, mechanical properties, and heat number for your review before or alongside shipment. Every heat number stamped on the plate is cross-checked against the certificate in our warehouse. You can also arrange SGS or BV third-party inspection before loading if your project requires independent verification.
Q: What is the difference between ordering standard sheets and custom cut-to-size blanks?
A: Standard sheets ship as full mill-produced sizes with a minimum order of 1 Ton. Custom cut-to-size blanks are plasma or flame cut to your exact project dimensions, which reduces your shop’s secondary processing time and material waste. Both options carry the same mill test certificate traceability and tolerance control.
Q: Why choose acid-pickled surface over standard black hot rolled finish?
A: Acid-pickled plate has mill scale completely removed, leaving a clean metallic surface ready for welding, painting, or further cold reduction. Black hot rolled plate retains mill scale, which must be removed by abrasive blasting before coating — adding labor cost and time. For cold rolled feedstock, precision fabrication, or applications requiring immediate painting, pickled surface is the practical choice.
Q: How do you handle shipping for heavy plate orders?
A: We use flatbed trailers for domestic transport and open-top containers or break-bulk vessels for export. Each loading plan accounts for weight distribution and dunnage placement to prevent plate shifting or edge damage during transit. Our logistics team has direct experience with heavy cargo documentation and port handling requirements.
