Description
Direct Mill Supply — Every A36 chequered coil shipped with original MTC and micrometer-verified thickness
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | A36 / Q235 Hot Rolled Steel Chequered Coil |
| Product Type | Hot Rolled Steel Coil (Chequered / Tread Plate Coil) |
| Steel Grade | A36, Q235, Q235B, Q345, Q345B, Q195, SS400, St37, St37-2, St42, St35, St35.4, St52.4 |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Thickness | 3–200mm (chequered coil typically 3.54mm / 3.8mm / 4.5mm) |
| Width | 600–2000mm |
| Length | Customized / Coil form |
| Coil ID | 508 / 610mm |
| Technique | Hot Rolled |
| Surface Treatment | Chequered / Tread Pattern (Hot Rolled) |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Application | Construction, Shipbuilding, Machinery, Automotive, Bridges, Pressure Vessels, Industrial Flooring, Walkways |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Industrial flooring, mezzanine walkways, stair treads, factory platform decking |
| Shipbuilding & Offshore | Engine room flooring, deck walkways, gangway plates, offshore platform tread surfaces |
| Machinery & Equipment | Anti-slip machine base covers, conveyor walkway plates, crane cab flooring |
| Automotive & Transport | Truck bed lining, trailer floor plates, loading ramp surfaces |
| Bridges & Civil Works | Pedestrian bridge decking, inspection walkway plates, utility access covers |
Hidden Negative Tolerance on Chequered Coil — The Cost You Cannot See Until Rejection
A 3.8mm chequered coil that measures 3.4mm at the base is not a tolerance issue — it is a material fraud.
The diamond pattern on hot rolled chequered coil conceals base metal thickness. Buyers who only check overall height with a caliper miss the actual load-bearing dimension. When a contractor drills through what they believe is 3.8mm base plate and hits 3.38mm, the entire batch fails structural inspection. We have seen containers rejected at port because the pattern height was counted toward thickness — a mistake that costs the buyer the full material value plus return freight. [NEED_CITE: chequered plate thickness measurement standard base metal vs pattern height]
Matching Chequered Coil to Industrial Flooring and Walkway Load Requirements
Hot rolled chequered coil in A36 and Q235B grades provides the baseline yield strength required for standard industrial flooring where foot traffic and light pallet movement dominate. For mezzanine platforms carrying forklift loads, Q345B grade delivers higher yield capacity without increasing plate thickness — reducing dead load on the supporting frame. The hot rolled tread pattern provides slip resistance that meets typical occupational safety requirements without secondary surface treatment. As a Hot Rolled Chequered Steel Coil Supplier, we decoil and cut to exact walkway panel dimensions so fabricators receive ready-to-weld blanks rather than managing coil scrap on site.
Engineering Compliance and Grade Selection for Tread Plate Applications
Structural flooring in commercial construction must comply with local building codes that reference either ASTM A36 for North American projects or GB/T 700 Q235B for Chinese-specification works. Shipbuilding applications require Lloyd’s Register or DNV type approval, and the base coil must carry traceable heat numbers linking back to the mill’s chemical composition report. [NEED_CITE: marine grade tread plate classification society requirements] European-spec projects calling for S235JR can substitute Q235B with documented equivalence, but the mill test certificate must explicitly show carbon, manganese, and sulfur values within the EN 10025-2 range. Custom cutting to site-specific lengths eliminates on-site plasma cutting, which distorts the chequered pattern edge and creates burr hazards on walkway surfaces.
Steel Grade Equivalence and Hot Rolling Process for Chequered Pattern Formation
A36 (ASTM), Q235B (GB), SS400 (JIS), and St37 (DIN) all occupy the mild carbon steel range with minimum yield strength around 235 MPa — making them interchangeable for general structural tread plate where high strength is not the primary design driver. The hot rolling process forms the chequered diamond pattern during the final rolling pass when the steel surface is above recrystallization temperature, bonding the pattern integrally into the base metal rather than applying it as a surface layer. This means the pattern cannot delaminate under foot traffic or forklift wheels. Thickness tolerance of ±1% applies to base metal measurement — the pattern height adds approximately 0.5–1.0mm to overall caliper reading but does not contribute to structural load capacity. Q345B grade, with higher manganese content and minimum yield at 345 MPa, serves applications where thinner gauge can replace heavier A36 plate while maintaining load rating — common in shipbuilding where weight savings directly affect vessel payload.
The Real Cost of Unverified Chequered Coil Procurement
Ordering chequered coil without requiring original mill test certificates opens the door to material that meets neither the specified grade nor the stated thickness. A forged MTC may show Q235B chemistry, but the actual coil could be commercial-quality scrap re-rolled with inconsistent carbon content — failing weldability tests when fabricators join walkway panels. [NEED_CITE: consequences of forged mill test certificates in steel procurement] Negative tolerance abuse on chequered coil is particularly damaging because the pattern masks the deviation: a buyer measuring only total height with a standard caliper will not detect that base metal has been rolled 10–15% below nominal. The result is structural rejection at site, project delay, and the buyer absorbing both material loss and replacement shipping costs.
Why Procure Hot Rolled Chequered Steel Coil From Xin Jiyuan

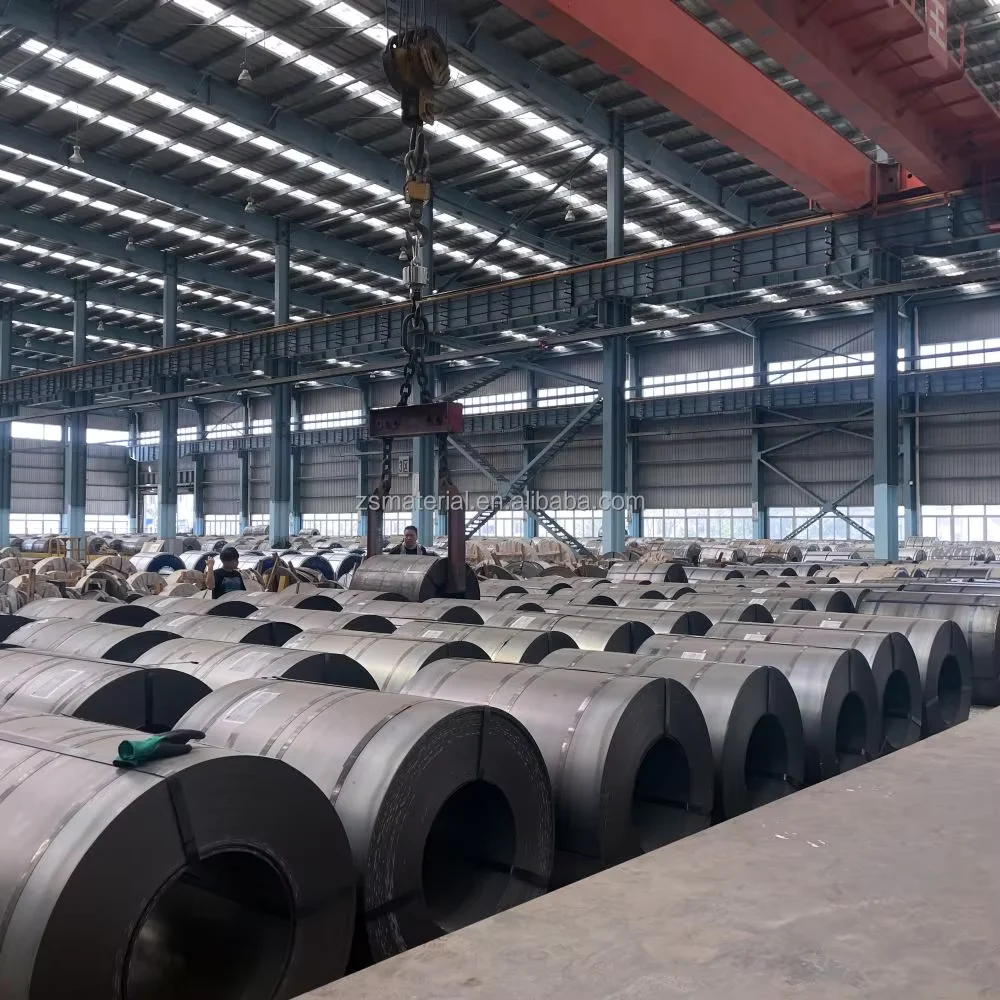

Every chequered coil leaving our warehouse undergoes three-point micrometer verification on base metal thickness before loading — a practice we adopted after watching a Dubai high-rise project reject an entire container of under-gauge tread plate. Our dedicated plate and coil division maintains ready stock in A36, Q235B, and Q345B across the 3.54mm to 4.5mm thickness range most commonly specified for flooring. Original mill test certificates accompany every shipment, with heat number traceability that satisfies Lloyd’s Register and SGS inspection requirements. We handle custom decoiling, cut-to-length, and leveling so fabricators receive flat blanks rather than managing coil curvature on the shop floor. Professional heavy cargo loading using flatbed and open-top container methods prevents the edge damage and coil shift that plague improperly secured tread plate shipments. ISO 9001:2015 certification and CE marking provide the documentation framework that clears customs in EU, Middle East, and Southeast Asian ports without delay.
Documentation & Compliance
- Mill test certificate documenting A36 / Q235B chemical composition (C, Mn, Si, S, P) and tensile properties per ASTM A36 or GB/T 700
- ISO 9001:2015 quality management certificate covering hot rolled coil processing and export supply
- Lloyd’s CE certification for marine-grade chequered plate destined for shipbuilding and offshore applications
- SGS or BV third-party inspection report available upon request, covering dimensional verification and surface pattern quality
- Full material traceability by heat number linking each coil to its original slab and rolling schedule
- Export customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

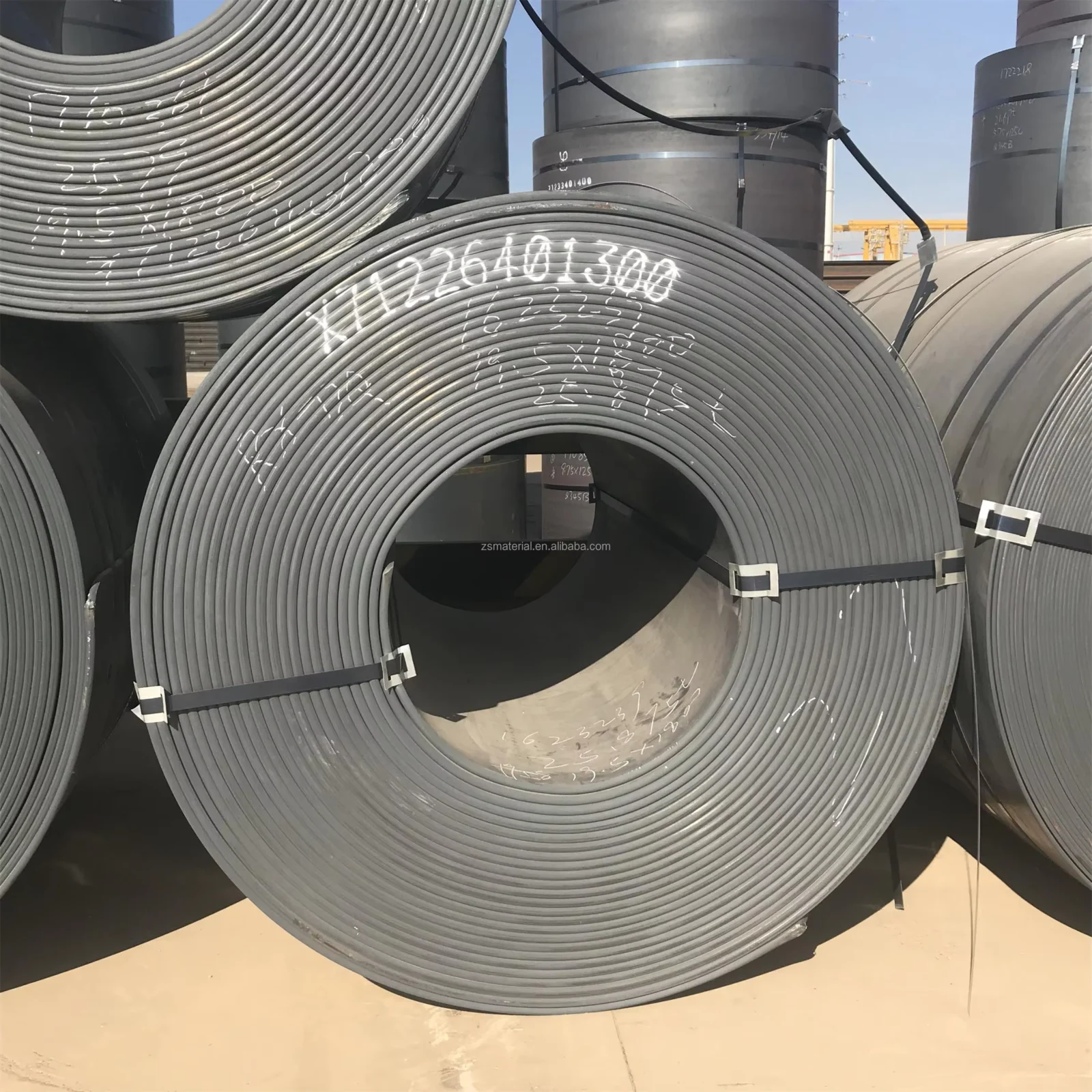

- Hot rolled chequered coils in A36 and Q235B grades packed with minimum three steel strip bands and edge protectors to prevent pattern damage during ocean transit
- Anti-rust oil applied to chequered surface before coiling to prevent moisture staining on the raised diamond pattern during container shipping
- Open-top container or flatbed loading for coils exceeding standard container height, with wooden chocks and wire lashing to prevent roll shift
- Custom cut-to-length sheets from decoiled chequered coil stacked with interleaving paper to protect tread pattern from scratch during handling
- Heat number and steel grade stenciled on each coil ID and sheet bundle for site-level traceability verification
- FOB, CIF, and DDP shipping terms available with professional heavy cargo logistics coordination to final destination port or project site
Requesting a Quotation for Chequered Coil Procurement
Submit your specification sheet including steel grade (A36, Q235B, or Q345B), base metal thickness, width, total tonnage, and destination port to receive a detailed quotation with material cost, processing fees, and shipping terms within 12 hours. We provide the original mill test certificate before shipment for your quality team to verify chemistry and mechanical properties. For projects requiring cut-to-size blanks, share your dimensional schedule and we return a nesting-optimized quote with decoiling and leveling charges included.
Frequently Asked Questions
Q: What is the difference between A36, Q235B, and SS400 for chequered coil applications?
A: All three are mild carbon steel grades with similar yield strength ranges and are interchangeable for general industrial flooring and walkway applications. A36 follows ASTM (US), Q235B follows GB (China), and SS400 follows JIS (Japan). The choice depends on which standard your project specification references. We supply all three grades with original mill test certificates showing full chemical composition.
Q: How do you measure chequered coil thickness correctly?
A: Thickness must be measured on the base metal between the diamond patterns using a micrometer — not with a caliper across the pattern peak. The pattern height adds approximately 0.5–1.0mm to overall caliper but does not contribute to structural thickness. We verify base metal thickness at three points on every coil before loading.
Q: Can I order cut-to-size sheets instead of full coils?
A: Yes. We decoil, level, and cut chequered coil to your specified sheet dimensions. Minimum order for cut-to-size sheets is 1 Ton. Share your dimensional schedule and we provide a quote including decoiling, leveling, and cutting charges.
Q: Do you provide mill test certificates for chequered coil?
A: Yes. Every coil ships with an original mill test certificate documenting heat number, chemical composition, and mechanical properties. We provide the MTC before or with shipment so your quality team can verify material compliance before acceptance.
Q: How do you load heavy chequered coils to avoid container damage?
A: Coils are loaded vertically or horizontally depending on weight and container type, using wooden cradles, steel wire lashing, and edge protectors. For overweight or oversized coils, we use open-top containers or flatbed trailers. Our logistics team has extensive experience with heavy cargo loading for steel flat products.
Get Your Chequered Coil Quote With Verified Thickness and Full Traceability
Send your steel grade, thickness, width, quantity, and destination port to receive a quotation and original mill test certificate within 12 hours.
