Description

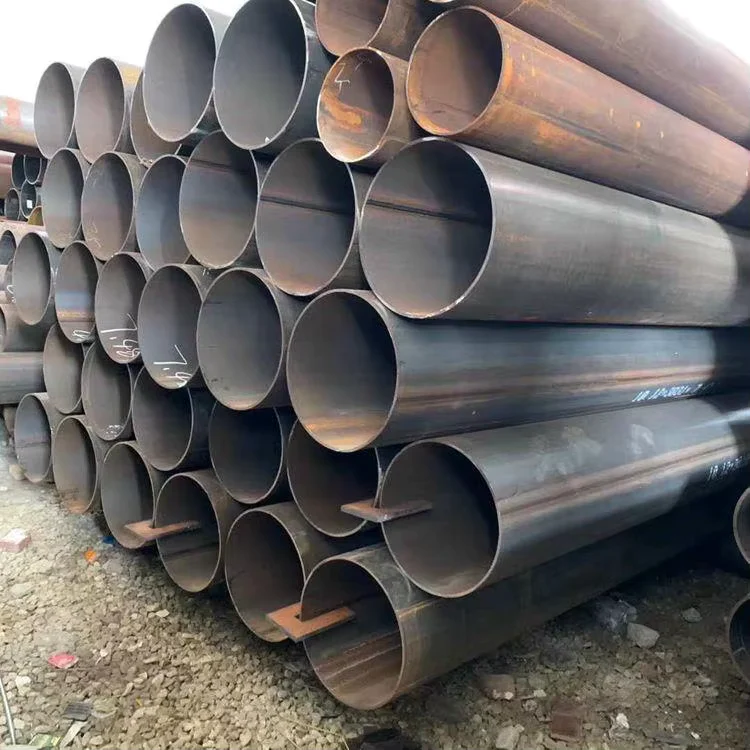

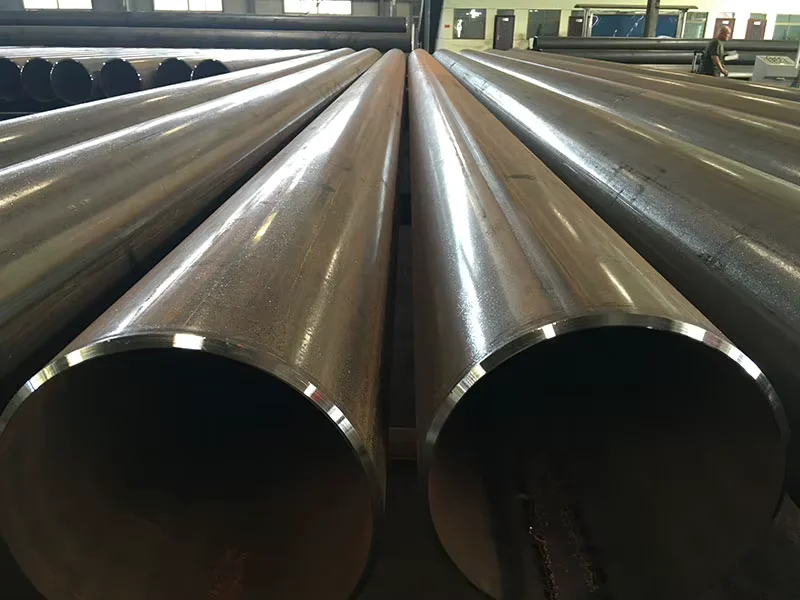

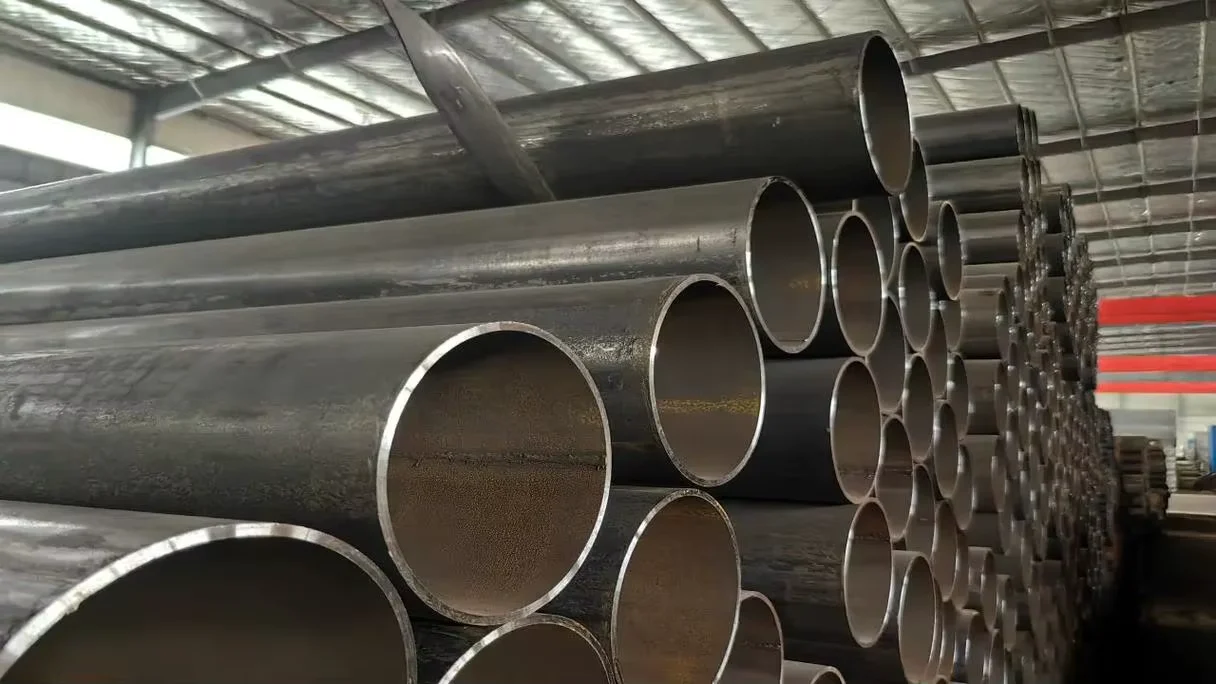

Factory-Direct API 5L ERW Pipe — Every API 5L ERW Steel Pipe Schedule 40 we ship carries an original mill test certificate traceable to heat number, eliminating grade substitution risk on gas pipeline projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L ERW Steel Pipe for Gas Pipeline |
| Product Type | ERW Steel Pipe / Round Steel Pipe |
| Steel Grade | Q355, S355JR, Q235, API 5L GR A, GR B, X42, X46, X52, X56, X60, X65, X70 |
| Standard | API 5L, ASTM A53, BS |
| Section Shape | Round |
| Outer Diameter | 54–1140 mm |
| Wall Thickness | Schedule 40 (SCH40) |
| Length | Customer’s Request |
| Technique | ERW (also API ERW / LSAW / SSAW available) |
| Surface Treatment | Hot Rolled |
| Tolerance | ±5%, ±1% |
| Oiled or Non-oiled | Non-oiled |
| Invoicing | By Actual Weight |
| MOQ | 5 Tons |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas Transmission | Onshore and offshore gas gathering lines, crude oil trunk pipelines, wellhead flow lines |
| Industrial Fluid Transport | Petrochemical plant feed lines, refinery utility piping, water injection systems |
| Structural & Bridge | Bridge pier casings, highway sign gantry columns, industrial pipe rack supports |
| Construction | Building column cores, deep foundation piling sleeves, heavy equipment structural frames |
Where Missing Heat Numbers Halt Pipeline Commissioning
A pipe without verifiable heat traceability is a liability, not a material.
Pipeline engineers across the Middle East and Southeast Asia routinely encounter shipments where the Mill Test Certificate lists a heat number that does not match the stencil on the pipe, or where chemical composition columns are left blank. When a gas pipeline operator runs third-party verification before hydrostatic testing, a single untraceable joint can force rejection of the entire lot — delaying commissioning by weeks and triggering contractual penalties. [NEED_CITE: API 5L MTC traceability requirements for pipeline projects]
Buyers sourcing an API 5L ERW Steel Pipe Schedule 40 from fragmented suppliers also face grade equivalence confusion: API 5L GR B does not automatically substitute for ASTM A53 Grade B in all pressure conditions, and Q355 cannot replace X52 without mechanical property reconciliation. These gaps surface only at inspection, when replacement lead times are longest.
Matching Gas Pipeline Pressure Ratings Through Grade Selection
An API 5L ERW Steel Pipe Schedule 40 in GR B serves low-pressure gas distribution networks, while X52 and X60 grades handle higher operating pressures in transmission mains. The SCH40 wall thickness at any given outer diameter provides a fixed pressure envelope; selecting a higher steel grade within that envelope extends allowable working pressure without changing dimensions. For cross-border projects specifying mixed standards, we supply Q355 and S355JR alongside the API 5L range, with documented equivalence mapping so the EPC contractor’s design team can approve substitutions without re-running calculations.
Engineering Compliance and Certification Alignment
Gas pipeline construction must satisfy pressure design codes such as ASME B31.4 and B31.8, which reference API 5L for material qualification. [NEED_CITE: ASME B31.8 material requirements for gas transmission piping] Hot-rolled surface finish on the API 5L ERW Steel Pipe Schedule 40 ensures coating adhesion for 3PE or fusion-bonded epoxy field joints. Non-oiled condition avoids contamination during welding preparation. For projects entering EU markets, CE marking and third-party inspection by SGS or BV confirm conformity before customs clearance. Custom cut-to-length eliminates field cutting waste and reduces weld joint counts on long transmission spreads.
Understanding ERW Process and Grade Coverage
Electric Resistance Welding produces a longitudinal seam by heating the pipe edges under pressure without filler metal, yielding a cost-effective solution for diameters from 54 mm to 1140 mm at SCH40 wall thickness. The ERW process suits gas gathering and distribution lines where operating pressures remain within the API 5L GR A through X70 envelope. For larger diameters or higher-pressure transmission applications, LSAW and SSAW processes are available from the same facility, allowing a single procurement package to cover the full pipeline route. The ±1% and ±5% tolerance bands let buyers choose between tight dimensional control for precision welding and commercial tolerance for standard structural use. Invoicing by actual weight, rather than theoretical weight, removes the negative-tolerance disputes that have plagued past transactions. [NEED_CITE: ERW vs LSAW pipe manufacturing process comparison for pipeline applications]
Hidden Costs of Unverified Pipe Procurement
Pipes supplied without authentic mill test certificates may pass visual inspection but fail during hydrostatic testing or spectrographic analysis, forcing full lot rejection at the project site. Negative tolerance abuse — where actual wall thickness falls below the minimum specified in API 5L — reduces pressure containment capacity and violates ASME design allowables, creating safety exposure that no amount of price savings can offset. Grade substitution without documentation, such as delivering Q235 when X42 was specified, leads to weld procedure qualification failures and rework delays that dwarf the original material cost difference. [NEED_CITE: consequences of negative tolerance in pipeline steel procurement]
Why Pipeline Contractors Source From Us
Every API 5L ERW Steel Pipe Schedule 40 leaves our warehouse with an original MTC showing heat number, chemical composition, and mechanical properties — verified by our in-house metallurgical laboratory before release. We stock the full API 5L range from GR A through X70 alongside Q235, Q355, and S355JR, so mixed-grade pipeline orders ship in a single lot rather than requiring multiple supplier coordination. Our loading team uses cradle-style flatbed and open-top container methods designed for heavy pipe cargo, preventing ovality damage and overweight port penalties. Custom cut-to-length service reduces field weld joints and material waste on long transmission spreads. ISO 9001:2015 certification and CE compliance, backed by SGS and BV third-party inspection availability, satisfy the documentation requirements of international EPC contractors.
Documentation & Compliance
- Mill Test Certificate documenting API 5L GR B through X70 chemical composition, tensile strength, and hydrostatic test pressure per API 5L
- CE certificate confirming conformity for pipeline steel pipe entering European Union markets
- ISO 9001:2015 quality management certificate covering the full ERW pipe production and inspection process
- SGS or BV third-party inspection report available upon request for pre-shipment dimensional and chemical verification
- Full material traceability by heat number from slab to finished API 5L ERW Steel Pipe Schedule 40
- Export customs documents including packing list, bill of lading, and certificate of origin for pipeline project clearance
Packaging, Loading & Delivery
- API 5L ERW round pipes bundled with steel strips and edge protectors to preserve hot-rolled surface finish during ocean transit
- Non-oiled SCH40 pipes loaded with nylon sling separators to prevent surface scoring and facilitate field welding preparation
- OD 54–1140 mm pipes optimized for open-top container or break-bulk stowage based on diameter and length to maximize payload per shipment
- Custom cut-to-length service available per customer request, with length marked on each pipe alongside heat number and API 5L grade stencil
- FOB, CIF, and DDP shipping terms supported with flatbed, open-top container, and break-bulk logistics for gas pipeline projects worldwide
Start Your Pipeline Pipe Procurement
Submit your API 5L grade, outer diameter, SCH40 wall thickness, total tonnage, and destination port to receive a detailed quotation with mill test certificate preview and shipping terms within 12 hours. For mixed-standard projects requiring API 5L, ASTM A53, or GB grade equivalence confirmation, our technical team provides documented cross-reference tables before contract signing.
Request API 5L ERW Pipe Quotation with MTC
Send your specification list to admin@xjyplate.com or contact us via WhatsApp at +86 188 5315 7756 for pricing, certification confirmation, and delivery scheduling.
Frequently Asked Questions
Q: What is the grade equivalence between API 5L GR B and ASTM A53 for gas pipeline use?
A: API 5L GR B and ASTM A53 Grade B share similar chemical composition ranges, but API 5L GR B includes additional requirements for hydrostatic testing and longitudinal weld seam integrity specific to pressure pipeline service. We provide documented equivalence mapping and original MTC for both standards so your engineering team can approve the correct grade for the design pressure.
Q: How do you verify Mill Test Certificate authenticity and heat number traceability?
A: Every API 5L ERW Steel Pipe Schedule 40 we supply carries a stencil-marked heat number that matches the MTC exactly. Our in-house laboratory verifies chemical composition and mechanical properties before release. Third-party inspection by SGS or BV is available for pre-shipment verification at the buyer’s request.
Q: What is the MOQ and can I order custom lengths for a pipeline project?
A: The minimum order quantity is 5 Tons. We provide custom cut-to-length service per your project drawing requirements, eliminating field cutting waste and reducing weld joint counts on long pipeline spreads.
Q: How does invoicing by actual weight differ from theoretical weight, and why does it matter?
A: Invoicing by actual weight means you pay for the measured mass of each pipe after production, not a calculated figure based on nominal dimensions and standard density. This eliminates disputes caused by negative tolerance practices where actual wall thickness falls below the specified minimum, ensuring you receive the full material value specified in your API 5L order.
Q: What shipping methods are available for heavy API 5L ERW pipe cargo?
A: We support FOB, CIF, and DDP terms with flatbed truck, open-top container, and break-bulk vessel loading depending on order volume and destination. Our loading team uses cradle-style supports and nylon separators to prevent ovality damage and surface scoring during transit to gas pipeline project sites.
