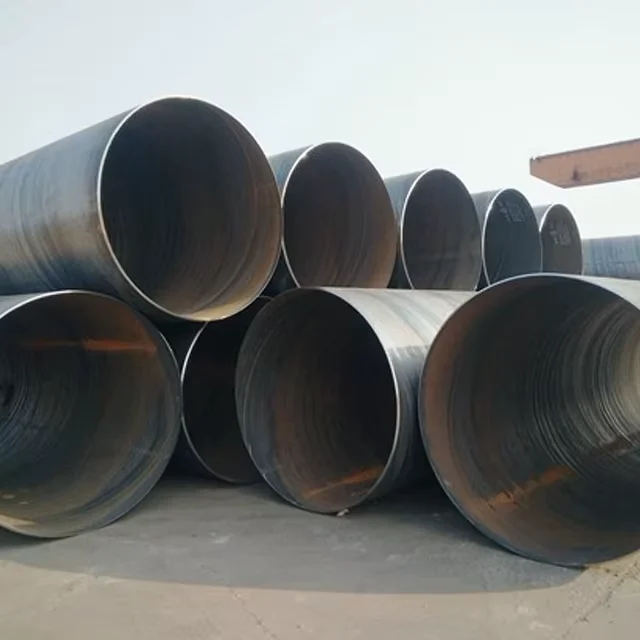

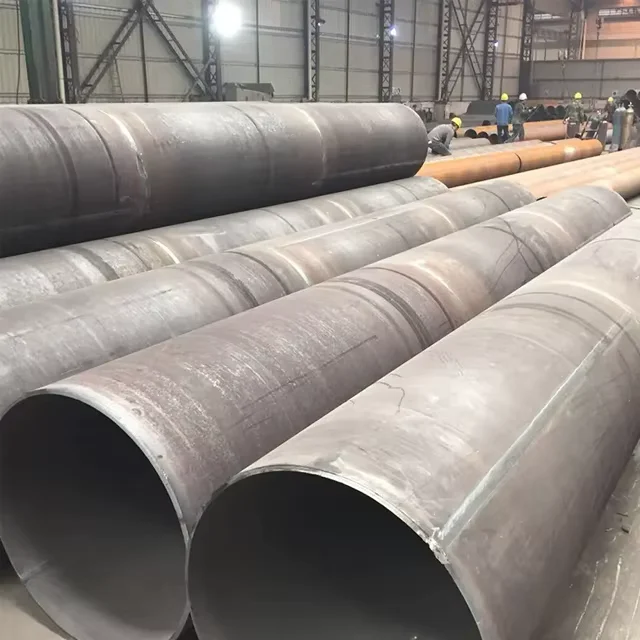

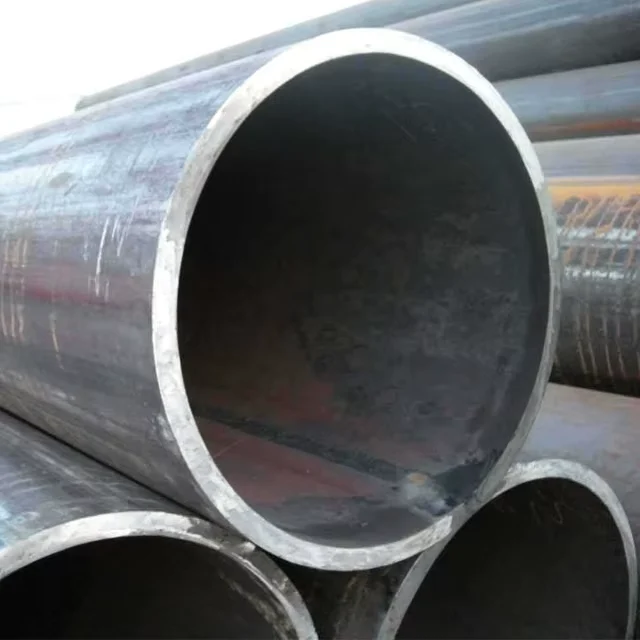

Q235 A36 ERW Welded Steel Pipe OD 32-1219mm Supplier

Description

Factory-Direct ERW Pipe Supply — We produce Q235 A36 ERW welded steel pipe in-house, eliminating trader markups on every ton shipped to your project site.

Technical Specifications

Application Suitability

When GB and ASTM Grade Labels Mask the Same Material

Q235 and A36 overlap in chemistry and yield range — but mills stamp different certificates for each.

Procurement teams ordering Q235 A36 ERW welded steel pipe for Southeast Asian water projects routinely receive material labeled to one standard while the mill test certificate references another. The chemistry may be identical, yet customs officers in markets like Vietnam or Saudi Arabia reject shipments when the declared grade does not match the MTC standard field. We have seen entire container loads held at port because the packing list said A36 while the certificate printed Q235B. [NEED_CITE: steel grade equivalence between EN, ASTM, and GB standards]

Beyond documentation mismatch, buyers face thickness tolerance gaps. A pipe ordered to ASTM A53 with a stated ±1% tolerance may arrive with wall deviation exceeding the allowable negative tolerance, forcing on-site re-measurement and potential rejection by the project engineer.

Matching OD Range and Wall Thickness to Fluid Pressure Requirements

The 32mm to 1219mm outer diameter span of our Q235 A36 ERW welded steel pipe covers everything from branch-line irrigation laterals to main transmission headers. Cold-rolled wall thickness from 1mm to 4.0mm suits low-pressure drainage and ventilation ducts, while hot-rolled walls from 4mm to 20mm handle pressurized water and gas conveyance. For municipal water supply networks operating below 1.6 MPa, Q235 grade with 4–8mm wall provides adequate hoop stress resistance at lower cost than Q355 or S355. We supply each length with mill test certificates traceable to heat number, so project QA teams can verify chemistry and tensile data before welding begins.

Structural Compliance and Certification Pathways for ERW Pipe

When ERW welded pipe serves as structural columns or piling casings, compliance with EN 10219 or ASTM A500 becomes mandatory for engineering sign-off. Our Q355 and S355 grades conform to BS EN10219 cold-formed welded hollow sections, providing documented yield strength for structural calculations. [NEED_CITE: EN 10219 cold-formed hollow section dimensional and tolerances] For projects requiring third-party verification, we arrange SGS or BV inspection at our facility before shipment, covering dimensional checks, weld seam ultrasonic testing, and chemical composition analysis. The slightly oiled surface treatment on hot-rolled pipe prevents transit corrosion without interfering with field welding or coating application.

Understanding ERW Process, Grade Selection, and Tolerance Implications

ERW (Electric Resistance Welding) forms steel coil into a round profile and fuses the seam through high-frequency current — producing a continuous weld with minimal heat-affected zone. This process suits large-diameter pipe from 32mm to 1219mm at lower cost than seamless alternatives, though seamless remains preferred for high-pressure sour gas service. Q235 and A36 represent the entry-level carbon structural grades with similar yield ranges around 235 MPa, while Q355 and S355 step up to 355 MPa yield for heavier structural loads. [NEED_CITE: ERW welded pipe manufacturing process and weld integrity standards] The ±1% tolerance on OD and wall thickness means a 219mm × 6mm pipe may measure between 216.8mm and 221.2mm in diameter — acceptable for most fluid and structural applications but requiring verification for precision mechanical fits. Hot-rolled surface condition leaves mill scale intact, suitable for painted or coated end-use, while slightly oiled finish provides short-term corrosion protection during storage and transit.

Hidden Costs of Unverified Tolerance and Grade Substitution

Ordering Q235 A36 ERW welded steel pipe without enforcing MTC-to-physical verification invites three failure modes: wall thickness below minimum tolerance triggers rejection during hydrostatic testing; grade substitution (Q235 shipped as Q355 without documentation) fails structural load calculations during engineer review; and missing heat number traceability blocks customs clearance in markets requiring certificate authentication. [NEED_CITE: mill test certificate requirements for steel pipe export documentation] Each failure forces either return shipment at buyer’s cost, on-site downgrading to non-critical applications, or project delay while replacement material is sourced and certified.

Procurement Confidence Through In-House Production and Certification

We manufacture Q235 A36 ERW welded steel pipe at our own facility in Jinan, Shandong, operating ERW mill lines that produce the full 32mm–1219mm range without subcontracting to external pipe mills. Our on-site metallurgical laboratory performs chemical composition analysis, tensile testing, and flattening tests on every heat, issuing original mill test certificates that travel with each shipment. For buyers needing multiple grades or sizes in one order — say Q235 for water lines and Q355 for structural frames — we consolidate production and loading into single shipments, reducing freight cost and documentation complexity. All products carry ISO 9001:2015 certification, and we hold CE marking for EN10219-compliant pipe destined for European markets. Our logistics team specializes in heavy cargo loading, using open-top containers and break-bulk methods for pipe exceeding 12m length or 20-ton weight.

Documentation & Compliance

• Mill test certificate documenting Q235 chemical composition (C, Mn, Si, P, S) and mechanical properties (yield strength, tensile strength, elongation) per GB/T 700 or ASTM A36
• CE certificate confirming EN10219 compliance for S355 structural hollow sections exported to EU member states
• ISO 9001:2015 quality management system certificate covering ERW pipe production, inspection, and traceability procedures
• SGS or BV third-party inspection report verifying dimensional accuracy, weld seam quality, and surface condition before container sealing
• Heat number traceability linking each pipe length to its original steel coil, chemical analysis, and rolling records
• Export documentation including commercial invoice, packing list, bill of lading, and certificate of origin for customs clearance

Packaging, Loading & Delivery

• ERW welded pipe bundled with steel strip ties at 1.5m intervals, with end caps on open-ended pipes to prevent debris ingress during ocean transit
• Hot-rolled pipe with slight oiling preserved under plastic wrapping within each bundle to maintain surface condition through humid climate storage
• Container loading optimized for 6m and 12m lengths in 20ft and 40ft open-top containers, maximizing weight utilization while respecting port crane limits
• Custom cut-to-length service available for 1m–12m requirements, with cut ends deburred and marked with heat number and steel grade
• Bundle identification tags displaying steel grade (Q235/A36/S355), outer diameter, wall thickness, heat number, and purchase order reference
• FOB Jinan/Qingdao pricing standard, with CIF and DDP options available to major ports in Southeast Asia, Middle East, and South America

Requesting Quotation and Technical Documentation

Submit your required outer diameter, wall thickness, length, steel grade, and quantity to receive a detailed quotation including material cost, processing fees, and shipping terms within 12 hours. We provide original mill test certificates for review before shipment confirmation, and accommodate third-party inspection requests from SGS or BV at our facility. For projects requiring mixed sizes or grades, we consolidate production schedules to meet your delivery window while maintaining full traceability from coil to finished pipe.

Frequently Asked Questions

Q: What is the difference between Q235 and A36 steel grade for ERW pipe?

A: Q235 and A36 are equivalent carbon structural grades with similar chemical composition and yield strength around 235 MPa. Q235 follows the Chinese GB/T 700 standard while A36 follows ASTM A36. We supply both grades from the same production line, and the mill test certificate clearly indicates which standard applies to your order.

Q: Can you provide third-party inspection for ERW welded pipe before shipment?

A: Yes, we arrange SGS or BV inspection at our facility covering dimensional verification, visual weld seam inspection, chemical composition testing, and mechanical property validation. The inspection report is issued before container loading, and you receive a copy for your project records.

Q: What is the minimum order quantity for Q235 A36 ERW welded steel pipe?

A: The minimum order quantity is 5 tons, which typically translates to approximately 10–15 tons per container depending on pipe diameter and wall thickness. We accept mixed-size orders within the same shipment to help you meet project requirements without exceeding MOQ thresholds.

Q: Do you offer custom cutting and processing services for ERW pipe?

A: Yes, we provide cutting to length (1m–12m), punching, bending, and welding preparation services. Custom processing is quoted separately based on your drawing specifications, and processed pieces are still covered by original mill test certificates with full heat number traceability.

Q: How do you handle wall thickness tolerance and negative tolerance concerns?

A: Our ERW pipe is produced to ±1% tolerance on outer diameter and wall thickness as standard. We provide actual measured thickness data in the mill test certificate and inspection report, so you can verify compliance before shipment. If your project requires zero negative tolerance or tighter controls, we can arrange production to your specific requirements.

Get Your Q235 A36 ERW Welded Steel Pipe Quote with Mill Test Certificate

Send your specification sheet including diameter, wall thickness, length, grade, and destination port to receive pricing and original MTC samples within 12 hours.
