Description

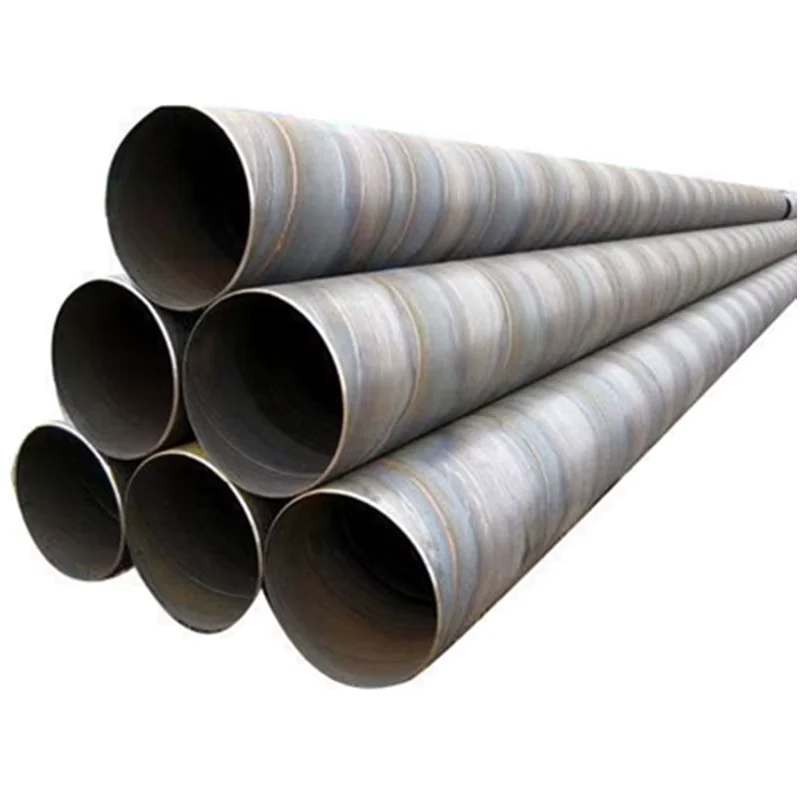

Full-Range API 5L SSAW Spiral Pipe — 219mm to 3048mm OD with Original Mill Test Certificates
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L L245 SSAW Spiral Steel Pipe |
| Product Type | Spiral Welded Steel Pipe (SSAW) |
| Steel Grade | API 5L GR A, GR B, X42, X46, X52, X56, X60, X65, X70, L245, L320, Q235, Q345, S235JR, S275JR, S355JR, S355J2H, SS400 |
| Standard | API 5L, ASTM A53, ASTM A252, GB/T 9711, SY/T 5037, EN 10219, EN 10217, BS 4360 |
| Section Shape | Round |
| Size Range | Outer Diameter 219–3048 mm |
| Wall Thickness | 5–25.4 mm |
| Length | 6–12 m (customizable up to 22 m) |
| Technique | SSAW (Spiral Submerged Arc Welding) |
| Surface Treatment | Hot Rolled / Oiled / Non-oiled / 3PE Coating available |
| Tolerance | ±1% |
| Ends | Plain / Beveled |
| Application | Oil & gas pipeline / Piling foundations / Fluid transport / Structural applications / Bridge construction / Water & slurry conveyance |
| MOQ | 5 Tons |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Onshore and offshore pipeline transportation for crude oil, natural gas, and refined products |
| Piling & Foundation | Driven piles and bored pile casings for bridge piers, high-rise buildings, and port structures |
| Water Infrastructure | Raw water transmission mains, slurry conveyance lines, and industrial cooling water systems |
| Structural Engineering | Column supports, truss members, and load-bearing frames in industrial facilities |
What Happens When Wall Thickness Tolerance Slips on a Piling Order
A single millimeter of negative tolerance on a 3048mm OD pile pipe can void the entire structural calculation.
I watched a container of API 5L L245 SSAW spiral steel pipe get held at Jebel Ali because the wall thickness measured 0.8mm below the specified 12.7mm. The third-party inspector flagged every single piece. The client’s piling rig sat idle for three weeks. That kind of delay does not just cost money in demurrage — it pushes entire project milestones and triggers liquidated damages clauses. [NEED_CITE: dimensional tolerance requirements for SSAW pipe under API 5L]
Buyers sourcing large-diameter spiral pipe for piling or pipeline work face a cluster of risks that compound quickly: grade equivalence confusion between API, EN, and GB standards; mill test certificates that cannot be verified against heat numbers; and improper container loading that damages beveled ends or causes overweight penalties at port. An API 5L L245 SSAW spiral steel pipe supplier who controls tolerance at the forming stage and documents every heat number eliminates all three.
How Large-Diameter SSAW Pipe Meets Piling and Pipeline Demands
Spiral submerged arc welding produces a continuous helical seam that distributes hoop stress more evenly across the pipe body compared to straight-seam alternatives — a critical advantage when OD exceeds 1000mm and the pipe must withstand driving forces during pile installation or internal pressure during fluid conveyance. The API 5L L245 SSAW spiral steel pipe range from 219mm to 3048mm covers everything from small-bore water lines to major trunk pipelines and large-diameter pile casings. Beveled ends ready for field welding and 3PE anti-corrosion coating options address the two most common site requirements without secondary processing delays.
Engineering Compliance Across Standards and Environments
Piling specifications frequently call for ASTM A252 Grade 2 or 3, while pipeline operators specify API 5L PSL1 or PSL2 — and the same project may require EN 10219 compliance for European export markets. Grade equivalence mapping between L245, GR B, and Q235 ensures the correct material is ordered against the right standard. [NEED_CITE: steel grade equivalence between API 5L, EN 10219, and GB/T 9711] For corrosive soil or marine environments, 3PE coating extends service life without field-applied wrapping. Dimensional inspection reports covering OD, wall thickness, length, and straightness accompany every shipment to satisfy engineer approval before driving or welding begins.
Understanding the SSAW Process and Grade Selection
The spiral welding seam in SSAW pipe forms at an angle to the pipe axis, which means the weld length per unit of pipe is longer than straight-seam ERW — but the process allows production of large diameters from narrower coil stock, reducing material cost on OD 1500mm+ pipes. API 5L grades from L245 through X70 provide increasing yield strength for higher-pressure pipeline service, while Q235 and Q345 serve general structural and piling applications where extreme pressure ratings are not required. Surface treatment selection depends on the environment: oiled or non-oiled for temporary protection during transit and fabrication, 3PE coating for buried pipelines exposed to aggressive soil chemistry. Wall thickness tolerance of ±1% ensures the actual weight per meter stays within the engineer’s load calculation assumptions — a detail that separates certified suppliers from those relying on negative tolerance practices. [NEED_CITE: SSAW vs LSAW vs ERW pipe manufacturing process comparison]
The Hidden Cost of Unverified Material on Pipeline Projects
Wrong grade, missing heat number, or exceeded negative tolerance does not show up until the pipe is in the trench or driven into the seabed.
An API 5L L245 SSAW spiral steel pipe that arrives without a verifiable mill test certificate creates a chain reaction: the inspector rejects the batch, the contractor cannot proceed with welding, and the project owner faces re-procurement timelines measured in weeks. [NEED_CITE: API 5L quality assurance and inspection requirements] Structural piling using undersized wall thickness may pass visual inspection but fail ultrasonic testing or load testing, forcing pile replacement at exponentially higher cost than the original material savings.
Why Project Procurement Teams Source SSAW Pipe Through XJY Plate
Every API 5L L245 SSAW spiral steel pipe leaves the mill with an original test certificate showing heat number, chemical composition, and mechanical properties — not a photocopy, not a template. Our ISO 9001:2015 and CE certification means the quality management system meets international audit standards, and SGS or BV third-party inspection is available for clients who require independent verification. We stock common diameters from 219mm to 2000mm and roll large-diameter pipe up to 3048mm against confirmed orders, with custom cutting to project-specified lengths up to 22 meters. Professional heavy-cargo loading using flatbed trailers, open-top containers, and break-bulk vessels prevents the end damage and overweight penalties that plague suppliers unfamiliar with pipe logistics. Full traceability from coil source to finished pipe means every length can be matched to its mill certificate without guesswork.
Documentation & Compliance
- Mill test certificate documenting L245 chemical composition and mechanical properties per API 5L, with verifiable heat number linked to each pipe
- CE certificate covering EN 10219 and EN 10217 compliance for European market projects requiring CE marking
- ISO 9001:2015 quality management system certificate demonstrating controlled manufacturing and inspection processes
- SGS or BV third-party inspection report available upon request for independent dimensional and visual verification
- Material traceability sheet mapping each pipe to its heat number, coil source, and production date
- Export documentation including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery
- API 5L L245 SSAW spiral steel pipe bundled with steel strips and edge protectors to preserve beveled ends during ocean transit
- 3PE coated pipes wrapped with protective film to prevent coating damage from contact with adjacent bundles or container walls
- Large-diameter pipe (OD 1500mm+) loaded on flatbed trailers or shipped break-bulk to avoid container weight restrictions
- Custom cut-to-length pipe from 6m to 22m bundled separately with length markings visible for site identification
- Heat number and steel grade stenciled on each pipe end for traceability verification at site inspection
- FOB, CIF, and DDP shipping terms available with professional heavy-cargo logistics coordination
Ready to Verify Material and Move Forward
Submit your project specifications — steel grade, outer diameter, wall thickness, length, quantity, and destination port — and receive a detailed quotation with API 5L L245 SSAW spiral steel pipe pricing, processing fees if applicable, and shipping terms within 12 hours. We will provide the original mill test certificate format for your engineer’s review before contract signing, and confirm third-party inspection availability if your project requires independent verification.
Get Your API 5L L245 SSAW Spiral Pipe Quote with Mill Test Certificate
Send your specifications to admin@xjyplate.com or contact us via WhatsApp at +86 188 5315 7756.
Frequently Asked Questions
Q: How do API 5L L245, GR B, and Q235 compare across different standards?
A: API 5L L245 and GR B are essentially equivalent in chemical composition and mechanical properties under the API 5L standard, both suitable for low to medium pressure pipeline service. Q235 is a Chinese national standard grade with similar yield strength characteristics, commonly used for structural and piling applications. We provide grade equivalence mapping to ensure you order the correct material against your project specification, whether it calls for API, ASTM, EN, or GB standards.
Q: Can you provide original mill test certificates and support third-party re-inspection?
A: Yes, every API 5L L245 SSAW spiral steel pipe ships with an original mill test certificate showing heat number, chemical composition, and mechanical properties. We support SGS, BV, or other accredited third-party inspection agencies for independent verification of dimensions, visual quality, and material properties. The mill test certificate is provided before or with shipment for your quality verification.
Q: What is the minimum order quantity for non-standard diameters or cut-to-length pipe?
A: The minimum order quantity is 5 tons for standard sizes. For non-standard diameters outside our stock range or custom cut-to-length requirements, MOQ depends on the specific diameter and length requested. We can produce pipe up to 3048mm OD and lengths up to 22 meters. Contact us with your specifications for a detailed quotation on custom requirements.
Q: What surface treatment and coating options are available for corrosion protection?
A: We offer hot rolled, oiled, non-oiled, and 3PE anti-corrosion coating for API 5L L245 SSAW spiral steel pipe. Oiled or non-oiled finishes provide temporary protection during transit and fabrication. 3PE coating is recommended for buried pipelines exposed to corrosive soil conditions, providing long-term protection without field-applied wrapping. Epoxy coating options are also available for specific project requirements.
Q: How are large-diameter spiral pipes packed and shipped to prevent damage?
A: Large-diameter pipe (OD 1500mm and above) is typically loaded on flatbed trailers for domestic transport or shipped break-bulk for international delivery to avoid container weight restrictions. Smaller diameters are bundled with steel strips and edge protectors to preserve beveled ends. 3PE coated pipes receive additional protective wrapping to prevent coating damage. We coordinate professional heavy-cargo logistics to prevent end damage, coating damage, and overweight penalties at port.
