Description
Technical Specifications
| Parameter | Value |
|---|---|

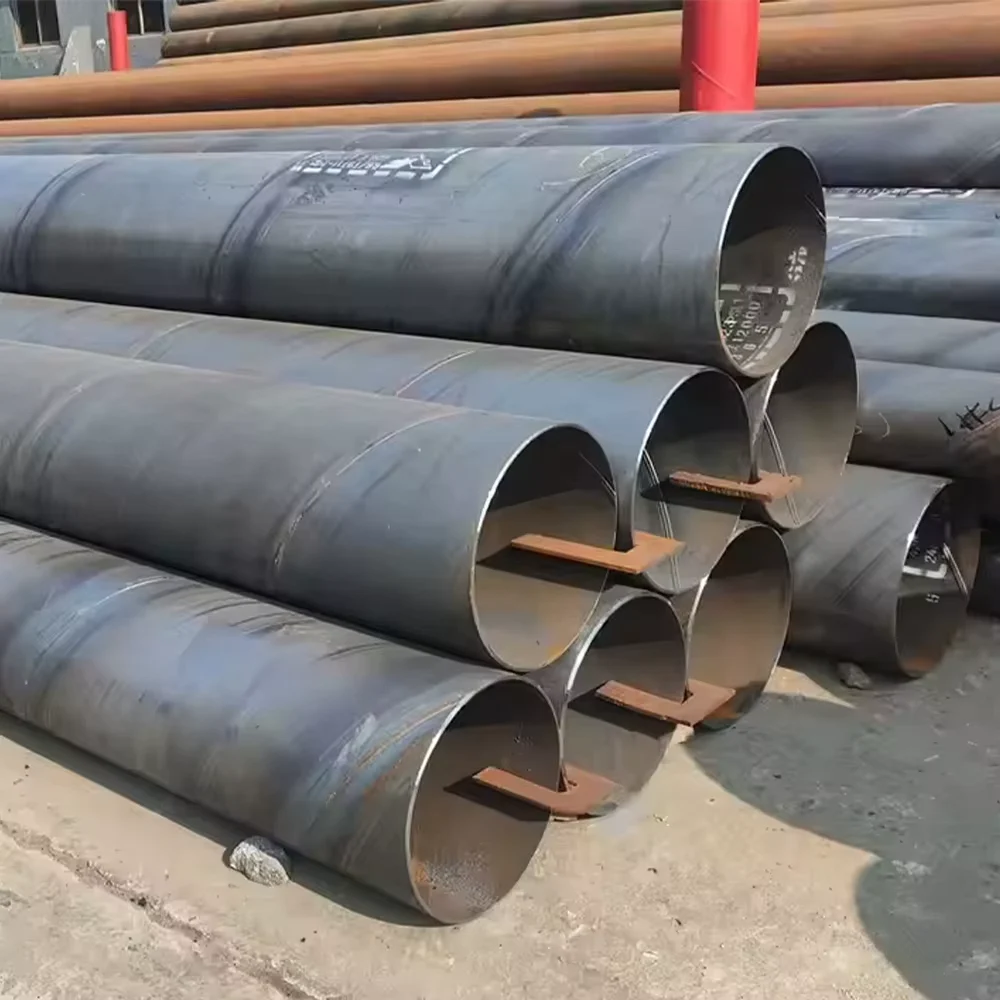

| Designation | API 5L X42/X52/X60 Spiral Welded Steel Pipe |
| Product Type | Spiral Welded Steel Pipe (SSAW) |
| Steel Grade | API 5L X42, X52, X60, X70; L245, L290, L360, L390, L415; Q195, Q235, Q345; ASTM A53, A106, A36, A500; SS400, St37, St52, S235JR, S355JR |
| Standard | API 5L (PSL1 / PSL2), ASTM A53, A106, A36, A500, GB/T 3091, GB/T 9711, BS 1387 |
| Section Shape | Round |
| Outer Diameter | 10–1000 mm |
| Wall Thickness | 1–80 mm |
| Length | 6–12 m (or customized) |
| Technique | Hot Rolled / Spiral Welded (SSAW) |
| Surface Treatment | Black Painting / Oiled / Non-oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled (per API 5L) |
| Application | Oil and gas transmission pipeline, industrial sewage transportation, fluid delivery, construction structural pipe, machinery parts |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore transmission pipelines, gathering lines, flow lines for crude oil and natural gas |
| Water Infrastructure | Municipal water supply mains, industrial sewage conveyance, pump well casing |
| Construction & Piling | Structural piling for bridge foundations, building frame columns, heavy machinery support |
| Petrochemical | Process piping for refineries, tank farm connections, pressure vessel nozzles |
What Spiral Weld Seam Integrity Costs You on an Oil Pipeline Spread
A single undetected weld seam defect can force rejection of an entire container shipment after arrival.
Oil and gas pipeline operators specify API 5L PSL2 precisely because the standard demands stricter chemical composition limits, mandatory impact testing, and full-length ultrasonic inspection of the weld seam [NEED_CITE: API 5L PSL2 mandatory non-destructive testing requirements]. When a supplier cuts corners on spiral welding parameters — travel speed, heat input, or pre-heating — incomplete fusion or slag inclusion hides inside the weld bead. The mill test certificate looks perfect on paper, but third-party ultrasonic testing at the destination port tells a different story. I have seen three full containers of API 5L X52 SSAW pipe rejected at a West African port because the weld seam failed UT scanning. The replacement shipment delayed the pipeline spread by weeks and added significant demurrage costs.
How SSAW Pipe Dimensions Match Pipeline Engineering Requirements
Spiral welded steel pipe in the OD 10–1000 mm and WT 1–80 mm range covers the majority of onshore transmission and distribution pipeline specifications. The spiral forming process allows production of large-diameter pipe from relatively narrow strip stock, which gives cost advantages over seamless for diameters above 500 mm. For an API 5L X42 X52 X60 PSL1 PSL2 spiral welded steel pipe supplier, offering beveled ends per API 5L is non-negotiable — field welding crews depend on precise bevel angles for root pass penetration. Black painting or oiled surface treatment protects the pipe during ocean transit and storage, while remaining compatible with downstream 3PE anti-corrosion coating applied at the construction site.
Engineering Compliance and Grade Selection for Transmission Pipelines
Pipeline design codes such as ASME B31.4 and B31.8 reference API 5L grades directly, meaning the mill test certificate must document chemical composition and mechanical properties traceable to each heat number [NEED_CITE: ASME B31.4 liquid pipeline grade requirements]. PSL1 pipe suits lower-pressure gathering lines where impact testing is not mandatory, while PSL2 demands Charpy V-notch testing at specified temperatures — critical for sour service or cold-climate installations. The choice between X42, X52, and X60 directly affects allowable design stress and wall thickness calculation. For projects in corrosive soil conditions or offshore environments, specifying oiled surface treatment at the mill preserves the pipe surface until 3LPE coating is applied, preventing rust scale that compromises coating adhesion.
Understanding Spiral Weld Process and Grade Equivalence
The SSAW process forms strip steel into a helical seam, which distributes welding stress differently than longitudinal ERW. This makes spiral welded pipe particularly suitable for large-diameter, thin-wall applications where straight-seam pipe would face forming difficulties. API 5L X52 corresponds to L360 in the ISO 3183 system and roughly matches EN 10208 L360MB — but equivalence is not automatic. Chemical composition limits differ between PSL1 and PSL2, and a supplier claiming “X52 equivalent” without providing the actual heat analysis is asking you to trust their word over the certificate [NEED_CITE: steel grade equivalence between API 5L and ISO 3183 standards]. Wall thickness tolerance of ±1% means that for an 80 mm WT pipe, actual measurement must fall within 79.2–80.8 mm — deviations beyond this range signal poor process control and affect field welding fit-up.
Hidden Costs of Unverified Pipe Procurement
Purchasing API 5L pipe without verified mill test certificates or third-party inspection creates exposure across the entire project timeline. Material that fails customs inspection due to missing documentation sits at the port accumulating demurrage charges. Pipe with actual wall thickness below the ordered specification passes visual inspection but fails hydrostatic testing at the commissioning stage — forcing costly section replacement. Weld seam defects discovered during field bending or installation require cutting out and re-welding, disrupting the construction schedule. These costs are qualitative but compounding: a single batch of non-conforming pipe on a multi-kilometer pipeline spread can delay the entire project [NEED_CITE: pipeline construction delay cost impact from material rejection].
Procurement Assurance from a Dedicated SSAW Pipe Supplier
Every API 5L X42 X52 X60 PSL1 PSL2 spiral welded steel pipe we supply ships with original mill test certificates documenting heat number, chemical composition, and mechanical properties — fully traceable back to the steelmaking batch. Our factory operates dedicated spiral welding lines with in-process ultrasonic inspection, and we welcome SGS or BV third-party inspection before shipment. We maintain ready stock across common API 5L grades and dimensions, reducing lead time for urgent project requirements. Custom cutting to specific lengths between 6–12 m eliminates field waste, and our logistics team handles flatbed, open-top container, and break-bulk shipping for large-diameter pipe — ensuring proper support and avoiding transit damage.
Documentation & Compliance
- Mill test certificate documenting API 5L X42/X52/X60 chemical composition, yield strength, tensile strength, and elongation per heat number
- API 5L PSL1 or PSL2 compliance certificate confirming mandatory testing scope including hydrostatic test and non-destructive examination
- ISO 9001:2015 quality management system certificate covering spiral welded pipe production processes
- SGS or BV third-party inspection report verifying dimensional accuracy, surface condition, and weld seam quality before shipment
- Full material traceability linking each pipe to its heat number, strip coil origin, and welding batch record
- Export documentation including commercial invoice, packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery
- API 5L spiral welded pipes bundled with steel straps and edge protectors, with black painting or oil coating preserved through seaworthy wrapping for ocean transit
- Large-diameter pipe (above 600 mm OD) loaded on flatbed trailers or break-bulk vessels with proper cradle support to prevent ovality deformation
- Beveled ends protected with plastic caps to prevent damage during handling and maintain welding preparation quality
- Heat number and steel grade stenciled on each pipe surface for on-site identification and traceability verification
- Container loading optimized for 6–12 m lengths with wooden chocking and steel wire lashing to prevent movement during sea freight
- FOB, CIF, and DDP shipping terms available with professional heavy cargo logistics coordination from mill to project site
Start Your API 5L Pipe Procurement
Submit your required steel grade, outer diameter, wall thickness, length, quantity, and destination port — we respond within hours with a detailed quotation including material cost, processing fees, and shipping terms. We provide original mill test certificates for your review before shipment confirmation, and third-party inspection can be arranged at your request.
Request Your API 5L SSAW Pipe Quotation
Send your specifications to receive pricing, mill test certificate samples, and delivery timeline.
- Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
- Website: www.xjyplate.com
- Tel: +86 531 8573 6315
- Mobile/WhatsApp/WeChat: +86 188 5315 7756
- Email: admin@xjyplate.com
- Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between API 5L PSL1 and PSL2 for spiral welded pipe?
A: PSL2 imposes stricter chemical composition limits, mandatory Charpy impact testing at specified temperatures, and more comprehensive non-destructive examination requirements compared to PSL1. PSL2 is typically specified for sour service, high-pressure transmission, or cold-climate pipelines where toughness verification is critical.
Q: How do you verify the steel grade equivalence between API 5L X52 and other standards?
A: We provide full chemical composition and mechanical property data in the mill test certificate, allowing direct comparison with ISO 3183 L360, EN 10208, or GB/T 9711 equivalents. Grade equivalence must be confirmed by actual test results, not just designation claims.
Q: Can you provide third-party inspection before shipment?
A: Yes, we welcome SGS, BV, or other internationally recognized inspection agencies to verify dimensional accuracy, surface condition, weld seam quality, and review mill test certificates before the pipe leaves our facility.
Q: What surface treatment options are available for corrosion protection?
A: We supply API 5L spiral welded pipe with black painting, oiled, or bare (non-oiled) surface treatment. Oiled or black painted finishes protect the pipe during storage and transit, while bare pipe is prepared for downstream 3PE or FBE anti-corrosion coating application at the project site.
Q: How are large-diameter spiral welded pipes packed for shipping?
A: Pipes above 600 mm outer diameter are typically shipped via flatbed truck, open-top container, or break-bulk vessel with proper cradle support and lashing to prevent ovality. Smaller diameters are bundled and loaded in standard containers with wooden chocking for secure transit.
