Description

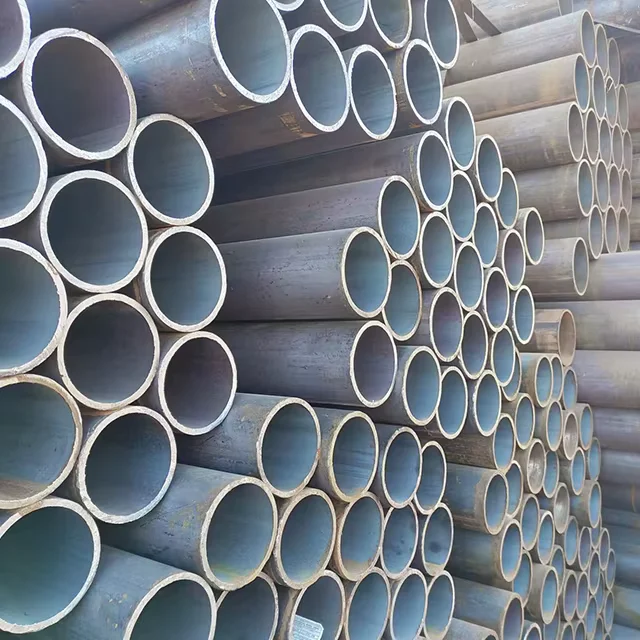

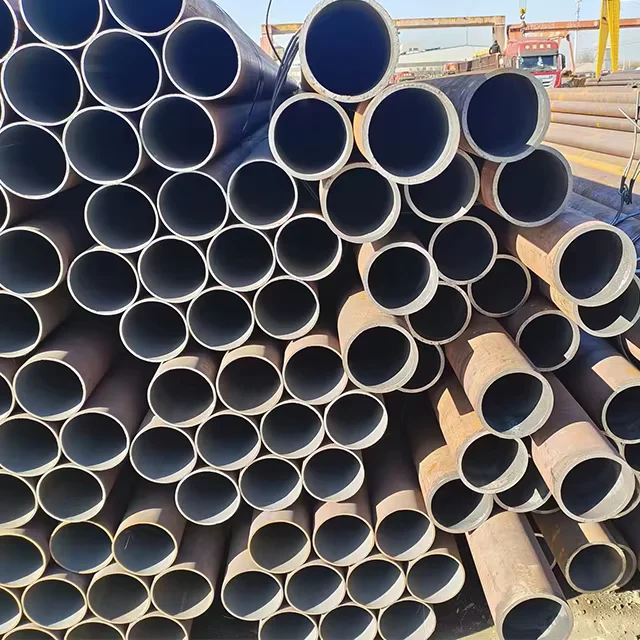

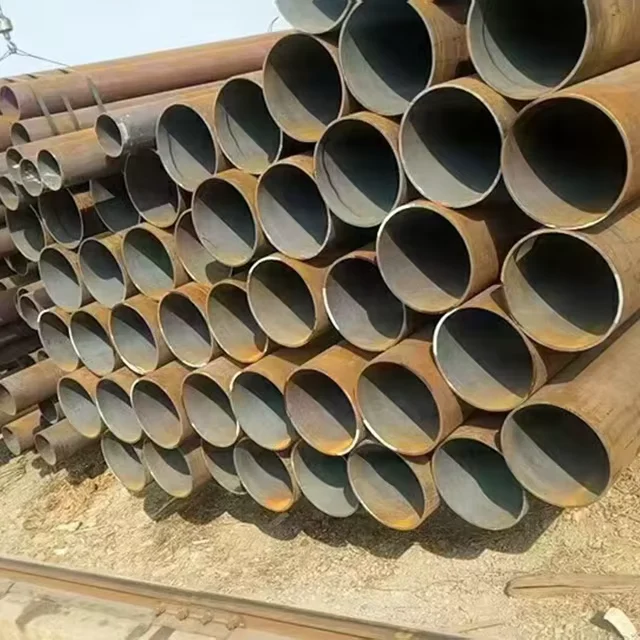

Factory-direct ASTM A106 A53 carbon steel ERW welded pipe supplier — every heat number traceable to original mill test certificates, shipped with full customs documentation from Jinan port.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A106 / A53 Carbon Steel ERW Pipe |
| Product Type | ERW Welded Steel Pipe (Round) |
| Steel Grade | Q195, Q235, Q345 (Q355), SS400, 10#, 20#, A53 Grade A/B, A106 Grade B, ST35–ST52 |
| Standard | ASTM A53, ASTM A106, ASTM A252, API 5L, ASME B36.10M, BS EN 10219, GB/T 3091, GB/T 9711 |
| Section Shape | Round |
| Size Range | OD 10–700 mm |
| Wall Thickness | Cold Rolled 1–4.0 mm / Hot Rolled 4–20 mm |
| Length | 1–12 m (standard 6 m / 12 m) |
| Technique | ERW (Electric Resistance Welded) / Hot Rolled / Cold Rolled |
| Surface Treatment | Hot Rolled Black / Slightly Oiled / Hot Dip Galvanized (Zinc 200–700 g/m²) |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Threaded |
| Application | Fluid transport / Boiler pipe / Structural pipe / Scaffolding / Machinery / Hydraulic systems |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas Pipeline | Water, oil, and gas transmission lines; process piping in refineries |
| Power & Boiler | Boiler feed water tubes; superheater and heat exchanger circuits |
| Construction & Infrastructure | Building frames, scaffolding systems, bridge support columns |
| Machinery & Hydraulic | Hydraulic cylinder barrels; conveyor rollers; machine structural frames |
| Marine & Shipbuilding | Ballast water lines; deck structural piping; fire-fighting mains |
Where Negative Tolerance Turns a Pipe Order Into a Site Rejection
Dimensional accuracy on ASTM A106 A53 carbon steel ERW welded pipe determines whether your structure passes third-party inspection or gets sent back to the yard.
Procurement teams across Southeast Asia and the Middle East routinely face shipments where wall thickness falls below the specified minimum, mill test certificates carry mismatched heat numbers, or steel grade markings do not correspond to the chemical composition report. [NEED_CITE: ASTM A53 dimensional tolerance requirements for ERW pipe] When a 20# grade pipe arrives on site with actual wall thickness 8% below nominal, the structural engineer cannot sign off, the pressure test fails, and the entire batch must be air-freighted at the supplier’s cost — if the supplier accepts responsibility at all.
Matching ERW Welded Pipe to Fluid and Structural Engineering Demands
Round ERW welded pipe in OD 10–700 mm covers the full spectrum from small-bore instrument lines to large-diameter water mains. For fluid transport applications — water, oil, gas, boiler feed — the ERW seam must pass hydrostatic testing per ASTM A53 or A106, and the weld zone requires consistent grain structure to resist pressure cycling. Hot-rolled ASTM A106 A53 carbon steel ERW welded pipe in Grade B provides the tensile properties needed for high-temperature service up to 400°C, while cold-rolled variants in Q195 or Q235 serve lower-pressure structural framing where formability matters more than pressure rating.
Engineering Compliance and Certification Requirements
Pressure-containing applications demand strict adherence to ASME B36.10M dimensional standards and ASTM A106 chemical composition limits — particularly carbon and manganese content, which directly affect weldability and high-temperature strength. [NEED_CITE: ASME B36.10M welded and seamless wrought steel pipe dimensions] Structural applications under EN 10219 or GB/T 3091 require verified yield strength and documented impact testing for sub-zero environments. Hot-dip galvanized ASTM A106 A53 carbon steel ERW welded pipe with zinc coating 200–700 g/m² meets corrosion protection requirements for outdoor scaffolding, marine deck piping, and buried water mains without additional field coating.
Steel Grade Selection and ERW Process Fundamentals
The Q-series (Q195–Q355) follows Chinese GB standards where the number indicates minimum yield strength in MPa; ASTM A53 Grade A/B and A106 Grade B follow American standards with defined tensile and elongation minimums; ST35–ST52 follows German DIN/EN conventions. For most fluid and structural applications, A106 Grade B and Q235 offer equivalent performance, but cross-standard substitution requires verified chemical composition matching — not just nominal grade equivalence. [NEED_CITE: steel grade equivalence between ASTM A106 and GB/T 8163]
ERW (Electric Resistance Welded) pipe is formed from hot-rolled coil, with the longitudinal seam welded by electrical resistance heating without filler metal. This process produces a consistent weld zone suitable for pressures up to moderate levels, at lower cost than seamless pipe for the same diameter. Hot-rolled ASTM A106 A53 carbon steel ERW welded pipe in wall thickness 4–20 mm serves most pipeline and structural applications, while cold-rolled variants at 1–4 mm wall provide tighter dimensional tolerance for precision machinery and hydraulic systems.
Surface treatment selection depends on service environment: black (hot-rolled or oiled) pipe suits indoor structural framing and concealed pipeline; hot-dip galvanized ASTM A106 A53 carbon steel ERW welded pipe resists atmospheric and mild chemical corrosion for outdoor structures, scaffolding, and coastal installations.
The Hidden Cost of Unverified Pipe Procurement
Pipes sourced without original mill test certificates or with forged heat numbers create liability across the entire project chain. When a third-party inspector discovers that the delivered A106 Grade B pipe actually matches Q195 chemistry, the structural engineer must recalculate load capacity, the client demands replacement, and the project timeline extends by weeks. [NEED_CITE: consequences of non-conforming steel pipe in pressure applications] Negative tolerance abuse — where actual wall thickness consistently falls below nominal — reduces pressure rating and structural load capacity without visible indication, creating safety risks that only emerge during hydrostatic testing or structural loading.
Why Engineering Procurement Teams Source ASTM A106 A53 Carbon Steel ERW Welded Pipe Through XJY Plate
Every order ships with original mill test certificates documenting chemical composition, mechanical properties, and heat number traceability — verified by our in-house metallurgical laboratory before release. Our inventory covers the full OD 10–700 mm range in Q195 through Q355, A53, A106, and ST35–ST52 grades, eliminating the need to split orders across multiple suppliers. Custom cutting to 1–12 m lengths with plain, beveled, or threaded ends is completed in-house, with dimensional inspection reports provided for every batch. Third-party inspection through SGS or BV is arranged on request, with full cooperation during witness testing. Professional heavy-cargo loading using timber cradles and edge protectors prevents oval deformation during ocean transit — a lesson learned from early export shipments where improper container stuffing caused roundness rejection at destination ports. ISO 9001:2015 and CE certification ensure compliance with international quality management and European market access requirements.
Documentation & Compliance
- Mill Test Certificate documenting A106 Grade B or Q235 chemical composition, yield strength, and tensile properties per heat number
- CE certificate confirming compliance with EN 10219 cold-formed welded structural hollow sections for European market shipments
- ISO 9001:2015 quality management system certificate covering ERW pipe production and inspection processes
- SGS or BV third-party inspection report verifying dimensional tolerance, wall thickness, and zinc coating weight for galvanized orders
- Full material traceability from raw coil heat number through ERW forming, welding, and final inspection
- Export customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

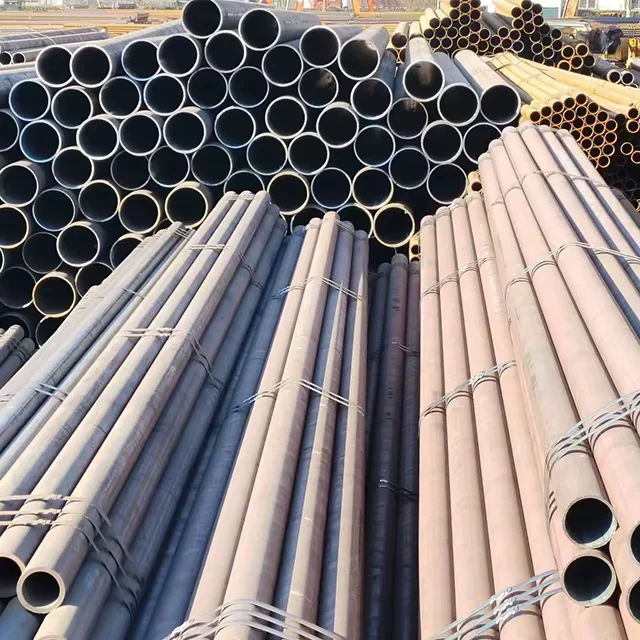

- ASTM A106 A53 carbon steel ERW welded pipe bundled with steel strips and edge protectors to preserve surface finish and prevent coating damage during transit
- Hot-dip galvanized pipe wrapped with waterproof paper and plastic sleeves to protect zinc coating from moisture and mechanical abrasion
- Container loading optimized for 6 m and 12 m standard lengths using timber cradles and nested stacking to maximize payload while preventing oval deformation
- Custom cut-to-length service available for 1–12 m requirements, with each piece marked with heat number, steel grade, and dimensional specification
- Heat number and steel grade stenciled on each pipe end for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional flatbed and open-top container loading for heavy-wall pipe orders
Securing Your ASTM A106 A53 Carbon Steel ERW Welded Pipe Quotation
Submit your specification sheet — including steel grade, OD, wall thickness, length, surface treatment, quantity, and destination port — and receive a detailed quotation with material cost, processing fees, and shipping terms within 12 hours. Original mill test certificates are provided before or with shipment for your quality verification. For non-standard dimensions or custom end treatments, our technical team provides cut-to-size solutions with dimensional inspection reports.
Request Your ASTM A106 A53 Carbon Steel ERW Welded Pipe Quote with Mill Test Certificate
Send your specification to admin@xjyplate.com or contact via WhatsApp/WeChat at +86 188 5315 7756 for pricing, lead time, and certification confirmation.
Frequently Asked Questions
Q: Can you provide mill test certificates for ASTM A106 Grade B pipe?
A: Yes, every shipment includes original mill test certificates documenting chemical composition, mechanical properties, and heat number traceability. Certificates are provided before or with shipment for your quality verification.
Q: What is the difference between hot-rolled and cold-rolled ERW pipe for my application?
A: Hot-rolled ASTM A106 A53 carbon steel ERW welded pipe in 4–20 mm wall thickness suits pressure piping and heavy structural applications. Cold-rolled variants at 1–4 mm wall provide tighter dimensional tolerance for precision machinery and hydraulic systems where surface finish and accuracy are critical.
Q: Do you accept third-party inspection before shipment?
A: Yes, we fully cooperate with SGS, BV, or your nominated inspection agency. Inspection covers dimensional verification, wall thickness measurement, visual examination, and zinc coating weight testing for galvanized orders.
Q: Can I order custom lengths with beveled or threaded ends?
A: Yes, custom cutting to 1–12 m lengths is available with plain, beveled, or threaded ends per your specification. Each piece is marked with heat number and steel grade for traceability.
Q: What is the minimum order quantity for ASTM A106 A53 carbon steel ERW welded pipe?
A: The minimum order quantity is 1 ton, suitable for trial orders or small project requirements. Larger volume orders receive competitive pricing with consolidated shipping.
