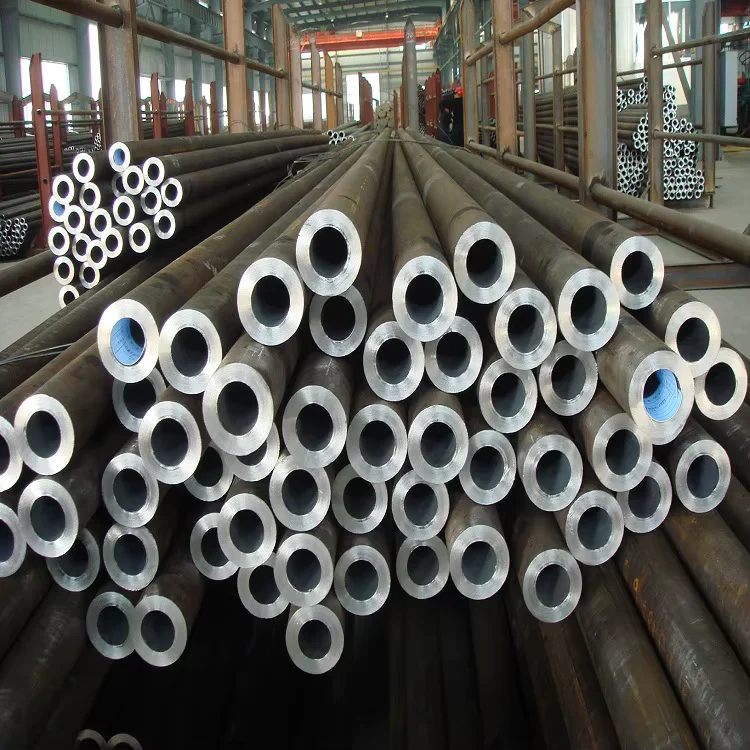

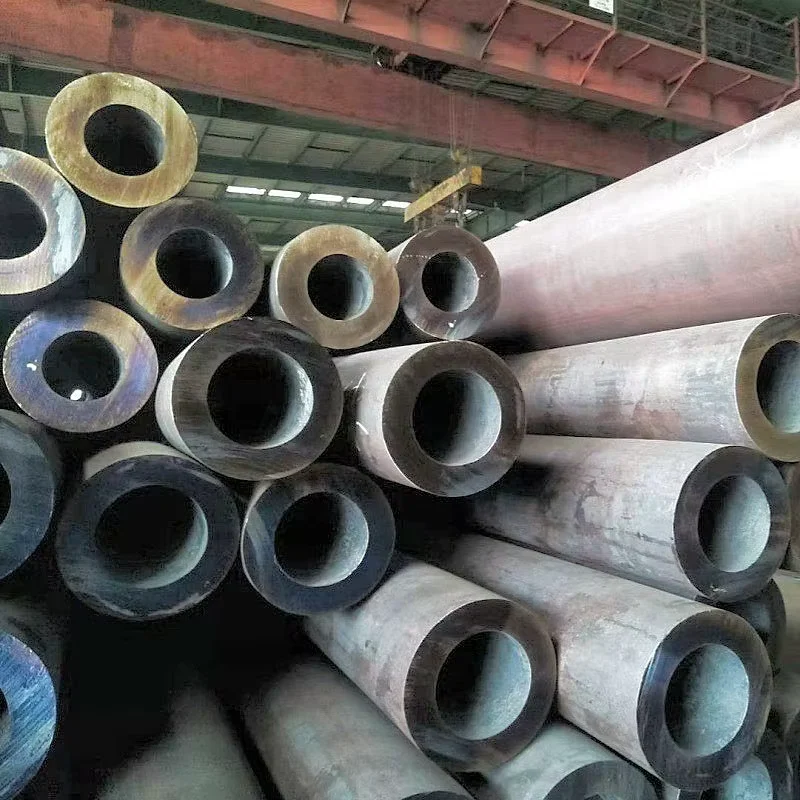

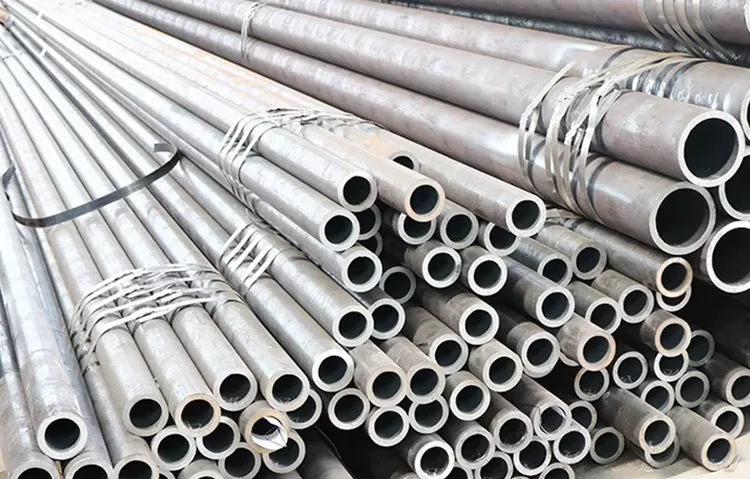

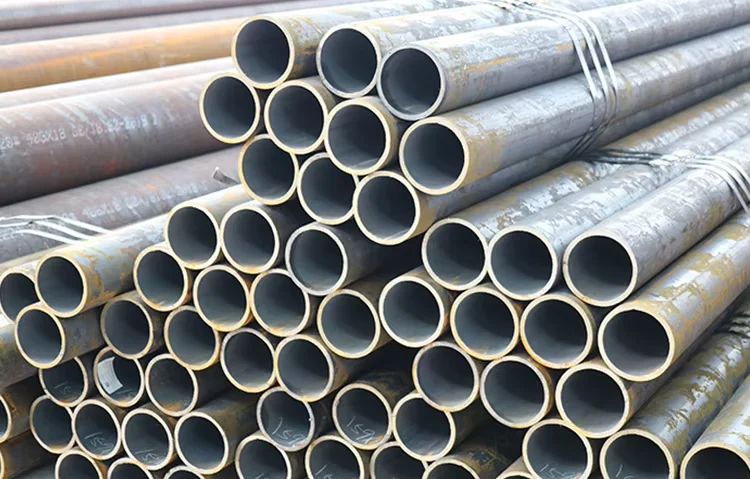

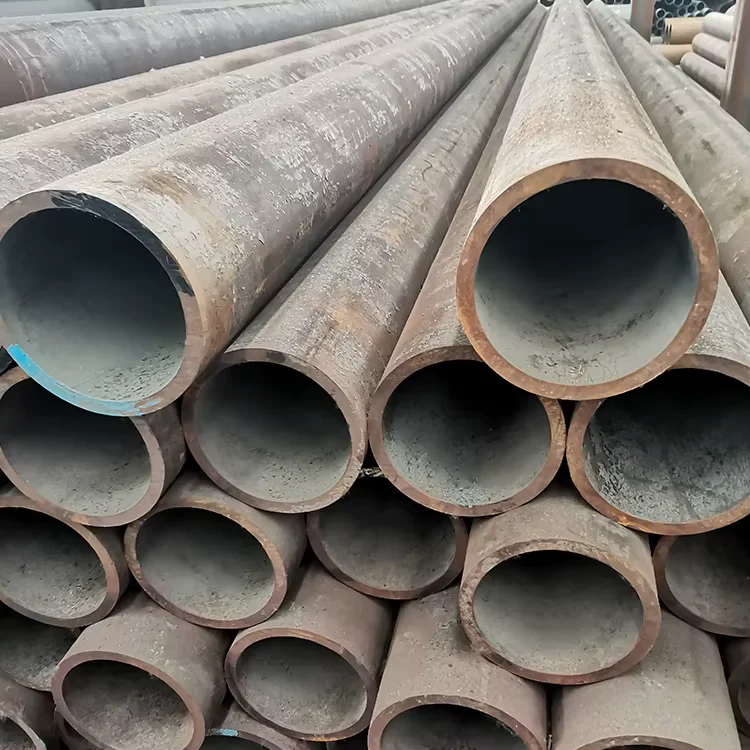

Description
Mill-Direct ASTM A106 Supply — Every heat number traceable to original rolling records with full MTC documentation.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A106 Seamless Carbon Steel Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | ASTM A106 Grade A, ASTM A106 Grade B, 20#, 45# |
| Standard | ASTM A106, API 5CT, API 5L, BS, JIS, DIN |
| Section Shape | Round |
| Size Range | OD 10–609 mm |
| Wall Thickness | 1.65–59.54 mm |
| Technique | Hot Rolled / Cold Rolled |
| Surface Treatment | Hot Rolled (Black) |
| Tolerance | ±5% / ±1% |
| Ends | Plain / Beveled (cutting available) |
| Application | Fluid transportation, Boiler pipe, Oil & gas drill pipe, Hydraulic pipe, Gas pipe, Chemical fertilizer pipe, Structural pipe, Machinery parts |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Boiler & Pressure Vessel | High-temperature steam lines, superheater tubes, water wall panels |
| Oil & Gas | Downhole tubing, flow lines, gathering pipelines, wellhead connections |
| Petrochemical | Reactor feed lines, heat exchanger tubes, high-pressure process piping |
| Power Generation | Main steam piping, boiler feed water systems, auxiliary steam lines |
| Industrial Construction | Hydraulic cylinder barrels, machinery shafts, structural columns |
Grade Equivalence Gaps That Trigger Site Rejections
ASTM A106 Gr.B, 20#, and API 5L Gr.B share similar chemistry but differ in testing requirements and allowable stress values at elevated temperature.
Procurement teams ordering seamless carbon steel pipe for boiler or high-temperature service frequently encounter material substitution disputes at site inspection. The mill test certificate may show chemical composition within A106 Gr.B limits, yet the purchaser specified 20# per GB/T 8163 — two standards with overlapping but non-identical mechanical property requirements. Without documented equivalence mapping, the third-party inspector rejects the shipment regardless of actual performance capability. [NEED_CITE: ASTM A106 and GB 20# grade equivalence for high-temperature service]
Matching Wall Thickness to Pressure and Temperature Service
The OD 10–609 mm range with wall thickness from 1.65 mm to 59.54 mm covers everything from instrument lines to high-pressure boiler headers. For ASTM A106 Gr.B applications in steam service above 400°C, the ±1% tolerance option ensures calculated wall thickness remains within ASME B31.1 allowable limits after corrosion allowance deduction. We supply beveled ends per API 5L for oil field connections and plain ends for boiler tube expansion joints, eliminating field machining delays.
Engineering Compliance for High-Temperature Piping
Boiler manufacturers require ASTM A106 Gr.B with documented Charpy impact values and elevated-temperature tensile data for ASME Section II compliance. The hot-rolled black finish provides adequate surface condition for welding preparation without additional descaling costs. For projects targeting European markets, CE certification and EN 10216-2 equivalence documentation prevent customs holds at destination ports. [NEED_CITE: EN 10216-2 seamless steel tubes for elevated temperatures]
Hot-Rolled vs Cold-Drawn: Surface Finish and Dimensional Control
Hot-rolled ASTM A106 pipe delivers as-rolled black surface with mill scale, suitable for most high-temperature applications where surface appearance is secondary to mechanical performance. Cold-drawn variants offer tighter dimensional tolerance and smoother surface finish for hydraulic cylinder applications or precision machining. The choice depends on whether the end use prioritizes cost efficiency (hot-rolled) or dimensional accuracy (cold-drawn) — both maintain full ASTM A106 chemical and mechanical compliance.
Hidden Costs of Tolerance Deviations in Thick-Wall Pipe
Ordering 59.54 mm wall thickness seamless pipe at standard ±5% tolerance means actual wall could measure 56.56 mm — a 3 mm deviation that compromises pressure rating calculations for high-pressure boiler service. When the third-party inspector measures ultrasonic thickness at random points and finds systematic negative deviation, the entire lot faces rejection regardless of chemical compliance. The cost of rerolling exceeds original pipe value, plus project delays cascade through construction schedules. [NEED_CITE: ultrasonic thickness testing standards for seamless pipe inspection]
Why Source ASTM A106 From XJY Plate
We maintain dedicated inventory of ASTM A106 Gr.A and Gr.B in common sizes from 20 mm to 300 mm OD, with thick-wall specials up to 609 mm available on rolling schedule. Every piece carries original mill test certificate showing heat number, chemical composition, and mechanical properties — no re-stamped or forged documents. Our in-house ultrasonic thickness gauge checks every heat before dispatch, holding tolerance tighter than standard GB requirements after learning from past tolerance disputes on Saudi boiler projects. Custom cutting, beveling, and bending services eliminate secondary processing costs at your workshop. Professional heavy-cargo logistics team handles thick-wall pipe loading to prevent container damage and overweight penalties.
Documentation & Compliance
- Mill test certificate documenting ASTM A106 Gr.B chemical composition (C, Mn, Si, P, S) and mechanical properties (tensile strength, yield strength, elongation) per heat number
- Original mill certificate with ultrasonic testing results for thick-wall pipe above 25 mm WT
- ISO 9001:2015 quality management certificate covering seamless pipe supply and processing
- SGS or BV third-party inspection report available before shipment for projects requiring independent verification
- Material traceability sheet linking each pipe to specific heat number, rolling date, and original mill
- Export documentation including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery
- Seamless pipe bundled with steel strips and edge protectors to prevent surface damage during ocean transit, with heat number stenciled on each bundle
- Thick-wall pipe above 40 mm WT loaded on flatbed trailers or open-top containers to avoid overweight penalties and facilitate port handling
- Beveled-end pipe protected with plastic caps on both ends to preserve welding preparation geometry during transport
- Custom cutting to specified lengths (6m, 9m, 12m or random) with length tolerance marked on each piece
- FOB, CIF, or DDP shipping terms available with professional break-bulk experience for heavy-wall pipe exceeding container weight limits
- Full export documentation provided including mill test certificate, packing list, and certificate of origin for destination customs
Requesting Quotation and Mill Test Certificate
Submit your ASTM A106 grade requirement, outer diameter, wall thickness, quantity, and destination port to receive detailed quotation within 12 hours, including material cost, processing fees for cutting or beveling, and shipping terms. We provide original mill test certificate for your review before shipment confirmation, ensuring chemical composition and mechanical properties meet your project specification.
Get Your ASTM A106 Quote With Full MTC
Send your specification to admin@xjyplate.com or WhatsApp +86 188 5315 7756 for pricing and mill test certificate review.
Frequently Asked Questions
Q: What is the grade equivalence between ASTM A106 Gr.B, 20#, and API 5L Gr.B?
A: ASTM A106 Gr.B, 20# (GB/T 8163), and API 5L Gr.B share similar carbon and manganese ranges, but differ in testing requirements. ASTM A106 requires elevated-temperature tensile testing for boiler service, while API 5L focuses on hydrostatic testing for pipeline applications. We provide full equivalence documentation showing chemical composition overlap and mechanical property differences for your specification review.
Q: How do you verify mill test certificates and prevent forged documents?
A: Every ASTM A106 pipe we supply carries original mill test certificate with heat number, chemical composition, and mechanical properties traceable to the producing mill. The heat number is stenciled on each pipe and matches the MTC. Third-party inspection by SGS or BV is available before shipment for independent verification.
Q: Can you cut and bevel seamless pipe to custom lengths and end preparations?
A: Yes, we provide plasma cutting, flame cutting, and machining services to cut ASTM A106 pipe to specified lengths and prepare beveled ends per API 5L or custom welding preparation drawings. This eliminates secondary processing costs at your workshop and ensures dimensional accuracy for field installation.
Q: What is the difference between hot-rolled and cold-drawn seamless pipe for pressure applications?
A: Hot-rolled ASTM A106 pipe delivers as-rolled black surface with mill scale, suitable for most high-temperature boiler and steam applications where surface appearance is secondary. Cold-drawn pipe offers tighter dimensional tolerance and smoother surface finish, preferred for hydraulic cylinders and precision machining applications. Both maintain full ASTM A106 chemical and mechanical compliance.
Q: How do you handle thick-wall pipe logistics to avoid container damage?
A: Thick-wall seamless pipe above 40 mm WT is loaded on flatbed trailers or open-top containers to prevent overweight penalties and facilitate port handling. We use professional heavy-cargo loading techniques with proper weight distribution and securing to prevent pipe movement during ocean transit. Break-bulk shipping is available for large-diameter, heavy-wall orders exceeding container capacity.
