Description
Direct Mill Supply, Full Traceability — Every ASTM A53 ERW carbon steel pipe ships with original mill test certificates and is invoiced by actual weight, eliminating hidden tolerance costs.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A53 ERW Carbon Steel Pipe |
| Product Type | ERW Welded Steel Pipe |
| Steel Grade | A53, A106, Q195, Q235, Q355, 10#, 45#, 16Mn, ST35, ST52 |
| Standard | ASTM A53, ASTM A106, API 5L, ASME B36.10M, GB/T 3091, GB/T 9711 |
| Section Shape | Round |
| Outer Diameter | 10–2000 mm |
| Wall Thickness | 3.4–200 mm |
| Length | 1–12 m (standard 6 m / 12 m) |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot Rolled / Black / Oiled or Non-oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Threaded |
| Application | Fluid transport, boiler pipe, gas & oil pipeline, structural applications |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Transmission pipelines, gathering lines, refinery process piping |
| Construction | Building frames, scaffolding tubes, structural columns |
| Petrochemical | Heat exchanger tubes, boiler feed lines, chemical process piping |
| Infrastructure | Bridge handrails, highway signpost foundations, drainage systems |
| Manufacturing | Hydraulic cylinder barrels, conveyor rollers, machinery shafts |
What Wall-Thickness Tolerance Costs on a Structural Frame Order
A ±1% tolerance on ASTM A53 ERW carbon steel pipe means the difference between passing inspection and scrapping an entire batch.
I once watched a shipment of ERW pipes get rejected at an African port because the buyer’s engineer measured wall thickness with a caliper and found deviations far beyond acceptable limits. The entire container was returned. That kind of failure doesn’t just cost freight — it delays projects by weeks and destroys supplier credibility. When sourcing ASTM A53 ERW carbon steel pipe for load-bearing structures or pressure systems, inconsistent wall thickness creates weld fit-up problems, reduces load capacity, and triggers re-inspection costs. [NEED_CITE: ASTM A53 dimensional tolerance requirements for ERW pipe]
Matching ERW Pipe Dimensions to Pipeline and Structural Loads
ASTM A53 ERW carbon steel pipe covers outer diameters from 10 mm to 2000 mm and wall thicknesses from 3.4 mm to 200 mm, making it suitable for everything from small-bore instrument lines to large-diameter structural columns. The ERW welding process produces a clean, consistent weld seam that meets the requirements of ASTM A53 Grade B for general fluid transport and structural applications. For high-temperature service, A106 Grade B or C provides equivalent performance with better creep resistance. We supply both black (oiled) and hot-rolled surface conditions, allowing buyers to choose based on whether the pipe will be painted, galvanized, or left bare in non-corrosive environments.
Engineering Compliance and Certification Requirements
Structural applications demand compliance with ASME B36.10M for dimensional standards and ASTM A53 for material properties. When exporting to Europe, buyers often request CE certification under EN 10219 or EN 10217 for pressure purposes. Our ASTM A53 ERW carbon steel pipe carries ISO 9001:2015 quality management certification and Lloyd’s CE marking, ensuring smooth customs clearance across major markets. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerances] For pressure vessel and boiler applications, A106 Grade B/C or ST35–ST52 grades meet ASME Section II requirements. Custom cutting to project-specific lengths — from 1 m to 12 m — reduces on-site welding and secondary processing costs.
Understanding ERW Welding Process and Grade Selection
The ERW (Electric Resistance Welded) process forms pipe by rolling steel strip into a cylinder and fusing the edges using electrical resistance heat — no filler metal is added. This produces a uniform weld seam with mechanical properties matching the base metal. ASTM A53 covers two grades: Grade A (lower carbon, better formability) and Grade B (higher strength, most common for structural and fluid service). For high-temperature applications above 400°C, ASTM A106 Grade B or C is specified due to improved creep performance. API 5L grades (such as X42, X52, X60) are used for oil and gas transmission pipelines where higher yield strength and stricter chemical composition controls are required. The Q-series (Q235, Q355) and 16Mn grades serve domestic Chinese projects and are equivalent to S235/S355 and ASTM A572 respectively. [NEED_CITE: steel grade equivalence between ASTM A53 and EN 10025]
Hidden Costs of Sourcing Unverified ERW Pipe
Purchasing ASTM A53 ERW carbon steel pipe without original mill test certificates creates three categories of hidden cost: material substitution risk (receiving lower-grade steel invoiced as higher grade), dimensional non-compliance (wall thickness below minimum tolerance causing structural rejection), and customs delays (missing or forged documentation triggering port inspections). [NEED_CITE: mill test certificate verification procedures for steel imports] These costs compound when pipes are already cut, welded, or coated — rework expenses can exceed the original material cost by several multiples.
Why Engineers Source ASTM A53 ERW Carbon Steel Pipe from XJY Plate
We operate as a dedicated plate and coil division under Shandong Xin Jiyuan Special Steel Tube Co., Ltd, giving us direct mill access without broker markups. Every ASTM A53 ERW carbon steel pipe ships with an original mill test certificate showing heat number, chemical composition, and mechanical properties — fully traceable back to the steelmaking batch. Our facility maintains ready stock across common OD and wall thickness combinations, reducing lead times for urgent project requirements. We offer custom cutting to length, beveling, threading, and blanking services, eliminating the need for buyers to coordinate multiple processors. Third-party inspection by SGS or BV is available before shipment for buyers requiring independent verification. Our logistics team specializes in heavy cargo — flatbed, open-top container, and break-bulk shipping — ensuring pipes arrive without damage or overweight penalties.
Documentation & Compliance
- Mill test certificate documenting A53 Grade B chemical composition (carbon, manganese, phosphorus, sulfur) and mechanical properties (yield strength, tensile strength, elongation) per ASTM A53
- CE certificate confirming compliance with EN 10219 structural hollow sections or EN 10217 pressure purposes as applicable
- ISO 9001:2015 quality management system certificate covering procurement, processing, and inspection
- SGS or BV third-party inspection report verifying dimensional accuracy, surface quality, and weld seam integrity
- Material traceability sheet linking each pipe to its heat number and original mill rolling schedule
- Export customs documents including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

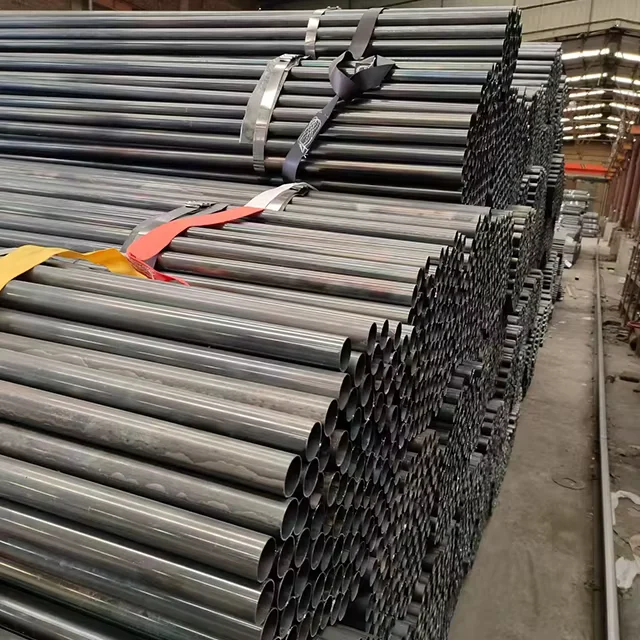

- ASTM A53 ERW carbon steel pipe bundled with steel strips and edge protectors to prevent surface damage during ocean transit
- Black (oiled) pipes wrapped in waterproof paper or plastic sleeves to prevent rust formation during storage and shipping
- Custom-length pipes (1–12 m) loaded into open-top containers or flatbed trailers optimized for weight distribution and port handling
- Heat number and steel grade stenciled on each pipe end for on-site identification and traceability
- FOB, CIF, and DDP shipping terms available with full export documentation and tracking until arrival
- Break-bulk shipping arranged for large-diameter pipes exceeding container dimensions
Request Quotation with Mill Test Certificate
Submit your required steel grade (A53, A106, API 5L, Q235, Q355), outer diameter, wall thickness, length, and destination port to receive a detailed quotation including material cost, processing fees, and shipping terms. We respond within 12 hours with original mill test certificate samples and dimensional reports for your verification.
Get Your ASTM A53 ERW Pipe Quote with Full Traceability
Send your specifications to admin@xjyplate.com or contact us via WhatsApp at +86 188 5315 7756 to receive pricing, mill test certificates, and delivery schedules.
Frequently Asked Questions
Q: What is the difference between ASTM A53 and ASTM A106 for ERW carbon steel pipe?
A: ASTM A53 covers general purpose pipe for mechanical and pressure applications, while ASTM A106 is specifically designed for high-temperature service. A106 Grade B and C have stricter chemical composition controls and better creep resistance above 400°C. Both are available in ERW process from our facility.
Q: How do you verify mill test certificates and what third-party inspection is available?
A: Every shipment includes an original mill test certificate showing heat number, chemical composition, and mechanical properties. We can arrange SGS or BV third-party inspection before shipment to verify dimensional accuracy, surface quality, and weld seam integrity at our facility.
Q: What is the minimum order quantity for custom-cut lengths?
A: The MOQ is 1 Ton for standard lengths (6 m or 12 m). Custom cutting to specific lengths between 1 m and 12 m is available with no additional MOQ requirement, though processing fees may apply depending on complexity.
Q: What surface treatment options are available for different environments?
A: We supply black (oiled) pipes for indoor or painted applications, hot-rolled surfaces for structural use, and non-oiled condition for further processing. For corrosive environments, we can coordinate galvanizing or 3PE coating through partner facilities.
Q: How are large-diameter ERW pipes shipped for export?
A: Pipes with outer diameter exceeding container width are shipped via break-bulk vessel or flatbed trailer. Our logistics team specializes in heavy cargo loading with proper weight distribution and securing to prevent damage during ocean transit.
