Description
Factory-direct laser cutting — Every Carbon Steel Laser Cut Sheet is processed in-house with original mill test certificates and full heat-number traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Laser Cut Sheet |
| Product Type | Machined Steel Product |
| Steel Grade | Carbon Steel |
| Thickness Range | 3-20 mm |
| Process | Laser Cutting / Bending / Welding |
| Surface Treatment | Powder coating / Painting / Galvanizing / Polishing / Anodizing |
| Drawing Format | 3D / CAD / DWG / STEP / PDF |
| Material Compatibility | Carbon steel / Stainless steel / Aluminum / Galvanized steel / Cold-rolled steel |
| Application | Mechanical parts / Equipment housing / Structural components / Cabinet shell / Engineering accessories |
| MOQ | Small Orders Accepted |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mechanical Equipment Fabrication | Machine frames, gearbox housings, conveyor brackets, and motor mounting plates |
| Structural Components | Beam connection plates, gusset plates, base plates, and column brackets |
| Industrial Cabinet & Housing | Electrical enclosure panels, control box shells, switchgear housings, and server rack frames |
| Engineering Accessories | Anchor plates, flange adapters, pipe support saddles, and equipment skid components |
Tolerance Drift on Laser-Cut Carbon Steel Sheets Costs More Than the Cutting Fee
A 1 mm thickness deviation on a 20 mm plate can shift weld joint fit-up across an entire assembly, turning a clean fabrication into days of grinding and re-fixturing.
Procurement teams sourcing Carbon Steel Laser Cut Sheet OEM Custom Service often discover that thickness tolerance is the first variable to slip when suppliers cut corners on raw material selection. Plates arrive with hidden negative tolerance, causing CNC punch tools to misalign and laser focus points to drift — defects that only surface after welding begins. [NEED_CITE: laser cutting tolerance standards for structural steel plates] Beyond dimensional accuracy, missing or forged mill test certificates leave fabricators unable to verify heat numbers or chemical composition, creating traceability gaps that fail engineering audits.
Matching Cut Profiles to Structural and Cabinet Fabrication Demands
Carbon Steel Laser Cut Sheet OEM Custom Service covers the 3-20 mm thickness band where most structural brackets and cabinet shells sit. Laser cutting delivers kerf widths tight enough for interference-fit assemblies without secondary machining, while integrated bending and welding allow a single supplier to deliver finished sub-assemblies rather than loose blanks. Every sheet is traceable back to its original heat number, so weld procedure qualifications remain valid across the full production run.
Engineering Compliance and Surface Protection for Field Installation
Structural components cut from carbon steel plates must meet dimensional tolerances specified in fabrication codes, and connection plates require flat surfaces that hold bolt preload without shimming. [NEED_CITE: structural steel fabrication tolerance requirements for laser-cut plates] Surface treatment selection — powder coating for indoor cabinets, hot-dip galvanizing for outdoor structural brackets, or painting for general machinery — is coordinated with the cutting sequence so that weld zones remain free of coating contamination. Third-party inspection through SGS or BV confirms both dimensional accuracy and coating thickness before shipment.
Carbon Steel Grade Selection and Process Fundamentals
Carbon steel plates in the 3-20 mm range are typically supplied in grades such as Q235, Q345, and Q355, where the numerical designation reflects minimum yield strength class. Higher grades like Q355 offer greater load-bearing capacity for structural base plates and heavy equipment frames, while Q235 remains the default for non-critical cabinet shells and enclosures. Laser cutting handles all common carbon steel grades cleanly, with kerf quality maintained across thickness transitions. [NEED_CITE: carbon steel grade equivalence between GB and international standards] Surface treatment follows cutting — galvanizing provides sacrificial zinc protection for outdoor exposure, powder coating delivers uniform finish for indoor equipment housings, and painting offers cost-effective corrosion resistance for general industrial use. The choice between processes depends on service environment, expected coating life, and whether post-fabrication touch-up is feasible on site.
Hidden Costs of Incorrect Material Sourcing
Ordering Carbon Steel Laser Cut Sheet OEM Custom Service without verified mill test certificates exposes projects to material substitution risk — a Q235 plate stamped as Q355 will pass visual inspection but fail under structural load testing. [NEED_CITE: consequences of unverified steel grade in structural fabrication] Negative tolerance abuse means plates arrive thinner than specified, reducing section modulus and requiring redesign or reinforcement. Certification gaps cause customs holds on certified projects, while dimensional inaccuracy forces on-site rework that delays crane schedules and cascades through the construction timeline.
Why Fabricators and EPC Procurement Teams Source Here
Every Carbon Steel Laser Cut Sheet is cut from stock backed by original mill test certificates — no blended batches, no unverifiable material. Our in-house laser cutting, bending, and welding capabilities mean a single purchase order covers blanks through finished assemblies, eliminating coordination gaps between multiple vendors. Small order quantities are accepted without premium surcharges, supporting prototype runs and phased project deliveries. ISO 9001:2015 certification and CE compliance ensure documentation meets international project requirements, while SGS and BV third-party inspection provides independent verification for critical applications. Professional heavy cargo loading experience prevents the edge damage and coating scratches that plague poorly packed sheet metal shipments.
Documentation & Compliance
- Mill test certificate documenting carbon steel chemical composition and mechanical properties per original heat number
- ISO 9001:2015 quality management certificate covering laser cutting, bending, and welding processes
- CE certificate confirming compliance for structural and pressure-containing applications
- SGS or BV third-party inspection report verifying dimensional accuracy and surface treatment thickness
- Full material traceability by heat number linking each cut sheet to its original mill coil
- Export customs documents including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

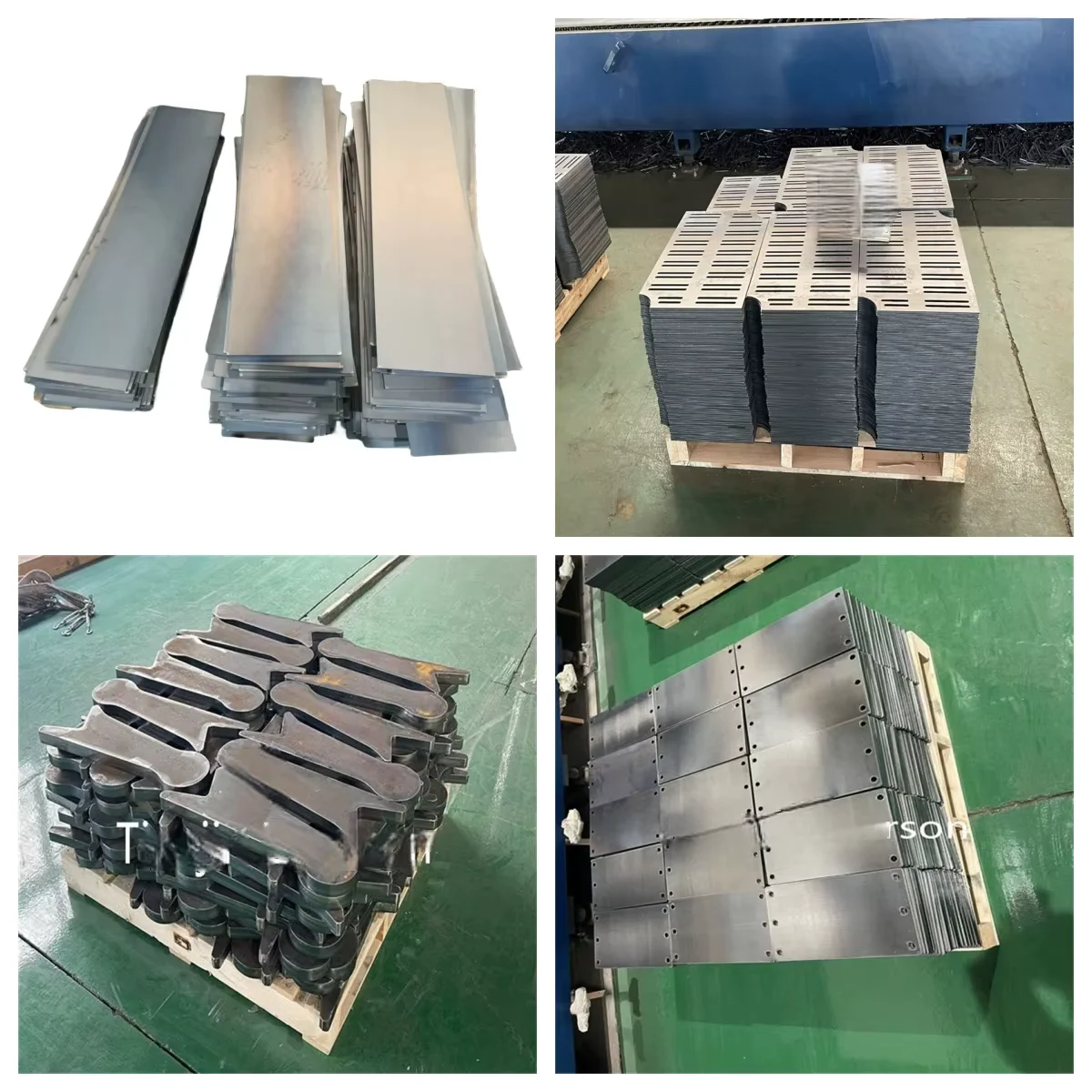

- Carbon steel sheets stacked with interleaved protective film and edge guards to prevent surface scratching during transit
- Finished parts with powder coating or galvanizing wrapped in waterproof paper and secured on fumigated wooden pallets
- Container loading optimized for 3-20 mm plate weight distribution, using dunnage and lashing to prevent shifting in open-top or flat-rack containers
- Custom cutting to drawing-specified dimensions reduces on-site waste and eliminates field cutting delays
- Each bundle marked with heat number, steel grade, thickness, and purchase order reference for site identification
- FOB, CIF, and DDP shipping terms available with professional heavy cargo logistics coordination
Start Your Carbon Steel Laser Cut Sheet Inquiry
Submit your drawing files in DXF, DWG, STEP, or PDF format along with material grade, thickness, quantity, and destination port to receive a detailed quotation including processing fees and shipping terms. Our team reviews specifications within 12 hours and provides original mill test certificates for your quality verification before production begins.
Request a Quote with Mill Test Certificate
Send your drawings and specifications to receive pricing and material documentation within 12 hours.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjyplate.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjyplate.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What drawing formats are accepted for custom laser cutting?
A: We accept DXF, DWG, STEP, PDF, and 3D CAD files. Our engineering team reviews each file for manufacturability and confirms cutting feasibility before production begins.
Q: What is the MOQ for custom laser cut sheet metal parts?
A: Small orders are accepted without minimum quantity restrictions, supporting both prototype development and phased project deliveries.
Q: What surface treatments are available for carbon steel laser cut parts?
A: Available options include powder coating, painting, galvanizing, polishing, and anodizing. Surface treatment is coordinated with the cutting sequence to maintain weld zone integrity.
Q: Can you provide mill test certificates and third-party inspection?
A: Yes, every order includes original mill test certificates with full heat-number traceability. SGS and BV third-party inspection is available for critical applications and certified projects.
Q: What is the lead time for OEM laser cutting orders?
A: Typical production lead times depend on order complexity and quantity. We confirm specific delivery schedules after reviewing your drawing files and specifications.
