Description

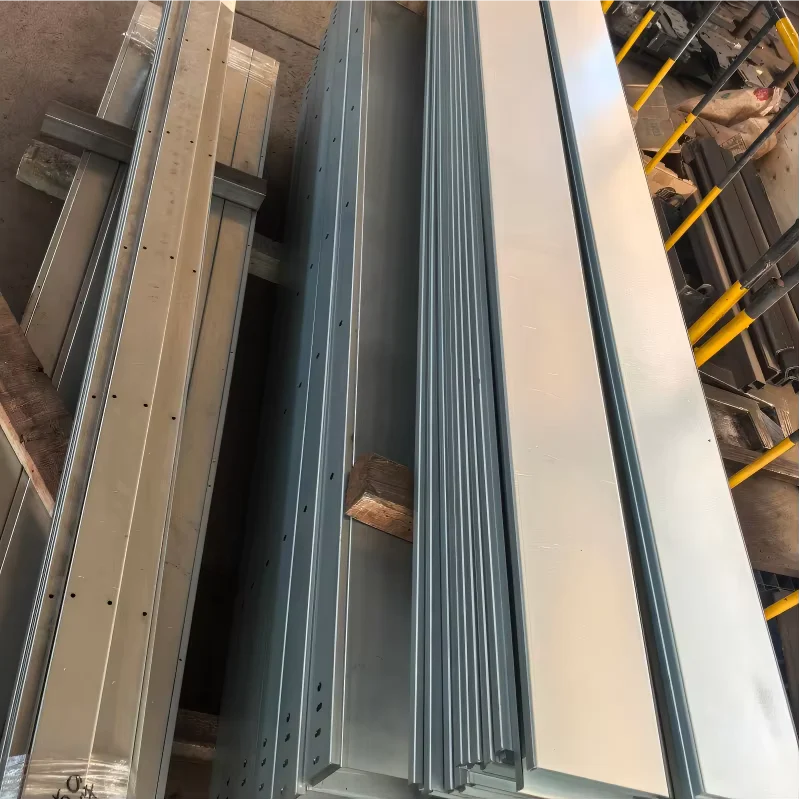

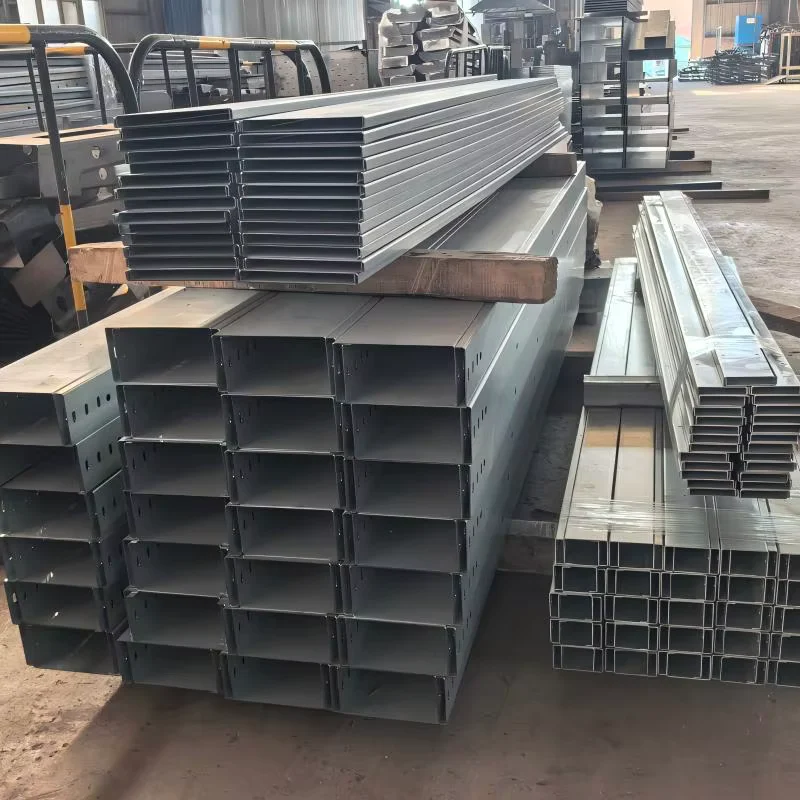

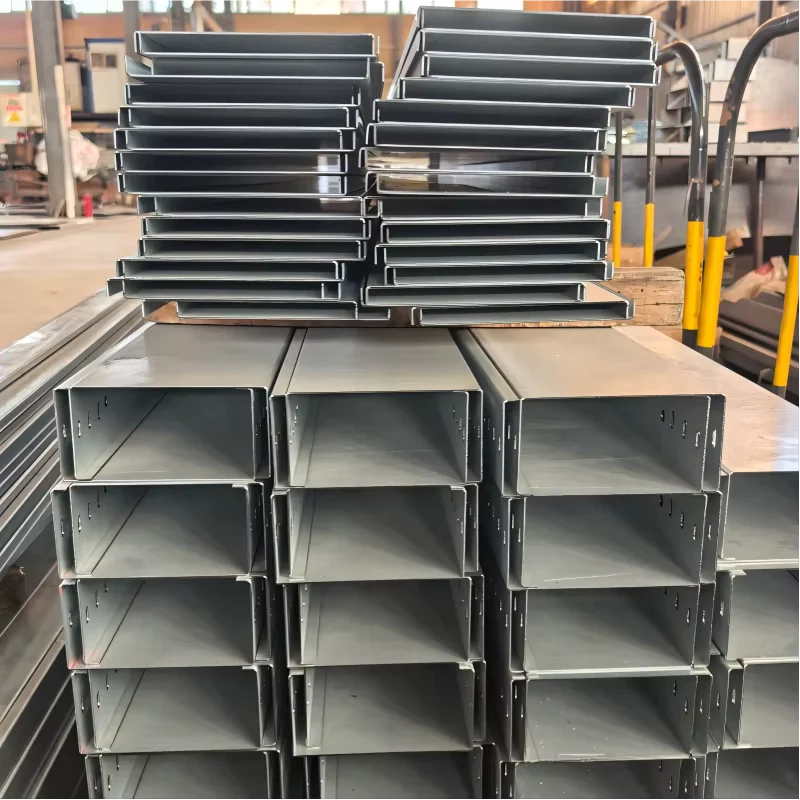

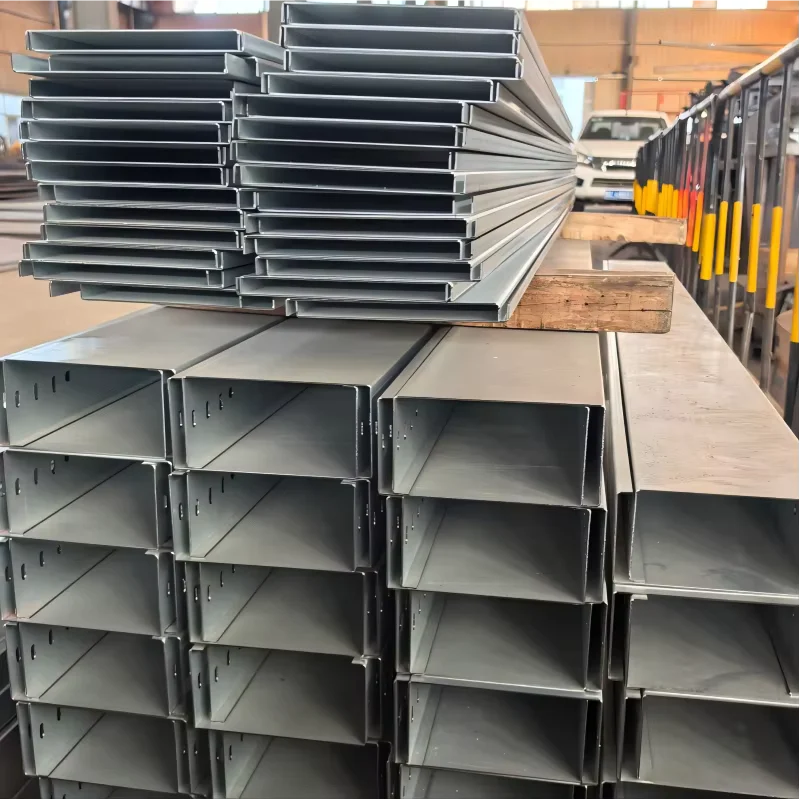

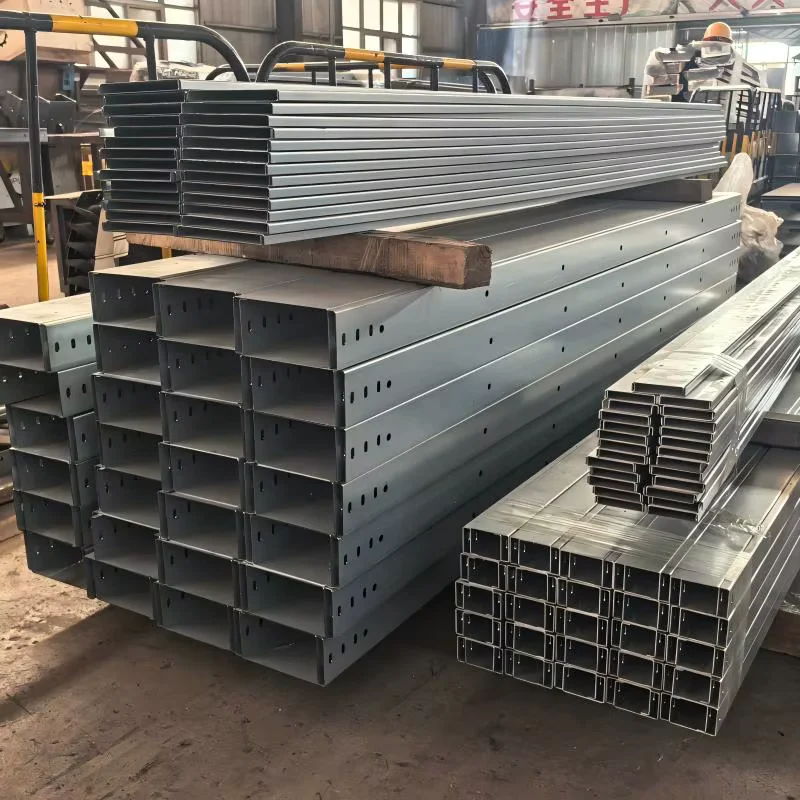

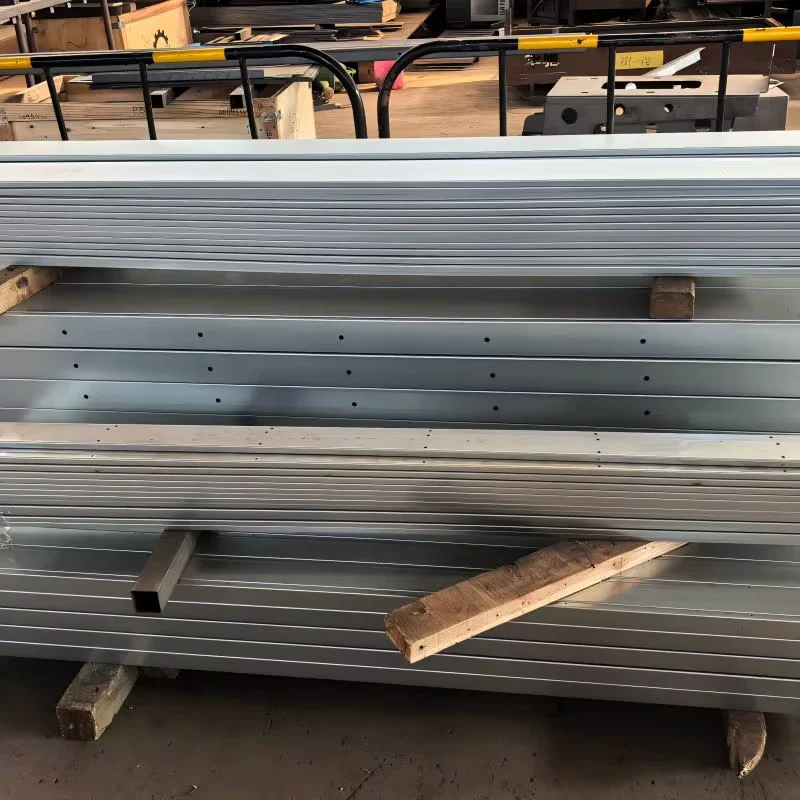

Carbon Steel Sheet Metal Fabrication OEM Custom Galvanized Structural Frame
Direct Factory Supply, No Middlemen — Every custom structural frame component is laser-cut, welded, and finished in-house, backed by original mill test certificates for full material traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Custom Galvanized Carbon Steel Structural Frame Components |
| Product Type | Machined Steel Product / Fabricated Steel Structure |
| Steel Grade | Carbon Steel, Stainless Steel, Aluminum, Copper, Alloy Steel |
| Thickness | 3 mm – 10 mm / customized |
| Surface Treatment | Powder coating, Oxidization, Electrophoresis, Galvanization |
| Process | Laser cutting, CNC punching & bending, Stamping, Welding |
| Size | Customized Size |
| Application | ATM machine, Mail box, Metal accessories, Structural frame components |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Equipment | Structural frame components for machinery bases, conveyor supports, and equipment enclosures |
| Self-Service Terminals | Outer housings and internal mounting frames for ATM machines and kiosks |
| Postal & Logistics | Weather-resistant mail box bodies and compartment frames |
| General Construction | Custom metal accessories, bracket assemblies, and connection plates for infrastructure projects |
What Tolerance Deviation Really Costs on a Custom Structural Frame Order
A ±0.2 mm laser-cut tolerance is not a luxury — it is the baseline for structural frame assembly without on-site rework.
When procurement teams source Carbon Steel Sheet Metal Fabrication OEM Custom Galvanized Structural Frame components from fragmented suppliers, cutting, welding, and surface treatment are often outsourced to separate workshops. Each handoff introduces cumulative tolerance stacking. By the time the frame reaches the assembly stage, bolt holes misalign, mating surfaces gap, and the entire unit must be re-drilled or returned. [NEED_CITE: tolerance stacking in multi-process steel fabrication] For overseas buyers, this means either absorbing costly rework at destination or scrapping the batch entirely — with no supplier willing to take responsibility.
Matching Precision Fabrication to Structural Frame Requirements
Custom structural frames for industrial equipment and self-service terminals demand tight dimensional control across multiple operations — laser cutting for profile accuracy, CNC bending for bracket geometry, and welding for joint integrity. When we produce Carbon Steel Sheet Metal Fabrication OEM Custom Galvanized Structural Frame components, each stage is verified against the original drawing before moving to surface treatment. This prevents the common scenario where a galvanized frame arrives with warped mounting flanges caused by uncontrolled welding heat input — a defect that only surfaces after coating, making correction impossible without stripping the zinc layer.
Engineering Compliance and Surface Treatment Selection
Structural frames operating in outdoor or humid environments require corrosion protection matched to the service condition. Galvanization provides sacrificial zinc protection ideal for mail boxes and outdoor equipment enclosures, while powder coating offers UV-resistant aesthetic finishes for indoor ATM housings. Electrophoresis delivers uniform coverage on complex geometries with recessed weld joints. [NEED_CITE: surface treatment selection for fabricated steel in corrosive environments] For projects requiring CE marking or third-party inspection for European and Middle Eastern markets, material certification and process documentation must accompany every shipment — not as an afterthought, but as part of the production release.
Steel Grade and Process Fundamentals for Fabricated Frames
Carbon Steel Sheet Metal Fabrication OEM Custom Galvanized Structural Frame components typically use low-carbon grades such as Q235 or Q345 for their balance of formability and weldability. These grades respond well to laser cutting without excessive heat-affected zone hardening, and accept galvanization coatings uniformly. When higher strength is required for load-bearing frame members, alloy steel grades such as Q460 or Q690 can be specified — though their increased carbon equivalent demands pre-heat treatment before welding to avoid cold cracking. Stainless steel and aluminum options serve applications where weight reduction or chemical resistance takes priority over structural load capacity. The 3 mm to 10 mm thickness range covers most frame member requirements, from light-gauge enclosure panels to heavy-duty structural brackets.
Hidden Costs of Sourcing Without Verified Material Traceability
Ordering fabricated structural components without original mill test certificates creates a cascade of downstream risks. Unverified steel grades may fail chemical composition checks during project inspection, triggering batch rejection. Negative tolerance abuse — where actual thickness falls below the specified 3 mm minimum — reduces load capacity and voids structural calculations. [NEED_CITE: negative tolerance practices in steel plate procurement] For Carbon Steel Sheet Metal Fabrication OEM Custom Galvanized Structural Frame shipments entering regulated markets, missing heat number traceability means customs holds, delayed project timelines, and potential liability exposure if structural failure occurs.
Why Procurement Teams Consolidate Fabrication and Finishing With Us
Our plate and coil division operates dedicated fabrication lines where laser cutting, CNC punching, bending, stamping, and welding are performed under one roof — eliminating tolerance accumulation from multi-vendor handoffs. Every Carbon Steel Sheet Metal Fabrication OEM Custom Galvanized Structural Frame order is backed by original mill test certificates with full heat number traceability, verified by our in-house理化 testing capabilities. We hold ISO 9001:2015 and CE certification, with SGS and BV third-party inspection available for projects requiring independent quality verification. Custom non-standard sizes and cut-to-length processing are handled without the minimum order constraints typical of large mills. Professional heavy cargo logistics — including flatbed, open-top container, and break-bulk shipping — ensures frames arrive without coating damage or dimensional distortion from improper loading.
Documentation & Compliance
- Mill test certificate documenting Carbon Steel chemical composition and mechanical properties per GB/T 700 or equivalent international standard
- CE certificate confirming compliance with European structural steel fabrication requirements
- ISO 9001:2015 quality management system certificate covering laser cutting, welding, and surface treatment processes
- SGS or BV third-party inspection report available for galvanized coating thickness and dimensional verification
- Full material traceability by heat number linking each frame component to its original mill test certificate
- Export documentation including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery
- Custom structural frames secured in steel-reinforced wooden crates with internal bracing to prevent shifting during ocean transit
- Galvanized surfaces protected with interleaving paper and edge guards to preserve zinc coating integrity at contact points
- Powder-coated and electrophoretic components wrapped in PE film with corner protectors to prevent surface scratching
- Mixed-material orders (carbon steel + stainless steel + aluminum) segregated by material type with clear identification labels
- Heat number and steel grade markings stenciled on each crate for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional flatbed and open-top container loading for oversized frame assemblies
How to Initiate Your Fabrication Inquiry
Submit your structural frame drawings specifying steel grade, thickness, dimensions, surface treatment preference, and destination port — we respond with a detailed quotation including processing fees, coating costs, and shipping terms within 12 hours. For non-standard geometries or multi-material assemblies, our engineering team provides DFM feedback to optimize laser cutting layouts and welding sequences before production begins. Confirm material certification requirements and third-party inspection needs upfront to ensure documentation aligns with your project compliance standards.
Frequently Asked Questions
Q: Can you provide material equivalence between GB, EN, ASTM, and JIS standards for carbon and alloy steel grades?
A: Yes. We supply steel grades including Q235, Q345, Q355, Q460, Q690, ASTM A36, A572, S235JR, S275JR, S355J2, and SS400, and can confirm equivalence mapping between national standards for your project specification compliance.
Q: What are the MOQ requirements for custom fabricated structural frame components?
A: We handle custom cutting and processing without the full-coil or full-plate minimum order constraints typical of large mills. MOQ depends on material grade, thickness, and processing complexity — contact us with your specifications for detailed requirements.
Q: How do you select between galvanization, powder coating, and electrophoresis for different service environments?
A: Galvanization provides sacrificial zinc protection for outdoor and humid environments; powder coating offers UV-resistant aesthetic finishes for indoor applications; electrophoresis delivers uniform coverage on complex geometries with recessed joints. We recommend the appropriate treatment based on your specific service conditions.
Q: What quality assurance documentation accompanies each shipment?
A: Every order includes original mill test certificates with full heat number traceability, dimensional inspection reports, and coating thickness verification. ISO 9001:2015 and CE certification are maintained, with SGS/BV third-party inspection available upon request.
Q: What is the typical production cycle for custom laser cutting and welding orders?
A: Lead time depends on material availability, processing complexity, and order volume. Standard specifications from ready stock ship faster; custom non-standard sizes require typical production lead times based on mill rolling schedules.
Request Your Custom Structural Frame Quotation
Send your drawings with steel grade, thickness, dimensions, surface treatment, and destination port to receive a detailed quotation with material certification within 12 hours.
