Description

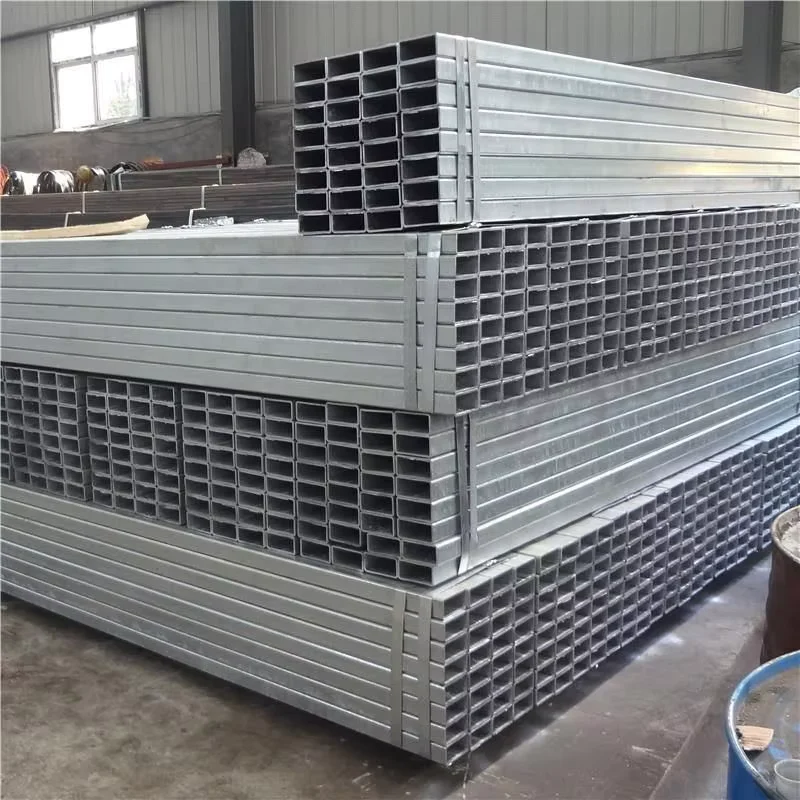

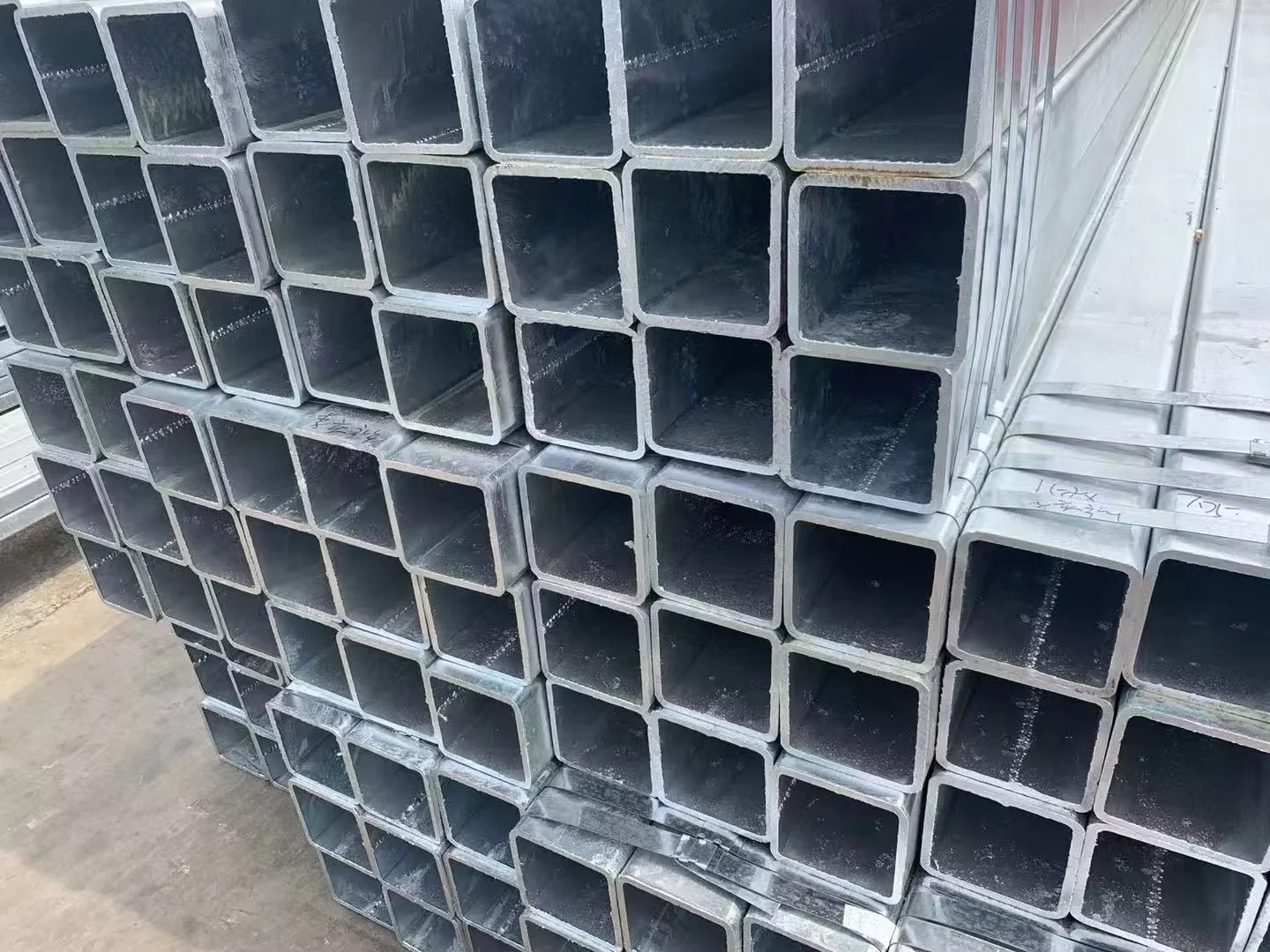

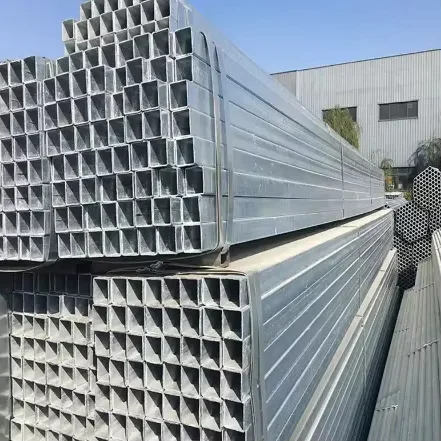

Factory-Direct Galvanized SHS/RHS — every heat number traceable to original mill test certificates for municipal water and gas transmission projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square and Rectangular Steel Tube |
| Product Type | Square and Rectangular Steel Tube (SHS / RHS) |
| Steel Grade | Q195, Q235, Q345, SS400, S235JR, S355JR, ASTM A500 Grade A/B/C, STK400, ST42.2 |
| Standard | ASTM A53, ASTM A500, ASTM A36, ASTM A795, BS 1387, EN 10255, ISO 65, ANSI C80, DIN 2440, JIS G3444, GB/T 3091, GB/T 13793 |
| Section Shape | Square / Rectangular |
| Size Range | 21.3 mm – 660 mm (1/2″ – 26″) |
| Wall Thickness | 6 mm (customizable) |
| Length | 5.8 m / 6 m / 11 m / 12 m or as required |
| Technique | Hot-dip Galvanized / ERW Welded |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Threaded / Grooved |
| Application | Fluid transport (water & gas transmission for municipal use) / Steel structures / Construction frames / Machinery parts / Scaffolding / Power & petrochemical / Building industry |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Infrastructure | Water supply mains, gas distribution networks, underground utility conduits |
| Construction & Structural | Building frames, column supports, roof trusses, mezzanine structures |
| Scaffolding & Access | Scaffolding uprights, cross braces, temporary support towers |
| Industrial & Petrochemical | Conveyor frames, machinery bases, pipe rack supports |
| Power & Energy | Solar mounting structures, substation frameworks, cable tray supports |
What Hidden Negative Tolerance Costs on a Municipal Gas Pipeline Order
A galvanized square or rectangular steel tube that fails thickness verification at the job site delays acceptance and forces full-batch replacement.
Municipal water and gas projects specify galvanized SHS/RHS because the zinc coating must survive decades of buried or exposed corrosion. Yet procurement teams frequently discover that the delivered wall thickness falls below the ordered nominal value — a practice known as negative tolerance abuse. When field inspectors pull a caliper on a 6 mm wall tube and read 5.2 mm, the entire lot becomes questionable. [NEED_CITE: EN 10219 dimensional tolerance requirements for cold-formed hollow sections] The galvanizing layer itself may be uneven, with thin spots at corners that rust through within months. Missing or forged mill test certificates compound the problem: without a verifiable heat number, there is no way to confirm chemical composition or mechanical properties. For a Galvanized Square and Rectangular Steel Tube supplier who controls the full chain from rolling to galvanizing, these risks are eliminated at the source.
Matching Municipal Water and Gas Pipeline Requirements
Municipal water and gas transmission networks demand galvanized tubes that maintain structural integrity under soil load, internal pressure, and long-term corrosion exposure. A Galvanized Square and Rectangular Steel Tube in Q235 or Q345 grade, hot-dip galvanized to a consistent zinc thickness across all faces and corners, meets the corrosion resistance needed for direct-burial and above-ground distribution lines. The ERW welding process produces a clean, uniform seam that does not compromise the zinc layer during galvanizing. Custom cutting to project-specific lengths — whether 5.8 m for trench sections or 12 m for long-span runs — reduces on-site welding joints and accelerates installation.
Engineering Compliance and Certification for Structural Use
Structural applications of SHS/RHS require compliance with recognized engineering frameworks. For European projects, EN 10219 governs cold-formed welded structural hollow sections, while EN 10210 covers hot-finished equivalents; CE marking under these standards is mandatory for customs clearance in EU member states. [NEED_CITE: CE marking requirements for structural steel hollow sections under EU Construction Products Regulation] North American specifications typically call for ASTM A500 Grade B or C, where the grade letter dictates minimum yield strength. Steel grade selection directly affects load-bearing capacity: Q345 and S355JR deliver higher yield points than Q235 or S235JR, making them suitable for primary structural members, while lower grades suffice for secondary framing and scaffolding. Dimensional tolerance of ±1% ensures that connection details — bolted flanges, welded joints, groove couplings — fit as designed without field rework.
Steel Grade Equivalence and Hot-Dip Galvanizing Process
Understanding grade systems prevents costly misorders. Q235 (GB) roughly corresponds to S235JR (EN) and ASTM A36 in yield strength range, while Q345 aligns with S355JR and ASTM A572 Grade 50. [NEED_CITE: steel grade equivalence mapping between GB, EN, and ASTM standards for structural hollow sections] Selecting the correct grade ensures the tube meets the structural engineer’s calculations without over-specifying material cost. The hot-dip galvanizing process immerses the ERW-welded black tube in molten zinc at approximately 450°C, forming a metallurgical bond that covers all external and internal surfaces. This zinc-iron alloy layer provides sacrificial corrosion protection far superior to electroplated or painted alternatives, especially at weld seams and cut edges where coating continuity matters most. Wall thickness tolerance of ±1% means the theoretical weight calculation matches the actual delivered weight — critical when projects are priced per ton and structural calculations depend on exact section properties.
The Real Cost of Procuring Non-Conforming Galvanized Tubes
Ordering a Galvanized Square and Rectangular Steel Tube based solely on the lowest unit price invites failures that dwarf the initial savings. Tubes with insufficient zinc coating thickness corrode prematurely at joints and corners, leading to maintenance calls or complete line replacement within years rather than decades. Wall thickness below the specified tolerance reduces load-bearing capacity, potentially triggering structural safety concerns during inspection. [NEED_CITE: consequences of negative tolerance in structural steel procurement] Missing mill test certificates mean the material cannot be verified against the specified grade — a deal-breaker for municipal projects requiring full traceability. Customs authorities in strict markets may detain or reject shipments lacking proper CE documentation or third-party inspection reports, causing port demurrage and project delays.
Procurement Assurance from Mill to Job Site
Every Galvanized Square and Rectangular Steel Tube shipped from our facility carries an original mill test certificate documenting chemical composition and mechanical properties for each heat number, verifiable against the production batch. Our in-house laboratory tests coating thickness, dimensional accuracy, and weld seam integrity before release. We stock a full range of side lengths from 21.3 mm to 660 mm across Q195, Q235, Q345, S235JR, and S355JR grades, enabling single-source procurement for mixed-specification municipal projects. Custom cutting, grooving, and end preparation are performed to project drawings, eliminating secondary processing at the job site. Third-party inspection through SGS or BV is available before loading, providing independent verification for discerning buyers. Professional heavy cargo loading — using flatbed trucks, open-top containers, or break-bulk vessels — ensures that long-length tubes arrive without bending damage or zinc coating abrasion.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q345/S355JR chemical composition, yield strength, and tensile properties per heat number, issued with each shipment
- CE certificate confirming compliance with EN 10219 / EN 10210 for structural hollow sections, required for EU market customs clearance
- ISO 9001:2015 quality management certificate covering the full production and inspection process for galvanized SHS/RHS
- SGS or BV third-party inspection report available upon request, verifying coating thickness, dimensional tolerance, and surface quality before loading
- Full material traceability linking each bundle to its heat number, production date, and original mill rolling record
- Complete export documentation including packing list, bill of lading, and certificate of origin for import customs clearance
Packaging, Loading & Delivery

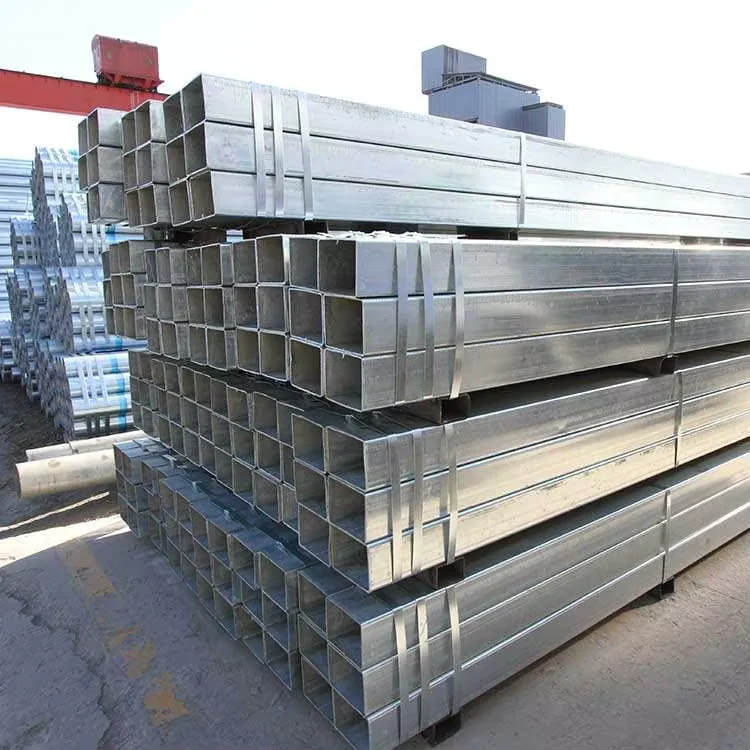

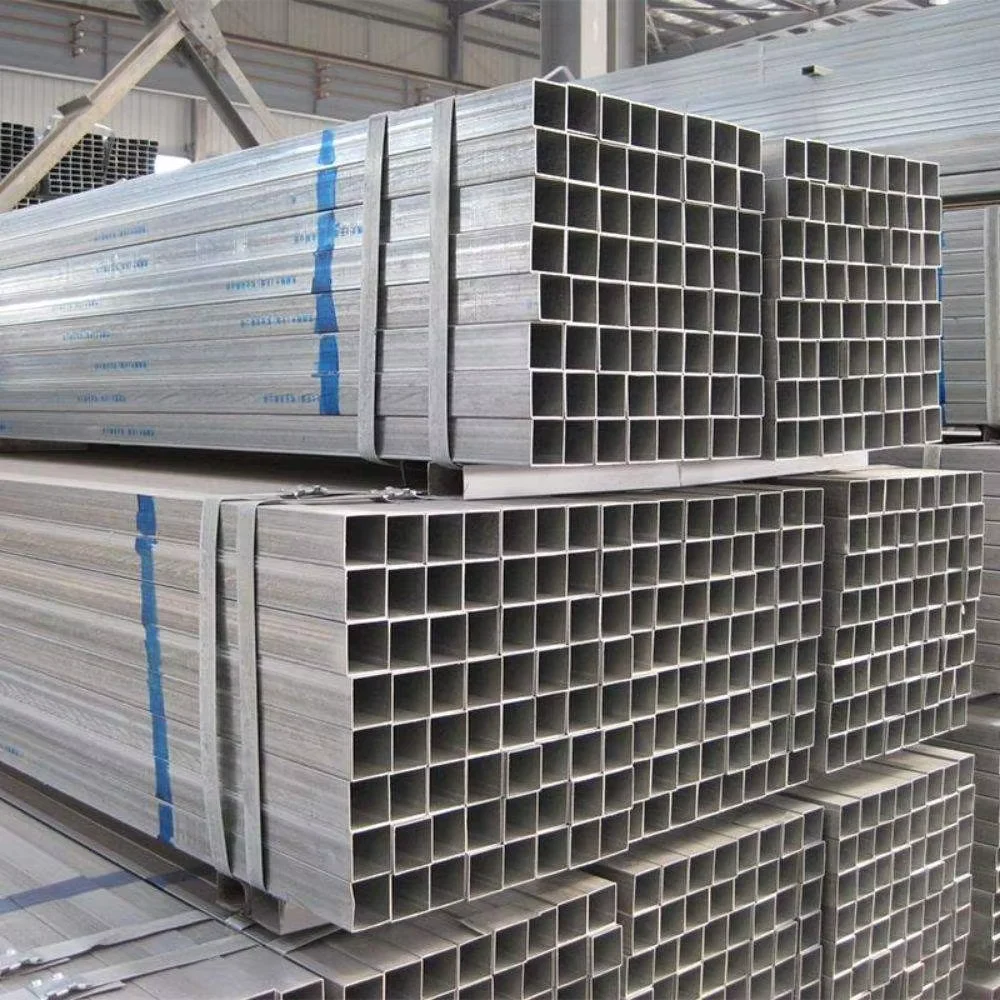

- Hot-dip galvanized SHS/RHS bundled with steel strips and edge protectors to prevent zinc coating damage from abrasion during transit
- Plastic end caps fitted on all tube ends to preserve beveled, threaded, or grooved finishes and prevent moisture ingress during ocean freight
- Open-top container or flatbed loading optimized for 6 m and 12 m lengths, with wooden cradles preventing contact between galvanized surfaces
- Custom cut-to-length tubes bundled separately with clear labels showing steel grade, size, heat number, and project reference
- Heat number and steel grade stenciled on each bundle for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional heavy cargo logistics including break-bulk for oversized orders
Securing Your Galvanized SHS/RHS Supply for the Next Project Phase
Submit your specification sheet — including steel grade, side length, wall thickness, quantity, and destination port — to receive a detailed quotation with material cost, processing fees, and shipping terms within 12 hours. We provide the original mill test certificate for your quality verification before shipment, and third-party inspection can be arranged at your request. For non-standard dimensions or mixed-size municipal orders, our team confirms feasibility and lead time against current stock and mill rolling schedules.
Get Your Galvanized Square and Rectangular Steel Tube Quote with Mill Test Certificate
Send your specifications to admin@xjyplate.com or contact us via WhatsApp at +86 188 5315 7756. Our team responds within 12 hours with pricing, certification documents, and delivery planning for your municipal water and gas transmission project.
