Description

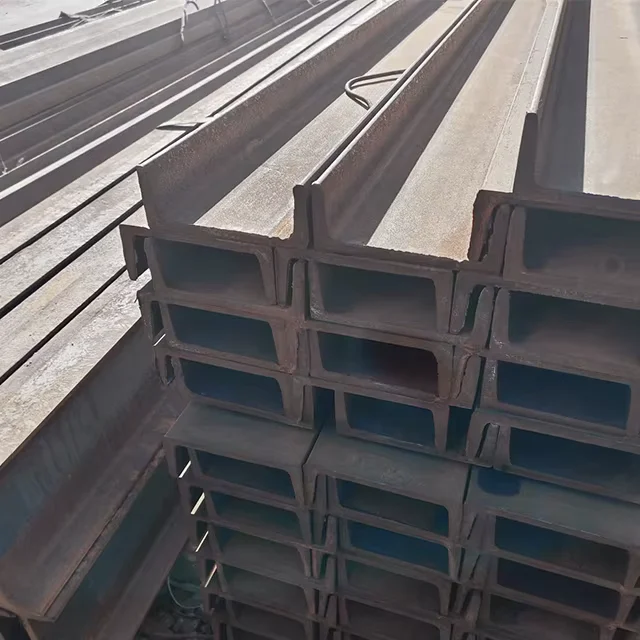

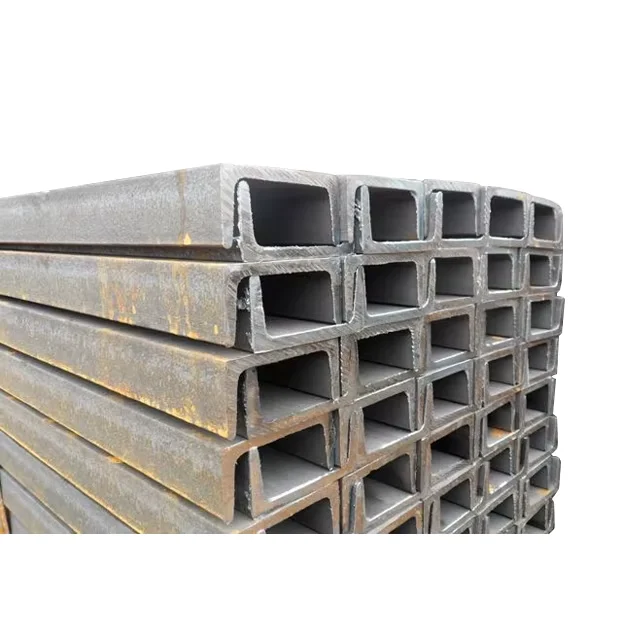

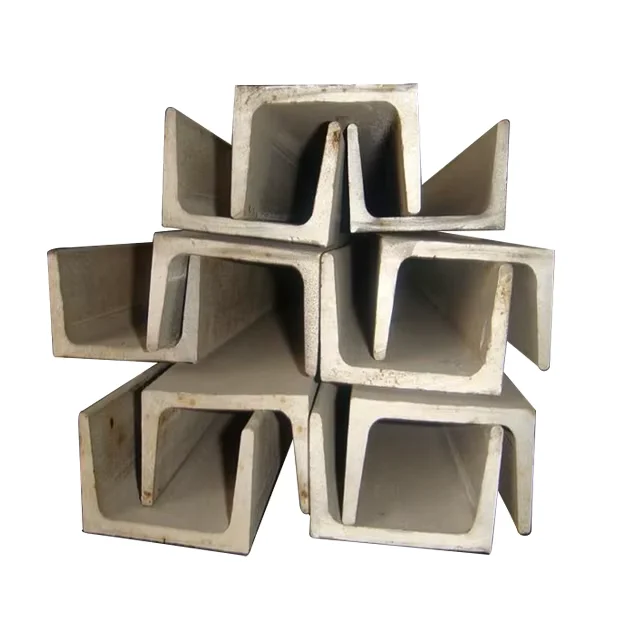

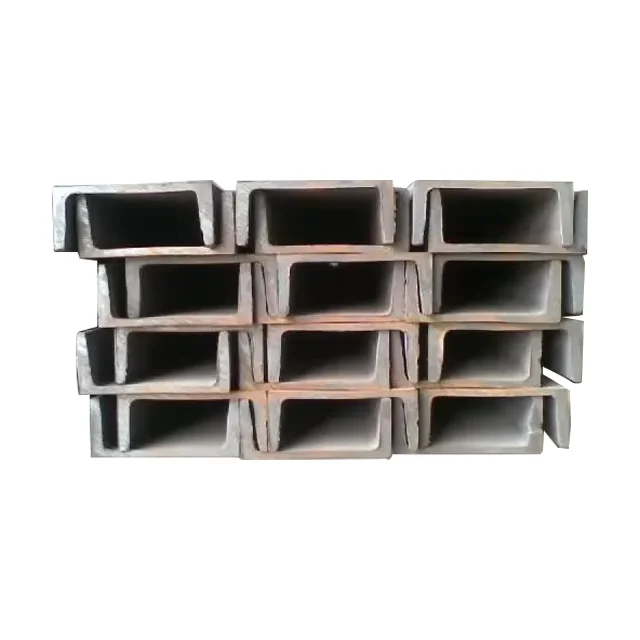

Factory-Direct Galvanized U Channel Supply — Hot-rolled Q235B and Q345B sections shipped with original mill test certificates from Shandong production base.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B / Q345B U Channel Steel |
| Product Type | U Channel Steel |
| Steel Grade | Q235B, Q345B, SS400, Q195–Q420 Series |
| Standard | GB, JIS, ASTM, AISI, EN, DIN |
| Section Shape | U Channel |
| Size Range | 50×25 mm – 400×102 mm (GB 10#–40#; JIS 50×25–250×90) |
| Thickness | 3–24 mm / customized |
| Length | 1–12 m / customized (standard 6 m, 12 m) |
| Technique | Hot Rolled |
| Surface Treatment | Galvanized |
| Tolerance | ±1% |
| Ends | Plain / as required |
| Application | Building structure, vehicle manufacturing, engineering structure, industrial structure |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Building | Portal frame purlins, mezzanine support beams, scaffolding bracing members |
| Vehicle Manufacturing | Truck chassis cross-members, trailer floor joists, equipment mounting rails |
| Industrial Infrastructure | Conveyor support frames, platform walkways, pipe rack secondary beams |
| Engineering Structures | Bridge approach slabs formwork supports, retaining wall stiffeners |
What Hidden Negative Tolerance Costs on a Galvanized U Channel Order
Actual weight invoicing eliminates the gap between theoretical tonnage and what arrives on site.
Procurement teams ordering galvanized U channels frequently discover that quoted prices look attractive — until the material arrives and fabrication drawings no longer match. Thickness deviations beyond ±1% force re-cutting, weld fit-up fails, and bolt holes misalign. Worse, when the galvanizing layer is thinner than specified, corrosion appears within months in outdoor or industrial environments. I have seen entire container loads held at destination ports because the mill test certificate could not be verified against the heat number stamped on each piece. A Competitive Price Galvanized U Channel Steel Supplier who invoices by actual weight and provides traceable chemistry reports removes this risk entirely. [NEED_CITE: mill test certificate verification requirements for structural steel imports]
How Hot-Rolled Galvanized U Channels Match Structural Frame Requirements
Galvanized U channels in Q235B and Q345B grades serve as secondary load-bearing members in portal frames, mezzanine floors, and industrial platforms. The hot-rolled process ensures uniform grain structure across the web and flange, while the galvanized coating provides corrosion resistance for outdoor exposure or humid factory environments. When paired with I-beams in building frames, the U channel acts as a purlin or girt, transferring lateral loads to the primary structure. Our processing line handles bending, punching, and cut-to-length for these channels, so fabricators receive ready-to-weld pieces rather than burning through galvanized coating on site. As a Competitive Price Galvanized U Channel Steel Supplier, we match each order to the specific grade and dimensional tolerance required by the structural engineer.
Engineering Compliance and Grade Selection for U Channel Applications
Structural engineers specifying U channels must confirm that the steel grade meets the relevant design code — Q235B for general construction under GB 50017, Q345B when higher yield strength is needed for longer spans or heavier loads. For projects targeting European or North American markets, grade equivalence becomes critical: Q235B aligns with S235JR and SS400, while Q345B corresponds to S355JR in EN and JIS systems. [NEED_CITE: steel grade equivalence between GB EN ASTM JIS standards] The ±1% thickness tolerance ensures that section modulus calculations remain valid during fabrication. Galvanized surface treatment meets ISO 1461 requirements for corrosion protection, and the coating thickness must be verified by magnetic gauge before shipment. Third-party inspection from SGS or BV confirms both dimensional accuracy and coating compliance, which customs authorities in the EU and Middle East increasingly demand. [NEED_CITE: EN ISO 1461 hot-dip galvanized coating thickness requirements]
Understanding Q235B vs Q345B and Hot-Rolled Galvanized Processing
The Q-series grading system designates yield strength in MPa — Q235B delivers adequate strength for standard building frames and light industrial structures, while Q345B provides roughly 40% higher yield for bridges, heavy equipment supports, and seismic-zone construction. Both grades are fully weldable using common MIG and stick processes, though Q345B requires preheat control on thicker sections above 20 mm. Hot rolling produces the U channel profile at temperatures above 900°C, refining the grain structure and ensuring consistent mechanical properties across the full 50×25 mm to 400×102 mm size range. Galvanizing follows the rolling and forming operations — the steel is cleaned, fluxed, and dipped in molten zinc at approximately 450°C, creating a metallurgical bond that resists chipping during transport and fabrication. For projects requiring tight dimensional control, the ±1% tolerance on thickness and width prevents cumulative errors when multiple channels are bolted or welded into assemblies.
The Real Cost of Wrong Grade or Missing Certification
Ordering U channels without verified mill test certificates creates a chain of hidden costs: customs delays at destination, rejected inspection reports, and in worst cases, structural failure under load. When a supplier substitutes Q235B for Q345B without disclosure, the section may deflect beyond allowable limits — a problem that surfaces only after cladding is installed. Negative tolerance practices that look like cost savings on paper translate into thinner webs and flanges that cannot carry the designed load. Galvanized coating below the specified thickness accelerates corrosion in coastal or chemical plant environments, forcing premature replacement. [NEED_CITE: structural steel traceability requirements for building code compliance] A Competitive Price Galvanized U Channel Steel Supplier who provides original MTC with heat number, chemical composition, and mechanical test results eliminates these risks before the first piece is cut.
Why Engineering Procurement Teams Source From Us

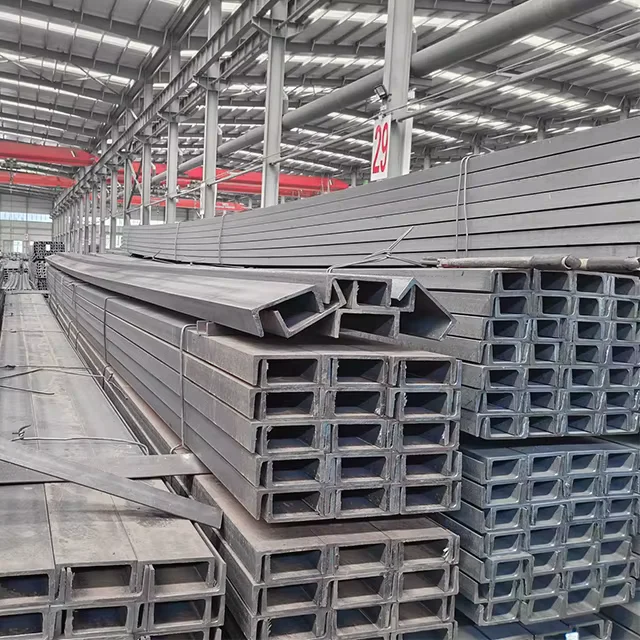

Our plate and coil division operates from a dedicated production base in Jinan, Shandong — one of China’s largest steel manufacturing clusters — giving us direct access to hot-rolled coil and plate inventory without trading margins. Every U channel order ships with an original mill test certificate traceable to the heat number, covering chemical composition and mechanical properties for Q235B, Q345B, or any grade in the Q195–Q420 series. We maintain stock across the full GB 10#–40# and JIS 50×25–250×90 size ranges, so custom cut-to-length orders of 1 to 12 meters can be processed and dispatched without waiting for mill rolling schedules. Our in-house processing line handles bending, welding, punching, and decoiling for U channels, delivering fabrication-ready pieces to your site. ISO 9001:2015 certification and third-party inspection from SGS or BV are standard on every shipment, and our logistics team specializes in heavy cargo loading — flatbed trucks, open-top containers, and break-bulk vessels — ensuring galvanized coatings arrive undamaged.
Documentation & Compliance
- Mill test certificate documenting Q235B or Q345B chemical composition and mechanical properties per GB/T 700 or GB/T 1591, with heat number traceability
- ISO 9001:2015 quality management certificate covering hot-rolled and galvanized U channel production processes
- SGS or BV third-party inspection report verifying dimensional tolerance, galvanized coating thickness, and surface quality before shipment
- Material traceability report linking each bundle to its original heat number, rolling schedule, and galvanizing batch
- Export customs documentation including packing list, bill of lading, and certificate of origin for destination port clearance
- Galvanizing compliance statement confirming coating thickness meets ISO 1461 requirements for the specified environment class
Packaging, Loading & Delivery
- Galvanized U channels bundled with high-tensile steel strips and edge protectors to preserve the zinc coating during ocean transit and handling
- Each bundle tagged with heat number, steel grade (Q235B/Q345B), size specification, and actual weight for site identification
- Custom cut-to-length pieces (1–12 m) packed separately with wooden end caps to prevent coating damage at cut edges
- Container loading optimized for U channel dimensions — 20ft containers for sections up to 5.8 m, 40ft open-top for 12 m lengths, with weight distribution calculated to avoid port overweight penalties
- FOB Jinan/Qingdao, CIF destination port, or DDP door-to-door delivery available, with full export documentation and real-time shipment tracking
- Galvanized surface inspected and lightly oiled if required for extended storage before installation
How to Request a Competitive Price Galvanized U Channel Steel Quote
Submit your specification sheet including steel grade (Q235B, Q345B, or equivalent), size range, thickness, length, total quantity, and destination port — we respond within 12 hours with a detailed quotation covering material cost, processing fees, and shipping terms. For custom cutting, bending, or punching requirements, share your fabrication drawings and we confirm feasibility and lead time. Original mill test certificates and third-party inspection reports are provided before or with shipment for your quality verification.
Get Your Galvanized U Channel Quote with Mill Test Certificate
Send your specification and quantity to receive pricing, MTC preview, and shipping options within one business day.
