Description
Full-Range Carbon Steel Coil Sourcing — Hot rolled and cold rolled coils from 0.13 mm to 4.0 mm thickness, 600–3000 mm width, shipped with original mill test certificates and ISO 9001:2015 / CE certification.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Coil Hot / Cold Rolled |
| Product Type | Steel Coil |
| Steel Grade | Carbon Steel (general grade) |
| Standard | AISI / ASTM / DIN / JIS / GB / SUS / EN |
| Thickness | 0.13–4.0 mm |
| Width | 600–3000 mm |
| Weight per Coil | 8–35 MT/Coil |
| Coil ID | 508 mm / 610 mm (or according to customer requirements) |
| Technique | Cold Rolled / Hot Rolled |
| Surface | Smooth / Patterned / Checker |
| Application | Construction / Mechanical Manufacturing / Automotive / Petrochemicals / Power Generation |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Building Material | Structural framing, roofing sheets, wall cladding, floor decking |
| Mechanical Manufacturing | Stamping blanks, machinery housings, conveyor frames |
| Automotive & Appliance | Body panels, chassis components, appliance shells |
| Petrochemical & Power Generation | Heat exchanger shells, chemical equipment tanks, ductwork |
| Agricultural Equipment | Grain silo panels, implement frames, trailer bodies |
What Hidden Negative Tolerance Costs on a Carbon Steel Coil Order
Actual gauge deviation beyond acceptable limits turns a cost-saving purchase into a fabrication rejection.
Buyers of carbon steel coils routinely encounter thickness sitting right on the negative tolerance edge — or worse, below it. When a 0.5 mm cold-rolled coil measures 0.46 mm across the entire batch, stamping parts fail dimensional specs and the container gets rejected at destination. Grade equivalence confusion between GB, ASTM, EN, and JIS systems compounds the problem, sending wrong material to the production floor. Missing or forged mill test certificates make it impossible to verify heat number, chemical composition, or mechanical properties before the steel hits the press. [NEED_CITE: steel coil thickness tolerance standards and measurement methods]
How This Carbon Steel Coil Range Matches Downstream Fabrication Lines
The 0.13–4.0 mm thickness span covers everything from thin-gauge cold rolled coils for appliance stamping to medium-gauge hot rolled coils for structural framing. Coil ID options at 508 mm and 610 mm — plus custom IDs on request — align with standard decoiler mandrels used in slitting lines and press feeds across Southeast Asian and Middle Eastern fabrication workshops. As a Custom Carbon Steel Coil Hot Cold Rolled Supplier, we match coil width and weight to your production run, avoiding the small-lot premiums that mills typically charge for cut-to-size orders. Surface choices — smooth for painting, patterned or checker for anti-slip flooring — let you source one material family across multiple end uses without splitting purchase orders.
Engineering Compliance and Grade Selection for Flat Steel Products
Structural applications require carbon steel coils that meet the chemical composition and mechanical property thresholds defined in EN 10219 for cold-formed sections or ASTM A572 for high-strength low-alloy structural steel. When your project specification calls for S235JR equivalence, the coil must carry a mill test certificate confirming carbon, manganese, and silicon levels within the EN 10025-2 envelope — not just a label claiming compliance. For corrosive environments, hot rolled pickled and oiled coils provide a baseline rust-prevention layer, while galvanized or color-coated variants extend service life without post-fabrication painting. Third-party inspection by SGS or BV before shipment verifies dimensional reports and flatness tolerance, giving your QA team documented evidence for project handover. [NEED_CITE: EN 10025-2 carbon steel grade chemical composition requirements]
Carbon Steel Grade Systems and Rolling Process Fundamentals
Carbon steel coils span three major grading systems: the Chinese Q-series (Q235, Q345, Q355), the European S-series (S235JR, S275JR, S355J2), and the American ASTM system (A36, A572). These are not interchangeable by name — Q345 and S355J2 share similar yield strength ranges but differ in impact testing temperature requirements and elongation minimums. Cold rolling reduces thickness below what hot rolling can achieve economically, producing tighter gauge tolerance and smoother surface finish suitable for exposed architectural panels and automotive outer panels. Hot rolled coils above 2.0 mm thickness remain the cost-efficient choice for structural framing where surface appearance is secondary to dimensional stability. The checker and patterned surface options serve specific functional roles — anti-slip flooring in industrial platforms and truck beds — where smooth cold rolled stock would create safety hazards. Negative tolerance practices vary by mill; some producers routinely roll 0.02–0.05 mm below nominal gauge to save yield, shifting the weight cost to the buyer who pays by theoretical weight but receives less steel. [NEED_CITE: carbon steel grade equivalence between GB ASTM EN JIS standards]
The Real Cost of Procuring Carbon Steel Coils Without Verified Documentation
Ordering carbon steel coils based on price alone, without requiring original mill test certificates with heat number traceability, exposes your project to three failure modes. First, customs authorities in the EU and GCC countries increasingly demand EN or ASTM certification documentation — coils without proper CE marking or test reports face clearance delays or rejection at port. Second, fabrication workshops that receive coils with inconsistent thickness across the width must slow press speeds, increase scrap rates, or reject entire batches, turning a material cost saving into a production loss. Third, structural applications where grade substitution goes undetected create latent safety risks that surface only during load testing or years after installation. Engineering specifications referencing EN 1993 or AISC standards require documented proof that the steel meets the specified grade — a commercial invoice stating “equivalent grade” carries no weight in a structural audit. [NEED_CITE: steel import customs documentation requirements for CE marking]
Why Source Your Carbon Steel Coils Through XJY Plate
Our plate and coil division operates as a dedicated flat steel supply channel, not a trading desk juggling unrelated product lines. Every coil ships with an original mill test certificate showing heat number, chemical composition, and mechanical properties — we do not re-issue or consolidate certificates from multiple sources. Custom cutting and processing capabilities include plasma and flame cutting, leveling, slitting, and blanking, so you receive material ready for your production line rather than paying a local service center for secondary operations. We maintain ready stock across common thickness and width combinations in both hot rolled and cold rolled finishes, reducing lead times for urgent project requirements. Professional heavy cargo logistics — flatbed transport, open-top container loading, and break-bulk shipping — handle the weight and dimension challenges that standard container operators struggle with. ISO 9001:2015 and CE certification back every shipment, with SGS or BV third-party inspection available at your request before loading.
Documentation & Compliance
- Mill test certificate documenting carbon steel chemical composition, yield strength, and tensile properties per ASTM A36 or EN 10025-2, with heat number traceability to the original slab
- CE certificate confirming compliance with EN 10219 cold-formed structural hollow section requirements for coils destined for European fabrication projects
- ISO 9001:2015 quality management certificate covering the entire coil processing and inspection workflow

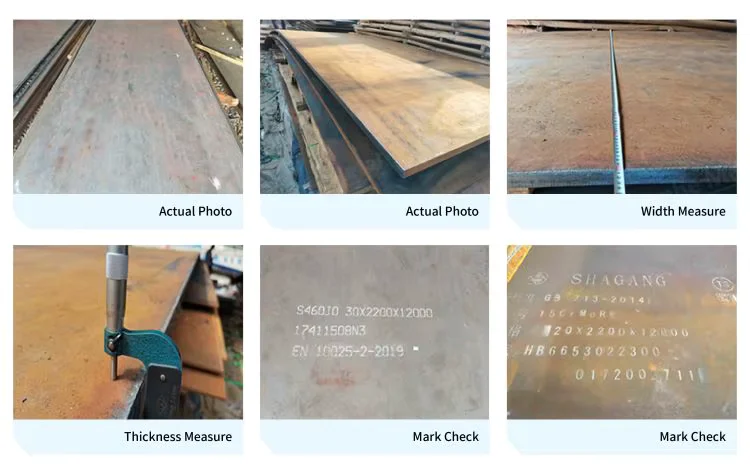

- SGS or BV third-party inspection report verifying actual thickness, width, flatness tolerance, and surface quality before shipment leaves the mill warehouse
- Material traceability documentation linking each coil to its heat number, rolling schedule, and test sample results
- Complete customs documentation package including packing list, bill of lading, and certificate of origin formatted for destination-country clearance requirements
Packaging, Loading & Delivery

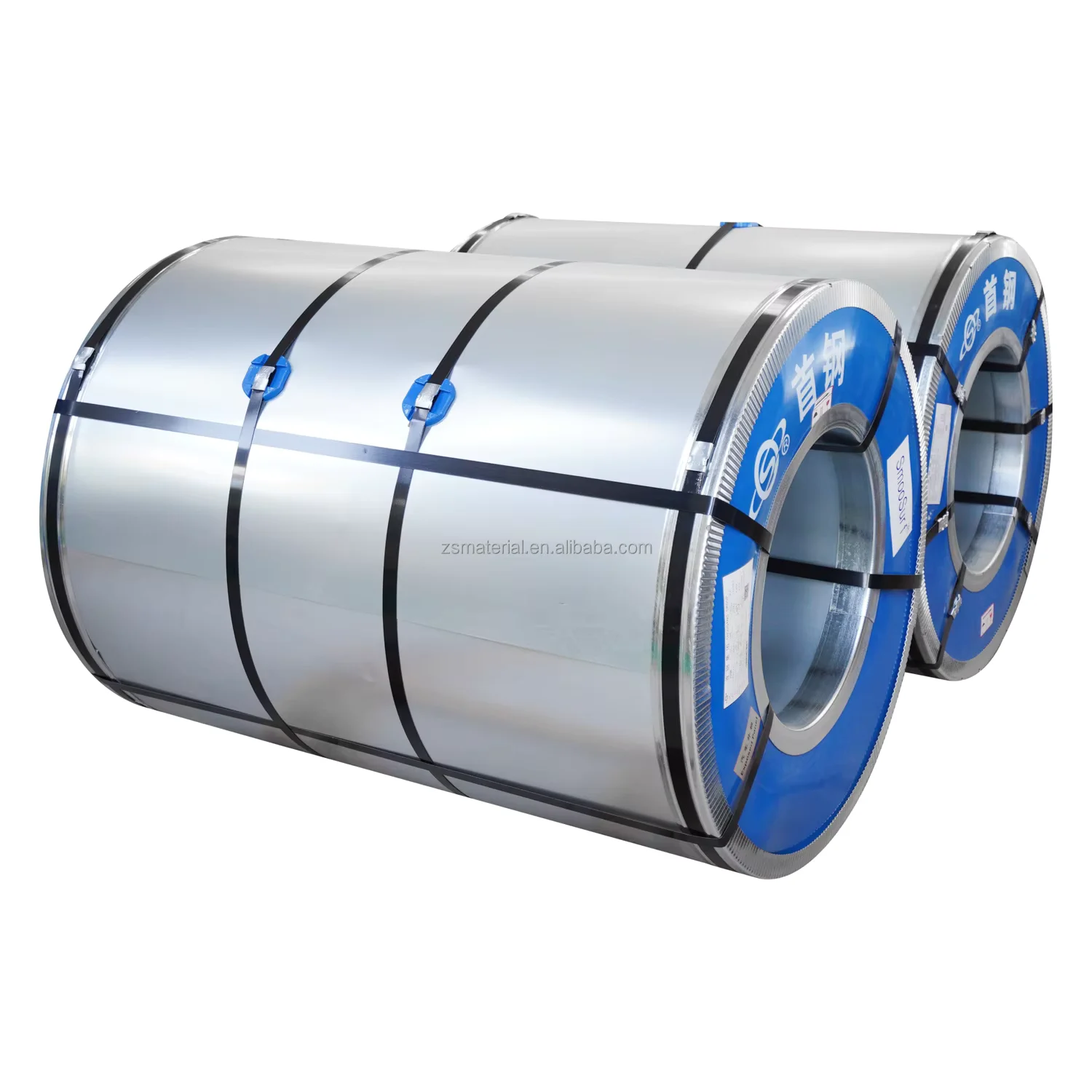

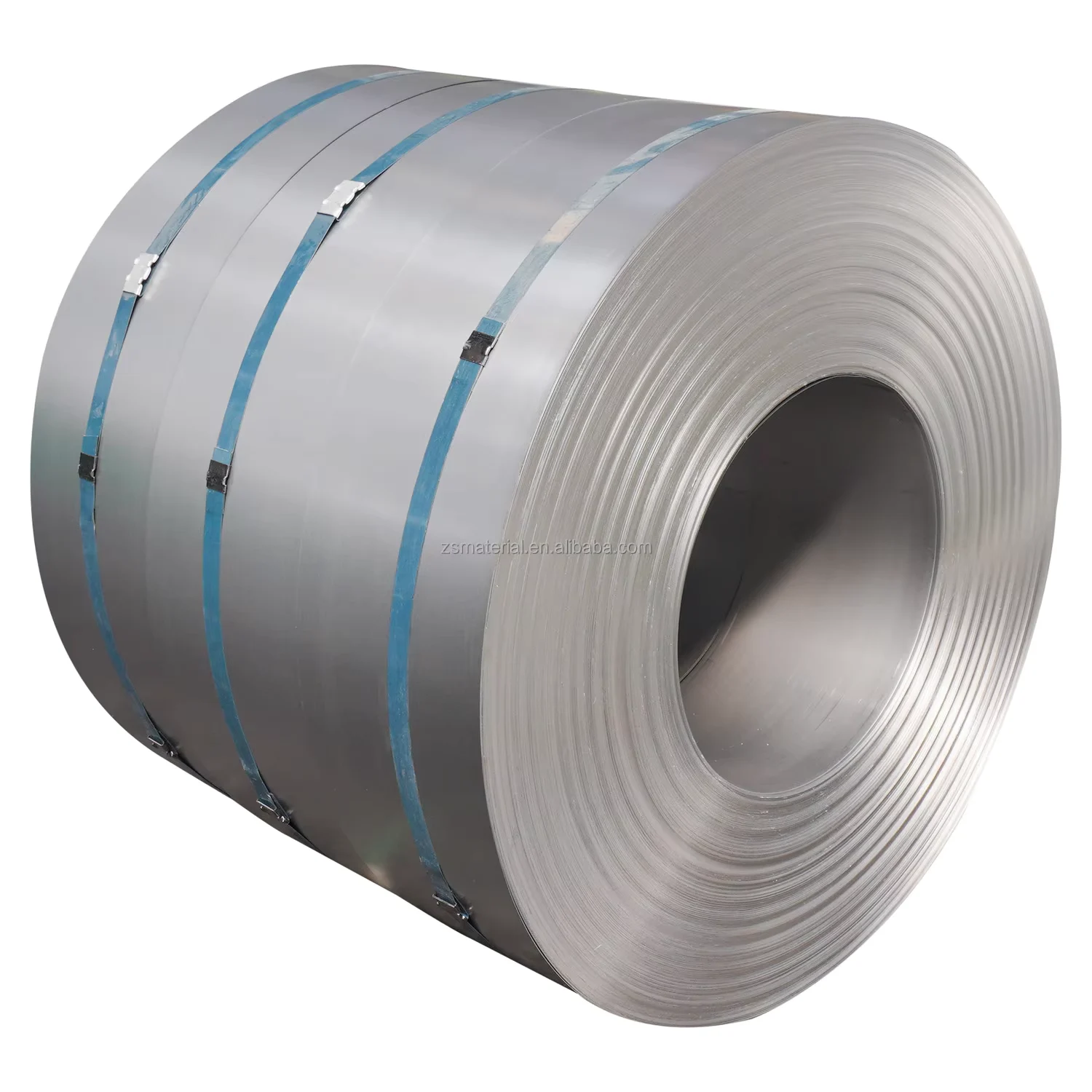

- Carbon steel coils bundled with three to four steel straps and edge protectors to prevent coil edge damage during ocean transit, with polyethylene wrapping for cold rolled surfaces to preserve finish quality
- Hot rolled coils shipped with rust-preventive oil coating and VCI paper interleaving for patterned and checker surface variants, protecting the raised pattern from corrosion during container dwell time
- Coil weight optimized at 8–35 MT per unit to maximize container payload without exceeding port crane capacity limits, with 508 mm and 610 mm ID coils loaded on cradles to prevent oval deformation
- Custom slit widths and cut-to-length sheets available for buyers who need specific dimensions rather than full coil purchases, reducing on-site waste and secondary cutting costs
- Heat number and steel grade stenciled on each coil ID and outer wrap, enabling warehouse identification without unrolling
- FOB, CIF, and DDP shipping terms available, with professional flatbed and open-top container loading experience for heavy coil transport to inland fabrication sites
Start Your Carbon Steel Coil Procurement With Verified Specifications
Submit your required steel grade, thickness, width, coil weight preference, and destination port — we respond within 12 hours with a detailed quotation including material cost, processing fees if applicable, and shipping terms. Request original mill test certificates and third-party inspection reports before committing to the order, ensuring the material meets your project specification and customs requirements.
Request Your Carbon Steel Coil Quote With Mill Test Certificate
Send your specifications by email or WhatsApp to receive a detailed quotation and sample mill test certificate within one business day.
