Description
Certified Mill Documentation with Customs Clearance Support — Every Hot Rolled Checkered Steel Plate ships with original MTC and third-party inspection reports for seamless import approval across global ports.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | A36 SS400 Q235B Q345 Q355 S275JR Hot Rolled Checkered Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | A36, SS400, Q235B, Q345, Q355, S275JR |
| Standard | ASTM A36, JIS G3101 (SS400), GB/T 700 (Q235B/Q345/Q355), EN 10025 (S275JR) |
| Section Shape | Diamond Pattern Checkered Plate |
| Thickness | 1.0mm–100mm |
| Width | 1000mm / 1200mm / 3000mm |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled (Diamond Pattern) |
| Application | Industrial flooring, stair treads, anti-slip platforms, truck bed lining, warehouse flooring, machinery covers |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Factory floor grating replacements, mezzanine walkways, equipment platform decking |
| Commercial Building | Stair treads in fire escapes, loading dock ramps, warehouse racking base plates |
| Transportation | Truck trailer bed flooring, container lashing rails, vehicle running boards |
| Infrastructure | Pedestrian bridge deck overlays, drainage trench covers, utility access platforms |
| Machinery & Equipment | Machine guards, conveyor side guards, heavy equipment access steps |
What Thickness Tolerance Costs on an Anti-Slip Flooring Order
Actual thickness deviation on checkered plate directly affects load-bearing capacity and installation fit.
Buyers sourcing Hot Rolled Checkered Steel Plate for industrial flooring often discover too late that the base metal thickness has been rolled to aggressive negative tolerance, leaving the diamond pattern height insufficient for anti-slip compliance. When a Southeast Asian warehouse project received plates where the substrate measured nearly a millimeter below nominal, the pattern height failed the local safety inspection — the entire batch had to be returned and re-rolled. This kind of tolerance gap doesn’t just delay projects; it creates structural uncertainty when engineers calculate load capacity based on nominal dimensions. [NEED_CITE: hot rolled steel plate thickness tolerance standards per ASTM A6]
How Diamond Pattern Geometry Matches Anti-Slip Engineering Requirements
The raised diamond pattern on Hot Rolled Checkered Steel Plate provides traction through physical surface interruption rather than chemical coating, making it suitable for wet or oily industrial environments where painted surfaces degrade. Pattern height and base thickness work together — the raised lugs must maintain sufficient projection above the base metal to channel water and debris away from foot contact points. For stair tread applications, the pattern orientation relative to walking direction affects slip resistance performance, which is why precise rolling control matters more than on flat plate. We verify pattern height on every cut piece before shipment, with photographic records tied to heat numbers in the mill test certificate.
Engineering Compliance for Checkered Plate in Structural Applications
Checkered plate used in load-bearing platforms must comply with structural steel specifications for the base metal grade, regardless of surface pattern. When specifying Hot Rolled Checkered Steel Plate for mezzanine flooring or industrial walkways, engineers reference the base metal’s yield strength and chemical composition per ASTM A36, EN 10025, or GB/T 700 — the diamond pattern is treated as a surface feature, not a structural element. [NEED_CITE: structural steel plate requirements for flooring applications per AISC guidelines] For projects in the European market, CE certification under EN 10025 ensures the steel grade meets harmonized standards for construction products, while ASTM A36 documentation satisfies North American building codes. Custom cutting to specific tread dimensions eliminates on-site welding and grinding, reducing secondary processing costs and maintaining pattern integrity at cut edges.
Steel Grade Selection Across International Standards
Hot Rolled Checkered Steel Plate is available in multiple grade systems to match project specifications without requiring cross-standard substitution. Q235B and Q345 from the Chinese GB system correspond roughly to S275JR and S355JR in the European EN system, while A36 from ASTM serves North American projects — all providing adequate yield strength for flooring and platform applications. SS400 from JIS G3101 is commonly specified for Japanese-designed industrial facilities in Southeast Asia. The hot rolling process ensures consistent mechanical properties through the plate thickness, with the diamond pattern formed during the final rolling pass using patterned work rolls. Thickness tolerance per standard hot rolling practice applies to the base metal measurement, excluding the pattern projection height.
Hidden Costs When Material Certification Falls Short
Procuring Hot Rolled Checkered Steel Plate without verified mill test certificates creates downstream risk that surfaces during inspection or customs clearance. Plates arriving without proper heat number traceability may be rejected by project inspectors, forcing costly delays while replacement material is sourced. [NEED_CITE: importance of mill test certificates for steel plate import compliance] Negative tolerance abuse — where actual thickness falls below minimum allowable deviation — reduces load capacity and can trigger structural recalculation requirements. For checkered plate specifically, insufficient pattern height due to excessive base metal thinning defeats the anti-slip function, creating safety liability in industrial environments.
Why Project Buyers Source Checkered Plate from XJY Plate
Every Hot Rolled Checkered Steel Plate leaving our facility carries an original mill test certificate with full heat number traceability, verified against our internal chemistry and mechanical property records. We maintain ready stock across common thicknesses from 3mm to 12mm in Q235B, Q345, and A36 grades, with wider widths up to 3000mm available for large platform layouts. Custom cutting service using plasma and flame equipment delivers pieces to exact project dimensions, with edge quality suitable for direct installation without secondary grinding. Our logistics team specializes in heavy cargo loading for steel plate, using open-top containers and proper weight distribution to prevent damage during ocean transit. Third-party inspection through SGS or BV is available for projects requiring independent verification before shipment. ISO 9001:2015 certification and CE marking ensure documentation meets international procurement standards.
Documentation & Compliance
- Mill test certificate documenting Q235B/Q345/A36 chemical composition and mechanical properties per GB/T 700 or ASTM A36, with heat number traceability
- CE certificate confirming Hot Rolled Checkered Steel Plate compliance with EN 10025 for European construction market entry
- ISO 9001:2015 quality management certificate covering plate processing and inspection procedures
- SGS or BV third-party inspection report verifying thickness, pattern height, and dimensional accuracy before shipment
- Material traceability documentation linking each plate to specific heat number, rolling schedule, and test results
- Export customs documents including packing list, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery

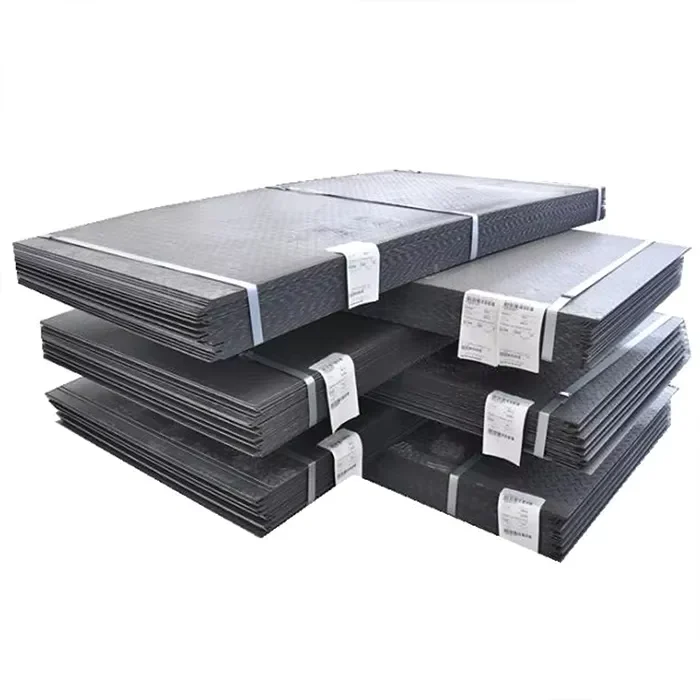

- Hot Rolled Checkered Steel Plate bundled with steel straps and edge protectors to preserve diamond pattern surface during handling and transit
- Anti-rust oil applied to plate surfaces before bundling, protecting Q235B and A36 grades from corrosion during ocean shipping
- Container loading optimized for plate dimensions — 1000mm and 1200mm widths fit standard 20ft containers, while 3000mm plates require open-top or flat-rack configuration
- Custom cutting to project-specified lengths eliminates on-site cutting waste and reduces total shipment weight
- Heat number and steel grade marked on each plate surface with paint stencil for site identification and inspection verification
- FOB, CIF, and DDP shipping terms available, with professional heavy cargo logistics handling port to site delivery
How to Request a Quotation for Checkered Plate
Submit your required steel grade, thickness, width, length, and quantity along with destination port to receive a detailed quotation including material cost, cutting fees if applicable, and shipping terms. We respond to inquiry within 12 hours with pricing and available mill test certificate documentation. For projects requiring custom dimensions or specific pattern height verification, provide drawing specifications and we will confirm feasibility with processing timeline.
Frequently Asked Questions
Q: What is the difference between nominal thickness and actual thickness for checkered plate?
A: For Hot Rolled Checkered Steel Plate, nominal thickness refers to the base metal measurement excluding the diamond pattern projection. Actual thickness may vary within standard rolling tolerance, typically allowing slight negative deviation. We provide actual thickness measurement records with each shipment, verified against your order specification.
Q: Can you provide mill test certificates for multiple steel grades in one order?
A: Yes, each steel grade in your order — whether Q235B, Q345, A36, SS400, or S275JR — receives its own mill test certificate documenting chemical composition and mechanical properties specific to that grade and heat number. All certificates are original documents from the producing mill.
Q: What is the minimum order quantity for custom-cut checkered plate?
A: We can process custom cutting for Hot Rolled Checkered Steel Plate with flexible minimum quantities. Standard stock sizes ship immediately, while custom dimensions require confirmation of plate availability and processing schedule. Contact us with your cutting list for specific MOQ guidance.
Q: How do you ensure pattern height meets anti-slip requirements?
A: We verify diamond pattern height on Hot Rolled Checkered Steel Plate during final inspection before shipment. Measurement records and photographs are available upon request, tied to heat numbers in the mill test certificate. If your project has specific pattern height requirements per local safety standards, provide the specification and we will confirm compliance before processing.
Q: What shipping method is best for large quantities of checkered plate?
A: For Hot Rolled Checkered Steel Plate orders exceeding container capacity, break-bulk shipping or flat-rack containers accommodate wide plates up to 3000mm width. Our logistics team calculates optimal loading configuration based on plate dimensions and destination, providing freight options with delivery timeline.
Request Your Hot Rolled Checkered Steel Plate Quotation Today
Send your specification including steel grade, thickness, width, length, quantity, and destination port to receive pricing with mill test certificate documentation within 12 hours.
