Description

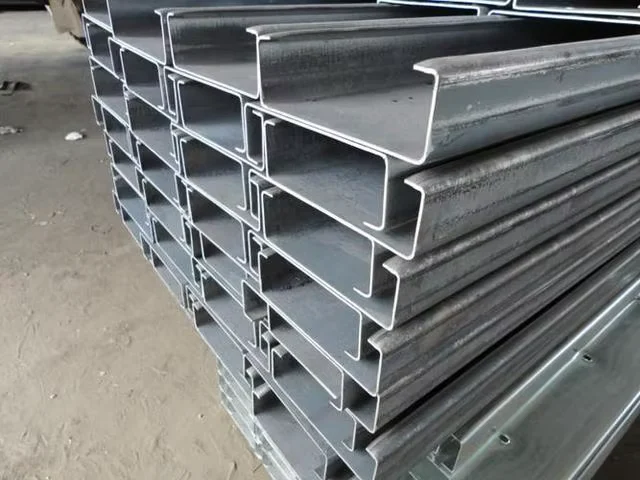

Factory-Direct GI C Channels — Every DX51D and S235JR profile ships with original mill test certificates, bypassing trading markups while maintaining full traceability from raw coil to finished section.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | DX51D / S235JR / ASTM A36 Galvanized C Channel Steel |
| Product Type | Galvanized C Channel / U Channel Steel |
| Steel Grade | DX51D, S235JR, ASTM A36, Q235, Q235B, Q345, Q195 |
| Standard | ASTM, AISI, JIS, GB, DIN |
| Section Shape | C Channel / U Channel |
| Size Range | Custom per customer request |
| Length | 1–12 m or customized |
| Technique | Hot Rolled / Cold Formed |
| Surface Treatment | Galvanized (GI) |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Punching, Decoiling, Cutting |
| Application | Construction structures, steel frame buildings, transmission towers, bridges, industrial platforms, warehouse shelving, container frames |
| MOQ | 3 Tons |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & EPC | Building frames, purlin systems, roof support structures, mezzanine platforms |
| Infrastructure & Energy | Transmission tower bracing, substation frameworks, solar mounting rails |
| Industrial Fabrication | Warehouse racking uprights, conveyor support frames, equipment bases |
| Logistics & Modular | Container frame cross-members, modular unit structural profiles |
Zinc Coating Consistency Determines Field Rework Costs
Inconsistent galvanized thickness is the single most expensive surprise on a structural steel delivery.
Project managers across Southeast Asia and the Middle East routinely encounter galvanized profiles where the zinc coating varies from 40 to 90 microns within the same bundle — or worse, within the same piece. Flange edges corrode within months while the web still looks acceptable. Third-party inspectors reject entire shipments. The Galvanized C Channel Steel Supplier who provides verifiable coating weight per ASTM A653 or EN 10346 eliminates this risk at the inquiry stage, not after the container arrives at site. [NEED_CITE: hot-dip galvanized coating thickness standards for structural steel]
Matching Section Geometry to Structural Load Paths
Galvanized C Channel Steel in DX51D serves primarily as secondary structural members — purlins, girts, and bracing — where formability and corrosion resistance matter more than raw load capacity. When the same project requires primary framing in S235JR or ASTM A36, sourcing both grades from one Galvanized C Channel Steel Supplier ensures consistent dimensional tolerance across the entire steel package. Our cold-forming lines hold ±1% on all critical dimensions, meaning site welders and bolters never chase mismatched holes or forced-fit connections.
Engineering Compliance Across Multiple Standard Systems
Projects spanning multiple jurisdictions demand steel that satisfies EN, ASTM, and GB requirements simultaneously. DX51D covers the forming and coating specification for light structural applications under ASTM A653, while S235JR meets EN 10025-2 for general structural use. ASTM A36 remains the baseline for North American-spec projects requiring documented yield and tensile properties. [NEED_CITE: steel grade equivalence mapping between EN 10025 and ASTM standards] Each shipment carries mill test certificates documenting chemical composition and mechanical properties per the relevant standard, enabling customs clearance and engineering sign-off without additional testing delays.
Understanding Grade Selection for Galvanized Profiles
DX51D is a commercial-quality forming grade designed for cold roll-forming into C and U channels, with a zinc coating applied after forming for complete surface coverage including bend radii. S235JR provides higher structural capacity for load-bearing frames where deflection limits apply. ASTM A36 serves the same function in the imperial standard system, widely specified by American engineering firms operating in the Middle East and Africa. Q235B offers cost-effective domestic-standard alternatives for projects without strict international certification requirements. The hot-dip galvanizing process bonds zinc metallurgically to the steel surface, providing sacrificial corrosion protection that outperforms paint systems in humid coastal and industrial environments. [NEED_CITE: hot-dip galvanizing process advantages for structural steel corrosion protection]
Hidden Costs of Unverified Galvanized Procurement
Purchasing galvanized channels without independent coating verification creates downstream liabilities that dwarf the initial price difference. Undersized zinc coatings fail accelerated weathering tests, triggering rejection at project handover. Negative tolerance beyond acceptable limits reduces section modulus below design assumptions, forcing structural engineers to issue change orders or condemn installed members. Missing heat numbers on mill certificates prevent traceability audits required by EN 10204 3.1 or project-specific quality plans. [NEED_CITE: EN 10204 inspection document types for steel products]
Procurement Confidence Through Verified Supply
Every Galvanized C Channel Steel order ships with original mill test certificates traceable to specific heat numbers, verified by our in-house laboratory before dispatch. We maintain ready stock across DX51D, S235JR, and ASTM A36 in standard and custom dimensions, eliminating the coil-minimum constraints that force smaller projects into oversized purchases. SGS and BV third-party inspections are available at our facility before container loading. Professional heavy-cargo logistics teams handle flatbed and open-top container loading, preventing the zinc coating damage that occurs when galvanized sections shift during ocean transit.
Documentation & Compliance
- Mill test certificate documenting DX51D zinc coating weight and S235JR chemical composition per EN 10025-2 and ASTM A653
- CE certificate confirming compliance with EN 10219 cold-formed structural hollow section requirements
- ISO 9001:2015 quality management certificate covering galvanizing and cold-forming processes
- SGS or BV third-party inspection report verifying dimensional tolerance and coating thickness before shipment
- Full material traceability by heat number from raw galvanized coil to finished C channel
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Galvanized C channels bundled with soft-edge steel straps and cardboard edge protectors to preserve zinc coating integrity during handling and ocean transit
- Custom cut-to-length sections separated by timber dunnage within bundles, preventing zinc abrasion between nested profiles
- Container loading optimized for 1–6 m lengths in 20ft units and 6–12 m in 40ft open-top containers, with weight distribution calculated to avoid overweight axle penalties at destination ports
- Each bundle tagged with heat number, steel grade, size designation, and purchase order reference for site identification
- FOB, CIF, and DDP shipping terms available with professional break-bulk experience for project cargo exceeding container capacity
Securing Your Galvanized C Channel Steel Quote
Submit your required steel grade, section dimensions, length, quantity, and destination port to receive a detailed quotation including material cost, processing fees, and shipping terms within 12 hours. We provide original mill test certificates for review before contract signing, and third-party inspection scheduling is available at your request.
Request Galvanized C Channel Steel Pricing with Mill Test Certificates
Send your specifications to receive a complete quotation with material traceability documentation.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjyplate.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjyplate.com
Frequently Asked Questions
Q: What is the difference between DX51D, S235JR, and ASTM A36 for galvanized C channels?
A: DX51D is a commercial forming grade optimized for cold roll-forming with galvanized coating applied post-forming. S235JR is a European structural grade meeting EN 10025-2 with higher yield strength for load-bearing applications. ASTM A36 serves the same structural function under American standards, widely specified for projects in North America and the Middle East.
Q: How can I verify the galvanized coating thickness before shipment?
A: We provide coating weight test reports per ASTM A653 or EN 10346 with every shipment. SGS or BV third-party inspection is available at our facility to independently verify coating thickness using magnetic gauge testing before container loading.
Q: Can galvanized C channels be custom-punched and cut-to-length before delivery?
A: Yes. Our processing services include bending, punching, cutting, and welding to your fabrication drawings. Custom-punched sections ship ready for bolted assembly, reducing on-site labor and drilling costs.
Q: What is the minimum order quantity for mixed sizes?
A: The MOQ is 3 tons per order. Mixed sizes and lengths can be combined within a single shipment, making this suitable for projects requiring multiple section dimensions without meeting full-coil minimums.
Q: How are galvanized C channels loaded to prevent coating damage?
A: Sections are bundled with edge protectors, separated by timber dunnage, and secured with soft straps. Container loading plans account for weight distribution and section geometry to prevent shifting and zinc abrasion during ocean transit.
