Description
Direct Mill Supply for Verified Galvanized Channels — Every Q235 and Q345 galvanized C-channel rolls out with original MTC and zinc coating measured before loading.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized C-Channel Steel Profile |
| Product Type | C Channel / U Channel Steel |
| Steel Grade | Q195, Q235, Q345, ASTM A36, ASTM A53, DC01, API 5L, SPCC |
| Standard | GB/T 2101-89, GB 9787-88, GB 9788-88, JIS G3192-94, DIN 17100-80 |
| Section Shape | C Channel / U Channel |
| Size Range | Equal: 20×20–200×200 mm; Unequal: 25×16–200×125 mm |
| Wall Thickness | 3–24 mm |
| Length | 1–12 m or customized |
| Technique | Bending, Welding, Punching, Cutting, Decoiling |
| Surface Treatment | Galvanized / Painted |
| Tolerance | ±1% |
| Application | Building structures, engineering structures, beams, bridges, transmission towers, lifting and transportation machinery, shipbuilding, industrial furnaces, container frames, cable trench supports, warehouse shelves |
| MOQ | 3 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, bridge support beams, transmission tower cross-arms |
| Industrial Structures | Warehouse shelf uprights, cable trench supports, container frame rails |
| Machinery & Equipment | Lifting transportation machinery bases, industrial furnace support frames |
| Shipbuilding & Marine | Deck support channels, hatch coaming stiffeners |
Zinc Coating Thickness Is Where Galvanized C-Channel Steel Orders Go Wrong
Specified coating weight means nothing without pre-shipment membrane thickness verification.
I watched an entire warehouse project in Lagos stall for twenty-three days because the galvanized C-channel steel arrived with 45-micron zinc instead of the contracted 80-micron minimum. The material had to be recoated on-site, and the main contractor nearly filed a claim. Since then, I carry a coating thickness gauge to every loading bay and test every bundle before it leaves the factory floor. Missing certifications and inconsistent grade equivalence between GB, EN, and ASTM standards create the same kind of downstream damage — customs holds, failed structural inspections, and fabrication rework that no amount of price discount can offset [NEED_CITE: galvanized steel coating thickness standards and inspection methods].
Matching Galvanized C-Channel Steel to Structural Load Paths
When engineers specify Q235 or Q345 galvanized C-channel steel for transmission towers or warehouse frames, the zinc layer must survive both the forming process and decades of corrosive exposure without flaking at bolt holes or weld zones. Our galvanizing line maintains consistent coating adhesion across the full 3–24 mm thickness range, and the ±1% dimensional tolerance means field crews can bolt channels together without shimming or reaming. For projects spanning multiple standard systems, we lock down grade equivalence — Q345 to S355JR to ASTM A572 — before the first piece is cut, so the galvanized C-channel steel arrives with documentation that satisfies both the structural engineer and the port authority.
Engineering Compliance and Certification Requirements
Galvanized C-channel steel used in load-bearing frames must conform to the dimensional and mechanical requirements of the governing standard — whether that is GB/T 2101 for domestic projects, JIS G3192 for Southeast Asian infrastructure, or DIN 17100 for European-spec structures. The zinc coating itself must meet minimum thickness thresholds for the intended corrosion environment; marine and industrial atmospheres demand heavier coatings than indoor warehouse applications. Certification traceability becomes critical at customs: a missing or incomplete Mill Test Certificate can hold an entire container at the destination port for weeks [NEED_CITE: structural steel certification requirements for international trade]. For projects requiring third-party validation, we arrange SGS or BV inspection at the mill before shipment, covering chemical composition, mechanical properties, and coating thickness in a single report.
Steel Grade Selection and Galvanizing Process Fundamentals
The Q-series grades — Q195, Q235, Q345 — follow the Chinese yield strength designation system, where the number indicates minimum yield strength in MPa. Q235 remains the default for general structural channels, while Q345 provides higher load capacity for bridge and heavy equipment frames. ASTM A36 serves as the North American equivalent for mild structural steel, and DC01 covers cold-rolled forming applications where deep drawing is required. Hot-dip galvanizing bonds a zinc-iron alloy layer to the steel substrate, providing sacrificial corrosion protection that outperforms paint systems in outdoor and high-humidity environments. The galvanizing bath temperature and immersion duration directly affect coating thickness and adhesion — factors that distinguish a channel that lasts twenty years in the field from one that shows red rust within two seasons. Wall thickness tolerance at ±1% ensures that theoretical weight calculations match actual delivered weight, preventing the hidden cost of negative-tolerance practices that erode structural capacity [NEED_CITE: hot-dip galvanizing process parameters and coating quality standards].
Hidden Costs of Procuring Galvanized C-Channel Steel Without Verification
Choosing the wrong steel grade or accepting incomplete certification does not show up in the purchase price — it surfaces during structural inspection, customs clearance, or years later as premature corrosion failure. A channel stamped Q235 that fails tensile testing at the job site triggers full-batch rejection and project delays that dwarf any per-ton savings. Coating thickness below specification forces on-site recoating under field conditions that never match factory quality. Missing heat number traceability means the entire batch becomes unusable for certified structures, regardless of whether the material itself is sound [NEED_CITE: consequences of non-compliant structural steel in construction projects].
Procurement Confidence Through Verified Supply Chain Control
As a dedicated plate and coil division operating under ISO 9001:2015 and CE certification, we control the full chain from mill rolling to final loading. Every galvanized C-channel steel profile ships with an original Mill Test Certificate documenting chemical composition and mechanical properties by heat number. Our in-house coating thickness verification happens before any bundle is cleared for shipment — not as a sampling exercise, but as a piece-by-piece check on every order. For buyers requiring independent validation, we coordinate SGS or BV third-party inspection at the production facility. Custom cutting, bending, and punching services mean the galvanized C-channel steel arrives at your site ready to install, reducing field labor and waste. Professional heavy cargo loading using flatbed and open-top container configurations prevents coating damage during ocean transit, and our logistics team manages the full export documentation package from commercial invoice to certificate of origin.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q345 chemical composition and yield strength per GB/T 2101-89 and GB 9787-88
- CE certificate confirming conformity with European structural steel requirements for galvanized channel profiles
- ISO 9001:2015 quality management certificate covering the full galvanizing and fabrication process
- SGS or BV third-party inspection report covering zinc coating thickness, dimensional tolerance, and mechanical testing
- Full material traceability by heat number linking each galvanized C-channel to its original mill test record
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

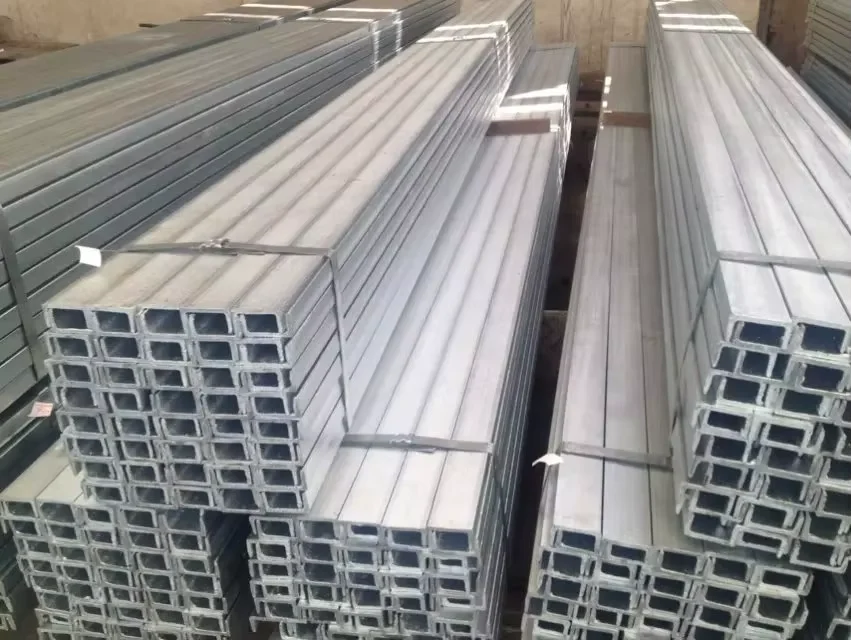

- Galvanized C-channel steel bundled with steel strips and edge protectors to preserve the zinc coating during handling and ocean transit
- Surface protection maintained through seaworthy packaging with moisture barriers for long-distance shipment of Q235 and Q345 profiles
- Open-top container and flatbed loading optimized for 1–12 m channel lengths, maximizing payload while preventing coating abrasion
- Custom cutting to project-specific lengths available, reducing on-site waste and labor for warehouse shelf and transmission tower applications
- Heat number and steel grade identification marked on each bundle for traceability verification at destination port
- FOB, CIF, and DDP shipping terms available with full export documentation and tracking through final delivery
Getting Your Galvanized C-Channel Steel Quote Started
Send us your required steel grade, channel dimensions, thickness, length, quantity, and destination port, and we respond within twelve hours with a detailed quotation covering material cost, any custom processing fees, and shipping terms. We provide the Mill Test Certificate for your review before shipment, and we confirm coating thickness and dimensional tolerance against your project specification. For non-standard sizes or custom bending and punching requirements, we provide a fabrication plan with lead time before you commit.
Frequently Asked Questions
Q: How do Q235, Q345, and ASTM A36 compare for galvanized C-channel applications?
A: Q235 and ASTM A36 are both mild structural grades with similar yield strength, suitable for general building frames and warehouse structures. Q345 offers higher yield strength for heavier load applications such as bridge supports and transmission towers. We provide grade equivalence documentation to ensure your specified material meets the governing standard.
Q: Can you provide Mill Test Certificates and arrange third-party inspection before shipment?
A: Yes. Every order ships with an original Mill Test Certificate documenting chemical composition and mechanical properties by heat number. We also coordinate SGS or BV third-party inspection at our facility for buyers requiring independent verification of coating thickness and dimensional accuracy.
Q: What is the minimum order quantity for custom galvanized C-channel dimensions?
A: The standard MOQ is 3 Tons. For non-standard sizes outside the equal and unequal ranges listed, we evaluate the cutting and processing requirements and confirm feasibility before you place the order.
Q: Galvanized versus painted finish — which is better for outdoor structural use?
A: Hot-dip galvanizing provides superior corrosion resistance for outdoor, marine, and high-humidity environments through sacrificial zinc protection. Painted finishes suit indoor or controlled environments where appearance is the primary concern. We can advise based on your specific project conditions.
Q: How do you handle loading and shipping for heavy galvanized channel steel?
A: We use flatbed trucks and open-top containers with specialized blocking and edge protection to prevent coating damage. Our logistics team has extensive experience with heavy cargo loading, and we manage the full export documentation for smooth customs clearance at your destination.
Get Verified Galvanized C-Channel Steel With Full Traceability
Submit your specifications, steel grade, quantity, and destination port to receive a detailed quotation and Mill Test Certificate within twelve hours.
