Description

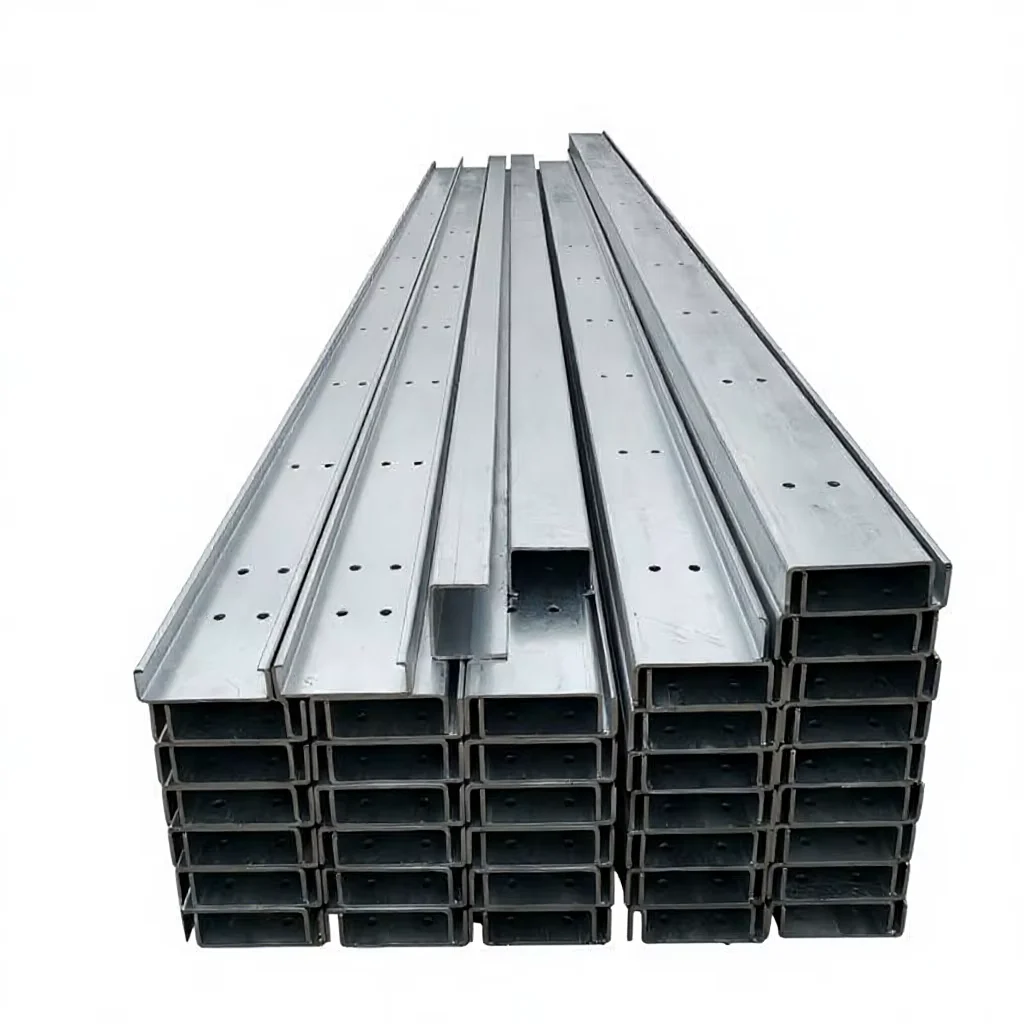

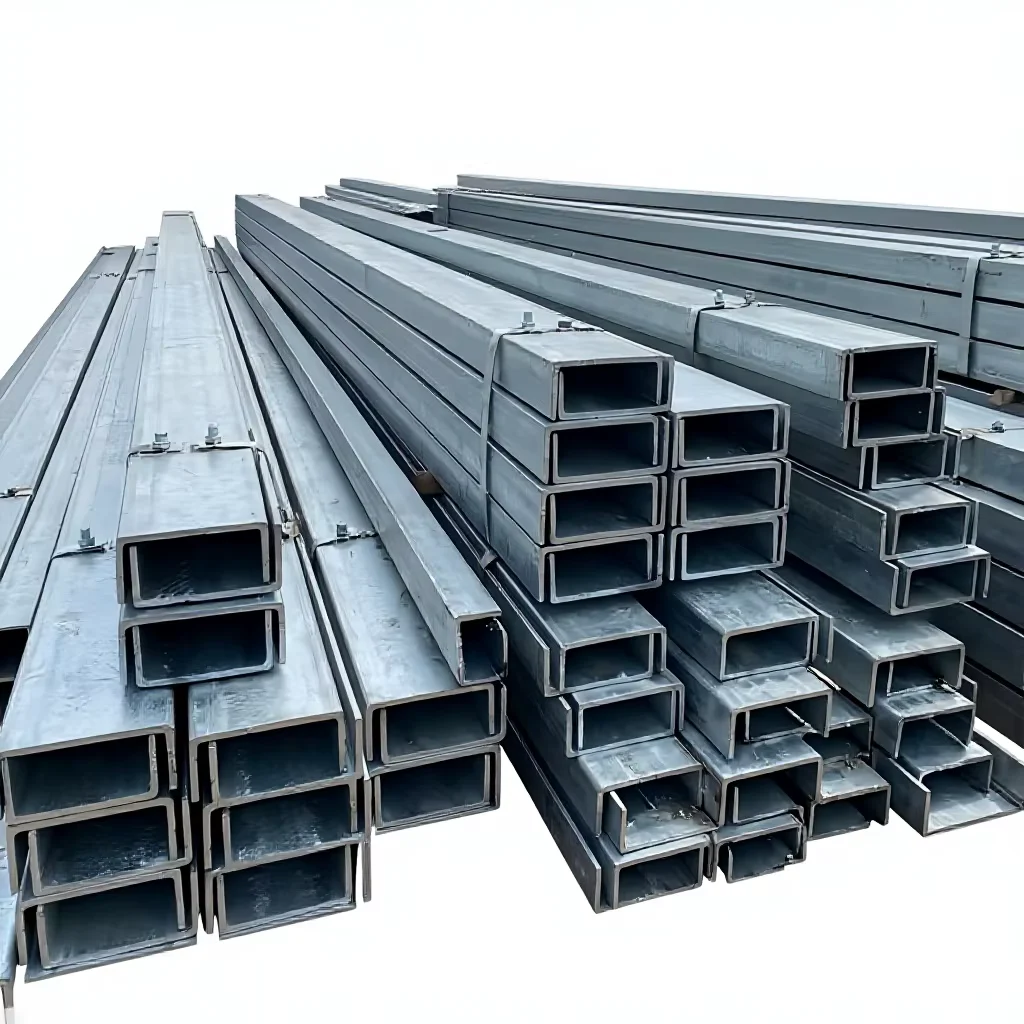

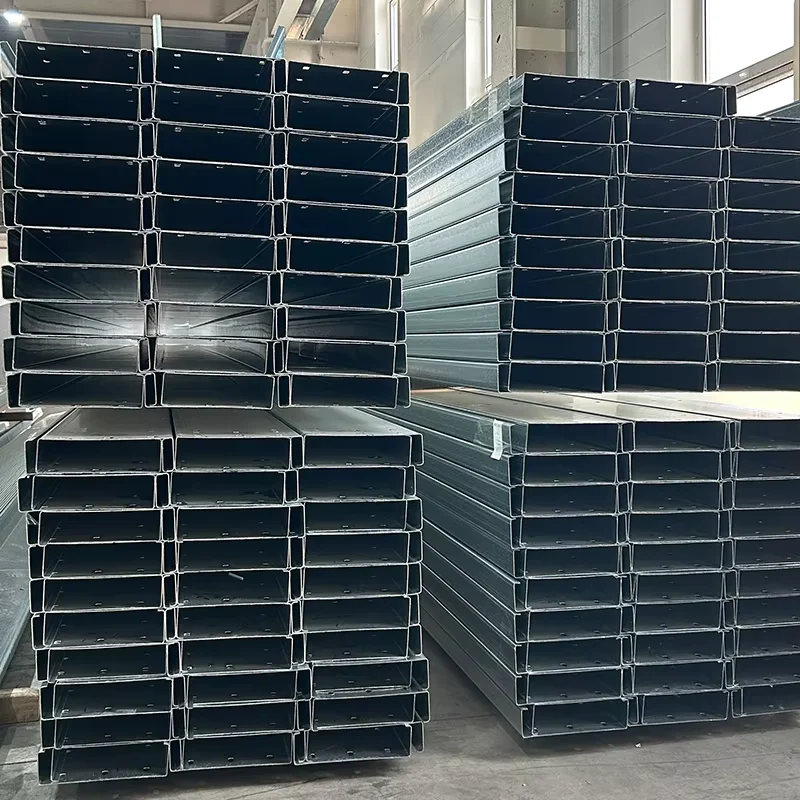

Direct Mill Supply for Galvanized C Purlins — XJY Plate produces Q235B and Q355B C channel steel in-house, eliminating trading markups on every ton shipped.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q355B C Channel Steel |
| Product Type | C Channel Steel |
| Steel Grade | Q235B, Q355B |
| Standard | GB |
| Section Shape | C Channel |
| Size Range | C100, C120, C140, C160 and others (customizable) |
| Technique | Cold-formed / High-frequency welded |
| Surface Treatment | Hot-dip galvanized / Anti-corrosion paint |
| Tolerance | ±1% |
| Texture | Q235B, Q355B, Stainless Steel, Aluminum Alloy |
| Processing Service | Welding, Cutting |
| Application | Steel structure, Warehouse, Workshop, Hangar, Garage, Building purlins, Steel structure supports |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel Structure Fabrication | Warehouse frames, workshop purlin systems, hangar roof supports |
| Construction & Infrastructure | Garage structural framing, building purlins, load-bearing supports |
| Industrial Facilities | Conveyor support structures, equipment platforms, mezzanine framing |
| Coastal & Chemical Projects | Corrosion-exposed structural members requiring hot-dip galvanized protection |
Thickness Tolerance and Zinc Coating Weight Decide Whether Your Purlins Pass Site Inspection
A ±1% tolerance on galvanized C channel steel is not a luxury — it is the difference between passing third-party inspection and paying return freight.
I have watched entire container loads of C purlins get rejected at a Chilean copper mine because the galvanized coating fell below the micrometer threshold the client’s SGS inspector enforced. The steel itself was fine — Q355B grade, straight sections, clean welds — but the zinc layer was too thin for the coastal-atmosphere corrosion class specified in the contract. The re-galvanizing cost doubled the original invoice, and the project schedule slipped by weeks. When you source Q235B Q355B galvanized C channel steel supplier products for structural purlins, you need the mill test certificate to confirm both base metal chemistry and coating weight before the container leaves the port [NEED_CITE: hot-dip galvanizing coating thickness standards for structural steel].
How Cold-Formed C Channels Match Purlin Load Requirements
Cold-formed C channel steel in Q235B serves small-span warehouse roofs and light-duty garage framing where seismic loads remain low. When the engineering drawing calls for Q355B, the higher yield strength handles longer spans across workshop bays and hangar structures without increasing section depth. Our cold-forming process holds ±1% dimensional tolerance across C100 through C160 profiles, which means the purlin sits flush against the rafter clip — no field bending, no shimming. For projects along the Pacific coast of Latin America or in Southeast Asian industrial zones, hot-dip galvanizing provides the corrosion resistance that painted sections cannot sustain beyond two maintenance cycles.
Engineering Compliance and Certification for Structural Purlins
Structural purlins in steel-frame warehouses must conform to load-bearing codes that reference specific steel grades and minimum coating thickness. GB-standard Q235B and Q355B map to international equivalents used across project specifications — Q235B aligns with S235JR and ASTM A36 in yield behavior, while Q355B corresponds to S355JR and ASTM A572 Grade 50 for higher-strength demands [NEED_CITE: steel grade equivalence between GB, EN, and ASTM standards]. Hot-dip galvanized C channels carry CE certification for European market entry and ISO 9001:2015 quality system backing. Every heat number traces back to the original slab, so when the client’s inspector asks for the chemical composition report, the document matches the physical stamp on the steel.
Why Q235B and Q355B Cover Most Purlin Specifications
Q235B remains the default choice for general-purpose purlins in indoor warehouses and workshops where corrosion exposure is minimal and spans stay under standard bay widths. Q355B enters the specification when the structural engineer designs for heavier roof loads — solar panel arrays, suspended crane rails, or snow-load zones — and needs higher yield strength without upsizing the section. The cold-forming technique produces sharp, consistent corners that improve bearing contact at connection points, while high-frequency welding on heavier gauges ensures the seam matches the base metal strength. Hot-dip galvanizing adds a metallurgical zinc-iron alloy layer that bonds to the steel surface, outperforming electroplated or painted alternatives in humid and salt-air environments [NEED_CITE: hot-dip galvanizing vs electroplating corrosion performance comparison].
The Hidden Cost of Buying C Channels Without Verified Coating Weight
Ordering galvanized C purlins based on price alone invites three failure modes: zinc coating below the specified micrometer range triggers site rejection; negative thickness tolerance beyond ±1% reduces load capacity and fails structural calculation review; missing or forged mill test certificates block customs clearance in markets that enforce import inspection. Each failure forces either rework at destination or complete replacement shipment — costs that erase any initial price saving and damage the contractor’s reputation with the project owner [NEED_CITE: consequences of non-compliant steel imports in construction projects].
Procurement Confidence Built on Mill-Level Control
XJY Plate operates the cold-forming and galvanizing lines under one roof, so every C channel from C100 to C160 carries our direct quality responsibility — no trading company markup, no specification drift between order and delivery. Our in-house laboratory generates the mill test certificate showing Q235B or Q355B chemical composition and mechanical test results before the material leaves the facility. We stock standard sizes for immediate dispatch and produce custom lengths to reduce on-site cutting waste. Third-party inspection through SGS or BV is available at any production stage, and our logistics team loads long-length C channels on flatbed trailers or open-top containers to prevent zinc coating damage during transit.
Documentation & Compliance
- Mill Test Certificate documenting Q235B or Q355B chemical composition, yield strength, and tensile properties per GB standard
- CE certificate confirming conformity for European market structural steel requirements
- ISO 9001:2015 quality management system certificate covering cold-forming and galvanizing processes
- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional tolerance
- Full material traceability by heat number from slab to finished C channel
- Export customs documents including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Hot-dip galvanized C channels bundled with steel strips and edge protectors to preserve zinc coating during ocean freight
- Anti-corrosion painted sections wrapped in waterproof paper with wooden pallet support for container loading
- Custom cut-to-length service available, reducing on-site waste and fitting standard container dimensions for C100–C160 profiles
- Each bundle labeled with heat number, steel grade (Q235B/Q355B), size specification, and purchase order reference
- Flatbed truck delivery for domestic projects; open-top container or break-bulk shipping for international orders exceeding standard container length
- FOB, CIF, and DDP terms available with full export documentation and tracking until port arrival
Start Your Procurement With Verified Specifications
Submit your C channel requirements — steel grade, section size, length, surface treatment, and destination port — and receive a detailed quotation with mill test certificate preview within hours. Our engineering team confirms dimensional compatibility with your structural drawings and arranges third-party inspection if your project demands independent verification.
Get Your Galvanized C Channel Quote With Mill Test Certificate
Send your specification list to receive pricing, coating confirmation, and delivery schedule.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjyplate.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjyplate.com
Frequently Asked Questions
Q: What is the difference between Q235B and Q355B for C channel purlins?
A: Q235B suits standard warehouse and workshop purlins with moderate spans and light roof loads. Q355B provides higher yield strength for longer spans, heavier roof systems including solar arrays, and structures in higher seismic zones. Both grades are available in hot-dip galvanized or painted finish.
Q: Can you provide hot-dip galvanized C channels with specific zinc coating weight?
A: Yes. We produce hot-dip galvanized C channel steel to your specified coating class. Every shipment includes mill test documentation confirming coating thickness, and we accept SGS or BV third-party inspection to verify compliance before loading.
Q: What sizes and lengths are available for C channel purlins?
A: Standard sections include C100, C120, C140, and C160 with ±1% dimensional tolerance. Custom sizes are available based on your project drawings. Lengths can be cut to specification to reduce on-site waste and optimize container loading.
Q: Do you provide mill test certificates for export shipments?
A: Every order includes an original mill test certificate showing chemical composition and mechanical properties for the specific heat number. The certificate traces from the original slab through cold-forming and galvanizing to the finished bundle.
Q: How do you handle shipping for long-length C channels?
A: Standard C channels ship in bundled packages on flatbed trucks for domestic delivery. For international orders, we use open-top containers or break-bulk vessels to accommodate lengths exceeding standard container dimensions, with edge protectors preserving the galvanized coating during transit.
